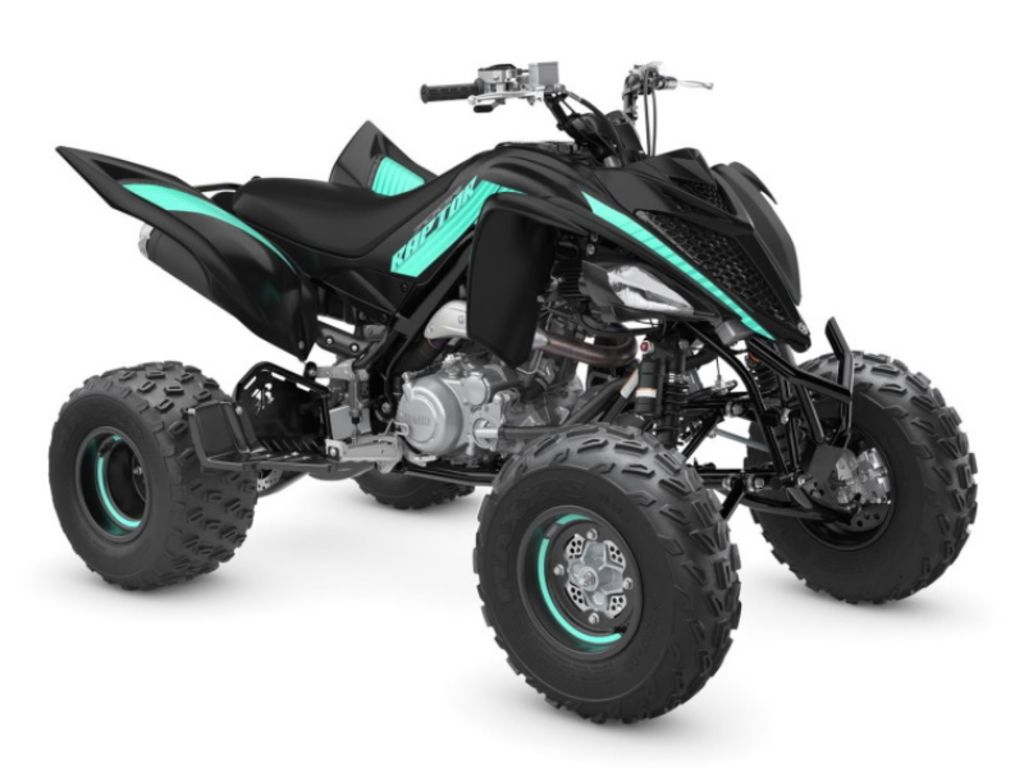

2023 Yamaha Raptor 700R SE

ALL HAIL THE KING

Boasting GYTR performance parts, unique color and graphics, and unmatched performance, this machine is Sport ATV royalty.

Features may include:

TOP FEATURES

Aggressive SE Style

Aggressive styling lends the Raptor 700R SE the menacing looks to match its impressive performance. With added features like a dealer-installed GYTR® front grab bar and heel guards to match its unique graphics package, the mighty Raptor 700R SE is ready to go whether the destination is the dunes, the trails or the track.

Big-Bore Power

Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big-bore Sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.

ENGINE

Smooth, Powerful Engine

The forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong for a hard-hitting, quick-revving powerplant that revs all the way to 9,000 rpm while the dual counterbalancers keep it smooth.

Advanced Fuel Injection

The Yamaha Fuel Injection (YFI) offers consistent and excellent engine performance in a wide range of conditions, elevations and temperatures.

Digital Ignition

The digital TCI with 32-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.

CHASSIS/SUSPENSION

High-Tech Chassis

The state-of-the-art chassis combines a steel front section with a YZ-style piggyback rear shock that gives 10.1-inch wheel travel along with preload adjustment.

Advanced Suspension

YZ-style piggyback shocks are fully adjustable with high- and low-speed compression adjustability for maximum sport versatility along with preload and rebound adjustment. Front wheel travel is a plush 9.1 inches while the rear shock provides 10.1 inches of wheel travel.

ADDITIONAL FEATURES

Sporty Ergonomics

The long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.

High Visibility Lighting

Multi-reflector 30-watt Krypton headlights that are set back in the front cowl add the perfect, no-compromises sporting accent, and an LED taillight provides great visibility.

Large Fuel Tank

Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.

Basic Information

Year: 2023
Make: Yamaha
Model: Raptor
Trim: 700R SE
Stock Number: U34699
VIN: 5Y4AML6Y5PA100873
Condition: Used
Type: Sport

Engine

Fuel Type: Gasoline
Bore (in): 4.02
Bore (mm): 102
Carburetion Type: Fuel Injected
Compression Ratio: 10.0:1
Cylinders: 1
Displacement (ci): 41.9
Engine Cooling: Liquid
Engine Size (cc): 686
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 2.9
Fuel Injector
Fuel Injector Size (mm): 44
Fuel Requirements: Regular
Starter Type: Electric
Stroke (in): 3.31
Stroke (mm): 84
Valve Configuration: SOHC
Valves: 4
Valves Per Cylinder: 4

Chassis / Suspension

Frame: Aluminum / Steel
Front Adjustable Fork Pre-Load
Front Adjustable Rebound Damping
Front Travel (in): 9.1
Front Travel (mm): 231.1
Number Rear Shock Absorbers: 1
Rear Adjustable Rebound Damping
Rear Adjustable Shock / Spring Pre-Load
Rear Suspension Material: Aluminum
Rear Travel (in): 10.1
Rear Travel (mm): 256.5
Steering Control: Handlebar
Steering Type: Manual
Suspension - Front: Independent Double Wishbone
Suspension - Rear: Swing Arm

Comfort

Adjustable Levers
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Manual
Driveline Type: 4X2
Number Of Driveline Modes: 1
Rear Solid Axle
Number Of Speeds: 5
Primary Drive (Rear Wheel): Chain
Reverse

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Hydraulic Disc
Headlight(s)

Specifications

Bash Plate (Front)
Body Material: Plastic
Front Tire Diameter (in): 22
Front Tire Width: 7
Ground Clearance (in): 9.5
Ground Clearance (mm): 241.3
Height (Inches): 43
Height (mm): 1115.1
Length (Inches): 72
Length (mm): 1844
Rear Tire Diameter (in): 20
Rear Tire Width: 10
Tube / Tubeless: Tubeless
Wet Weight (kg): 191.4
Wet Weight (lbs): 422
Wheelbase (in): 50.4
Wheelbase (mm): 1280.2
Wheels Composition: Aluminum
Width (Inches): 45
Width (mm): 1155.7
