2025 Yamaha XT 250 Single-Cylinder 249 JYADG24EXSA019310 - Filer’s Powersports

 

1 of 6 Photos

 View Large Images

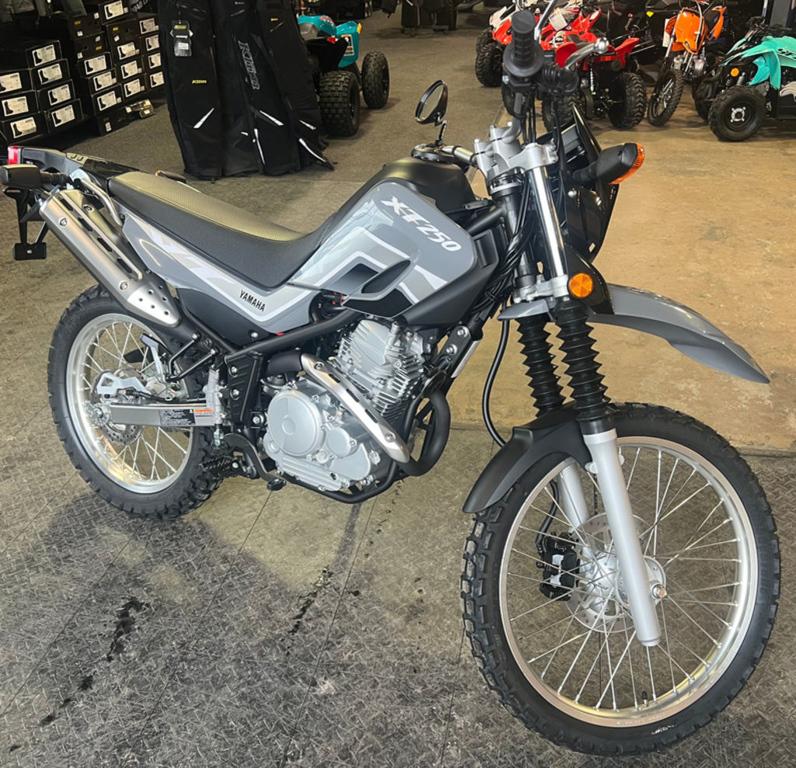

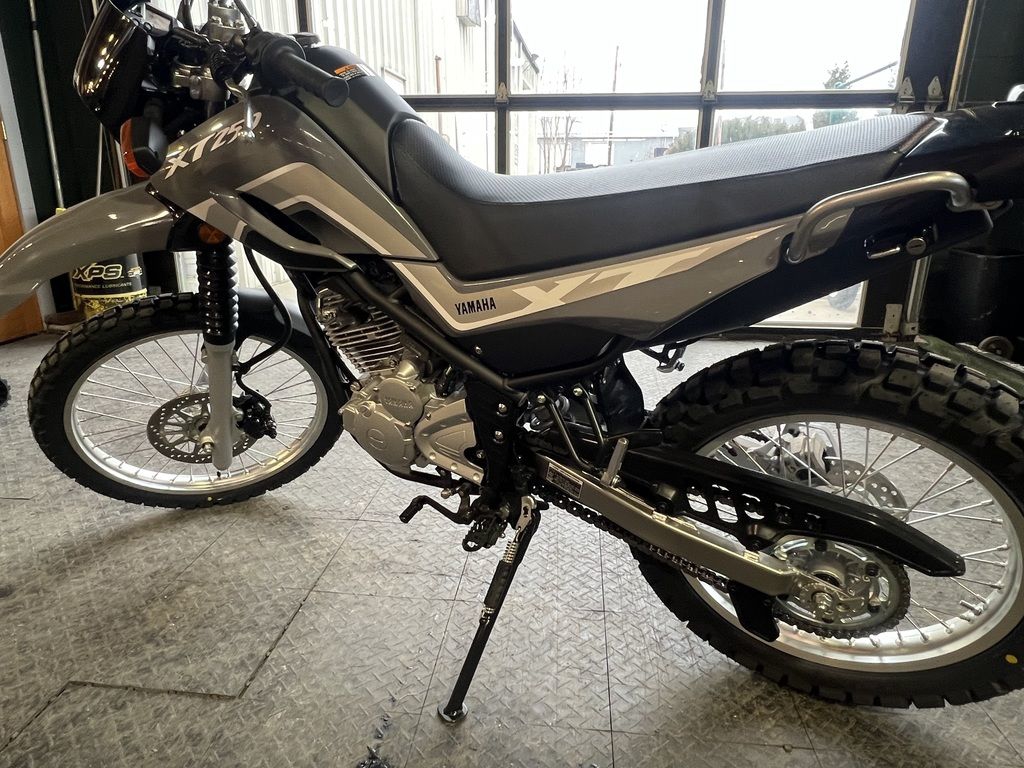

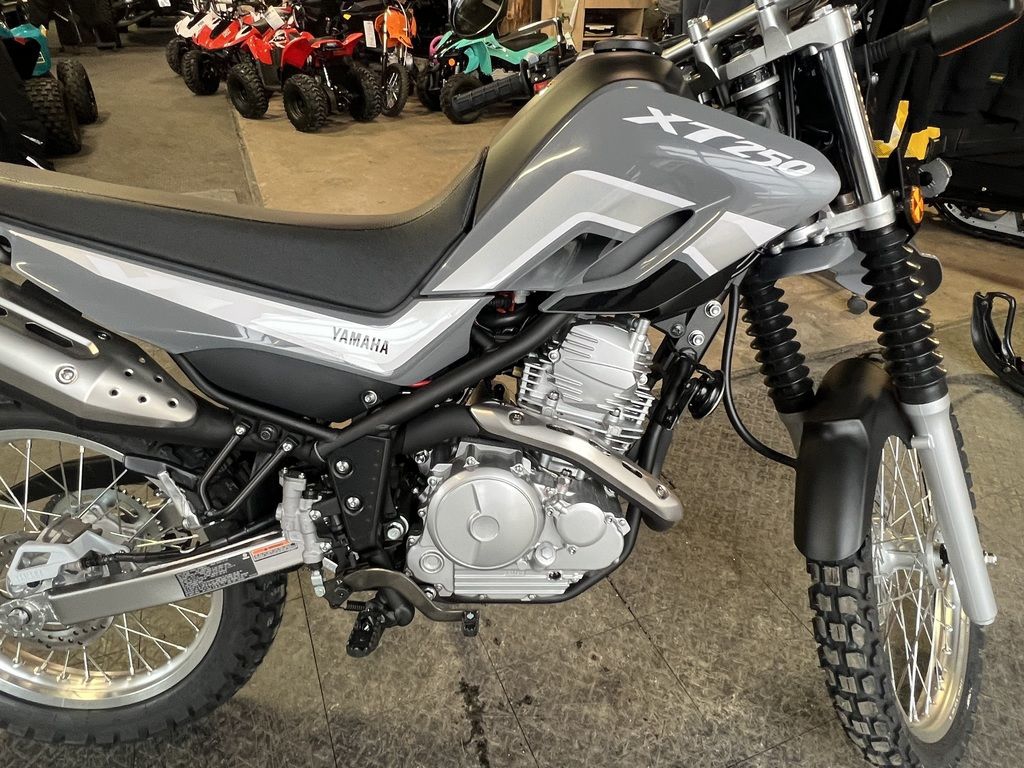

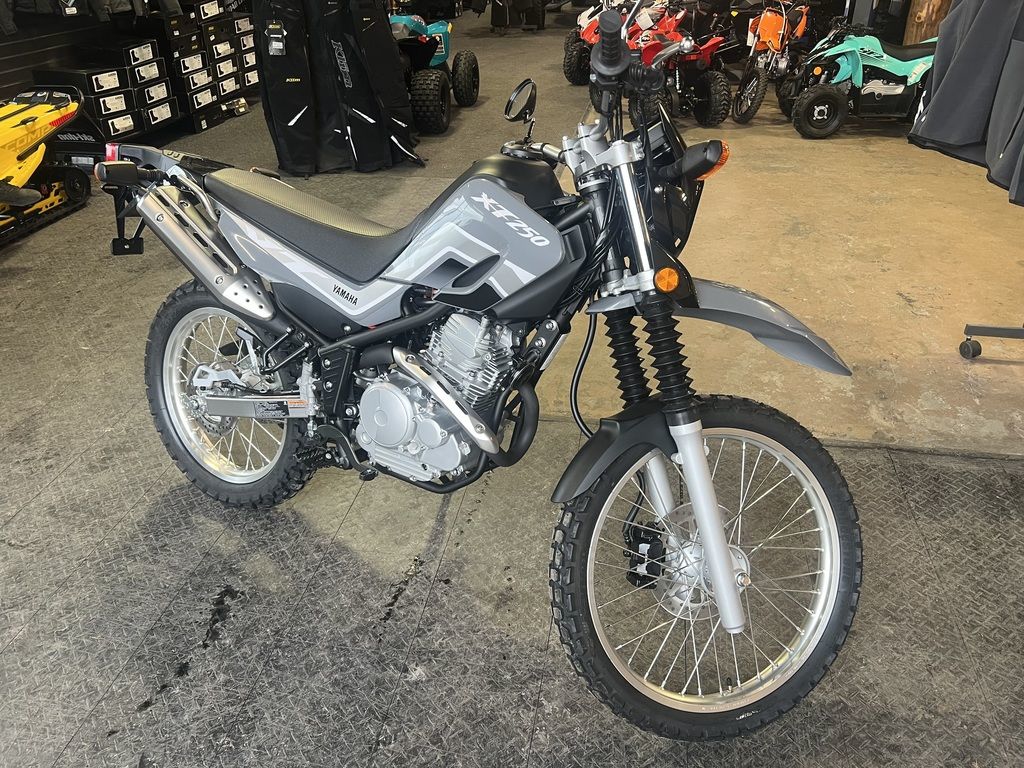

2025 Yamaha XT250

GO ANYWHERE DUAL SPORT

With electric start and a low seat height, the light, nimble and reliable XT250 is built to go wherever you go. On- or off-road.

Features may include:

TOP FEATURES

Advanced Long-Travel Suspension

Long-travel suspension with more than 11.2 inches of ground clearance live under a seat that's only 31.9 inches from the ground.

Modern Fuel Injection

The XT250's fuel injection offers smooth throttle response and easy starting in a range of conditions.

Convenient Electric Start

Electric start makes firing up the 249cc four-stroke effortless.

Front & Rear Disc Brakes

A 245mm front disc and 203mm rear disc brakes combine to deliver superb stopping power on both paved and unpaved surfaces.

ENGINE

Reliable Four-Stroke Motor

The 249cc air-cooled four-stroke with 9.5:1 compression makes for great on- and off-road performance.

Modern Fuel Injection

The XT250's fuel injection offers smooth throttle response and easy starting in a range of conditions.

Advanced Cylinder Design

A light and strong forged piston inside a plated cylinder helps dissipate heat more efficiently, increasing both performance and durability.

Responsive Power

A light crankshaft provides quick, responsive power.

CHASSIS/SUSPENSION

Strong, Compact Frame

A semi-double-cradle steel frame achieves a lighter, nimbler feel through optimized mass centralization. Greater lateral and torsional rigidity along with reduced weight of the lower frame parts help produce light, stable handling.

Advanced Long-Travel Suspension

The front fork has 8.9 inches of travel to soak up the rough stuff, both on- and off-road while an aluminum lower triple clamp reduces weight.

Nimble Steering

The maximum turning angle of the handlebar is 51 degrees "almost like a trials machine" combined with a short wheelbase of only 53.5 inches, the XT250 has a super-tight turning radius for excellent maneuverability.

Linkage-Style Shock

A rear shock provides 7.1 inches of wheel travel through a progressive Monocross® linkage system for a smooth ride.

ADDITIONAL FEATURES

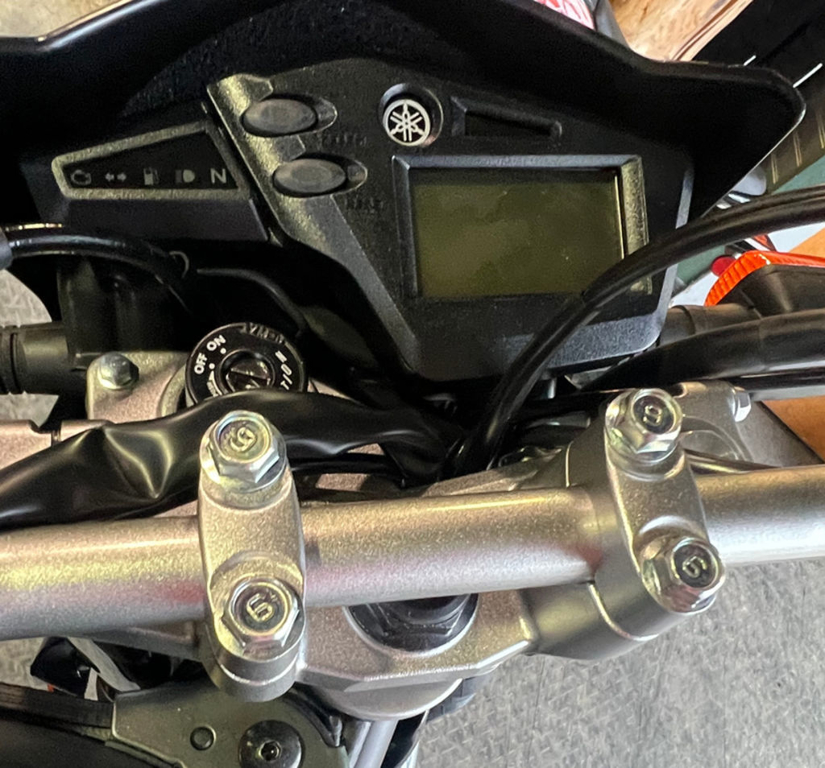

Advanced LCD Instruments

Multifunction digital LCD instrument panel with cool green background lighting is easily visible day or night. It also removes unnecessary weight from the handlebar for light, precise handling.

Extended Fuel Range

The stylish gas tank holds a full 2.6 gallons for long-range riding.

Comfortable Saddle

The long, thick seat creates a balanced riding position for optimal movement and comfort.

Protective Fenders

The durable and wide front fender is designed to keep mud and dirt off the rider when exploring off-road.

Basic Information

Year: 2025
Make: Yamaha
Model: XT
Trim: 250
Stock Number: 019310
VIN: JYADG24EXSA019310
Condition: New
Type: Standard
Title: Clean
Color: RADICAL GRAY

Brakes

Front Brake: Hydraulic Disc
Front Brake Diameter (in): 9.7
Front Brake Diameter (mm): 245
Rear Brake: Hydraulic Disc
Rear Brake Diameter (in): 8
Rear Brake Diameter (mm): 203

Chassis & Suspension

Frame: Steel
Front Suspension Size (in): 1.4
Front Suspension Size (mm): 35
Front Suspension Type: Telescopic Fork
Front Travel (in): 8.9
Front Travel (mm): 226.1
Number Rear Shock Absorbers: 1
Rear Adjustable Rebound Damping
Rear Adjustable Shock / Spring Pre-Load
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 7.1
Rear Travel (mm): 180.3

Comfort

Digital Instrumentation
Trip Odometer

Drivetrain

Number Of Speeds: 5
Primary Drive (Rear Wheel): Chain
Transmission: Manual
Transmission Gear Ratio (1): 2.85
Transmission Gear Ratio (2): 1.81
Transmission Gear Ratio (3): 1.32
Transmission Gear Ratio (4): 1.04
Transmission Gear Ratio (5): 0.82

Engine

Bore (in): 2.92
Bore (mm): 74
Carburetion Type: Fuel Injected
Compression Ratio: 9.5:1
Cooling System: Air
Cylinders: 1
Engine Disp. to Weight (cc): 0.86
Engine Size (cc): 249
Engine Size (ci): 15.2
Engine Stroke: 4-Stroke
Engine Type: Single-Cylinder
Fuel Capacity (gal): 2.5
Fuel Injector
Fuel Requirements: Regular
Horsepower RPM: 7500
Starter: Electric
Stroke (in): 2.29
Stroke (mm): 58
Torque RPM: 6500
US Miles Per Gallon (Combined): 76
Valve Configuration: SOHC
Valves: 2
Valves Per Cylinder: 2

Other Information

Chain Guard
Chassis Protectors
Exhaust Guard
Exterior Covers
Exterior Guards
Foot Pegs
Foot Peg Location: Driver and Passenger
Fork Guards
Front Fender
Hand Grips
Rear Fender
Stand
Stand Type: Kick

Safety

Headlight
Headlight Type: Halogen
Fuel Level Warning
Rearview Mirrors
Skid Plate

Specifications

Body Material: Plastic
Front Tire (Full Spec): 2.75-21
Front Tire (Inches): 21
Front Tire Speed Rating: P
Front Tire Width: 2
Front Wheel Width (in): 1.6
Fuel Capacity (liters): 9
Ground Clearance (in): 11.2
Ground Clearance (mm): 284.5
Height (inches): 45
Height (mm): 1160.8
Length (inches): 84
Length (mm): 2148.8
Rear Tire (Full Spec): 120/80-18 62P
Rear Tire (Inches): 18
Rear Tire Aspect Ratio: 80
Rear Tire Speed Rating: P
Rear Tire Width: 120
Rear Wheel Width (in): 2.15
Seat Height (inches): 32
Tube / Tubeless: Tubed
Wet Weight (kg): 132
Wet Weight (lbs): 291
Wheelbase (in): 53.5
Wheelbase (mm): 1358.9
Wheels Composition: Aluminum
Width (inches): 31
Width (mm): 805.2
Speedometer
