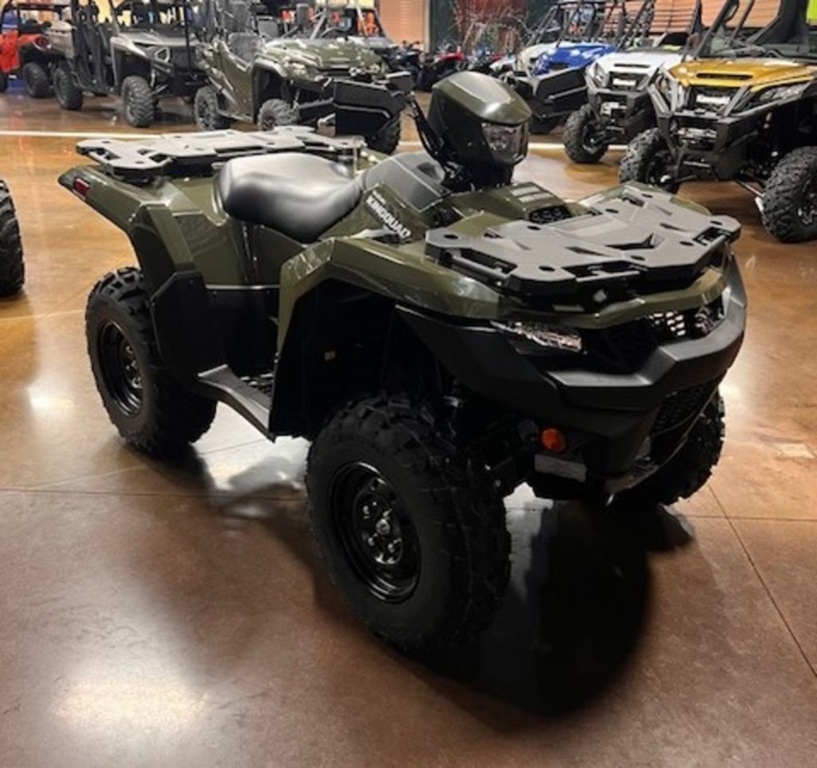

2024 Suzuki KingQuad 750AXi Power Steering

The KingQuad 750AXi Power Steering is not just a new ATV, it's a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The 2024 KingQuad 750AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features may include:

Bold, angular styling, and a relaxed riding position with low-effort electronic power steering

Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking

ENGINE

The powerful, 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to deliver stout low- to mid-range torque as well as impressive peak power.

The cylinder and head are canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. High-mount air intake avoids water and debris.

TRANSMISSION

The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during descents.

The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding.

CHASSIS

To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.

The KingQuad’s advanced electric power steering system is higher capacity than the prior generation for significantly reduced steering effort that also damps vibration and jolts to the rider.

UTILITY/CONVENIENCE

The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad's distinctive bodywork.

The multi-function instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

Basic Information

Year: 2024
Make: Suzuki
Model: KingQuad 750
Trim: AXi Power Steering
Stock Number: 100756
Condition: New
Type: Utility

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Travel (in): 6.7
Front Travel (mm): 170.2
Number Rear Shock Absorbers: 2
Rear Adjustable Shock / Spring Pre-Load
Rear Stabilizer Bar
Rear Travel (in): 7.7
Rear Travel (mm): 195.6
Steering Control: Handlebar
Steering Type: Power
Suspension - Front: Independent Double A-Arm
Suspension - Rear: Independent Double A-Arm

Comfort

Clock
Digital Instrumentation
Hour Meter
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Continuously Variable (CVT)
Engine Braking System
Differential Lock
Differential Lock Location: Front
Driveline Type: Selectable 4X2 / 4X4
Number Of Driveline Modes: 3
Hi / Low Range
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse
Transmission Brand: Quadmatic
Limited Slip Differential
Limited Slip Differential Location: Front
Primary Drive (Engine / Transmission): Belt

Engine

Bore (in): 4.1
Bore (mm): 104
Carburetion Type: Fuel Injected
Compression Ratio: 9.9:1
Cylinders: 1
Displacement (ci): 44.1
Engine Braking Brand Name: Engine Braking System
Engine Cooling: Liquid
Engine Size (cc): 722
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 4.6
Fuel Injector
Fuel Requirements: Regular
Snorkel Air Intake
Starter Type: Electric
Stroke (in): 3.35
Stroke (mm): 85
Valve Configuration: DOHC
Valves: 4
Valves Per Cylinder: 4

Other Information

Fender Storage
Fender Storage Location: Front
Front Fender Flairs
Rear Fender Flairs
Power Outlet
Hand Guards
Radiator Guard

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Sealed Oil Bath Multi-Disc
Front Brake Diameter (in): 7.9
Front Brake Diameter (mm): 200
Halogen Headlight(s)
Headlight(s)

Specifications

A-Arm Skid Plate (Front)
A-Arm Skid Plate (Rear)
Bash Plate (Front)
Bash Plate (Rear)
Body Material: Plastic
Front Tire Diameter (in): 25
Front Tire Width: 8
Full Length Skid Plate
Ground Clearance (in): 10.2
Ground Clearance (mm): 260
Height (Inches): 50
Height (mm): 1285
Length (Inches): 84
Length (mm): 2150
Rear Hitch
Rear Tire Diameter (in): 25
Rear Tire Width: 10
Storage Capacity (gal): 0.6
Storage Capacity (l): 2.8
Towing Capacity (kgs): 599.7
Towing Capacity (lbs): 1322
Tube / Tubeless: Tubeless
Wet Weight (kg): 329
Wet Weight (lbs): 725
Wheelbase (in): 50.6
Wheelbase (mm): 1285
Wheels Composition: Steel
Width (Inches): 47
Width (mm): 1215
