2025 Suzuki KingQuad 500AXi Power Steering

The KingQuad 500AXi Power Steering is not just a new ATV, it’s a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The KingQuad 500AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features may include:

Engine

The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.

Transmission

The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.

Chassis

Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.

Electrical

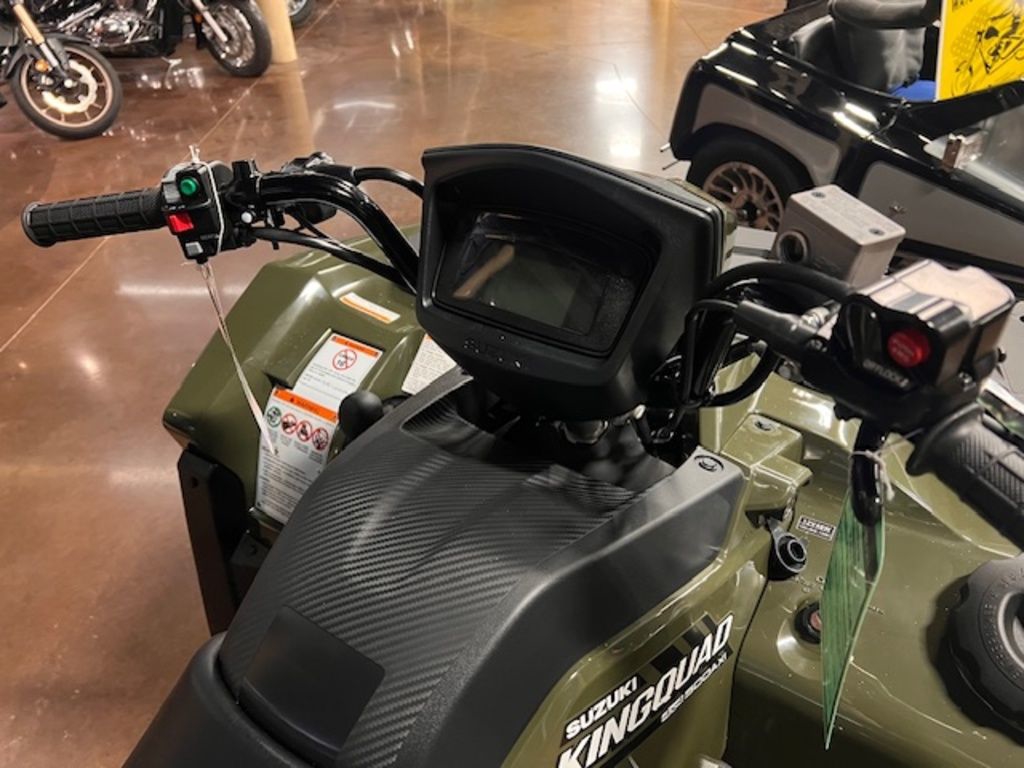

The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

Body & Styling

Available in Flame Red, Terra Green, or Desert Beige, the bold, angular bodywork features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.

Additional

Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).

Basic Information

Year: 2025
Make: Suzuki
Model: KingQuad 500
Trim: AXi Power Steering
Stock Number: 100605
Condition: New
Type: Utility

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Travel (in): 6.7
Front Travel (mm): 170.2
Number Rear Shock Absorbers: 2
Rear Adjustable Shock / Spring Pre-Load
Rear Stabilizer Bar
Rear Travel (in): 7.7
Rear Travel (mm): 195.6
Steering Control: Handlebar
Steering Type: Power
Suspension - Front: Independent Double A-Arm
Suspension - Rear: Independent Double A-Arm

Comfort

Clock
Digital Instrumentation
Hour Meter
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Continuously Variable (CVT)
Engine Braking System
Differential Lock
Differential Lock Location: Front
Driveline Type: Selectable 4X2 / 4X4
Number Of Driveline Modes: 3
Hi / Low Range
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse
Transmission Brand: Quadmatic
Limited Slip Differential
Limited Slip Differential Location: Front
Primary Drive (Engine / Transmission): Belt

Engine

Bore (in): 3.4
Bore (mm): 87.5
Carburetion Type: Fuel Injected
Compression Ratio: 9.9:1
Cylinders: 1
Displacement (ci): 30
Engine Braking Brand Name: Engine Braking System
Engine Cooling: Liquid
Engine Size (cc): 493
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 4.6
Fuel Injector
Fuel Requirements: Regular
Snorkel Air Intake
Starter Type: Electric
Stroke (in): 3.2
Stroke (mm): 82
Valve Configuration: SOHC
Valves: 4
Valves Per Cylinder: 4

Other Information

Fender Storage
Fender Storage Location: Front
Front Fender Flairs
Rear Fender Flairs
Power Outlet
Hand Guards
Radiator Guard

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Sealed Oil Bath Multi-Disc
Halogen Headlight(s)
Headlight(s)

Specifications

A-Arm Skid Plate (Front)
A-Arm Skid Plate (Rear)
Bash Plate (Front)
Bash Plate (Rear)
Body Material: Plastic
Front Tire Diameter (in): 25
Front Tire Width: 8
Full Length Skid Plate
Ground Clearance (in): 10.2
Ground Clearance (mm): 260
Height (Inches): 50
Height (mm): 1285
Length (Inches): 84
Length (mm): 2150
Rear Hitch
Rear Tire Diameter (in): 25
Rear Tire Width: 10
Storage Capacity (gal): 0.6
Storage Capacity (l): 2.8
Towing Capacity (kgs): 599.7
Towing Capacity (lbs): 1322
Tube / Tubeless: Tubeless
Wet Weight (kg): 324
Wet Weight (lbs): 714
Wheelbase (in): 50.6
Wheelbase (mm): 1285
Wheels Composition: Steel
Width (Inches): 47
Width (mm): 1215
