2026 Honda Pioneer 520 518

Price:
$10,999.00
  • Condition: New
  • Model: Pioneer 520
  • Make: Honda
  • Year: 2026
1 of 1 Photos
View Large Images
Description

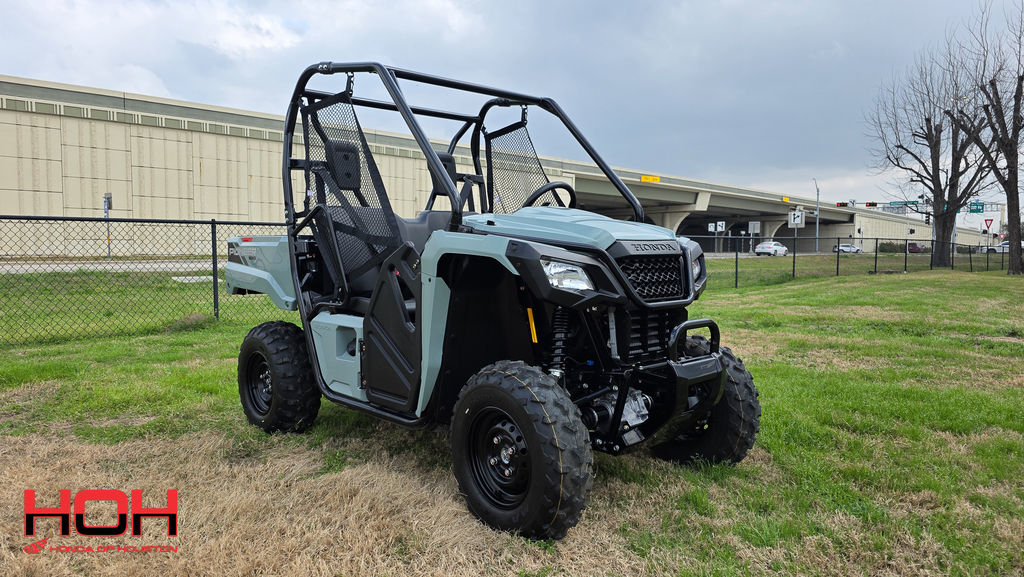

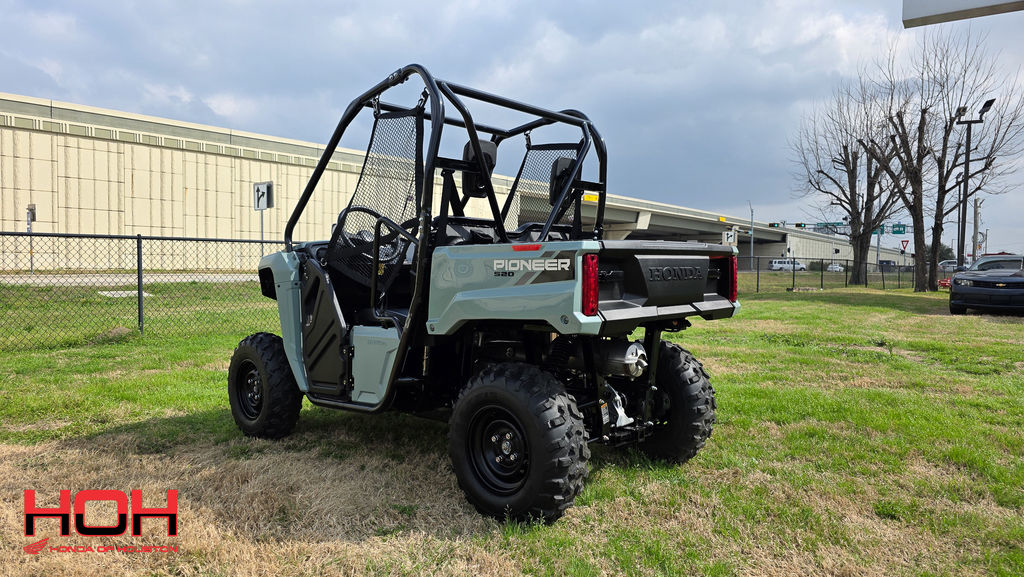

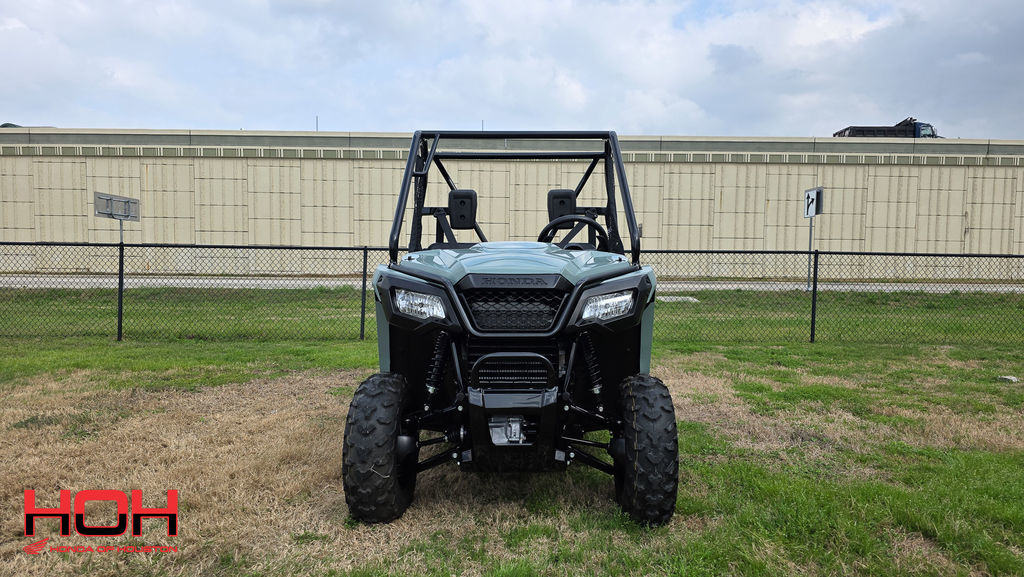

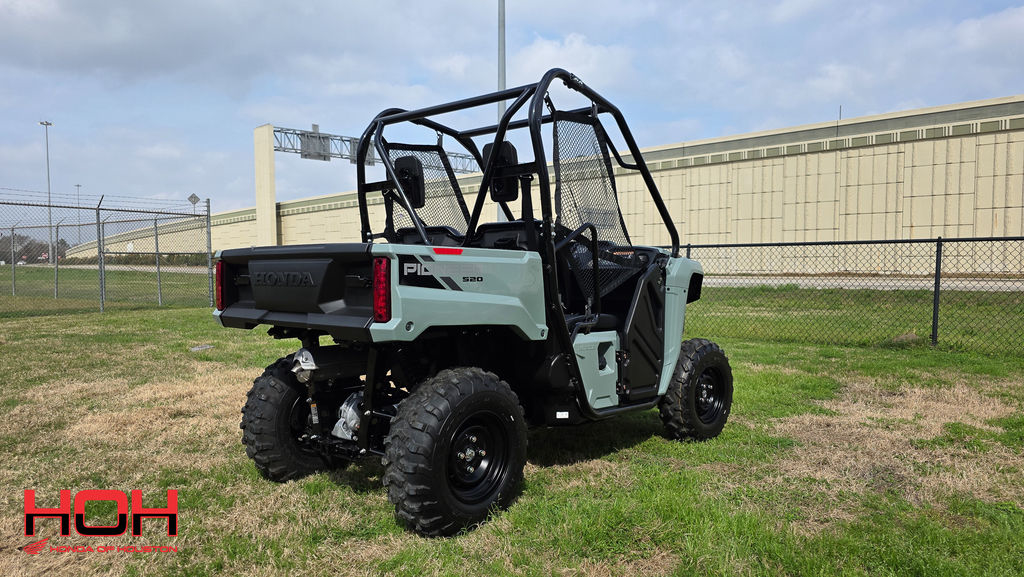

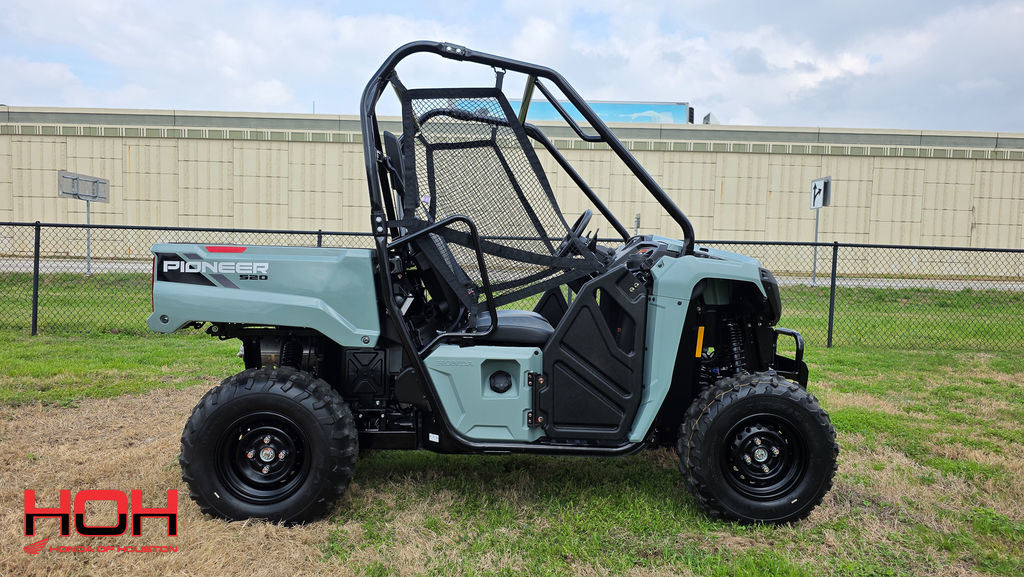

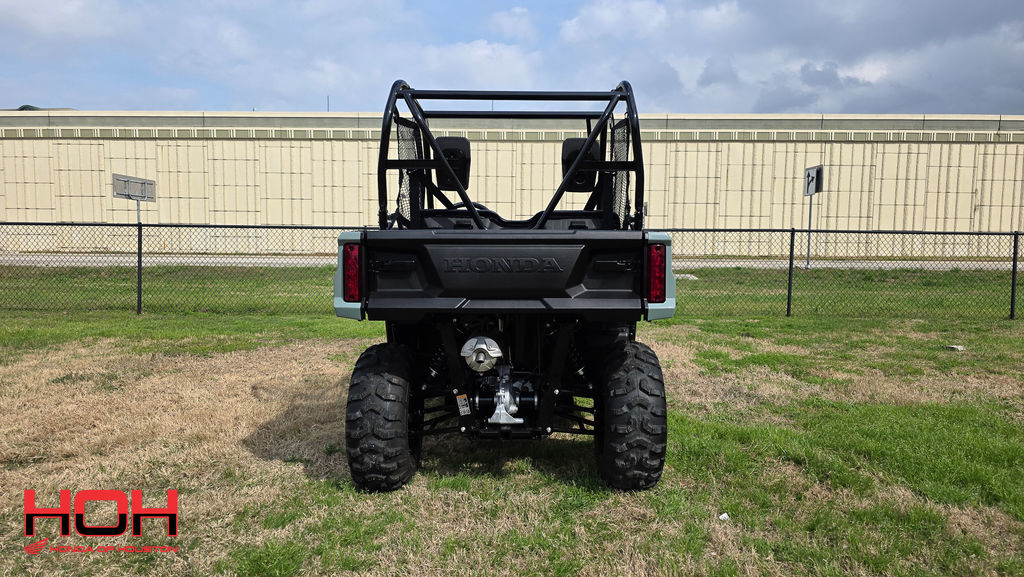

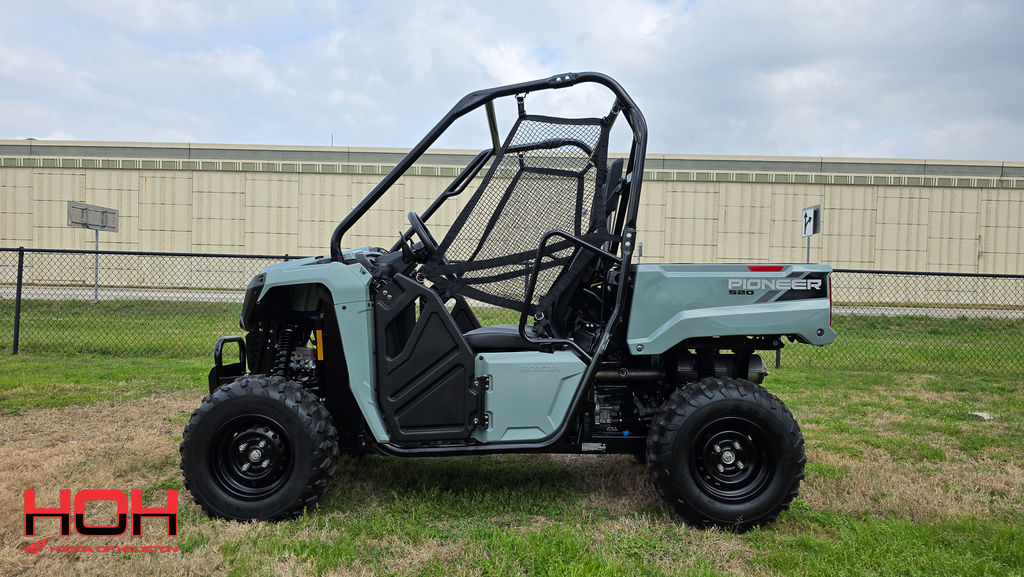

2026 Honda® Pioneer 520

Small footprint, bigger capabilities

Compact yet mighty, the updated 2026 Pioneer 520 offers exceptional versatility with its 518cc engine, 50-inch width, and 1000-pound towing capacity. Now with increased top speed, standard under-seat storage, and improved heat management to keep the cabin cooler, it's perfectly designed to fit your life's adventures.

Features may include:

  • POWERFUL 518cc ENGINE

With an engine that’s both bigger and more powerful than our Pioneer 500’s, the Pioneer 520 also features electronic fuel injection. The engine is specially tuned for low-rpm torque and coupled with an efficient five-speed automatic transmission.

  • AUTOMATIC TRANSMISSION WITH AT/MT MODE

You can let the Honda Pioneer 520’s automatic transmission shift for you, or you can still shift yourself with its paddle shifters. You can even shift from auto to manual (AT to MT) on the fly!

  • TILT/DUMP BED

The Pioneer 520 features a super-convenient tilt/dump bed that can carry up to 450 pounds. An assist strut makes dumping easy, the tailgate opens flat, and the inside of the bed is set up for plywood dividers, or to hold milk crates or plastic buckets.

  • COMPACT 50-INCH WIDTH AND TRAXLOK® 2WD/4WD

The Pioneer 520’s 50-inch overall width is a huge bonus, whether it’s for width-restricted trails or convenient transportation and storage (it fits into the bed of most full-sized pickups). Plus, TraxLok lets you choose either 2WD or 4WD

Options and Standard Features
Basic Information
  • Year: 2026
  • Make: Honda
  • Model: Pioneer 520
  • Stock Number: HU101765
  • VIN: 1HFVE0747T4101765
  • Condition: New
  • Type: Utility
  • Primary Color: GREEN
Chassis / Suspension
  • Frame: Steel
  • Front Travel (in): 5.8
  • Front Travel (mm): 147.3
  • Number Rear Shock Absorbers: 2
  • Rear Adjustable Shock / Spring Pre-Load
  • Rear Stabilizer Bar
  • Rear Suspension Material: Steel
  • Rear Travel (in): 5.9
  • Rear Travel (mm): 149.9
  • Steering Control: Steering Wheel
  • Steering Type: Rack & Pinion
  • Suspension - Front: Independent Double Wishbone
  • Suspension - Rear: Independent Double Wishbone
Comfort
  • Clock
  • Digital Instrumentation
  • Hour Meter
  • Seat Material: Vinyl
  • Seat Type: Bucket
Drivetrain
  • Transmission Type: Manual / Automatic Clutch
  • Engine Braking System
  • Differential Lock
  • Differential Lock Location: Rear
  • Driveline Brand: TraxLok
  • Driveline Type: Selectable 4X2 / 4X4
  • Number Of Driveline Modes: 2
  • Hi / Low Range
  • Number Of Speeds: 5
  • Primary Drive (Front Wheel): Shaft
  • Primary Drive (Rear Wheel): Shaft
  • Reverse
Engine
  • Bore (in): 3.78
  • Bore (mm): 96
  • Carburetion Type: Fuel Injected
  • Compression Ratio: 9.5:1
  • Cylinders: 1
  • Displacement (ci): 31.6
  • Engine Cooling: Liquid
  • Engine Size (cc): 518
  • Engine Stroke: 4-Stroke
  • Fuel Capacity (gal): 4.1
  • Fuel Capacity Reserve (gal): 1.1
  • Fuel Capacity Reserve (l): 4.2
  • Fuel Injector
  • Fuel Injector Size (mm): 36
  • Fuel Requirements: Regular
  • Starter Type: Electric
  • Stroke (in): 2.81
  • Stroke (mm): 71.5
  • Valve Configuration: OHV
  • Valves: 4
  • Valves Per Cylinder: 4
Other Information
  • Cab / Bed Divider
  • Cab Cage
  • Cab Doors
  • Cab Doors Material: Soft
  • Cab Rollbar
  • Front Fender Flairs
  • Power Outlet
  • CV Boot Cover
  • Brush Guard
  • Radiator Guard
Safety
  • Brakes - Front: Dual Hydraulic Disc
  • Brakes - Rear: Hydraulic Disc
  • Front Brake Diameter (in): 7.9
  • Front Brake Diameter (mm): 200
  • Rear Brake Diameter (in): 6.7
  • Rear Brake Diameter (mm): 170
  • Seat Belts
  • Halogen Headlight(s)
  • Headlight(s)
Specifications
  • Bash Plate (Front)
  • Bed Capacity (kgs.): 204.1
  • Bed Capacity (lbs.): 450
  • Body Material: Plastic
  • Cargo Bed Bed Height (in): 9.8
  • Cargo Bed Bed Height (mm): 249
  • Cargo Bed Bed Length (in): 25.9
  • Cargo Bed Bed Length (mm): 658
  • Cargo Bed Bed Width (in): 38.7
  • Cargo Bed Bed Width (mm): 983
  • Cargo Bed Tilt
  • Front Tire Diameter (in): 24
  • Front Tire Width: 8
  • Ground Clearance (in): 8.5
  • Ground Clearance (mm): 215.9
  • Height (Inches): 71
  • Height (mm): 1808.5
  • Length (Inches): 105
  • Length (mm): 2667
  • Rear Hitch
  • Rear Tire Diameter (in): 24
  • Rear Tire Width: 10
  • Towing Capacity (kgs): 453.6
  • Towing Capacity (lbs): 1000
  • Turning Radius (ft): 12.8
  • Wet Weight (kg): 481
  • Wet Weight (lbs): 1060
  • Wheelbase (in): 73
  • Wheelbase (mm): 1854.2
  • Wheels Composition: Steel
  • Width (Inches): 50
  • Width (mm): 1270
