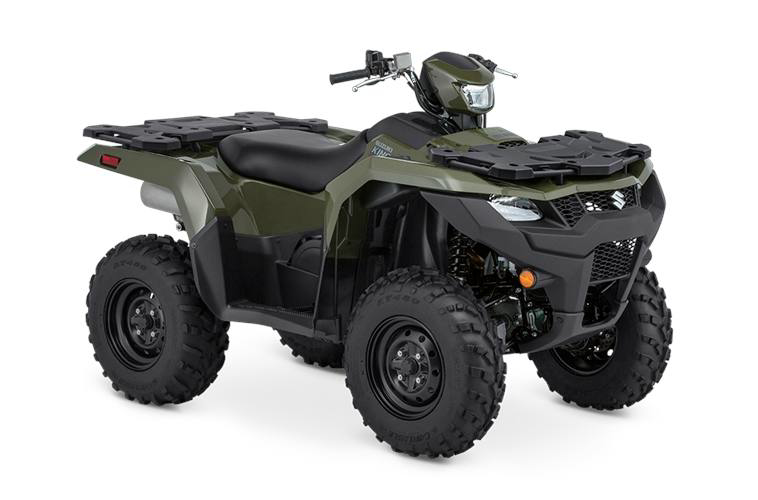

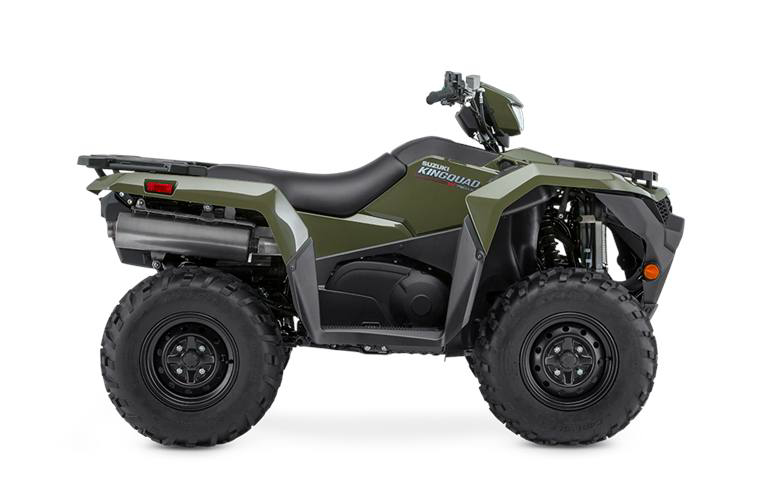

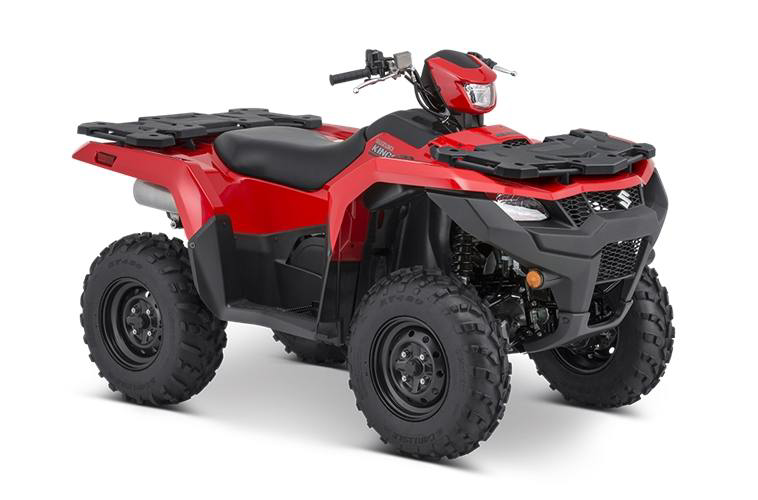

2022 Suzuki KingQuad 750 AXi Power Steering 722
Price:
Call for Pricing
- Year: 2022
- Make: Suzuki
- Model: KingQuad 750
- Condition: New
Engine Type: 722cc (44.1 cubic in.), 4-stroke, 4-valve, DOHC single cylinder
Displacement: 722cc
Bore x Stroke: 4.094 in. x 3.346 in. (104.0 mm x 85.0 mm)
Engine Cooling: Liquid
Fuel System: Suzuki electronic fuel injection
Starting System: Electric
Front Suspension: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Front Brake Type: Disc brakes, twin rotors
Front Tires: AT25 x 8-12, tubeless type x 2
Rear Suspension: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Rear Brake Type: Sealed oil-bathed multi-disc
Rear Tires: AT25 x 10-12, tubeless type x 2
Dry Weight: Curb Weight: 725 lb. (329 kg)
Fuel Capacity: 4.6 US gal. (17.5 L)
Ground Clearance: 10.2 in. (260 mm)
Machine Dimensions (LxWxH): 84.6 in. (2150 mm) x 47.8 in. (1215 mm) x 50.6 in. (1285 mm)
Wheelbase: 50.6 in. (1285 mm)
Drive Train: 2WD, 4WD and 4WD Differential Lock
Final Drive: Shaft drive
Transmission: Automatic variable ratio (V-belt), with high/low-range, and reverse
Lighting: 12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
Colors: Flame Red, Terra Green, Solid Special White No. 2
Displacement: 722cc
Bore x Stroke: 4.094 in. x 3.346 in. (104.0 mm x 85.0 mm)
Engine Cooling: Liquid
Fuel System: Suzuki electronic fuel injection
Starting System: Electric
Front Suspension: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Front Brake Type: Disc brakes, twin rotors
Front Tires: AT25 x 8-12, tubeless type x 2
Rear Suspension: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Rear Brake Type: Sealed oil-bathed multi-disc
Rear Tires: AT25 x 10-12, tubeless type x 2
Dry Weight: Curb Weight: 725 lb. (329 kg)
Fuel Capacity: 4.6 US gal. (17.5 L)
Ground Clearance: 10.2 in. (260 mm)
Machine Dimensions (LxWxH): 84.6 in. (2150 mm) x 47.8 in. (1215 mm) x 50.6 in. (1285 mm)
Wheelbase: 50.6 in. (1285 mm)
Drive Train: 2WD, 4WD and 4WD Differential Lock
Final Drive: Shaft drive
Transmission: Automatic variable ratio (V-belt), with high/low-range, and reverse
Lighting: 12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
Colors: Flame Red, Terra Green, Solid Special White No. 2
Basic Information
- Year: 2022
- Make: Suzuki
- Model: KingQuad 750
- Trim: AXi Power Steering
- Condition: New
- Type: Utility
Chassis / Suspension
- Frame: Steel
- Front Adjustable Fork Pre-Load
- Front Travel (in): 6.7
- Front Travel (mm): 170.2
- Number Rear Shock Absorbers: 2
- Rear Adjustable Shock / Spring Pre-Load
- Rear Stabilizer Bar
- Rear Travel (in): 7.7
- Rear Travel (mm): 195.6
- Steering Control: Handlebar
- Steering Type: Power
- Suspension - Front: Independent Double A-Arm
- Suspension - Rear: Independent Double A-Arm
Comfort
- Clock
- Digital Instrumentation
- Hour Meter
- Seat Location: Driver
- Seat Material: Vinyl
- Seat Type: One-Piece
Drivetrain
- Transmission Type: Continuously Variable (CVT)
- Engine Braking System
- Differential Lock
- Differential Lock Location: Front
- Driveline Type: Selectable 4X2 / 4X4
- Number Of Driveline Modes: 2
- Hi / Low Range
- Primary Drive (Front Wheel): Shaft
- Primary Drive (Rear Wheel): Shaft
- Reverse
- Transmission Brand: Quadmatic
- Limited Slip Differential
- Limited Slip Differential Location: Front
- Primary Drive (Engine / Transmission): Belt
Engine
- Bore (in): 4.1
- Bore (mm): 104
- Carburetion Type: Fuel Injected
- Compression Ratio: 9.9:1
- Cylinders: 1
- Displacement (ci): 44.1
- Engine Braking Brand Name: Engine Braking System
- Engine Cooling: Liquid
- Engine Size (cc): 722
- Engine Stroke: 4-Stroke
- Fuel Capacity (gal): 4.6
- Fuel Injector
- Fuel Requirements: Regular
- Snorkel Air Intake
- Starter Type: Electric
- Stroke (in): 3.35
- Stroke (mm): 85
- Valve Configuration: DOHC
- Valves: 4
- Valves Per Cylinder: 4
Other Information
- Fender Storage
- Fender Storage Location: Front
- Front Fender Flairs
- Rear Fender Flairs
- Power Outlet
- Radiator Guard
Safety
- Brakes - Front: Dual Hydraulic Disc
- Brakes - Rear: Sealed Oil Bath Multi-Disc
- Front Brake Diameter (in): 7.9
- Front Brake Diameter (mm): 200
- Halogen Headlight(s)
- Headlight(s)
Specifications
- A-Arm Skid Plate (Front)
- A-Arm Skid Plate (Rear)
- Bash Plate (Front)
- Bash Plate (Rear)
- Body Material: Plastic
- Front Tire Diameter (in): 25
- Front Tire Width: 8
- Full Length Skid Plate
- Ground Clearance (in): 10.2
- Ground Clearance (mm): 260
- Height (Inches): 50
- Height (mm): 1285
- Length (Inches): 84
- Length (mm): 2150
- Rear Hitch
- Rear Tire Diameter (in): 25
- Rear Tire Width: 10
- Storage Capacity (gal): 0.6
- Storage Capacity (l): 2.8
- Towing Capacity (kgs): 599.7
- Towing Capacity (lbs): 1322
- Tube / Tubeless: Tubeless
- Wet Weight (kg): 329
- Wet Weight (lbs): 725
- Wheelbase (in): 50.6
- Wheelbase (mm): 1285
- Wheels Composition: Steel
- Width (Inches): 47
- Width (mm): 1215
