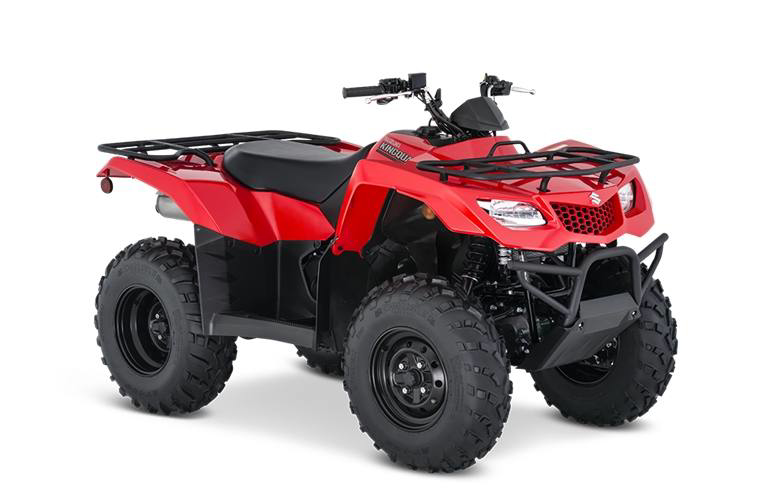

2022 Suzuki KingQuad 400 376 - Monty's Motorsports

Engine Type: 376cc (22.94 cubic in.), 4-stroke, OHC single cylinder
Displacement: 376cc
Bore x Stroke: 3.228 in. x 2.803 in. (82.0 mm x 71.2 mm)
Engine Cooling: Air with SCAS
Fuel System: Suzuki electronic fuel injection
Starting System: Electric
Front Suspension: Independent, double wishbone, coil spring, oil damped
Front Brake Type: Disc brakes, twin rotors
Front Tires: AT25 x 8-12, tubeless type x 2
Rear Suspension: Swing-arm type, coil spring, oil damped
Rear Brake Type: Single drum brake
Rear Tires: AT25 x 10-12, tubeless type x 2
Dry Weight: Curb Weight: 628 lb. (265 kg)
Fuel Capacity: 4.2 US gal. (16.0 L)
Ground Clearance: 9.8 in. (250 mm)
Machine Dimensions (LxWxH): 81.1 in. (2060 mm) x 45.1 in. (1145 mm) x 48.0 in. (1220 mm)
Wheelbase: 50.0 in. (1270 mm)
Drive Train: 2WD and 4WD
Final Drive: Shaft drive
Transmission: Automatic variable ratio (V-belt), with high/low-range and reverse
Lighting: 12V 35/35W (HS1) × 2
Colors: Terra Green, Flame Red

Basic Information

Year: 2022
Make: Suzuki
Model: KingQuad 400
Condition: New
Type: Utility

Chassis / Suspension

Frame: Steel
Front Travel (in): 6.7
Front Travel (mm): 170.1
Number Rear Shock Absorbers: 2
Rear Travel (in): 6.7
Rear Travel (mm): 170.1
Steering Control: Handlebar
Steering Type: Manual
Suspension - Front: Independent Double A-Arm
Suspension - Rear: Swing Arm

Comfort

Clock
Digital Instrumentation
Hour Meter
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Driveline Type: Selectable 4X2 / 4X4
Number Of Driveline Modes: 2
Rear Solid Axle
Hi / Low Range
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse
Limited Slip Differential
Limited Slip Differential Location: Front

Engine

Bore (in): 3.23
Bore (mm): 82
Carburetion Type: Fuel Injected
Compression Ratio: 9:1
Cylinders: 1
Displacement (ci): 22.9
Engine Cooling: Air / Oil
Engine Size (cc): 376
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 4.2
Fuel Injector
Fuel Requirements: Regular
Starter Type: Electric
Stroke (in): 2.81
Stroke (mm): 71.2
Valve Configuration: SOHC
Valves: 4
Valves Per Cylinder: 4

Other Information

Front Fender Flairs
Rear Fender Flairs
Power Outlet
Brush Guard
Radiator Guard

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Drum
Front Brake Diameter (in): 7.5
Front Brake Diameter (mm): 190
Halogen Headlight(s)
Headlight(s)

Specifications

Bash Plate (Front)
Body Material: Plastic
Front Tire Diameter (in): 25
Front Tire Width: 8
Full Length Skid Plate
Ground Clearance (in): 9.8
Ground Clearance (mm): 250
Height (Inches): 48
Height (mm): 1220
Length (Inches): 81
Length (mm): 2060
Rear Tire Diameter (in): 25
Rear Tire Width: 10
Tube / Tubeless: Tubeless
Wheelbase (in): 50
Wheelbase (mm): 1270
Width (Inches): 45
Width (mm): 1145
