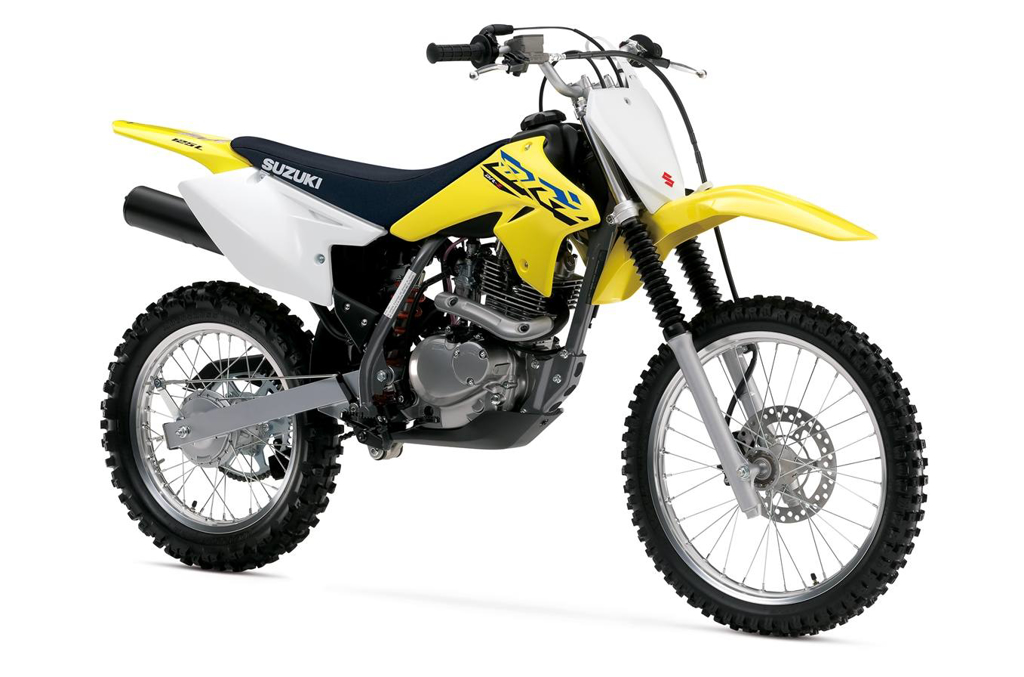

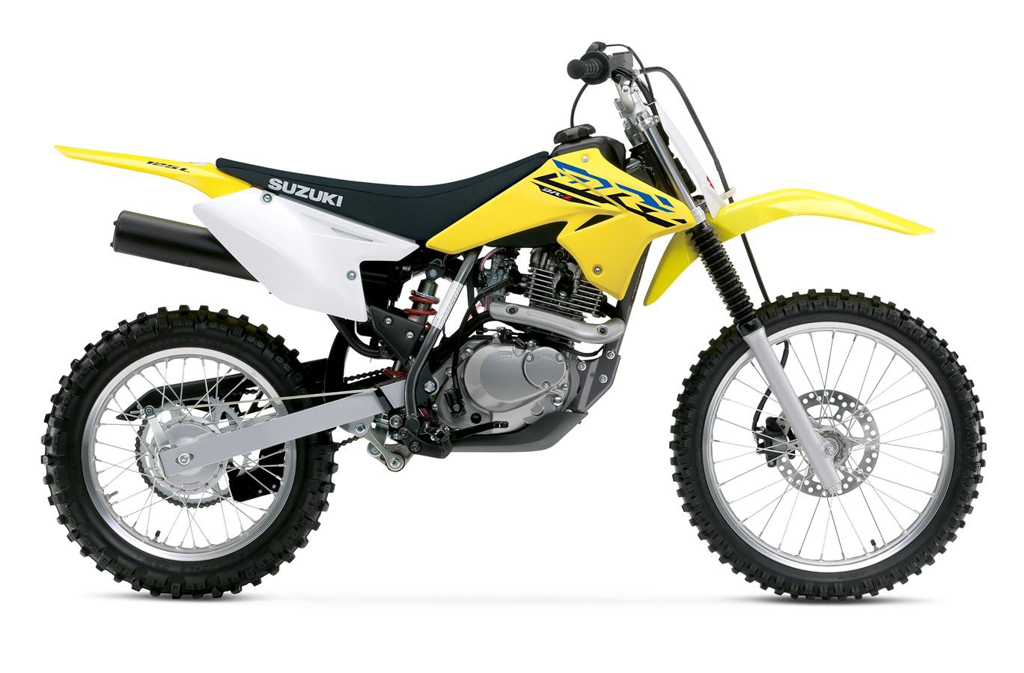

2023 Suzuki DR-Z 125L Single-Cylinder 124 - Monty's Motorsports - Westfield, Massachusetts 01085

Engine Type: 4-stroke, single cylinder, SOHC
Displacement: 124cc
Bore and Stroke: 2.244 in. x 1.921 in. (57.0 mm x 48.8 mm)
Cooling: Air
Compression Ratio: 9.5:1
Fuel System: Mikuni VM20SS, single carburetor
Ignition: Electronic ignition (CDI)
Front Suspension: Telescopic, coil spring, oil damped
Front Brakes: Disc brake, single rotor
Front Tire: 70/100-19 M/C 42M, tube type
Rear Suspension: Link type, coil spring, oil damped
Rear Brakes: Drum brake
Rear Tire: 90/100-16 M/C 52M, tube type
Dry Weight: Curb Weight: 196 lb. (89.0 kg)
Fuel Capacity: 1.3 US gal. (4.8 L)
Wheelbase: 50.0 in. (1270 mm)
Ground Clearance: 11.4 in. (290 mm)
Seat Height: 32.0 in. (805 mm)
Transmission: 5-speed constant mesh
Final Drive: Chain, DID 428HG, 130 links
Colors: Champion Yellow No. 2

Basic Information

Year: 2023
Make: Suzuki
Model: DR-Z
Trim: 125L
Condition: New
Type: Off-Road
Title: Clean

Brakes

Front Brake: Hydraulic Disc
Front Brake Diameter (in): 8.7
Front Brake Diameter (mm): 220
Rear Brake: Drum

Chassis & Suspension

Frame: Steel
Front Suspension Type: Telescopic Fork
Front Travel (in): 7.1
Front Travel (mm): 180
Number Rear Shock Absorbers: 1
Rear Adjustable Shock / Spring Pre-Load
Rear Suspension Material: Steel
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 6.7
Rear Travel (mm): 170

Drivetrain

Number Of Speeds: 5
Primary Drive (Rear Wheel): Chain
Transmission: Manual
Transmission Final Drive Ratio: 4.071
Transmission Gear Ratio (1): 3
Transmission Gear Ratio (2): 1.857
Transmission Gear Ratio (3): 1.368
Transmission Gear Ratio (4): 1.095
Transmission Gear Ratio (5): 0.923

Engine

Bore (in): 2.25
Bore (mm): 57
Carburetor Size (mm): 20
Carburetion Brand: Mikuni
Carburetion Type: Carburetor
Carburetor
Compression Ratio: 9.5:1
Cooling System: Air
Cylinders: 1
Engine Size (cc): 124
Engine Size (ci): 7.6
Engine Stroke: 4-Stroke
Engine Type: Single-Cylinder
Fuel Capacity (gal): 1.3
Fuel Requirements: Regular
Number Of Carburetors: 1
Starter: Kick
Stroke (in): 1.92
Stroke (mm): 48.8
Valve Configuration: SOHC
Valves: 2
Valves Per Cylinder: 2

Other Information

Decal Kit
Exhaust Guard
Exterior Covers
Exterior Guards
Foot Pegs
Foot Peg Location: Driver
Front Fender
Hand Grips
Rear Fender

Safety

Skid Plate

Specifications

Body Material: Plastic
Front Tire (Full Spec): 70/100 R19 42M
Front Tire (Inches): 19
Front Tire Aspect Ratio: 100
Front Tire Speed Rating: M
Front Tire Width: 70
Front Wheel Width (in): 1.4
Fuel Capacity (liters): 4
Ground Clearance (in): 11.4
Ground Clearance (mm): 290
Height (inches): 43
Height (mm): 1110
Length (inches): 74
Length (mm): 1885
Rear Tire (Full Spec): 90/100 R16 52M
Rear Tire (Inches): 16
Rear Tire Aspect Ratio: 100
Rear Tire Speed Rating: M
Rear Tire Width: 90
Rear Wheel Width (in): 1.6
Seat Height (inches): 32
Tube / Tubeless: Tubed
Turning Radius (ft): 6.6
Wet Weight (kg): 89
Wet Weight (lbs): 196
Wheelbase (in): 50
Wheelbase (mm): 1270
Wheels Composition: Aluminum
Width (inches): 30
Width (mm): 770
