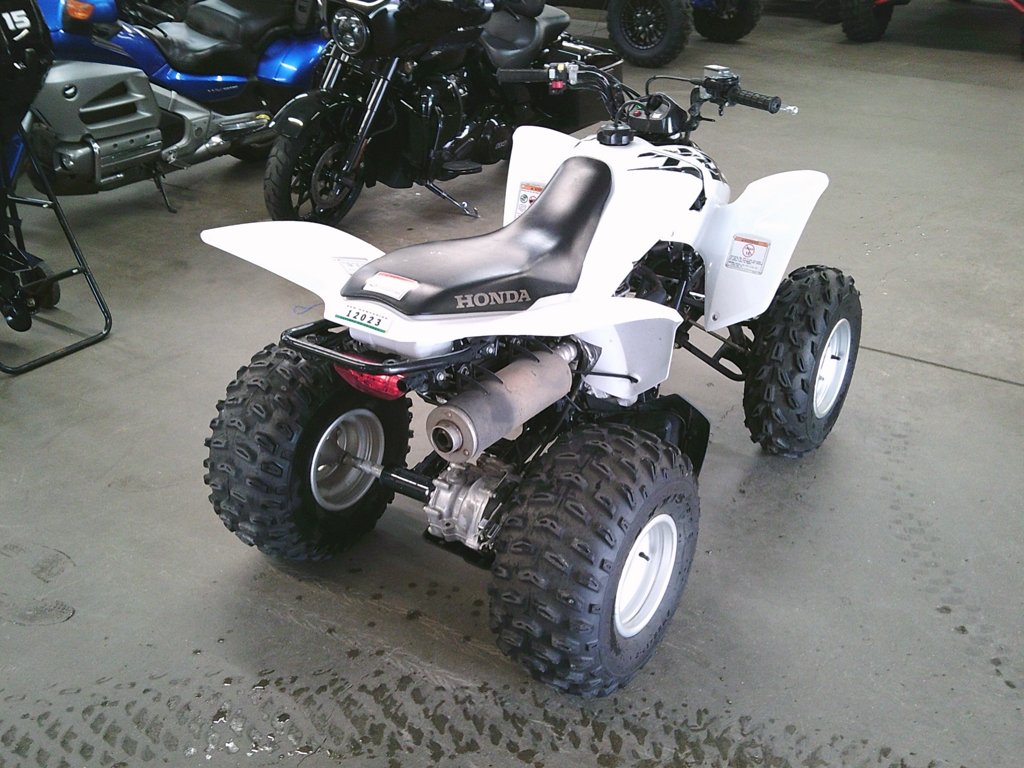

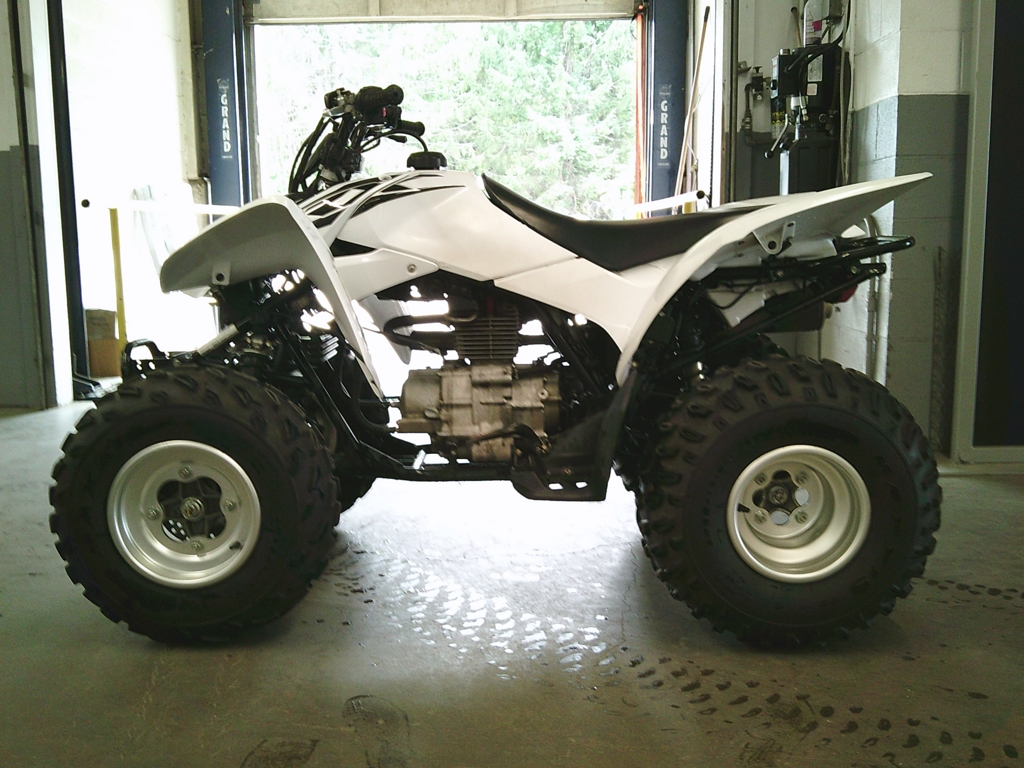

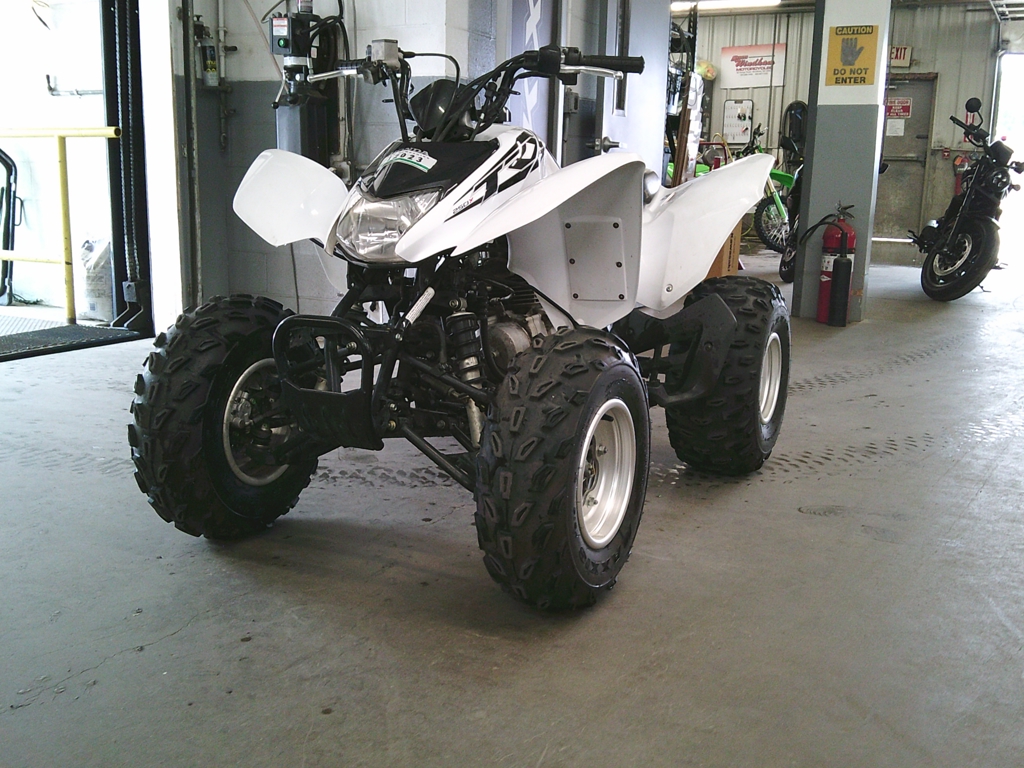

2017 Honda TRX250X 1HFTE270XH4601250 - Nault's Windham Motorcycles

Engine Type: OHV longitudinally mounted single-cylinder four-stroke
Displacement: 229cc
Cylinders: 1
Bore x Stroke: 68.5 mm x 62.2 mm
Engine Cooling: Air
Fuel System: 20 mm piston-valve carburetor
Starting System: Electric
Front Suspension: Independent double-wishbone
Front Travel: 5.9 in.
Front Brake Type: Dual hydraulic 174 mm discs
Front Tires: 22 x 7-10 knobby
Rear Travel: 5.7 in.
Rear Suspension: Swingarm with single shock
Rear Brake Type: Sealed mechanical drum
Rear Tires: 22 x 10-9 knobby
Dry Weight: Curb Weight: 384 lb.
Fuel Capacity: 2.5 gal., including 0.7-gal. reserve
Ground Clearance: 5.7 in.
Machine Dimensions (LxWxH): 68.5 in. x 41.8 in. x 42.6 in.
Wheelbase: 44.3 in.
Final Drive: Direct rear drive shaft
Transmission: Five-speed with Reverse
Colors: White

Basic Information

Year: 2017
Make: Honda
Model: TRX
Trim: 250X
Stock Number: UH4601250
VIN: 1HFTE270XH4601250
Condition: New
Type: Sport
Primary Color: WHITE

Chassis / Suspension

Frame: Steel
Front Travel (in): 5.9
Front Travel (mm): 149.9
Number Rear Shock Absorbers: 1
Rear Suspension Material: Steel
Rear Travel (in): 5.7
Rear Travel (mm): 144.8
Steering Control: Handlebar
Steering Type: Manual
Suspension - Front: Independent Double Wishbone
Suspension - Rear: Swing Arm

Comfort

Adjustable Throttle
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Manual / Automatic Clutch
Driveline Type: 4X2
Number Of Driveline Modes: 1
Rear Solid Axle
Number Of Speeds: 5
Primary Drive (Rear Wheel): Shaft
Reverse

Engine

Bore (in): 2.7
Bore (mm): 68.5
Carburetion Type: Carburetor
Carburetor
Cylinders: 1
Displacement (ci): 14
Engine Cooling: Air
Engine Size (cc): 229
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 2.5
Fuel Capacity Reserve (gal): 0.7
Fuel Capacity Reserve (l): 2.6
Fuel Requirements: Regular
Number Of Carburetors: 1
Snorkel Air Intake
Starter Type: Electric
Stroke (in): 2.45
Stroke (mm): 62.2
Valve Configuration: OHV
Valves: 2
Valves Per Cylinder: 2

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Sealed Drum
Front Brake Diameter (in): 6.9
Front Brake Diameter (mm): 174
Halogen Headlight(s)
Headlight(s)

Specifications

Bash Plate (Front)
Body Material: Plastic
Front Tire Diameter (in): 22
Front Tire Width: 7
Ground Clearance (in): 5.7
Ground Clearance (mm): 144.8
Height (Inches): 42
Height (mm): 1082
Length (mm): 1739.9
Rear Tire Diameter (in): 22
Rear Tire Width: 10
Turning Radius (ft): 9.2
Wet Weight (kg): 174.2
Wet Weight (lbs): 384
Wheelbase (in): 44.3
Wheelbase (mm): 1125.2
Wheels Composition: Aluminum
Width (Inches): 41
Width (mm): 1061.7
