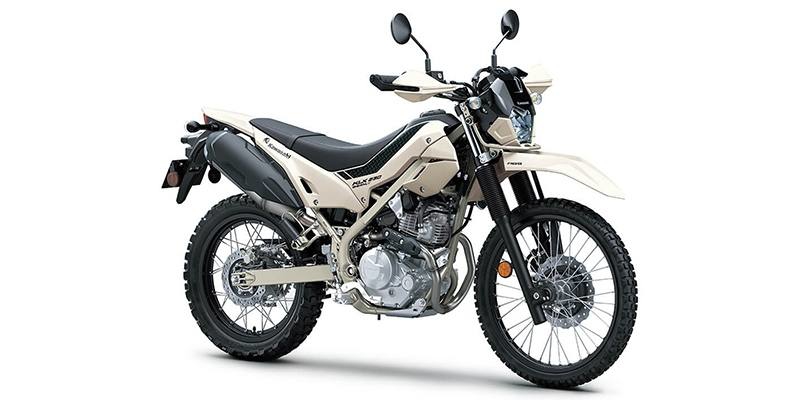

2026 Kawasaki KLX® 230 Sherpa S ABS
Price:
$5,699.00
- Year: 2026
- Make: Kawasaki
- Model: KLX
- Condition: New
PRICE DOES NOT INCLUDE FREIGHT, SET UP OR DOC FEES. Engine Type: Single-Cylinder
Displacement: 14.2 cu. in. (233 cc)
Bore and Stroke: Bore: 2.64 in. (67 mm); Stroke: 2.6 in. (66 mm)
Cooling: Air
Compression Ratio: 9.4:1
Fuel System: Gas
Front Suspension: Telescopic Fork
Front Brakes: Hydraulic Disc
Front Tire: 2.75 x 21
Rear Suspension: Twin Sided Swing Arm
Rear Brakes: Hydraulic Disc
Rear Tire: 4.10 x 18
Dry Weight: 282.2 lb. (128 kg.)
Fuel Capacity: 2 gal. (7.6 L)
Wheelbase: 53.3 in. (1354 mm)
Ground Clearance: 8.5 in. (216 mm)
Seat Height: 32.5 in. (825.5 mm)
Trail: 3.8 in. (96.5 mm)
Rake: 24.4
Transmission: Manual
Displacement: 14.2 cu. in. (233 cc)
Bore and Stroke: Bore: 2.64 in. (67 mm); Stroke: 2.6 in. (66 mm)
Cooling: Air
Compression Ratio: 9.4:1
Fuel System: Gas
Front Suspension: Telescopic Fork
Front Brakes: Hydraulic Disc
Front Tire: 2.75 x 21
Rear Suspension: Twin Sided Swing Arm
Rear Brakes: Hydraulic Disc
Rear Tire: 4.10 x 18
Dry Weight: 282.2 lb. (128 kg.)
Fuel Capacity: 2 gal. (7.6 L)
Wheelbase: 53.3 in. (1354 mm)
Ground Clearance: 8.5 in. (216 mm)
Seat Height: 32.5 in. (825.5 mm)
Trail: 3.8 in. (96.5 mm)
Rake: 24.4
Transmission: Manual
Basic Information
- Year: 2026
- Make: Kawasaki
- Model: KLX
- Trim: 230 Sherpa S ABS
- Stock Number: KTJP00250
- VIN: MH4LXER18TJP00250
- Condition: New
- Type: Off-Road
- Title: Clean
- Color: WHITE
Brakes
- ABS Brakes
- Front Brake: Hydraulic Disc
- Front Brake Diameter (in): 10.4
- Front Brake Diameter (mm): 265
- Linked Brake System Front to Rear
- Rear Brake: Hydraulic Disc
- Rear Brake Diameter (in): 8.7
- Rear Brake Diameter (mm): 220
Chassis & Suspension
- Frame: Steel
- Front Suspension Size (in): 1.5
- Front Suspension Size (mm): 37
- Front Suspension Type: Telescopic Fork
- Front Travel (in): 6.2
- Front Travel (mm): 157.5
- Number Rear Shock Absorbers: 1
- Rear Adjustable Rebound Damping
- Rear Adjustable Shock / Spring Pre-Load
- Rear Suspension Brand Name: UNI-TRAK
- Rear Suspension Material: Aluminum
- Rear Suspension Type: Twin Sided Swing Arm
- Rear Travel (in): 6.6
- Rear Travel (mm): 167.6
Drivetrain
- Number Of Speeds: 6
- Primary Drive (Rear Wheel): Chain
- Transmission: Manual
Engine
- Bore (in): 2.64
- Bore (mm): 67
- Carburetion Brand: Keihin
- Carburetion Type: Fuel Injected
- Compression Ratio: 9.4:1
- Cooling System: Air
- Cylinders: 1
- Engine Size (cc): 233
- Engine Size (ci): 14.2
- Engine Stroke: 4-Stroke
- Engine Type: Single-Cylinder
- Fuel Capacity (gal): 2
- Fuel Injector
- Fuel Injector Size (mm): 32
- Fuel Requirements: Regular
- Starter: Electric
- Stroke (in): 2.6
- Stroke (mm): 66
- Torque (Ft Lbs): 14
- Torque (Nm): 19
- Torque RPM: 6400
- Valve Configuration: SOHC
- Valves: 2
- Valves Per Cylinder: 2
Other Information
- Chain Guard
- Decal Kit
- Engine Case Guard
- Exhaust Guard
- Exterior Covers
- Exterior Guards
- Foot Pegs
- Foot Peg Location: Driver
- Hand Guards
- Front Fender
- Hand Grips
- Side Cover
- Rear Fender
- Stand
- Stand Type: Kick
Safety
- Headlight Type: LED
- Fuel Level Warning
- Rearview Mirrors
- Temperature Warning
- Skid Plate
- Temperature Warning Type: Light
Specifications
- Body Material: Plastic
- Dry Weight (kg): 128
- Dry Weight (lbs): 282
- Front Tire (Full Spec): 2.75 x 21
- Front Tire (Inches): 21
- Front Wheel Width (in): 2.75
- Fuel Capacity (liters): 7
- Ground Clearance (in): 8.5
- Ground Clearance (mm): 216
- Height (inches): 44
- Height (mm): 1125
- Length (mm): 2060
- Rear Tire (Full Spec): 4.10 x 18
- Rear Tire (Inches): 18
- Rear Wheel Width (in): 4.1
- Seat Height (inches): 32
- Tube / Tubeless: Tubed
- Wet Weight (kg): 135
- Wet Weight (lbs): 297.7
- Wheelbase (in): 53.3
- Wheelbase (mm): 1354
- Wheels Composition: Aluminum
- Width (inches): 36
- Width (mm): 919.5
