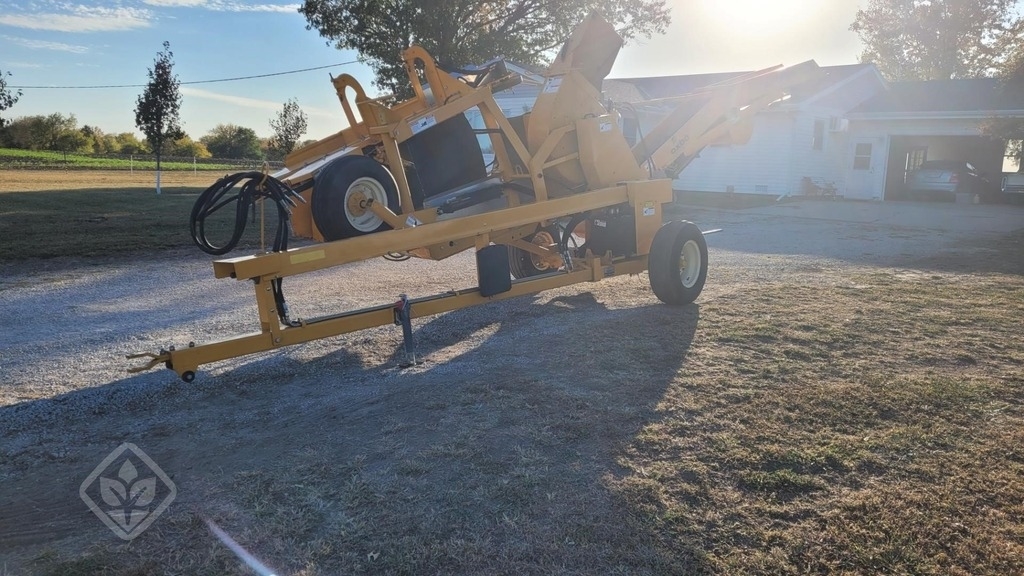

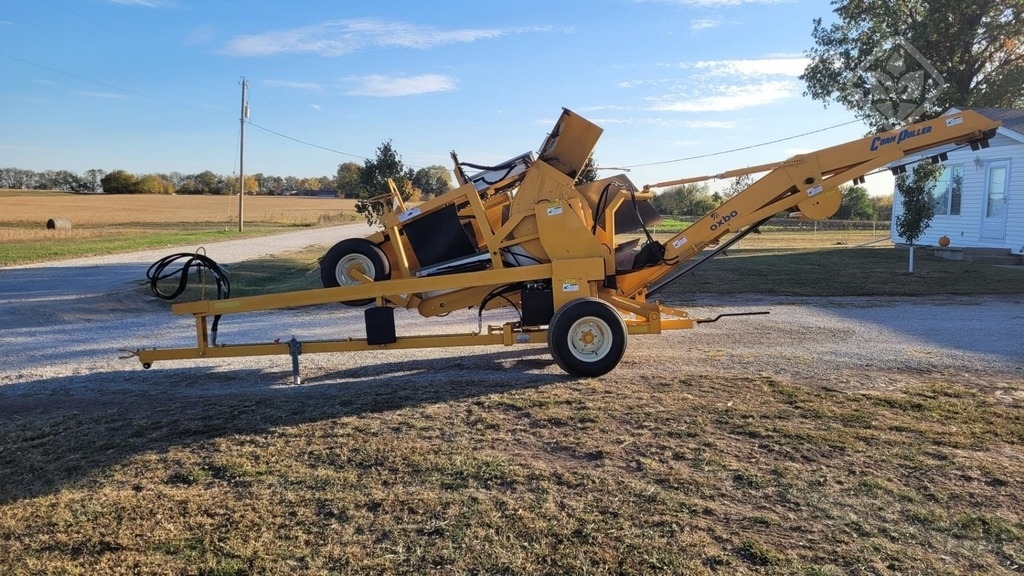

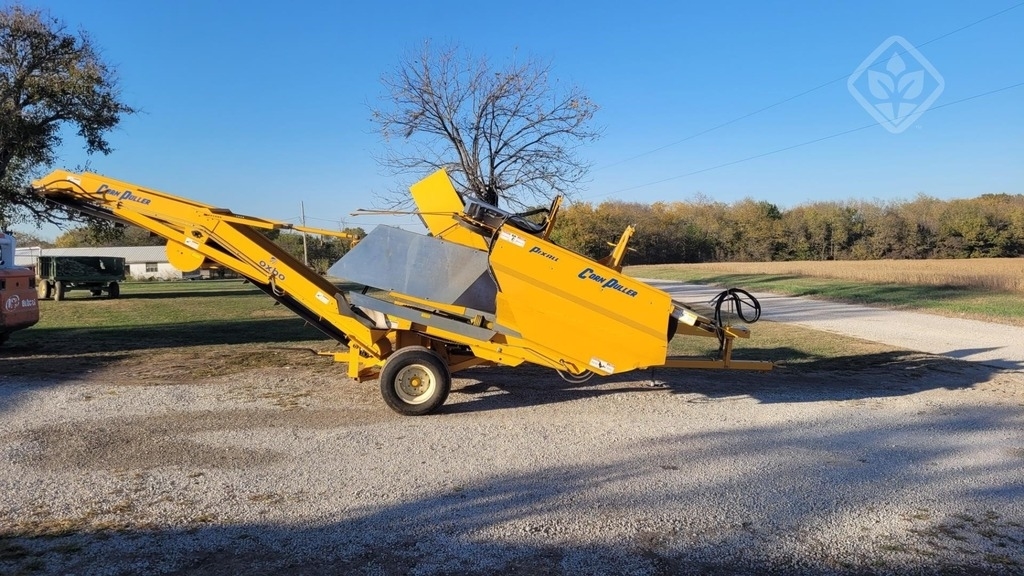

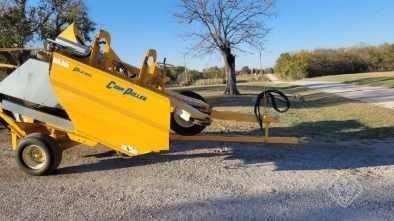

2014 OXBO CP100 Corn Puller W/ Wagon Forsale In Pomona, Kansas 66076
Get ready to maximize your efforts with this 2014 OXBO CP100 Corn Puller. This durable Harvester has been very well maintained which has enabled its excellent condition. It comes with options and features that are perfect for any hard-working individual.
Highlights include:
Very Low Hours: Used For 18 Acres
Always Been in a Barn
Always in Shed, Never out in the Elements
*Dimensions- Height: 25c9m (102in)
Length: 881cm (347in)
Shipping Length: 569cm (224in)
Width: 236cm (93in)
Weight: 1.678kg (approx 3,700lbs)
Track: 185,4cm (73in)

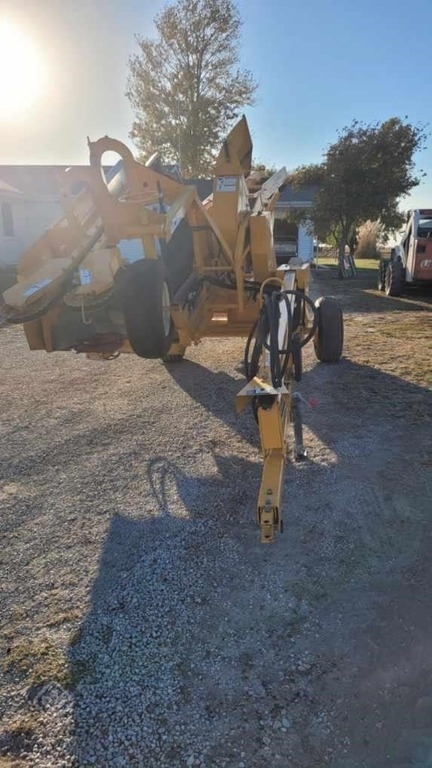

*Hitch- Clevis type with 4 position adjustable offset tongue
*Rows- One picking row; 61cm or greater (24in) row spacing
*Cleaning System- Cleaning includes one 68.5cm (24in) diameter fan and mechanical drive.

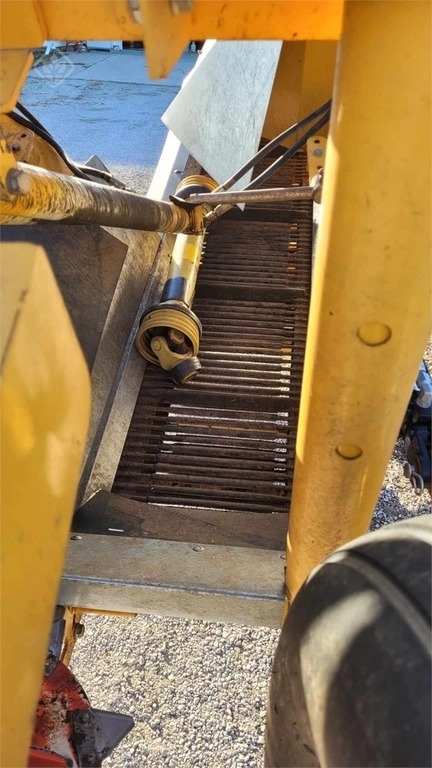

*Conveyor- Intake conveyor: 46cm (18in) wide rubberized belt chain with ¼in (3,2cm) cleats.
Center conveyor: 46cm (18in) chain and sprocket
Elevator conveyor: 46cm (18in) wide rubber with 7,6cm D.R. (32in) cleats.

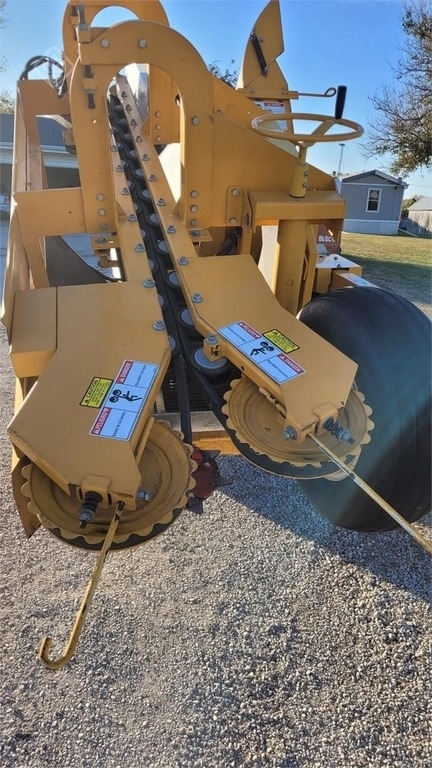

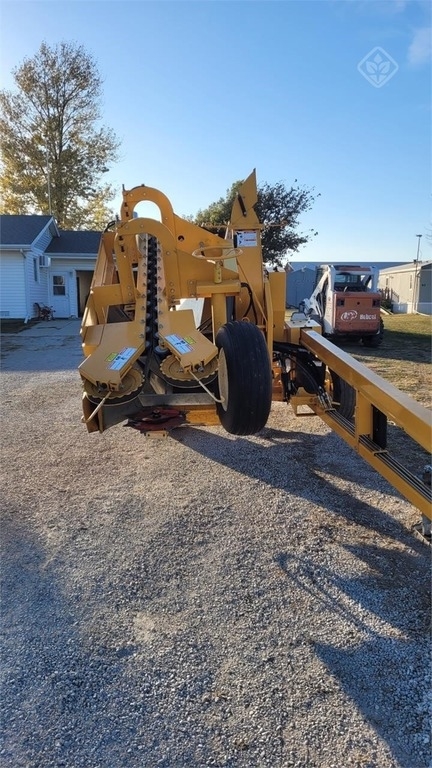

*Cutter Blades- One circular blade with 8 sections driven by hydraulic motor.

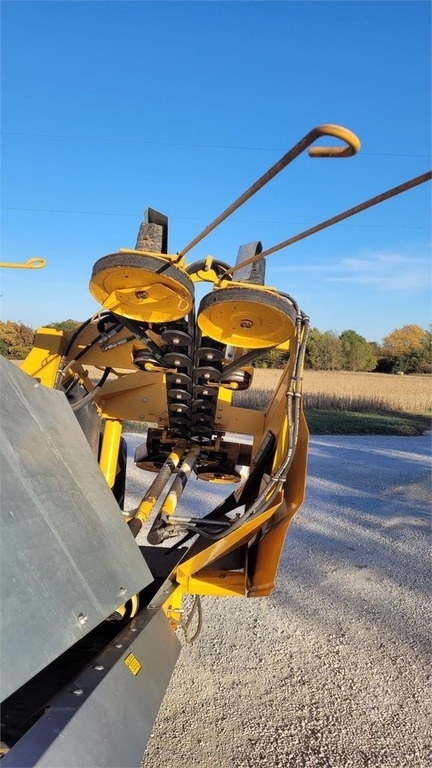

*Grip Belts- Two belts, each driven by a hydraulic motor, spacing adjustable.
*Head Flotation- Method: The gauge wheel senses changes in ground contour and is
adjustable to control the cutting height by adjusting hydraulic cylinder.
Float: two coil springs reduce the weight on the gauge wheel. The hydraulic cylinder raises the gauge wheel.
Control: spring tension can be adjust.
*Tires- 27,2 x 77,7cm (10.7 x 30.6in)
*Gauge Wheel- Size: 27.9 x 38.1cm (11x15 in)
Function: senses change in ground contour and adjusts head cutting height accordingly.
*Height Control- Header height is controlled by a hydraulic cylinder from the tractor and can raise the gauge wheel off the ground for transport.
*Capacity (Approx)-Harvesting Speed: 3.2-4.8kph (2 to 3 mph)
Ears/Hour: Up to 600 dozen per hour

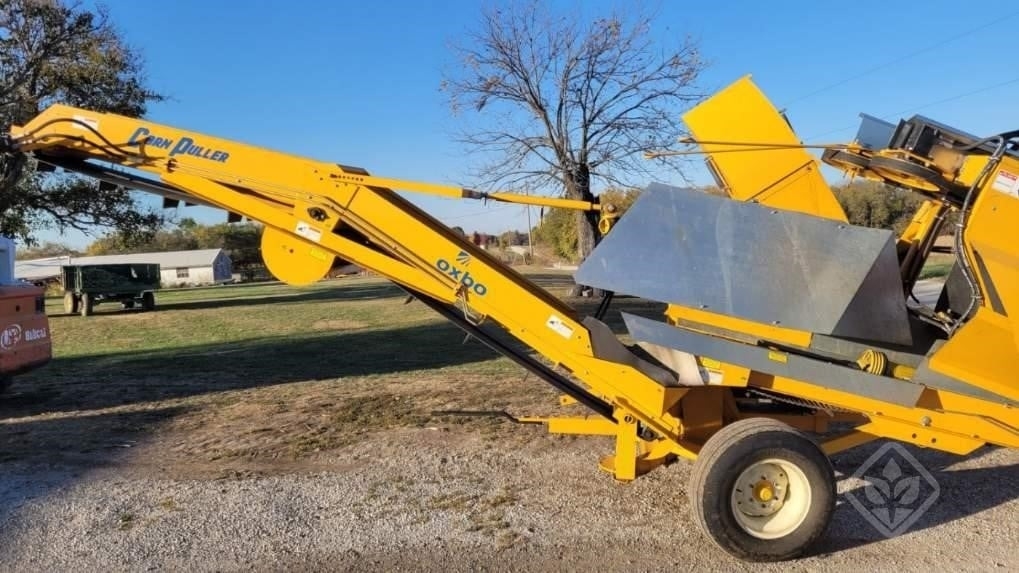

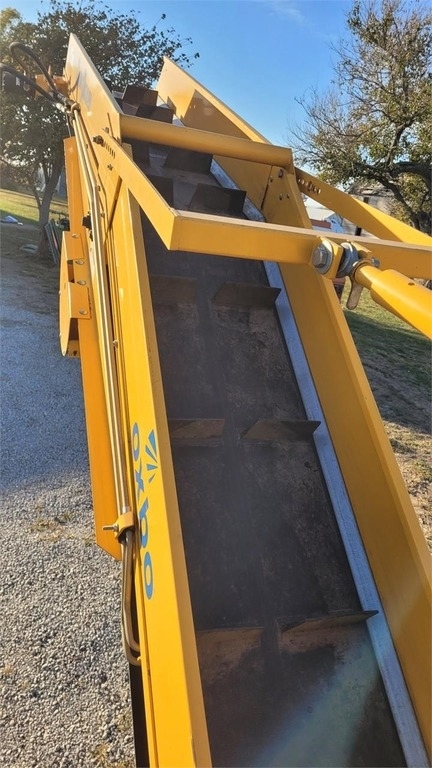

*Elevator- Overall Length: 3.65m (12ft)
Width: 46cm (18in)
*Hydraulic System- Four hoses with 2.54cm (½in) ORB male thread. One low pressure PTO driven hydraulic pump with filter. 25.5L (27qt) hydraulic reservoir.
*Tractor Required- 40hp minimum (30kw); 35mm-6 spline 540rpm power take off (PTO); two auxiliary hydraulic circuits needed to power cutter height and head lift cylinders; stationary drawbar.

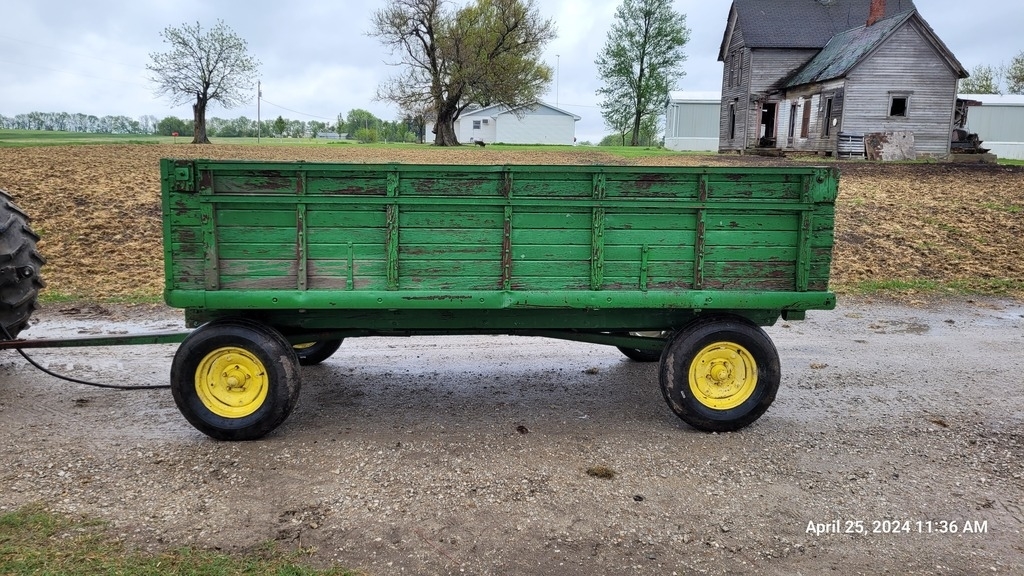

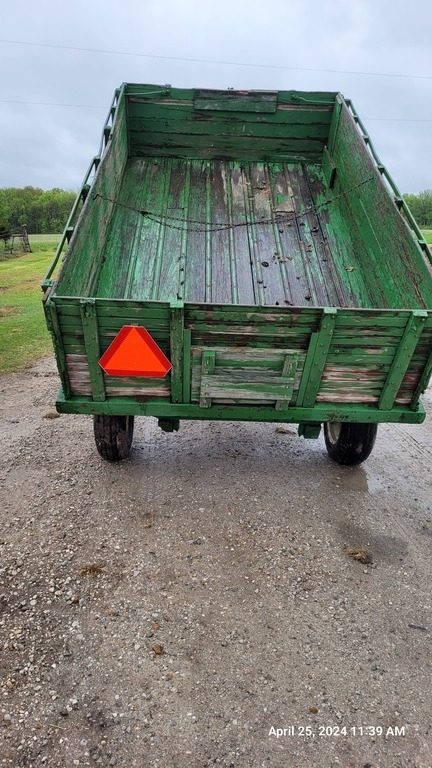

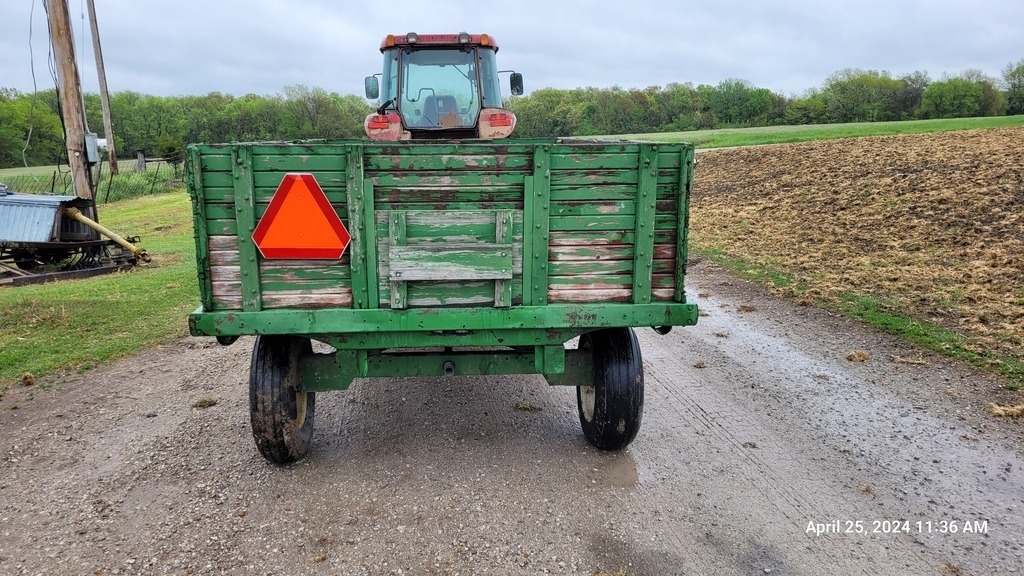

*Wagon included for a package price $75,000 or can be sold separately for $3,000

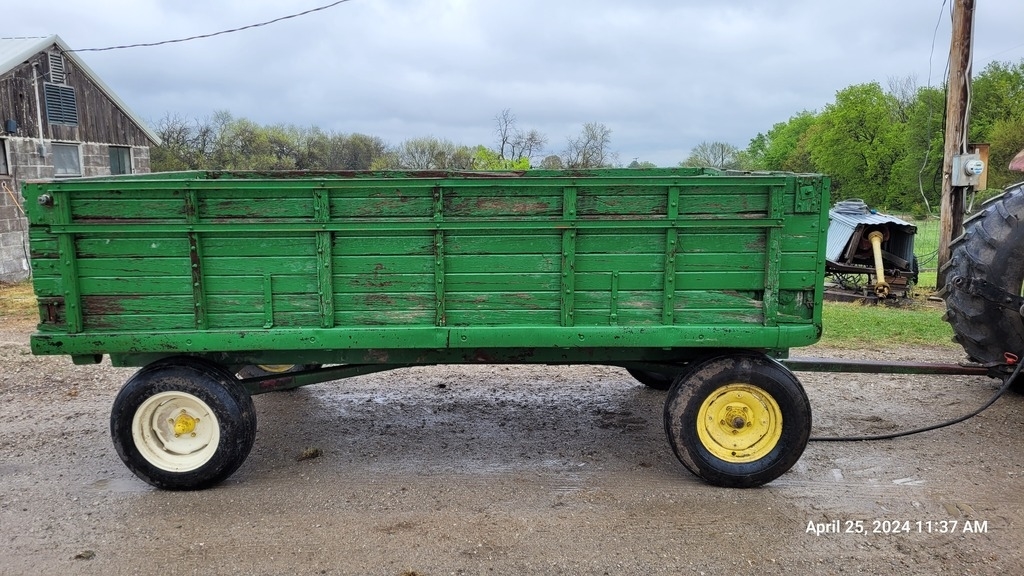

12 feet long x 7 feet wide x 27 ½” tall and 5 ½’ tongue length.

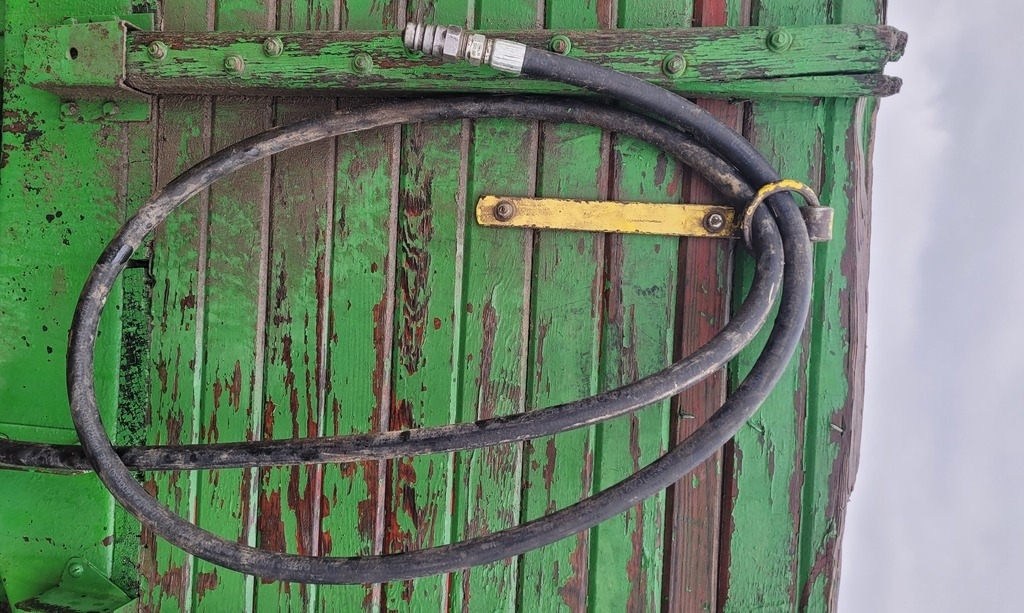

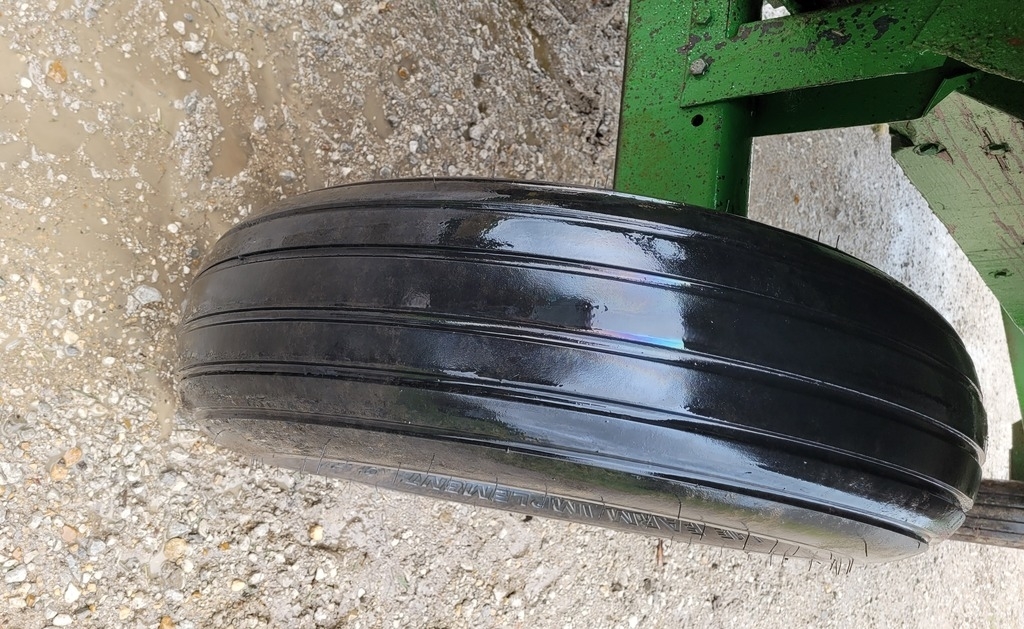

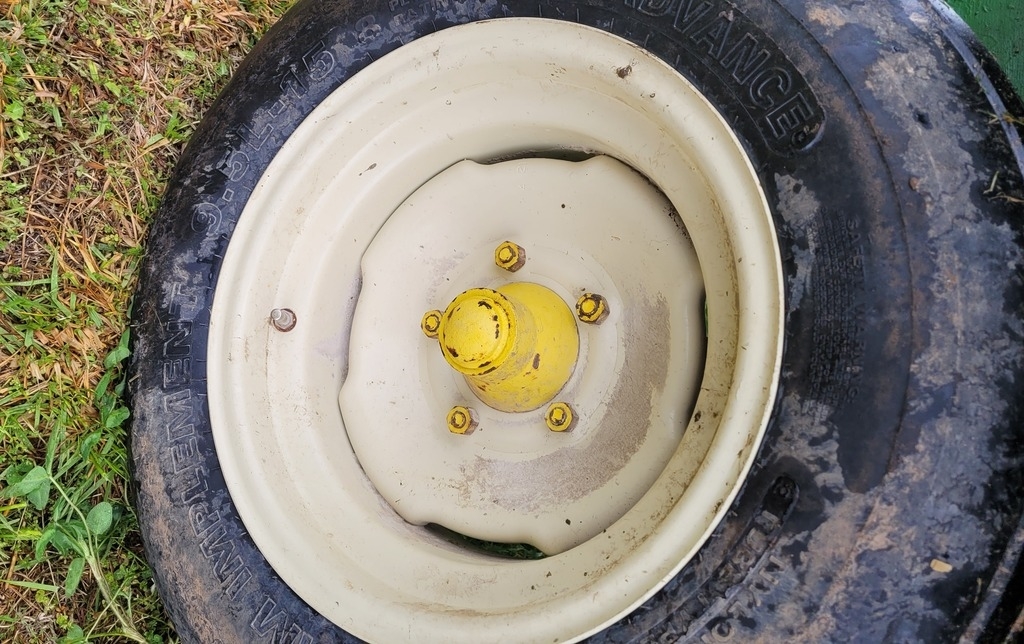

The wagon has 4 brand new tires, brand new right rim and brand new hydraulic hose.

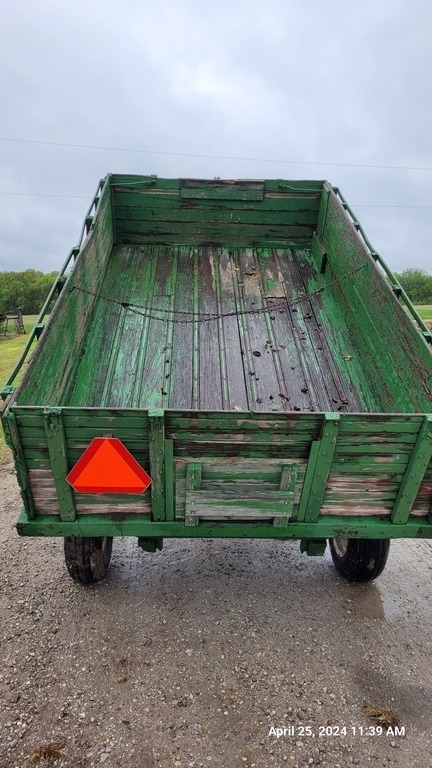

It has a rear door that slides up and off -or- you can remove the entire back gate.
Support chains inside.

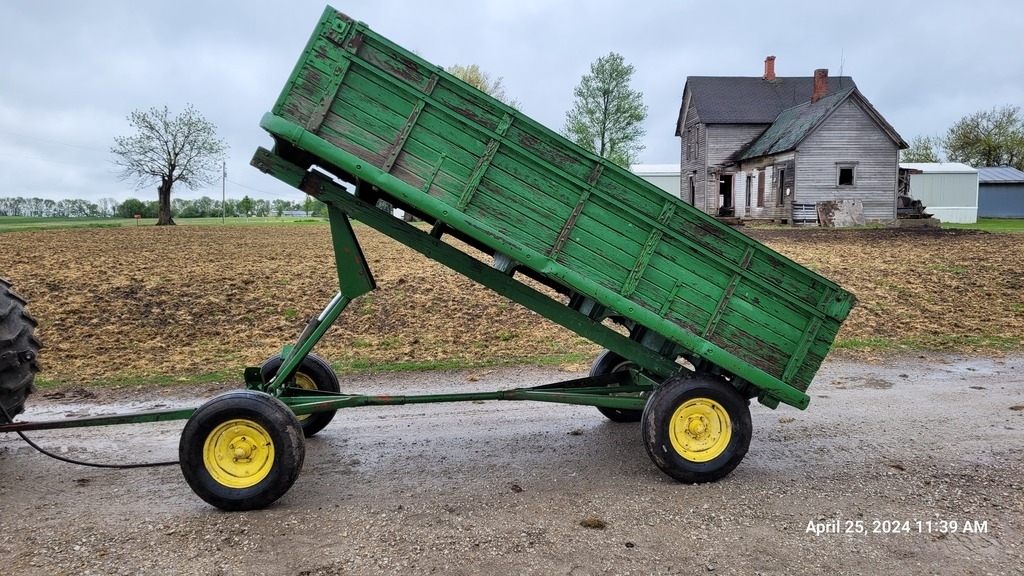

Hoists up to a 45 degree angle
This 2014 OXBO CP100 Corn Puller W/ Wagon is a must see to truly appreciate all it has to offer. In fact, come see for yourself! If you are someone who appreciates quality Corn Puller/Harvester, then you owe it to yourself to check out this 2014 OXBO CP100 Corn Puller W/ Wagon. It is priced to sell, so don't miss out on this amazing opportunity at a very affordable price. Call today for more information!!!
