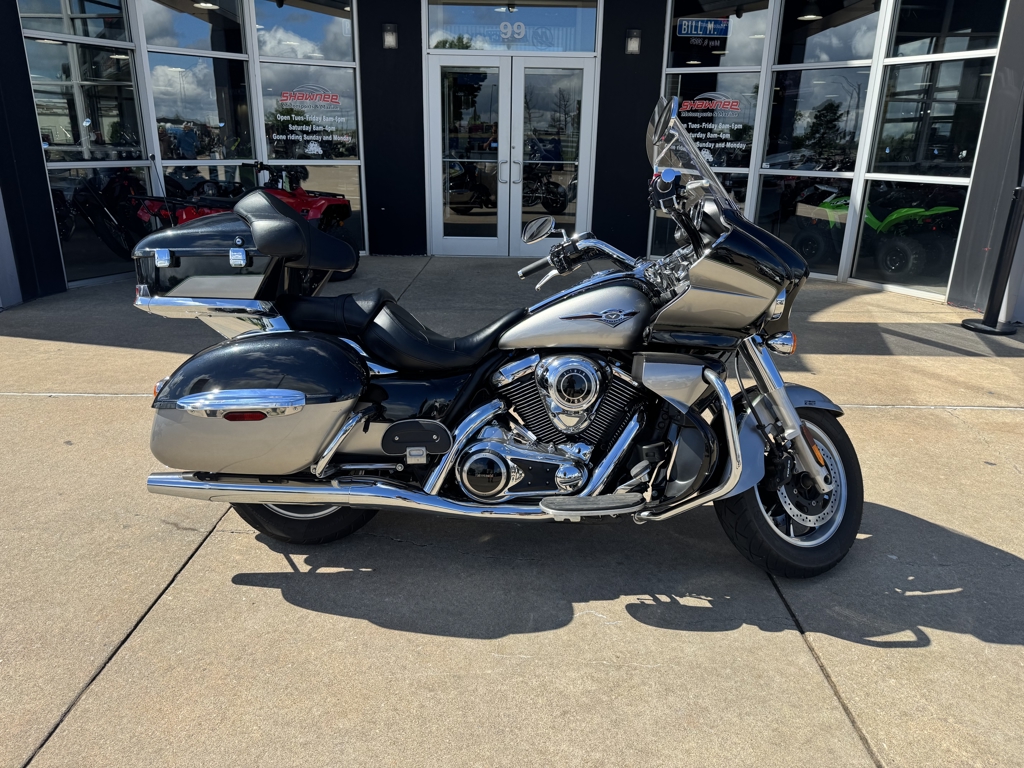

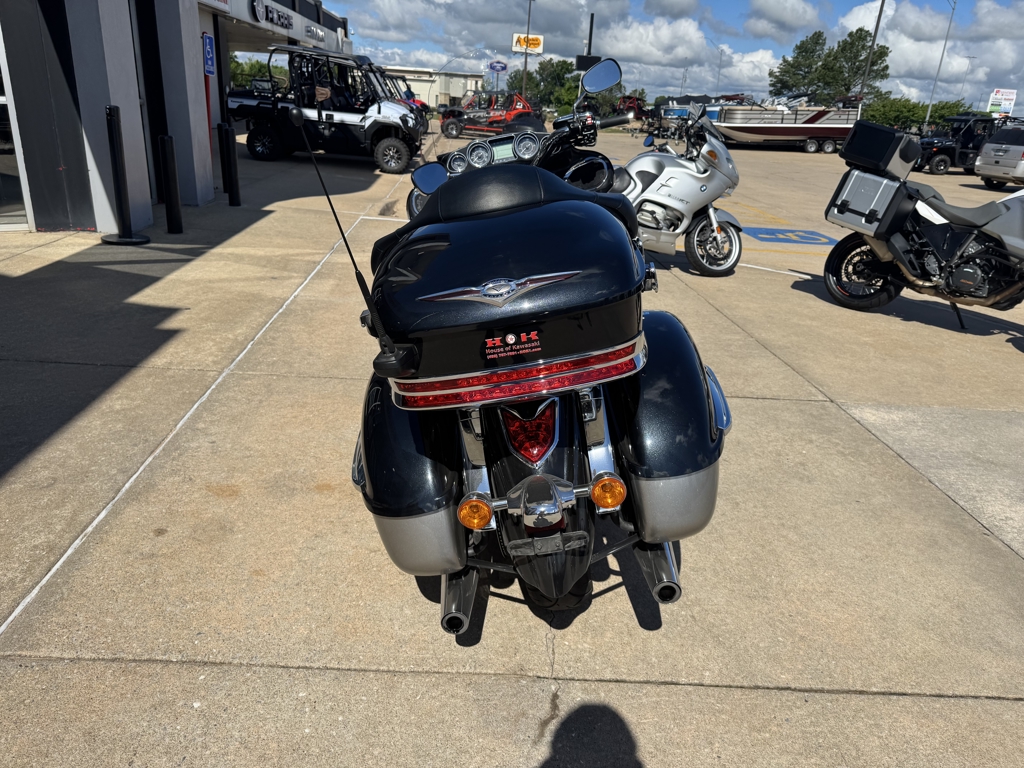

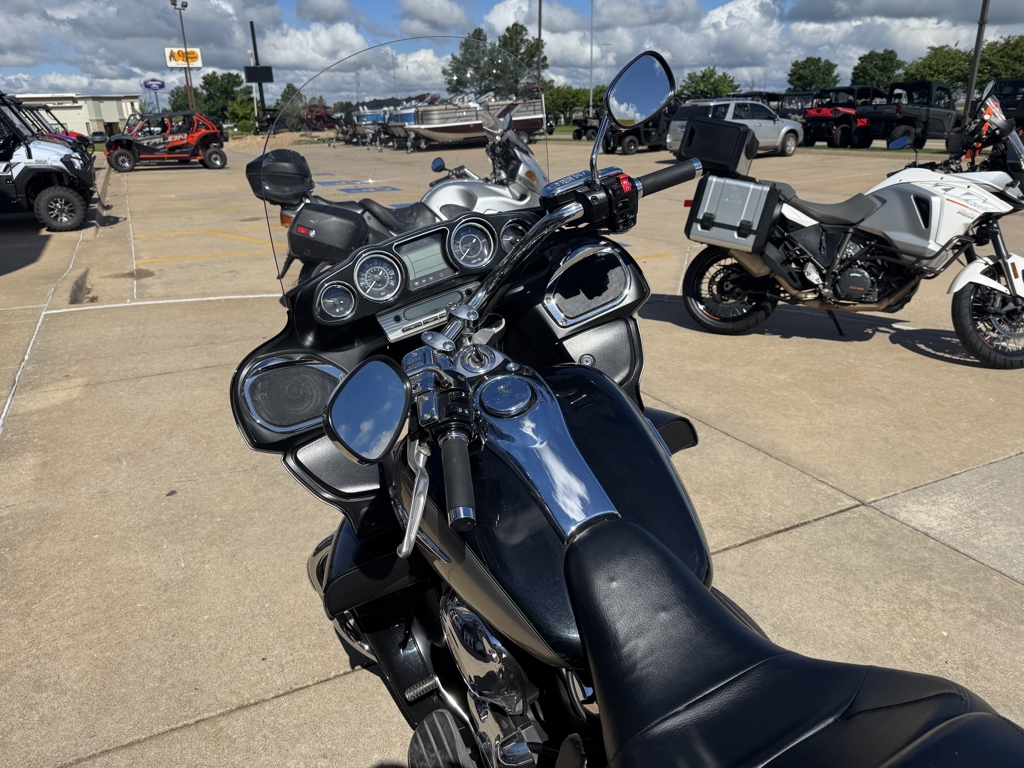

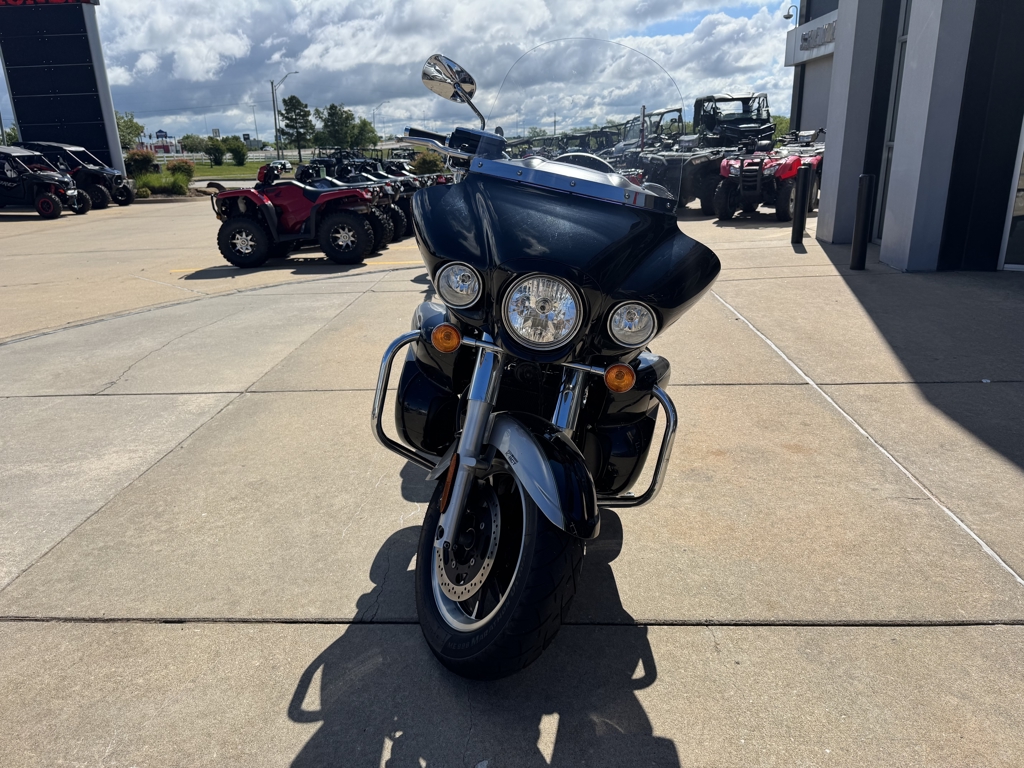

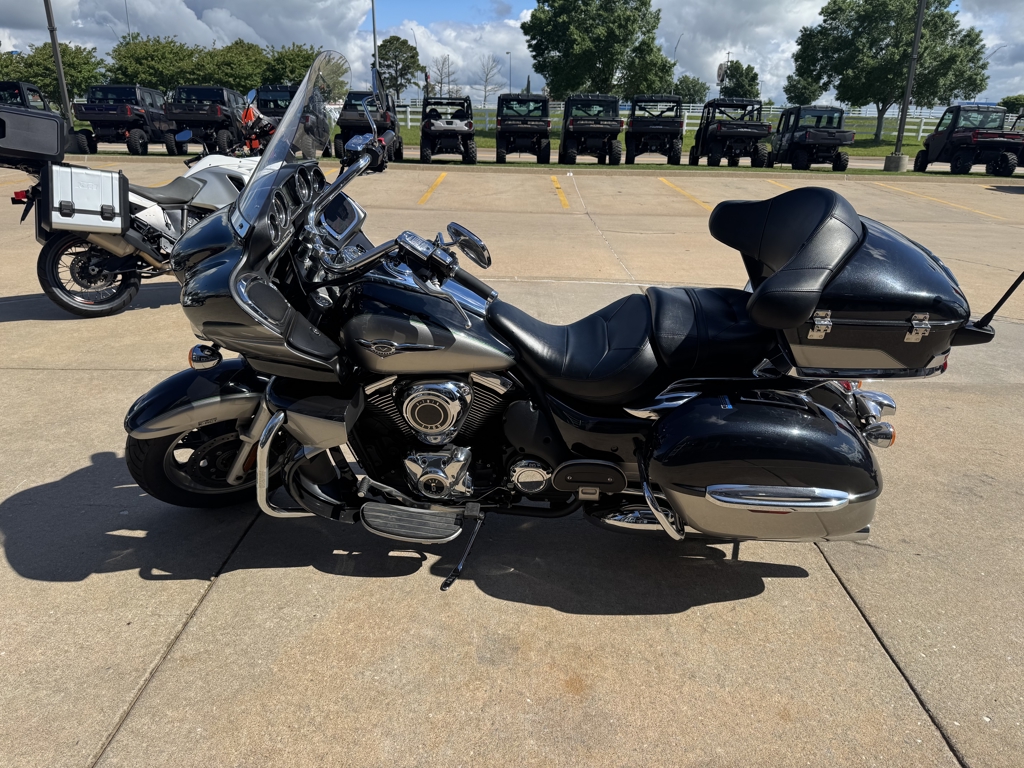

2016 Kawasaki Vulcan® 1700 Voyager® ABS JKBVNRB1XGA012202 - Shawnee Motorsports & Marine - Shawnee, Oklahoma 74804

Displacement: 1,700cc (103.7 cu in.)
Engine Type: 4-stroke, 52 deg. V-twin
Bore and Stroke: 102 x 104mm
Cooling: Liquid
Compression Ratio: 9.5:1
Fuel System: DFI® 42mm throttle bodies (2)
Ignition: TCBI with digital advance
Front Suspension: 45mm hydraulic fork/5.5 in
Rear Suspension: Swingarm with twin air-assisted shocks, with 4-way rebound damping/3.1 in
Front Brakes: Dual 300mm discs, dual four-piston calipers, K-ACT II ABS
Rear Brakes: Single 300mm disc, twin-piston caliper, K-ACT II ABS
Front Tire: 130/90x16
Rear Tire: 170/70x16
Wheelbase: 65.6 in.
Seat Height: 28.7 in.
Rake: 30 deg.
Trail: 7.0 in.
Fuel Capacity: 5.3 gal.
Dry Weight: Curb Weight: 895.2 lb.
Transmission: 6-speed with overdrive and positive neutral finder
Final Drive: Carbon fiber-reinforced belt
Colors: Metallic Phantom Silver/Metallic Spark Black

Basic Information

Year: 2016
Make: Kawasaki
Model: Vulcan 1700 Voyager
Trim: ABS
Stock Number: XGA012202
VIN: JKBVNRB1XGA012202
Condition: Used
Type: Cruiser
Mileage: 40,603
Title: Clean
Color: GREY

Brakes

ABS Brakes
Front Brake: Dual Hydraulic Disc
Front Brake Diameter (in): 11.8
Front Brake Diameter (mm): 300
Linked Brake System Front to Rear
Rear Brake: Disc
Rear Brake Diameter (in): 11.8
Rear Brake Diameter (mm): 300

Chassis & Suspension

Air Adjustable Rear Suspension
Frame: Steel
Front Suspension Size (in): 1.8
Front Suspension Size (mm): 45
Front Suspension Type: Telescopic Fork
Front Travel (in): 5.5
Front Travel (mm): 139.7
Number Rear Shock Absorbers: 2
Rear Adjustable Rebound Damping
Rear Suspension Material: Steel
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 3.1
Rear Travel (mm): 78.7

Comfort

Cruise Control
Digital Instrumentation
Number Of Speakers: 2
Trip Computer
Trip Odometer
Seat Backrest

Drivetrain

Number Of Speeds: 6
Primary Drive (Rear Wheel): Belt
Transmission: Manual

Engine

Bore (in): 4.02
Bore (mm): 102
Carburetion Type: Fuel Injected
Compression Ratio: 9.5:1
Cooling System: Liquid
Cylinders: 2
Engine Size (cc): 1700
Engine Size (ci): 103.7
Engine Stroke: 4-Stroke
Engine Type: V Twin
Fuel Capacity (gal): 5.3
Fuel Injector
Fuel Injector Size (mm): 42
Fuel Requirements: Regular
Starter: Electric
Stroke (in): 4.09
Stroke (mm): 104
Torque (Ft Lbs): 107.6
Torque (Nm): 145.9
Torque RPM: 2750
Valve Configuration: SOHC
Valves: 8
Valves Per Cylinder: 4

Other Information

Detachable Passenger Seat
Engine Case Guard
Exterior Covers
Exterior Guards
Floor Boards
Fork Guards
Front Fender
Glove Box / Dash Storage
Hand Grips
Hard Side Cases
Hard Side Case Capacity (gal): 8.6
Hard Side Case Capacity (l): 38
Hard Side Case Location: Left and Right Side
Hard Side Case Number: 2
Helmet Storage
Lockable Storage
Side Cover
Rear Fender
Saddle Bag Mounts
Side Storage Mount
Stand
Stand Type: Kick
Tail Bag
Upper Fairing
Wind Deflector
Windshield
Windshield Lowers
Windshield Mounts

Safety

Headlight
Headlight Type: Halogen
Fuel Level Warning
Rearview Mirrors
Temperature Warning
Temperature Warning Type: Gauge

Specifications

Front Tire (Full Spec): 130/90 R16
Front Tire (Inches): 16
Front Tire Aspect Ratio: 90
Front Tire Width: 130
Fuel Capacity (liters): 20
Ground Clearance (in): 5.3
Ground Clearance (mm): 134.6
Height (inches): 61
Height (mm): 1549.4
Length (inches): 100
Length (mm): 2560.3
Rear Tire (Full Spec): 170/70 R16
Rear Tire (Inches): 16
Rear Tire Aspect Ratio: 70
Rear Tire Width: 170
Seat Height (inches): 28
Tube / Tubeless: Tubeless
Wet Weight (kg): 406.1
Wet Weight (lbs): 895.2
Wheelbase (in): 65.6
Wheelbase (mm): 1666.2
Wheels Composition: Aluminum
Width (inches): 39
Width (mm): 995.7
Speedometer
Tachometer
