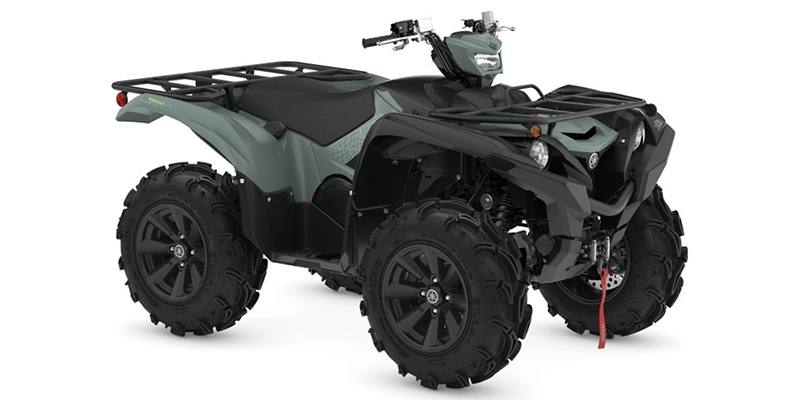

2026 Yamaha Grizzly EPS XT-R
Price:
$11,399.00
- Year: 2026
- Make: Yamaha
- Model: Grizzly
- Condition: New
Engine Type: Single-Cylinder
Displacement: 41.8 cu. in. (686 cc)
Bore x Stroke: Bore: 4.02 in. (102 mm); Stroke: 3.31 in. (84 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric
Front Suspension: Independent Double Wishbone
Front Travel: 7.6 in. (193 mm)
Front Brake Type: Dual Hydraulic Disc
Front Tires: Maxxis® Zilla AT27 x 10 - 14 MU01
Rear Suspension: Independent Double Wishbone
Rear Travel: 9.1 in. (231.1 mm)
Rear Brake Type: Dual Hydraulic Disc
Rear Tires: Maxxis® Zilla AT27 x 10 - 14 MU01
Frame: Steel
Towing Capacity: 1300 lb. (589.7 kg.)
Fuel Capacity: 4.8 gal. (18.2 L)
Ground Clearance: 11.8 in. (299.7 mm)
Machine Dimensions (LxWxH): L: 81.5 in. (2070.1 mm); W: 49.2 in. (1249.7 mm); H: 50 in. (1270 mm)
Wheelbase: 49.2 in. (1249.7 mm)
Drive Train: Continuously Variable (CVT)
Speedometer: Standard
Odometer: Standard
Displacement: 41.8 cu. in. (686 cc)
Bore x Stroke: Bore: 4.02 in. (102 mm); Stroke: 3.31 in. (84 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric
Front Suspension: Independent Double Wishbone
Front Travel: 7.6 in. (193 mm)
Front Brake Type: Dual Hydraulic Disc
Front Tires: Maxxis® Zilla AT27 x 10 - 14 MU01
Rear Suspension: Independent Double Wishbone
Rear Travel: 9.1 in. (231.1 mm)
Rear Brake Type: Dual Hydraulic Disc
Rear Tires: Maxxis® Zilla AT27 x 10 - 14 MU01
Frame: Steel
Towing Capacity: 1300 lb. (589.7 kg.)
Fuel Capacity: 4.8 gal. (18.2 L)
Ground Clearance: 11.8 in. (299.7 mm)
Machine Dimensions (LxWxH): L: 81.5 in. (2070.1 mm); W: 49.2 in. (1249.7 mm); H: 50 in. (1270 mm)
Wheelbase: 49.2 in. (1249.7 mm)
Drive Train: Continuously Variable (CVT)
Speedometer: Standard
Odometer: Standard
Basic Information
- Year: 2026
- Make: Yamaha
- Model: Grizzly
- Trim: EPS XT-R
- Stock Number: Y104378
- VIN: 5Y4AML9EXTA104378
- Condition: New
- Type: Utility
- Primary Color: MOSS GREY/BLACK
Chassis / Suspension
- Frame: Steel
- Front Adjustable Fork Pre-Load
- Front Rack Capacity (lbs): 110
- Front Travel (in): 7.6
- Front Travel (mm): 193
- Number Rear Shock Absorbers: 2
- Rear Adjustable Shock / Spring Pre-Load
- Rear Stabilizer Bar
- Rear Suspension Material: Steel
- Rear Travel (in): 9.1
- Rear Travel (mm): 231.1
- Steering Brand: Electronic Power Steering (EPS)
- Steering Control: Handlebar
- Steering Type: Power
- Suspension - Front: Independent Double Wishbone
- Suspension - Rear: Independent Double Wishbone
Comfort
- Clock
- Digital Instrumentation
- Hour Meter
- Seat Location: Driver
- Seat Material: Vinyl
- Seat Type: One-Piece
Drivetrain
- Transmission Type: Continuously Variable (CVT)
- Engine Braking System
- Differential Lock
- Differential Lock Location: Front
- Driveline Brand: On-Command
- Driveline Type: Selectable 4X2 / 4X4
- Number Of Driveline Modes: 2
- Hi / Low Range
- Primary Drive (Front Wheel): Shaft
- Primary Drive (Rear Wheel): Shaft
- Reverse
- Transmission Brand: UltraMatic
- Limited Slip Differential
- Limited Slip Differential Location: Front
- Primary Drive (Engine / Transmission): Belt
Engine
- Bore (in): 4.02
- Bore (mm): 102
- Carburetion Type: Fuel Injected
- Compression Ratio: 10.0:1
- Cylinders: 1
- Displacement (ci): 41.8
- Engine Cooling: Liquid
- Engine Size (cc): 686
- Engine Stroke: 4-Stroke
- Fuel Capacity (gal): 4.8
- Fuel Injector
- Fuel Injector Size (mm): 44
- Fuel Requirements: Regular
- Starter Type: Electric
- Stroke (in): 3.31
- Stroke (mm): 84
- Valve Configuration: SOHC
- Valves: 4
- Valves Per Cylinder: 4
Other Information
- Fender Storage
- Fender Storage Location: Front
- Power Outlet
- CV Boot Cover
- Brush Guard
Safety
- Brakes - Front: Dual Hydraulic Disc
- Brakes - Rear: Dual Hydraulic Disc
- Roller Fairlead
- Kill Switch / Tether Cord
- Headlight(s)
Specifications
- Bash Plate (Front)
- Bash Plate (Rear)
- Body Material: Plastic
- Front Rack Capacity (kgs): 49.9
- Front Tire Diameter (in): 27
- Front Tire Width: 10
- Full Length Skid Plate
- Ground Clearance (in): 11.8
- Ground Clearance (mm): 299.7
- Height (Inches): 50
- Height (mm): 1270
- Length (mm): 2070.1
- Rear Hitch
- Rear Tire Diameter (in): 27
- Rear Tire Width: 10
- Towing Capacity (kgs): 589.7
- Towing Capacity (lbs): 1300
- Tube / Tubeless: Tubeless
- Wet Weight (kg): 355.2
- Wet Weight (lbs): 783
- Wheelbase (in): 49.2
- Wheelbase (mm): 1249.7
- Wheels Composition: Aluminum
- Width (Inches): 49
- Width (mm): 1249.7
- Winch
- Winch Brand Name: Warn
- Winch Weight (kgs): 1134
- Winch Weight (lbs): 2500
