STOCK #: 200278
VIN #: 7RXTE3220NA200278

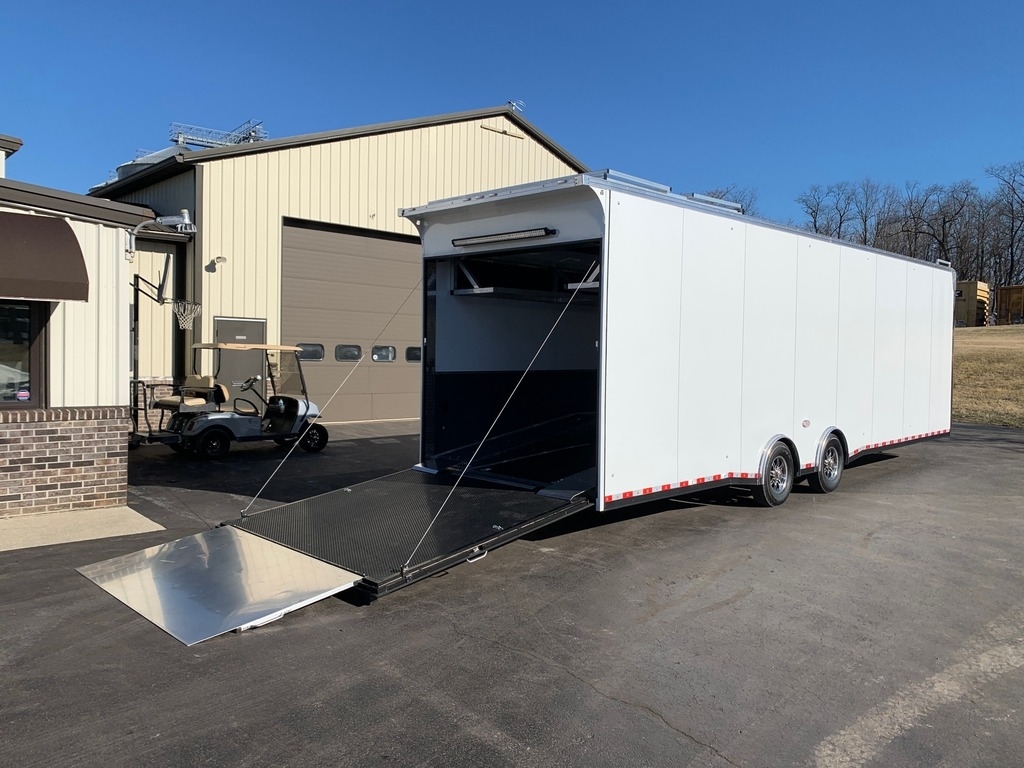

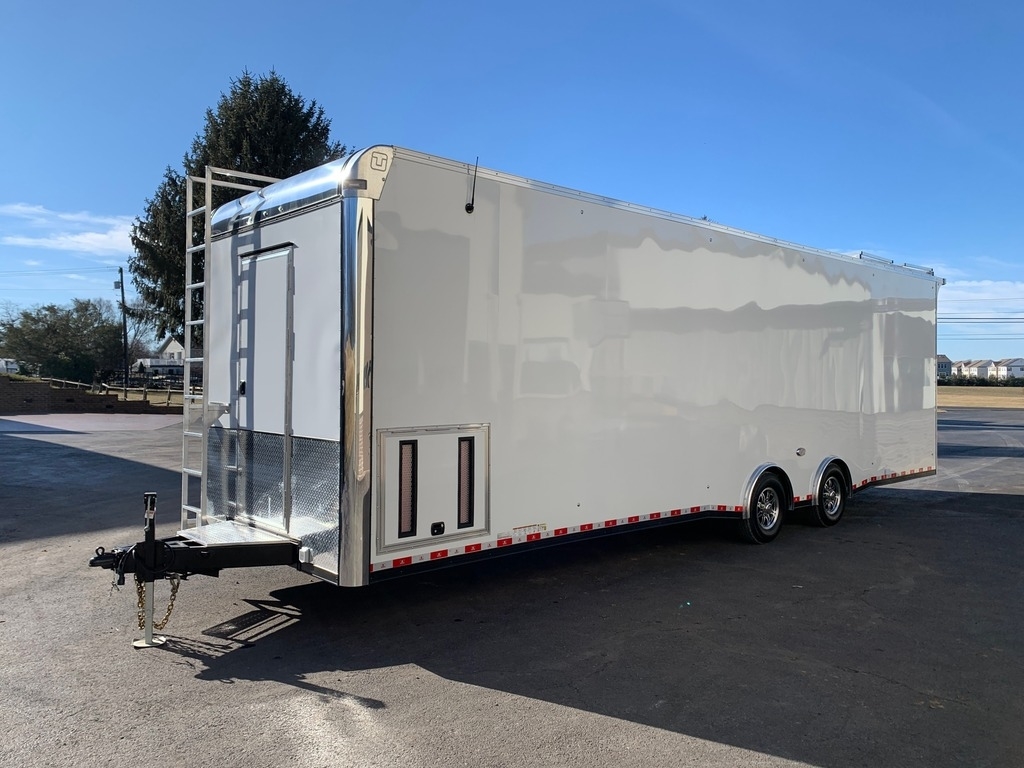

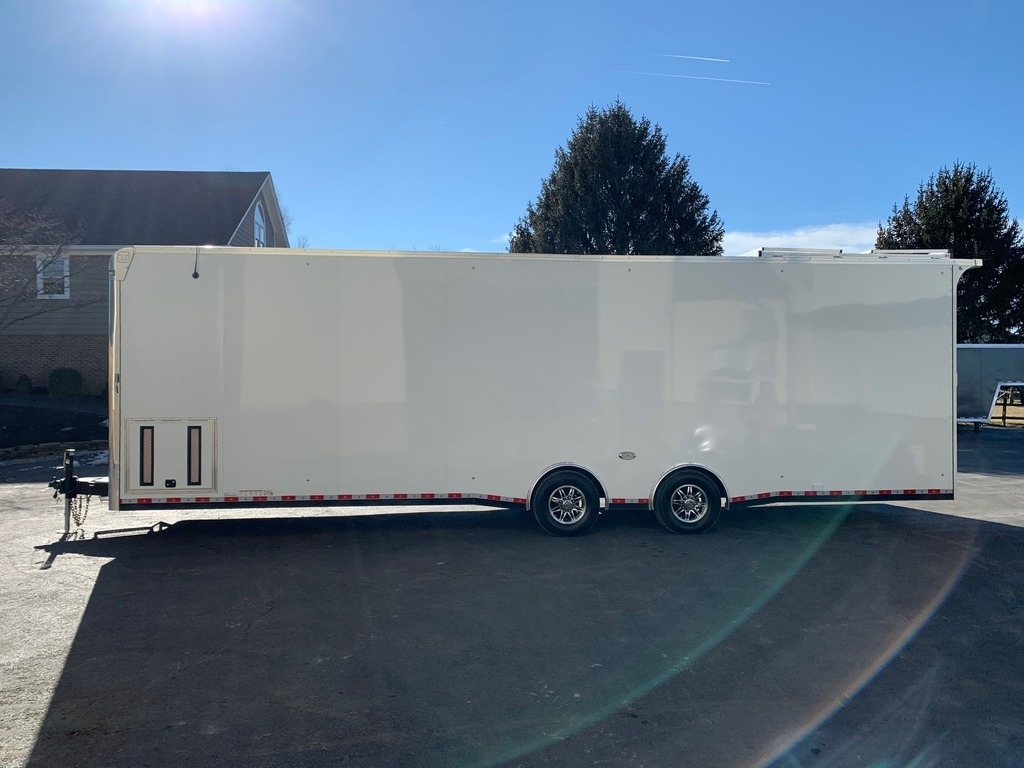

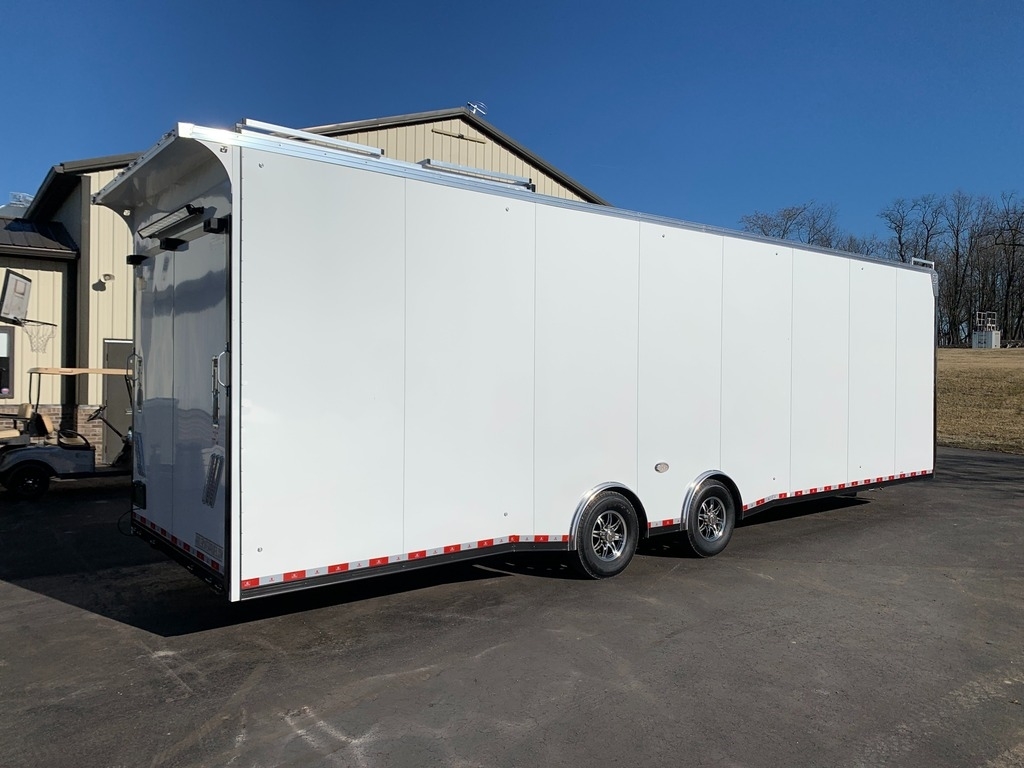

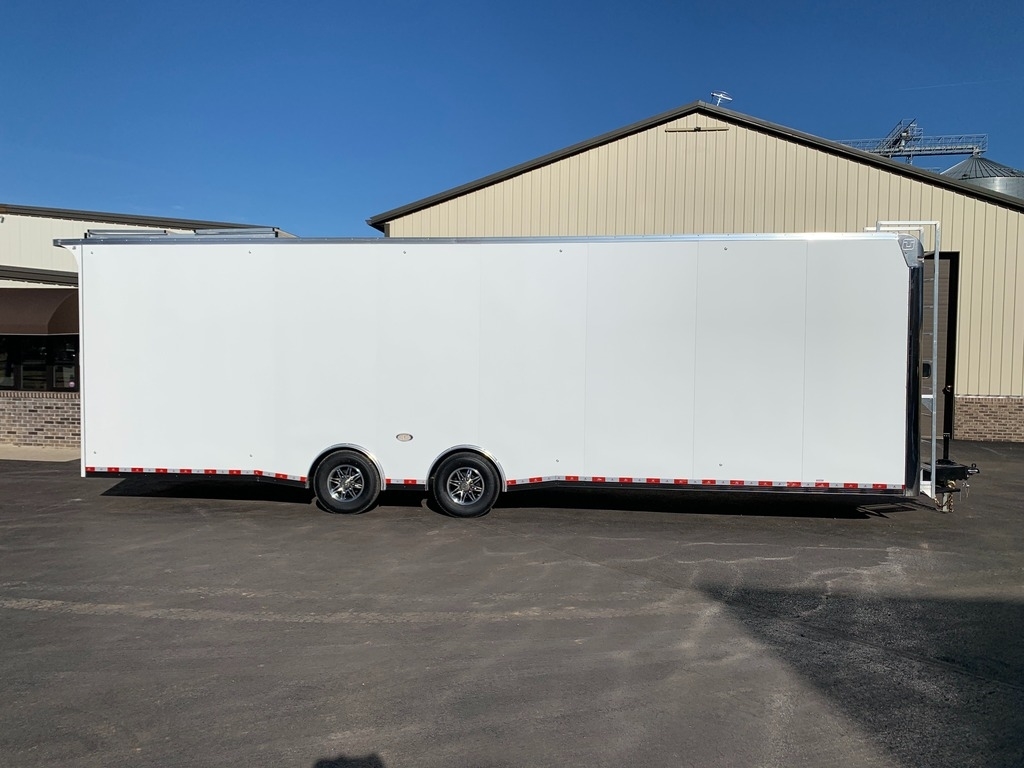

· NEW 2022 UNITED 32’ X-HEIGHT SUPER SPREAD AXLE DIRT LATE MODEL RACE TRAILER
· 8.5' WIDE X 32' LONG (31' 8" USABLE FLOOR) X 8' 6" INTERIOR HEIGHT
· (7' 5" DOOR HEIGHT CLEARANCE)
· GVWR: 14,000 LB
· EMPTY WEIGHT: 9,160 LB
· COLOR: WHITE SCREWLESS EXTERIOR
· AXLE -
· DEXTER 7,000 LB INDEPENDENT TORSION SUSPENSION AXLES
· ELECTRIC BRAKES ON ALL WHEELS
· E-Z® LUBE HUBS
· TIRES -
· ST235/80R16E 10-PLY RADIAL NITROFILL TIRES (NITROGEN)
· 8-LUG 16” ALUMINUM WHEELS (CLEAR COATED)
· CHROME CENTER CAPS W/ REMOVABLE PLUG
· CHROME LUG NUTS
· HITCH -
· 7-WAY RV MOLDED PLUG
· 2-5/16" COUPLER
· 7K SQUARE-TUBE DROP-LEG TONGUE JACK
· SAFETY CHAINS
· BREAKAWAY KIT W/ CHARGER
· FRAME -
· REAR WING (SPOILER)

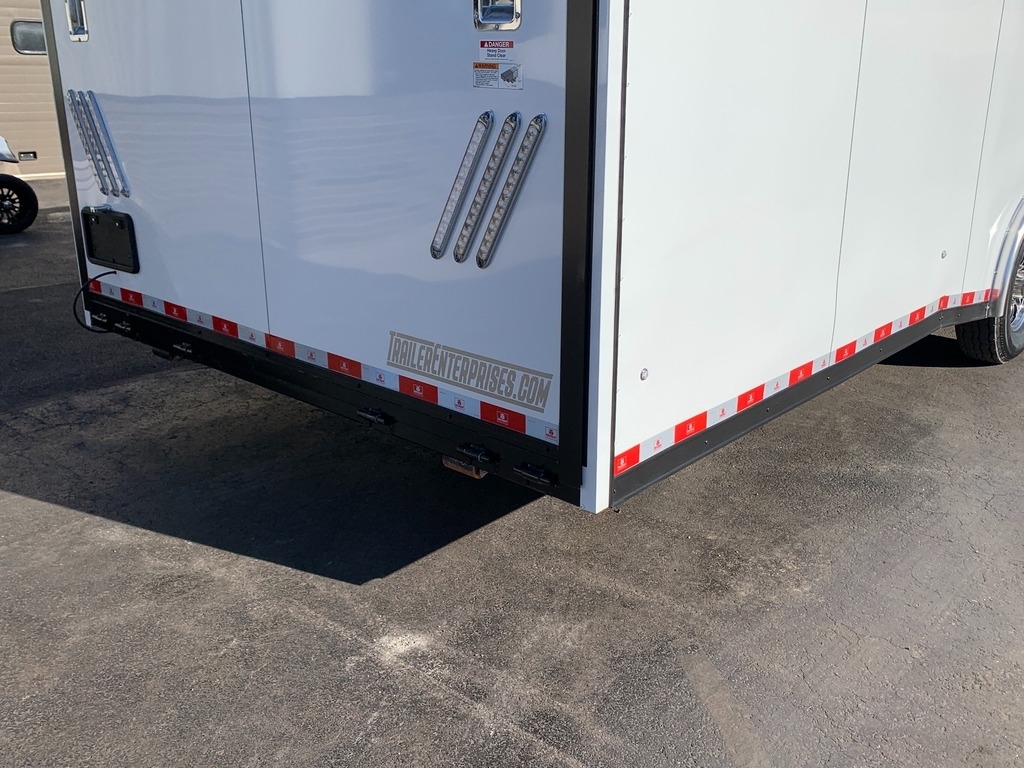

· 4-1/2" SKID ROLLER WHEELS WELDED ON REAR UNDERCARRIAGE (PAIR)

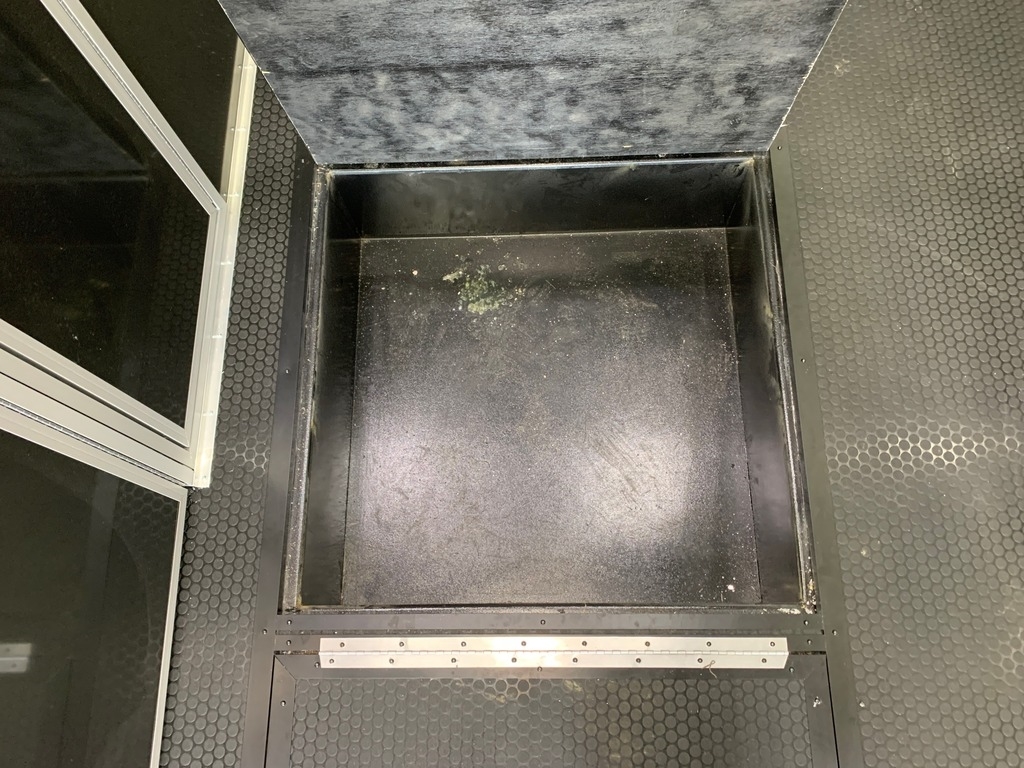

· (2) STORAGE COMPARTMENTS IN FLOOR
· WINCH MOUNT PLATE UNDER FLOOR
· STEEL UNI-BODY CONSTRUCTION
· 6" TRIPLE-TUBE A-FRAME TONGUE - 48” CLEARANCE TO CENTER-BALL
· 8" I-BEAM MAIN FRAME RAILS
· 16" ON-CENTER FLOOR CROSS MEMBERS
· 16" ON-CENTER WALL POSTS
· 12" ON-CENTER ROOF BOWS
· UNDERCOATING ON LOWER FRAME
· VENTS -

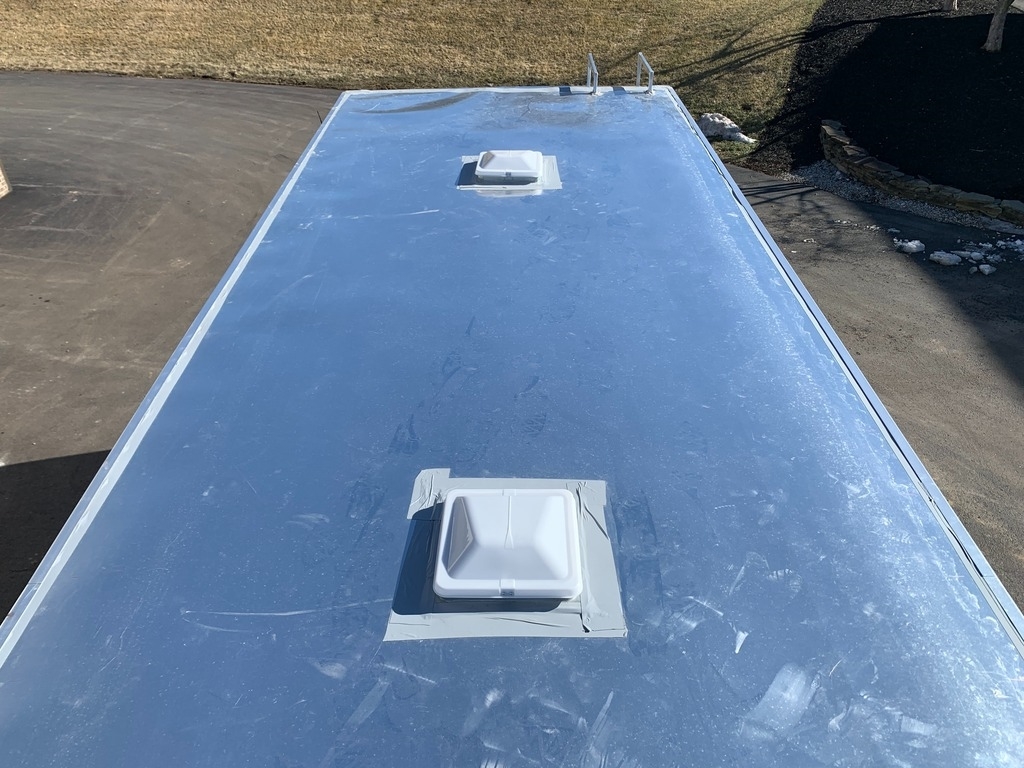

· FRONT ROOF VENT BRACED & WIRED FOR A/C
· REAR NON-POWERED ROOF VENT

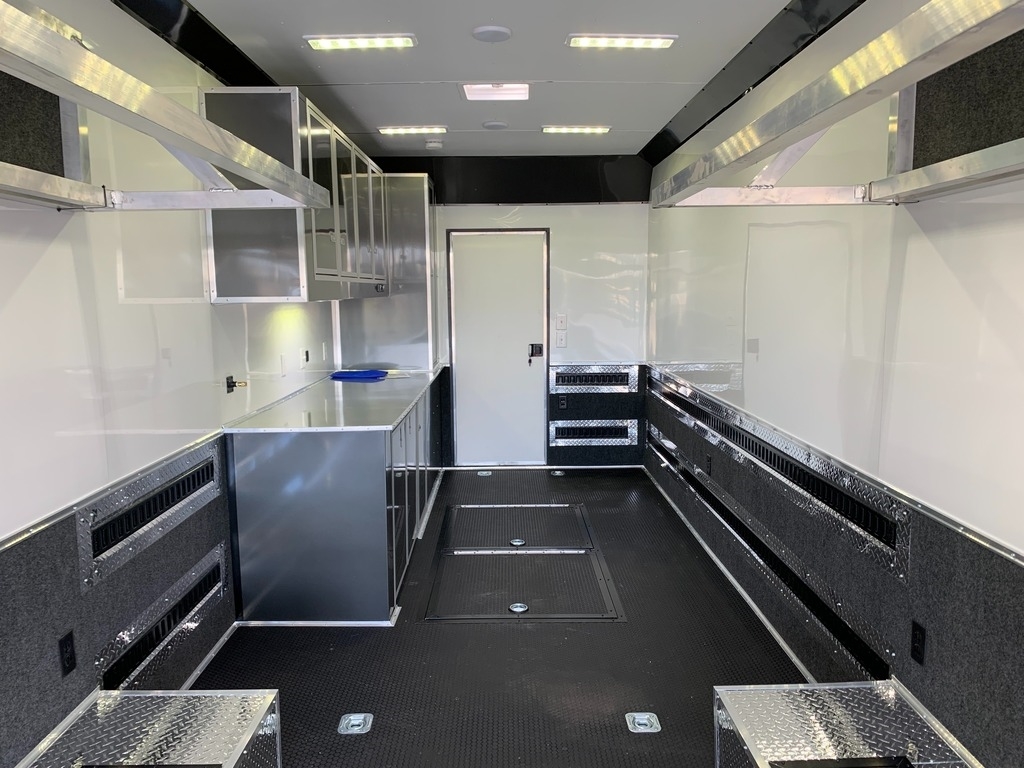

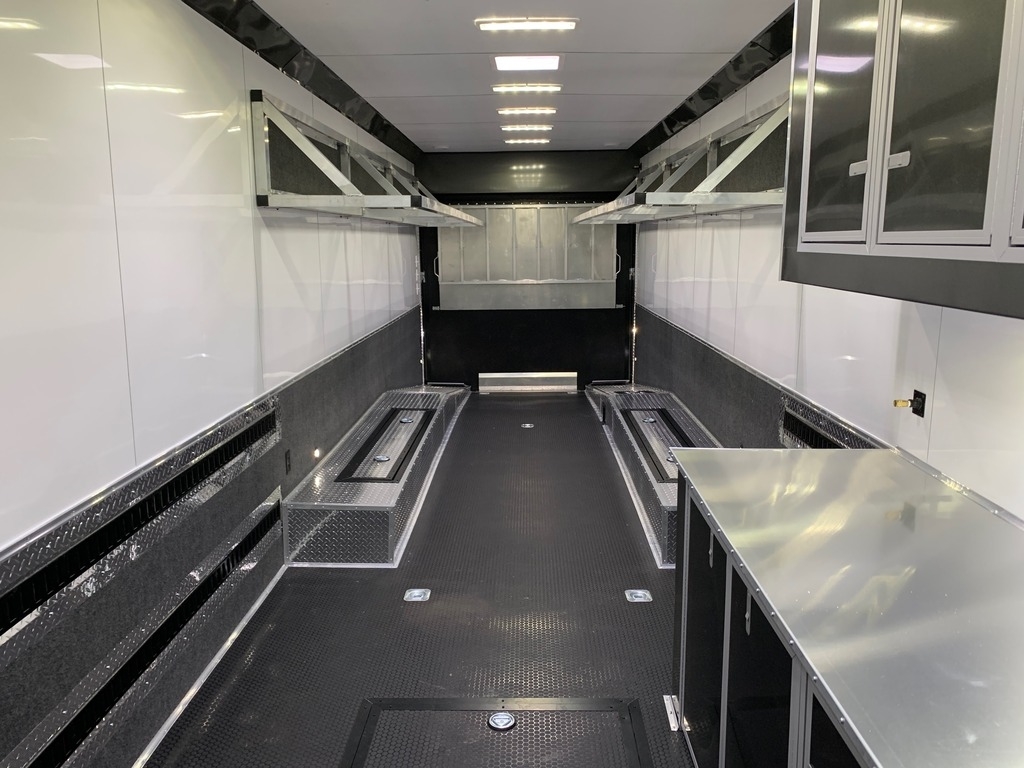

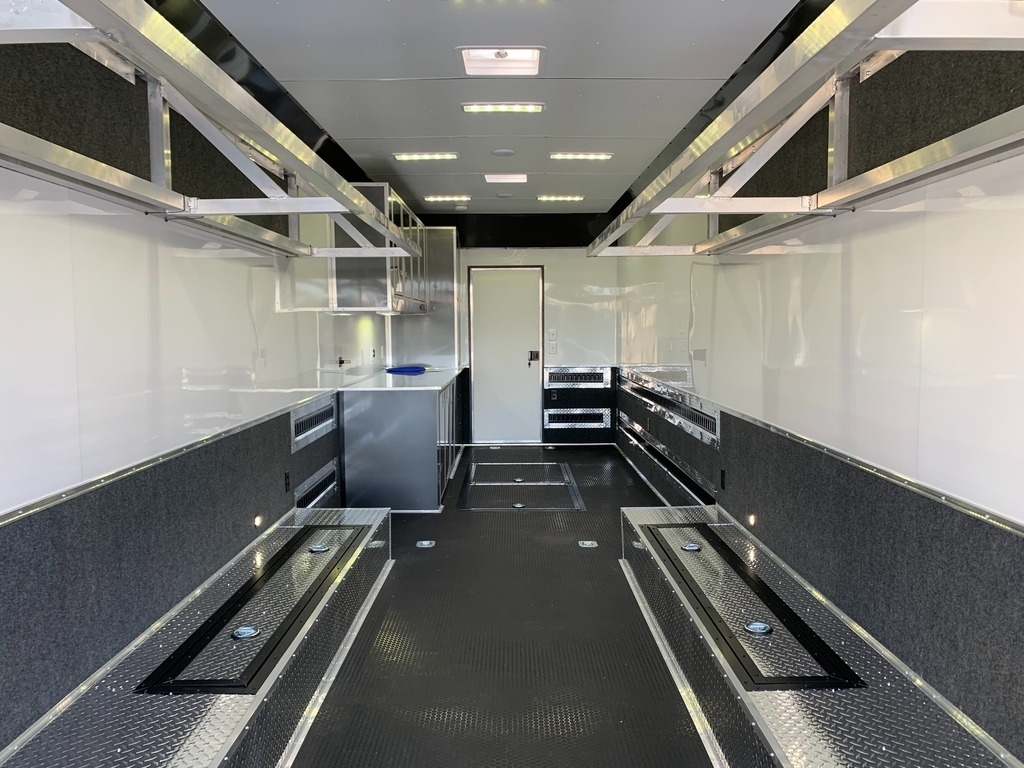

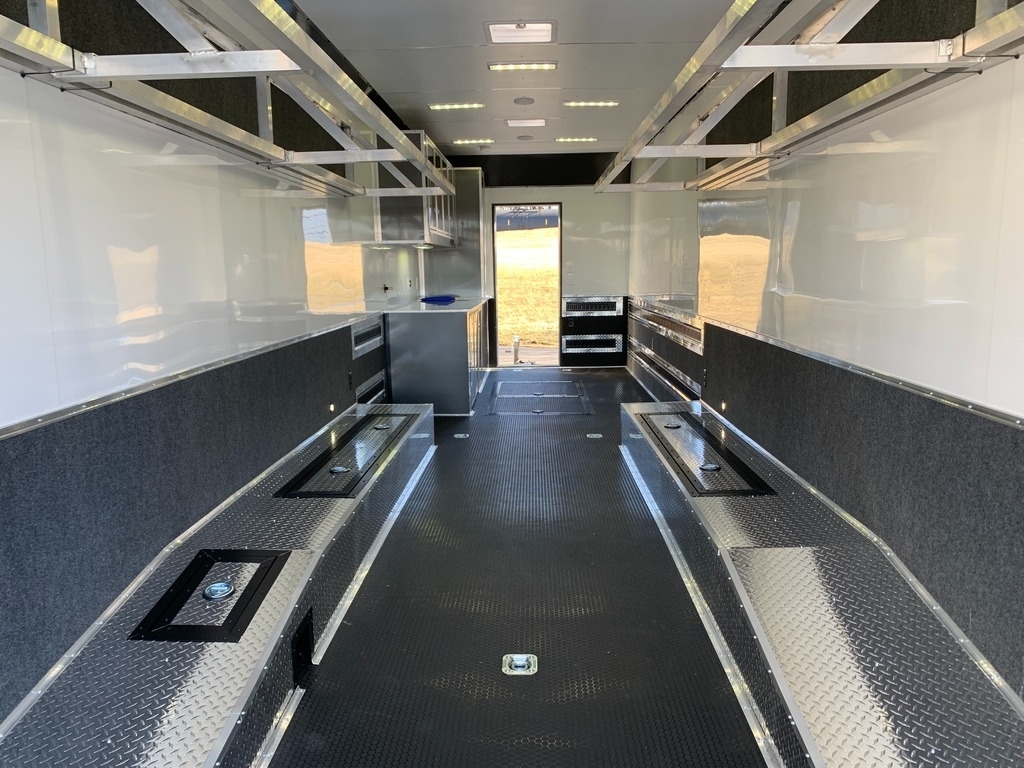

· INTERIOR -
· WHITE VINYL CEILING W/ ANGLED COVE EDGES
· INSULATED CEILING
· FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS
· SCREWLESS ALUMINUM INTERIOR WALLS OVER 3/8" PLYWOOD
· MARINE-GRADE CARPET PROTECTIVE WAINSCOTING 3' UP ON INTERIOR WALLS
· REAL BLACK RAISED RUBBER-COIN FLOORING
· 3/4" PLYWOOD SUBFLOOR
· ALUMINUM INTERIOR TRANSITION FLAP W/ HINGE FOR RAMP DOOR (HINGE COVER)
· (6) HEAVY DUTY RECESSED D-RINGS ON FLOOR - (2) 1’ FROM REAR & (2) 19’ FROM REAR 40” APART FOR CAR - (2) 31’ FROM REAR 24” APART FOR PIT CART

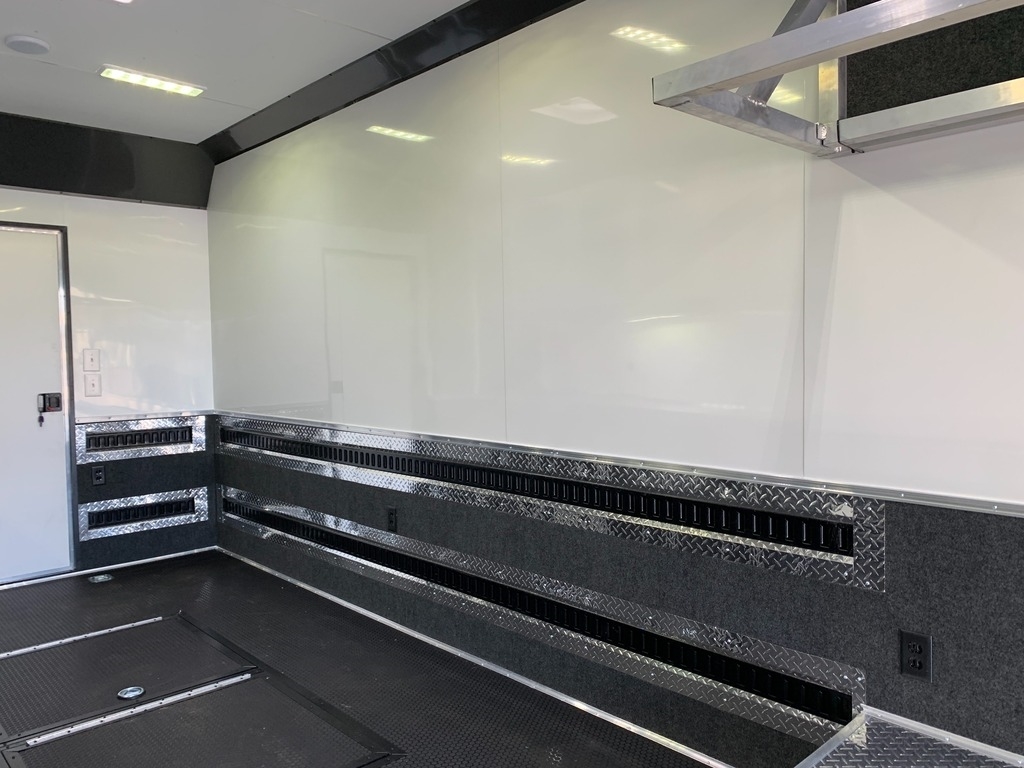

· (2) 3' 4" ROWS OF RECESSED E-TRACK ON ROAD SIDE WALL AT 12" & 30" ABOVE FLOOR
· (2) 13' 6" ROWS OF RECESSED E-TRACK ON CURB SIDE WALL AT 12" & 30" ABOVE FLOOR

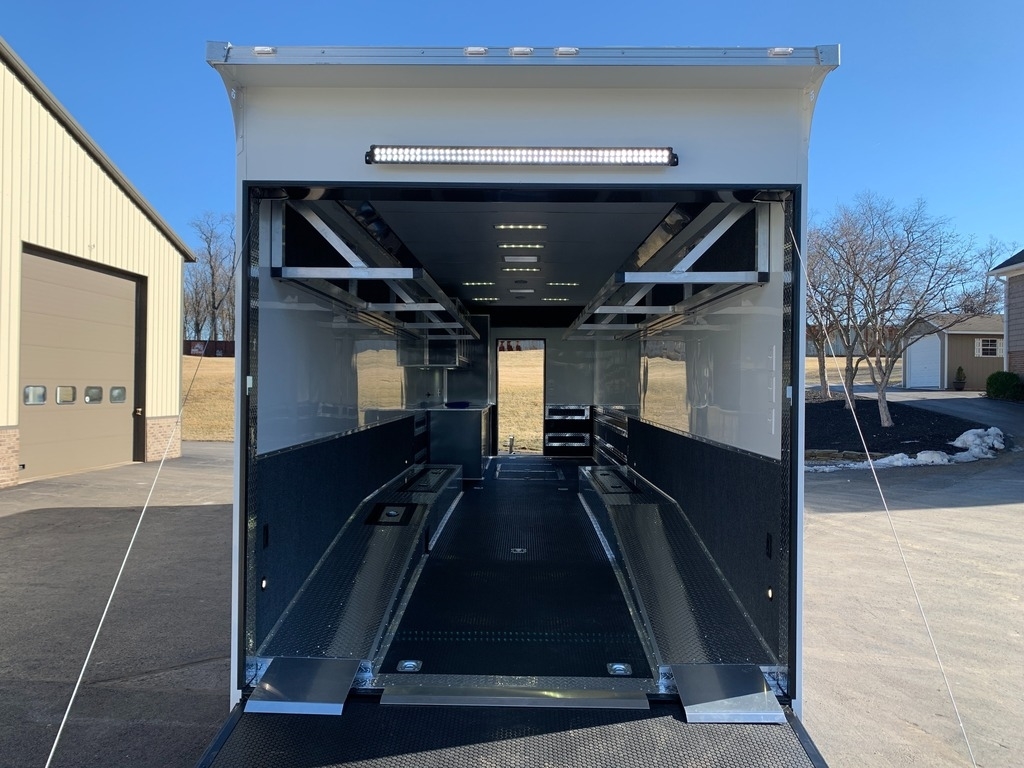

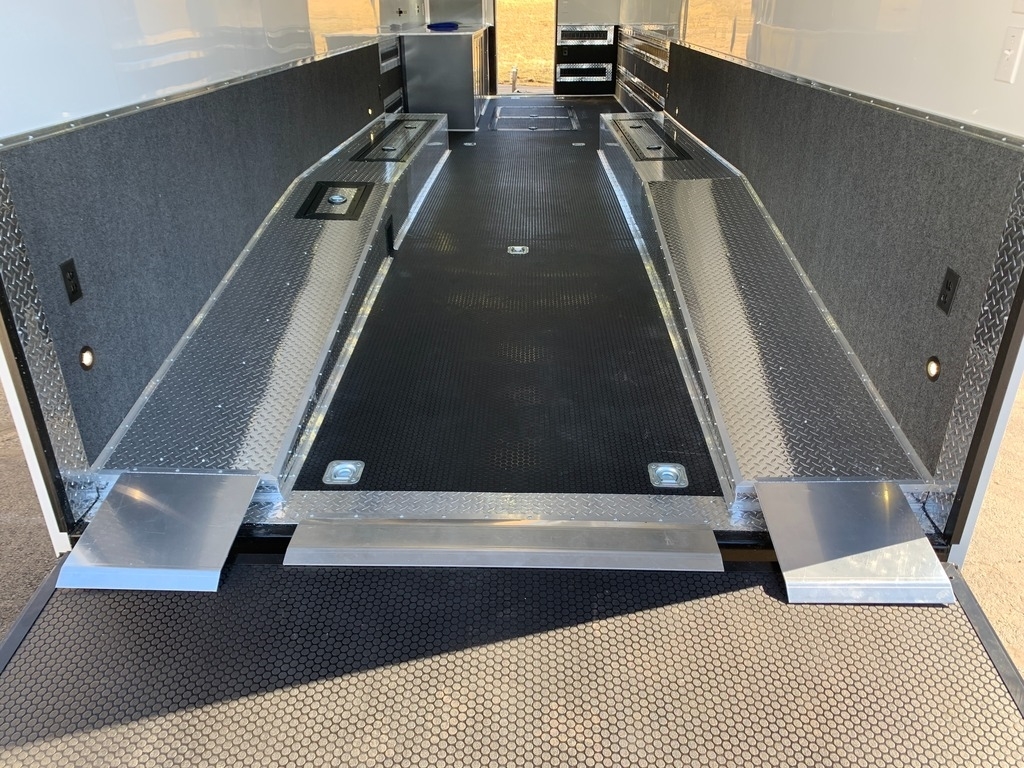

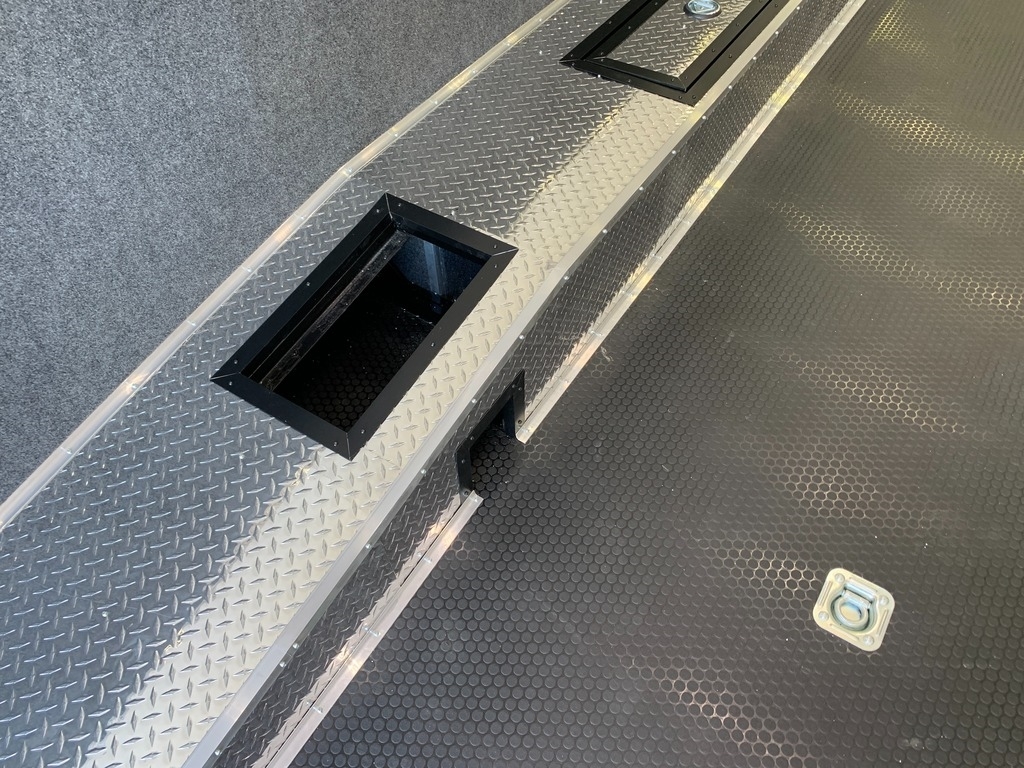

· RAMP OVERS - 17’ 4” LONG X 22” WIDE RAMP OVERS W/ LIFT-OUT STORAGE ACCESS DOORS (52” WIDE BETWEEN)

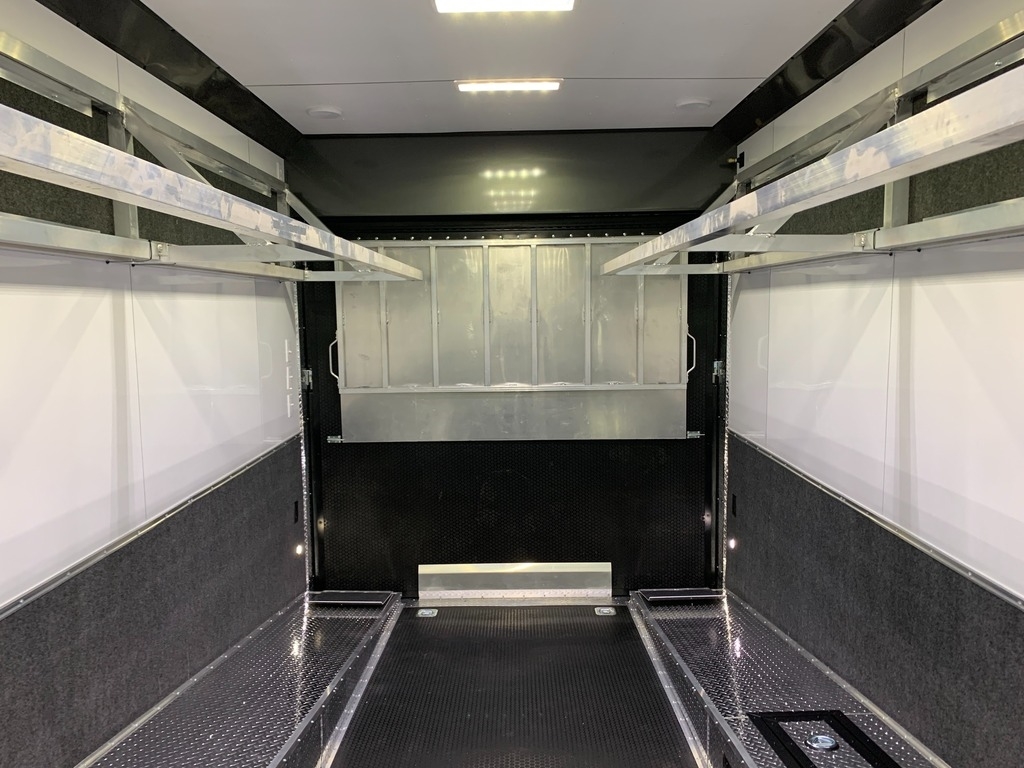

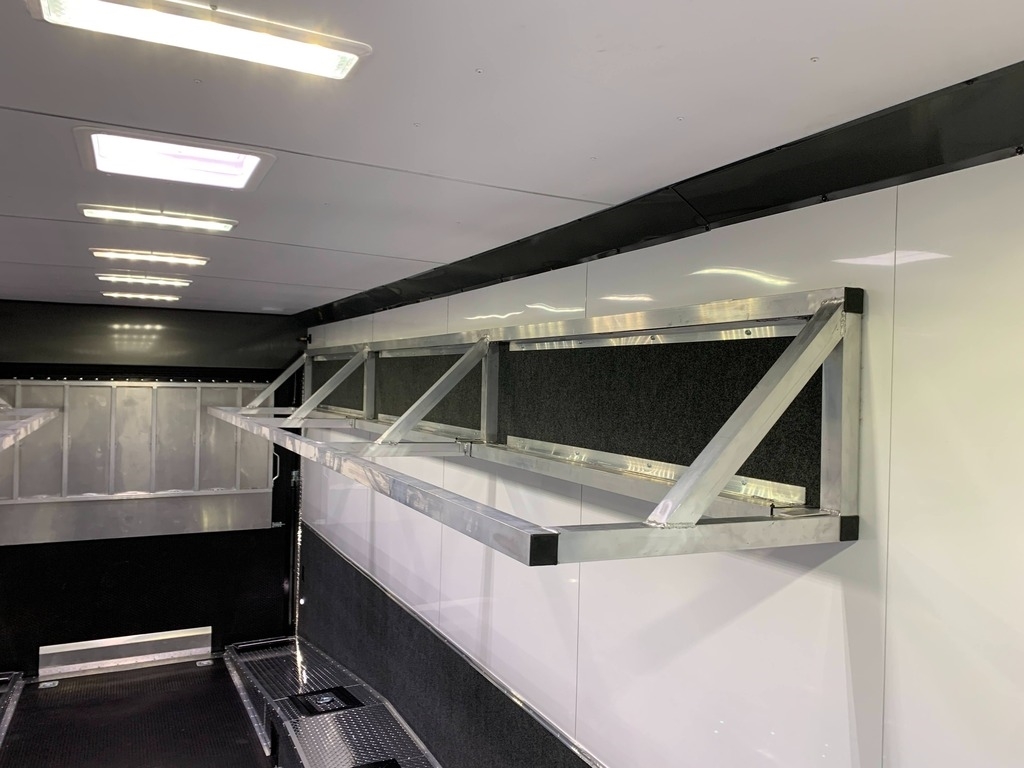

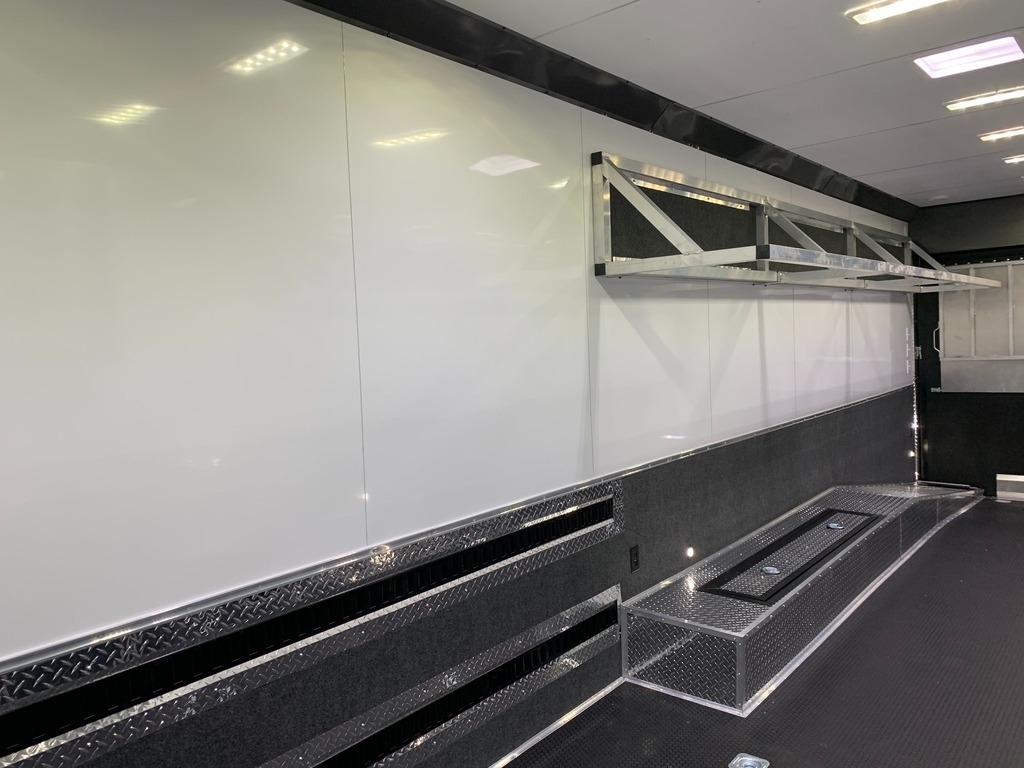

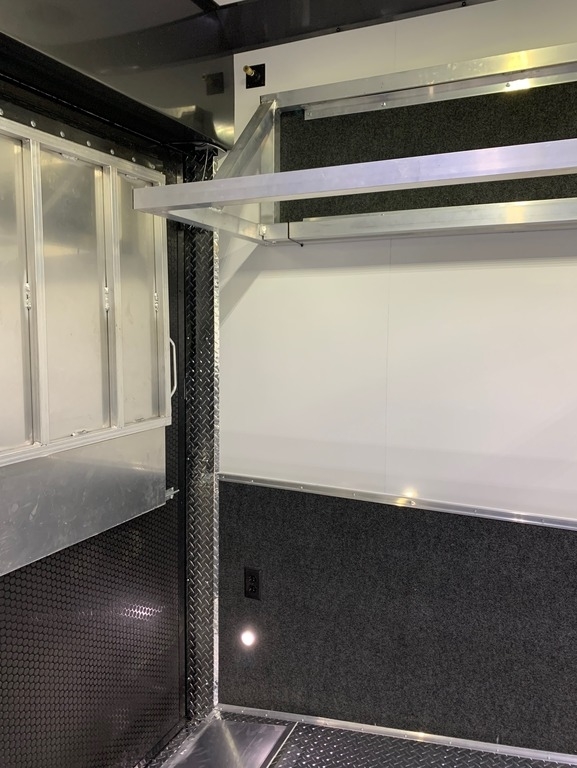

· TIRE RACKS - 17’ LONG HEAVY-DUTY ALL-ALUMINUM SQUARE-TUBE TIRE RACKS W/ ADJUSTMENT BARS (HOLD 24 TIRES - 12 EACH SIDE)
· 12 VOLT ELECTRICAL -

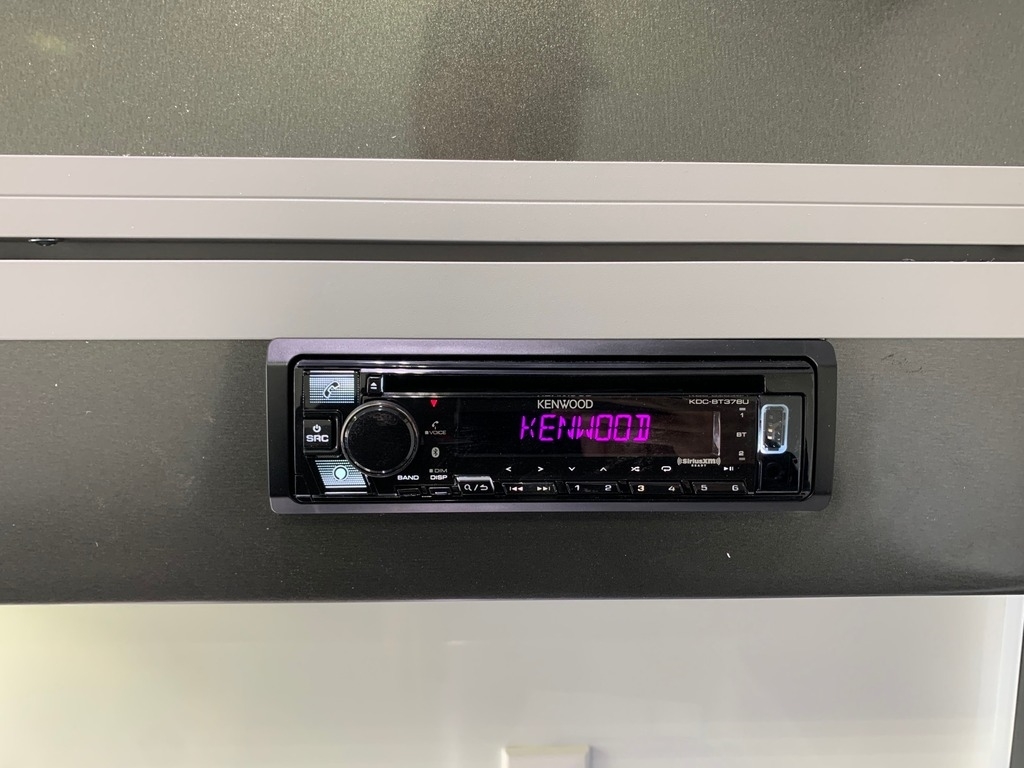

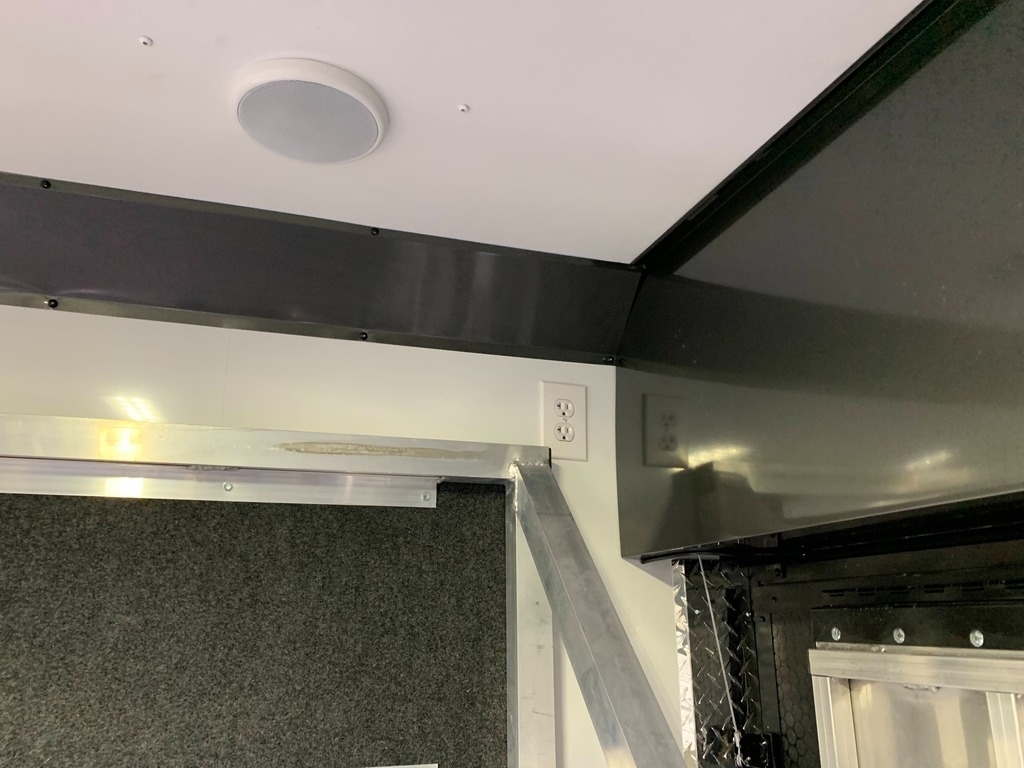

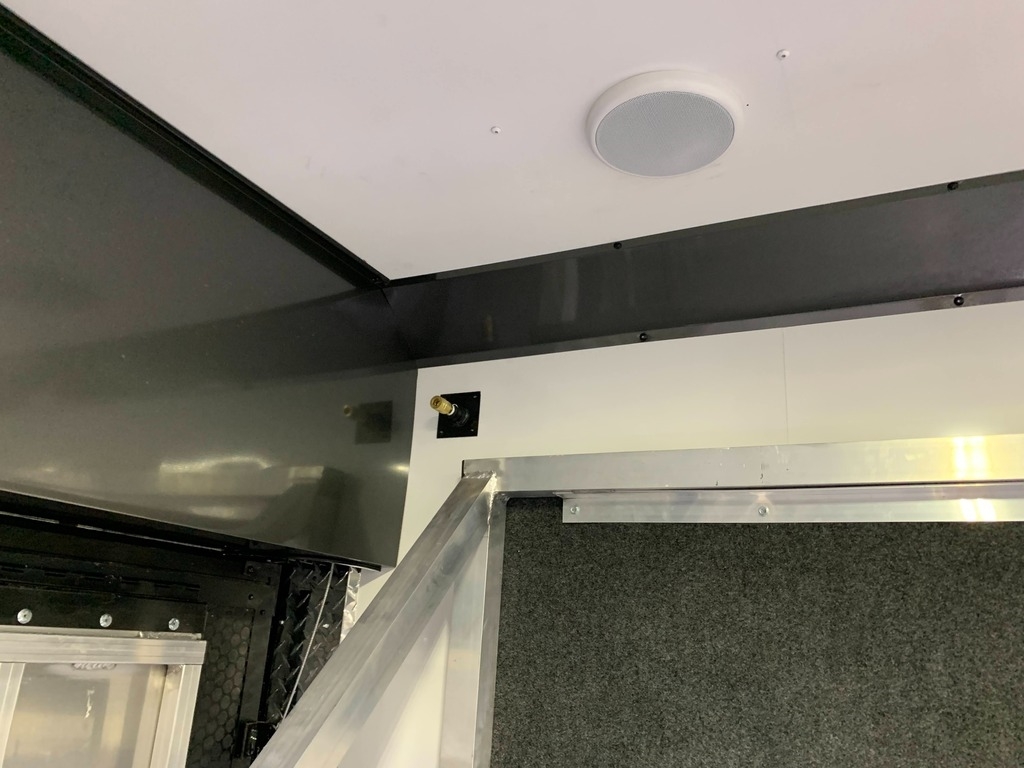

· KENWOOD STEREO W/ (4) SPEAKERS - BLUETOOTH/MP3/AM/FM/CD PLAYER
· (9) 12 VOLT L.E.D. OPTRONICS OPTI-BRITE ILL12CB 10-DIODE 18” CEILING LIGHTS
· 12 VOLT L.E.D. OPTRONICS OPTI-BRITE ILL12CB 10-DIODE 18” CABINET LIGHT
· (2) 3-WAY WALL SWITCHES FOR (5) REAR CEILING LIGHTS - (1) AT ENTRY DOOR & (1) AT REAR
· WALL SWITCH FOR (4) FRONT CEILING LIGHTS & CABINET LIGHT - AT ENTRY DOOR
· 52” 12 VOLT 300W 30,000LM L.E.D. LIGHT BAR COMBO SPOT FLOOD - ON REAR WIRED TO WALL SWITCH & BACKUP LIGHTS
· (4) 12 VOLT L.E.D. 18-DIODE 3" ROUND RECESSED LOADING LIGHTS IN SIDEWALLS W/ WALL SWITCH AT REAR
· 110 VOLT TO 12 VOLT 45 AMP POWER CONVERTER
· 12 VOLT DEEP CYCLE MARINE BATTERY - WIRED TO AUXILIARY / CHARGE CIRCUIT
· USB 12-VOLT CHARGING PORT - ABOVE WORK BENCH
· CARBON-MONOXIDE DETECTOR (BATTERY OPERATED)

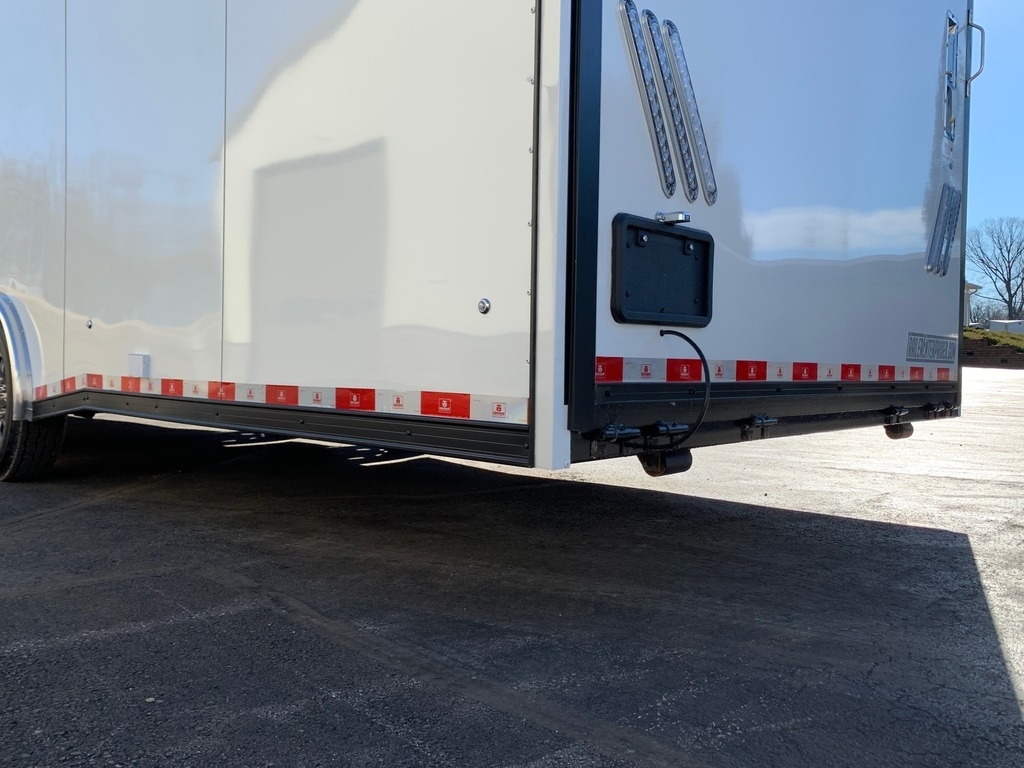

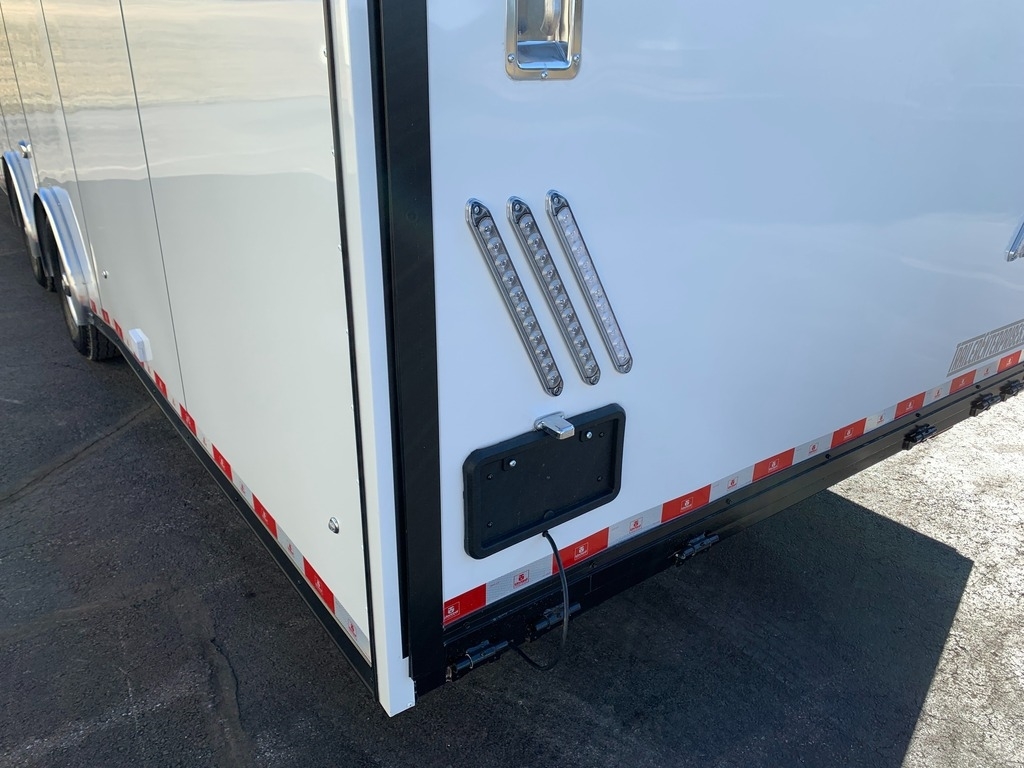

· (2) PAIRS OF L.E.D. TAIL LIGHTS W/ CHROME TRIM RINGS
· L.E.D. BACK-UP LIGHTS W/ CHROME TRIM RINGS
· MIDSHIP L.E.D. TURN SIGNALS W/ CHROME TRIM RINGS
· L.E.D. CLEARANCE LIGHTS
· CHICKEN LIGHTS PACKAGE W/ CLEAR LENS EXTERIOR LIGHTS & CHROME TRIM RINGS
· EXTERIOR -
· .030 ALUMINUM SCREWLESS EXTERIOR
· 36" ALUMINUM TREAD PLATE STONE GUARD
· ONE-PIECE ALUMINUM SEAMLESS ROOF
· WALK-ON ROOF FULL LENGTH - 3/8” PLYWOOD REINFORCEMENT UNDER ENTIRE ROOF

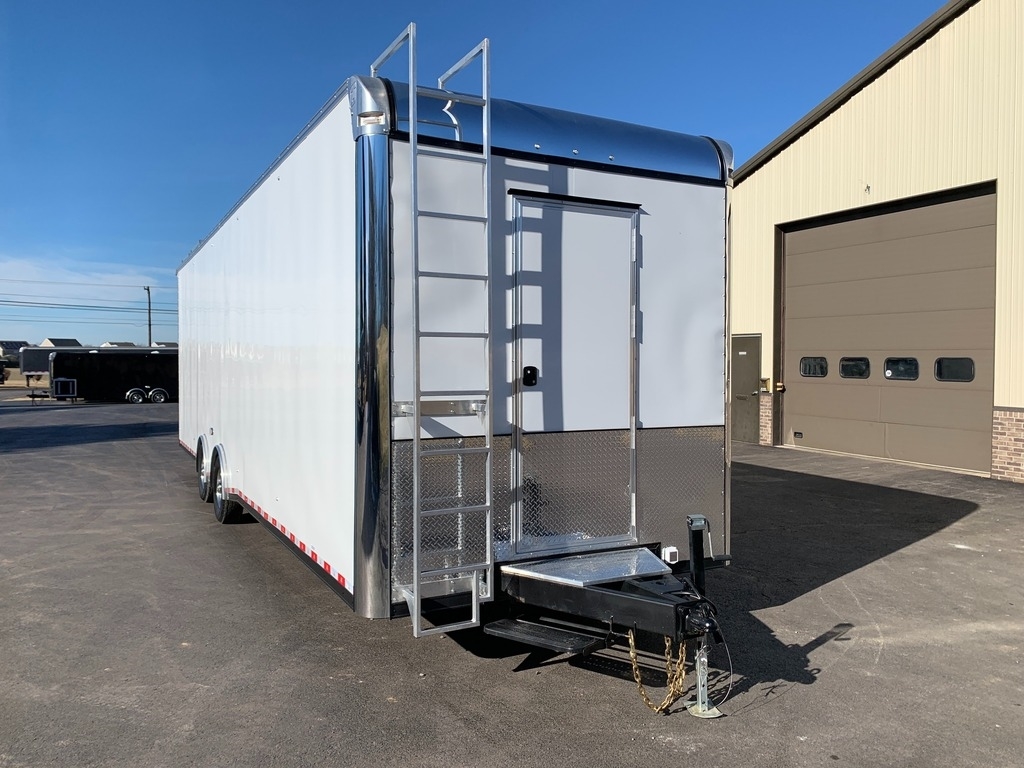

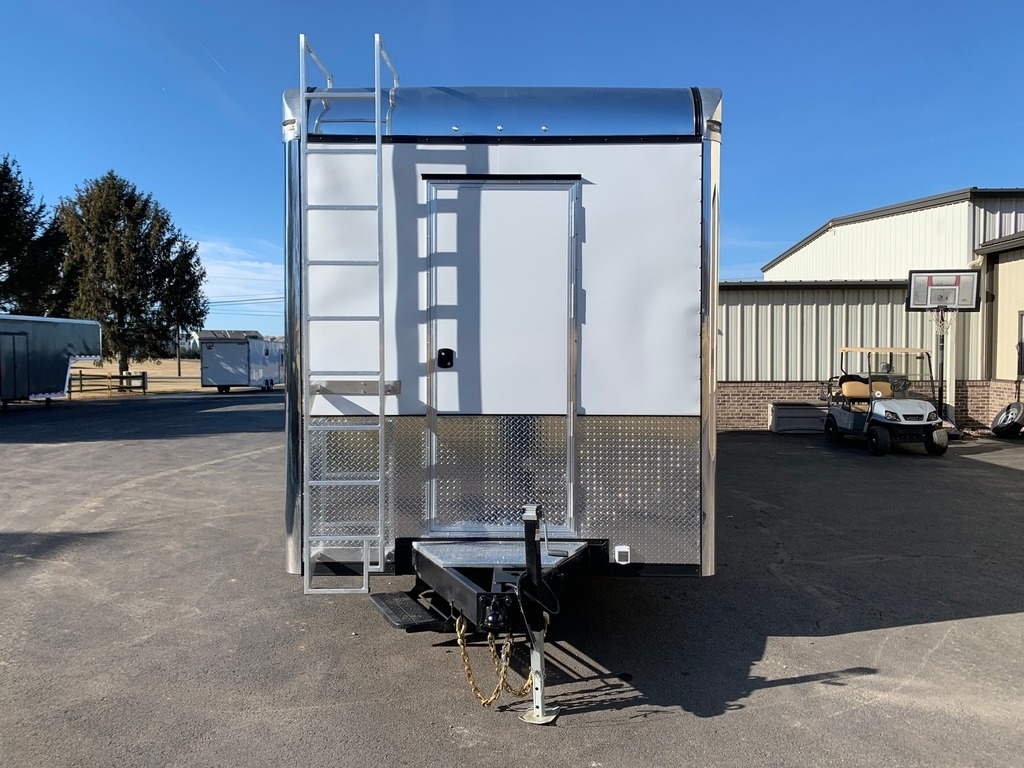

· ALUMINUM ROOF ACCESS LADDER

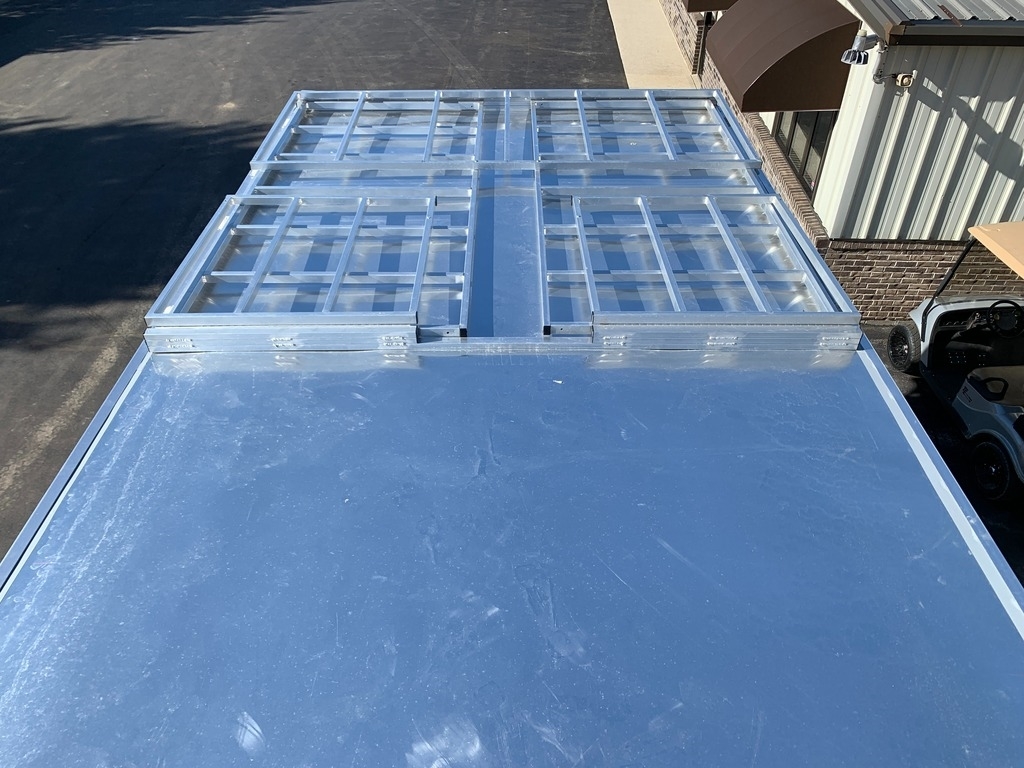

· ROOF OBSERVATION DECK - 8’ X 8’ W/ 42” HIGH FOLD DOWN ALUMINUM RAILS
· CAST ALUMINUM UPPER FRONT CORNERS
· POLISHED ALUMINUM FRONT VERTICAL CORNERS
· POLISHED ALUMINUM RADIUS FRONT TOP
· 3" ALUMINUM TOP RAIL
· 3" ALUMINUM BOTTOM RAIL
· CONSPICUITY (REFLECTIVE) TAPE
· SUPER SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDER FLARES
· WEATHER GUARD COATING ON FASTENERS
· DOOR -

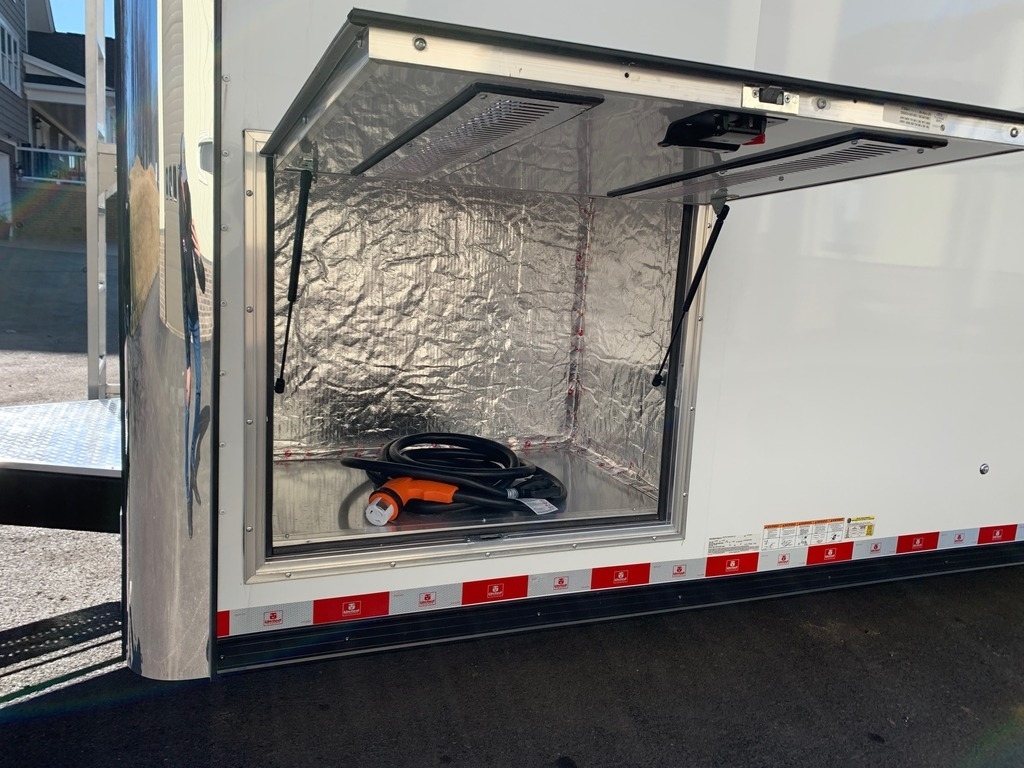

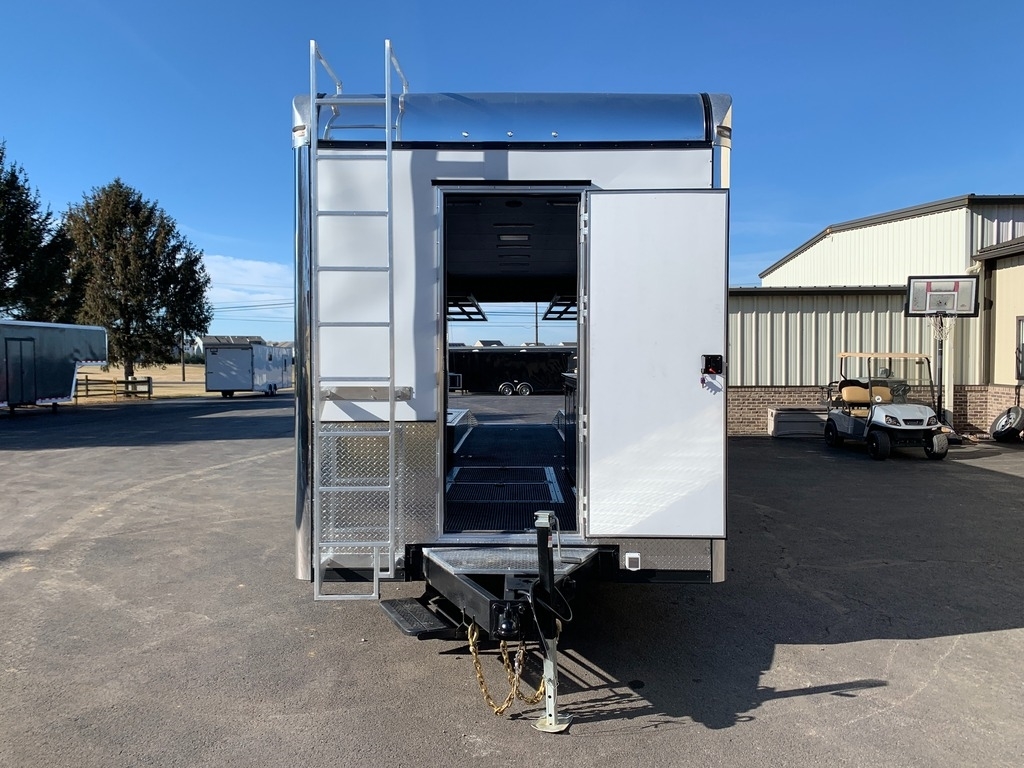

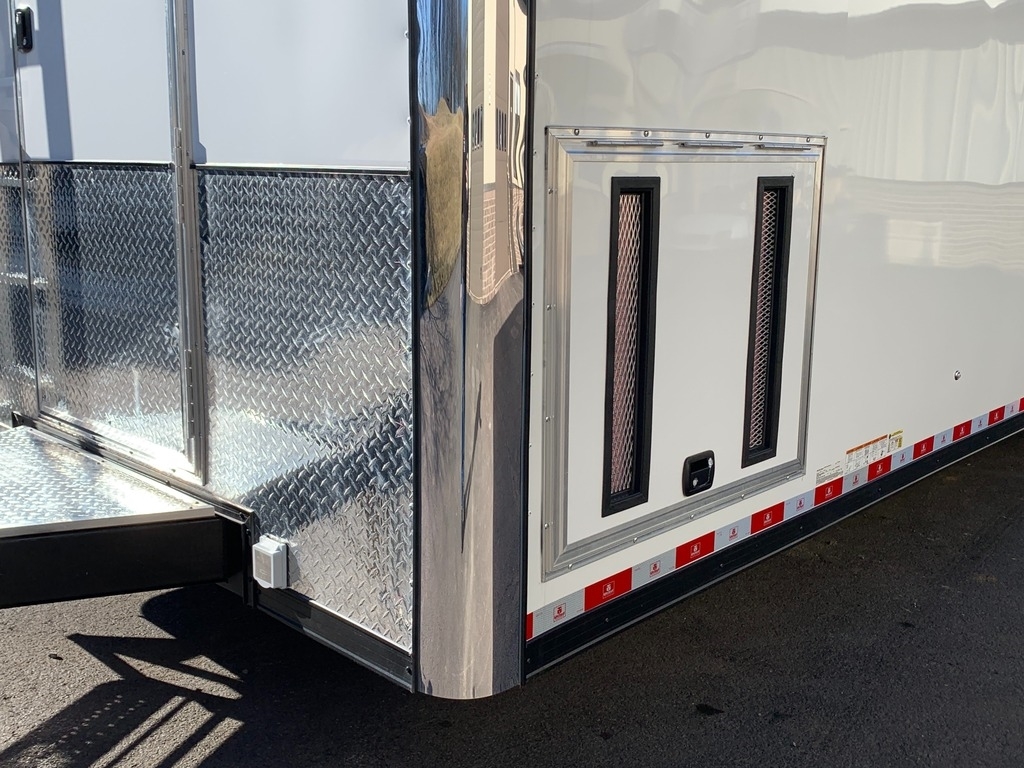

· 36" WIDE X 30" HIGH TOP-HINGED RV GENERATOR DOOR W/ (2) VERTICAL VENTS & RV LOCK
· STEEL INSULATED GENERATOR BOX (42” LONG X 25” DEEP X 31” HIGH)

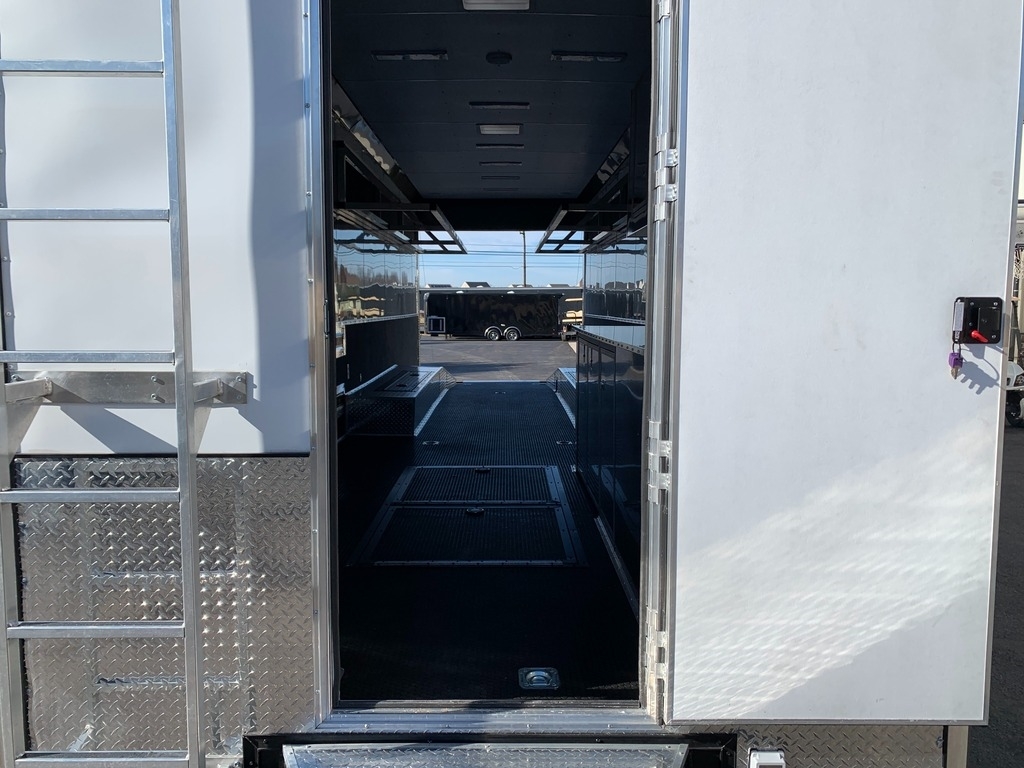

· 32" X 78" RV ENTRY DOOR W/ RV LOCK & DEADBOLT

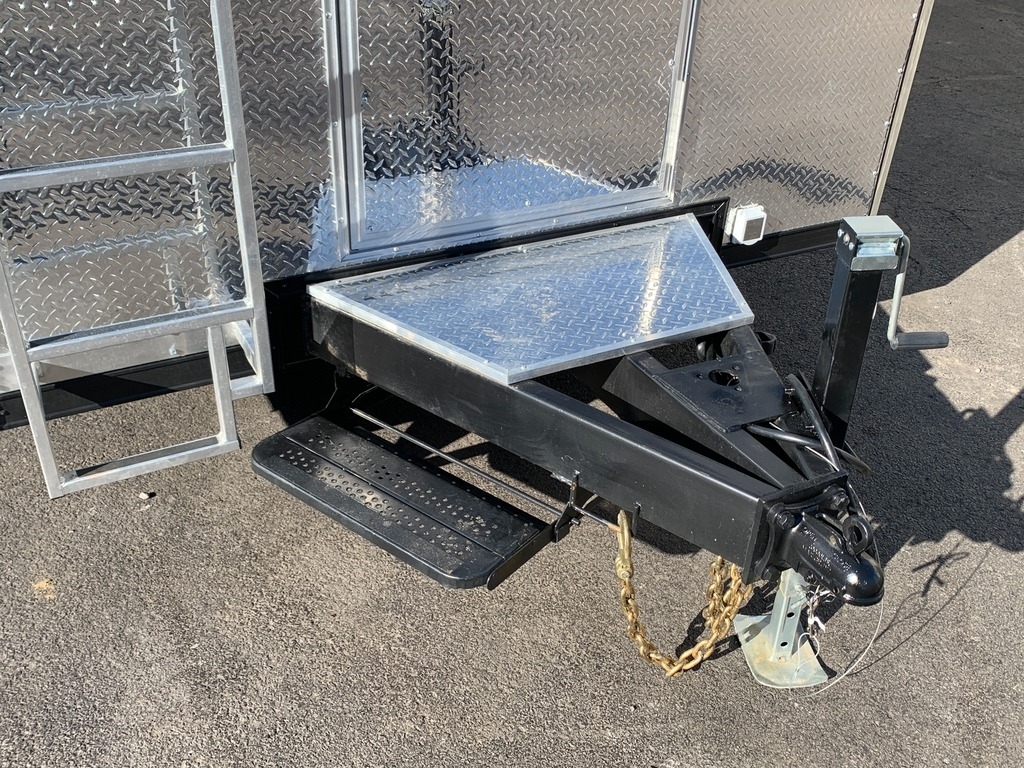

· STEP PLATFORM ON HITCH
· BEAVERTAILED FLOOR FOR E-Z LOADING - 6’ LONG / 5” DROP

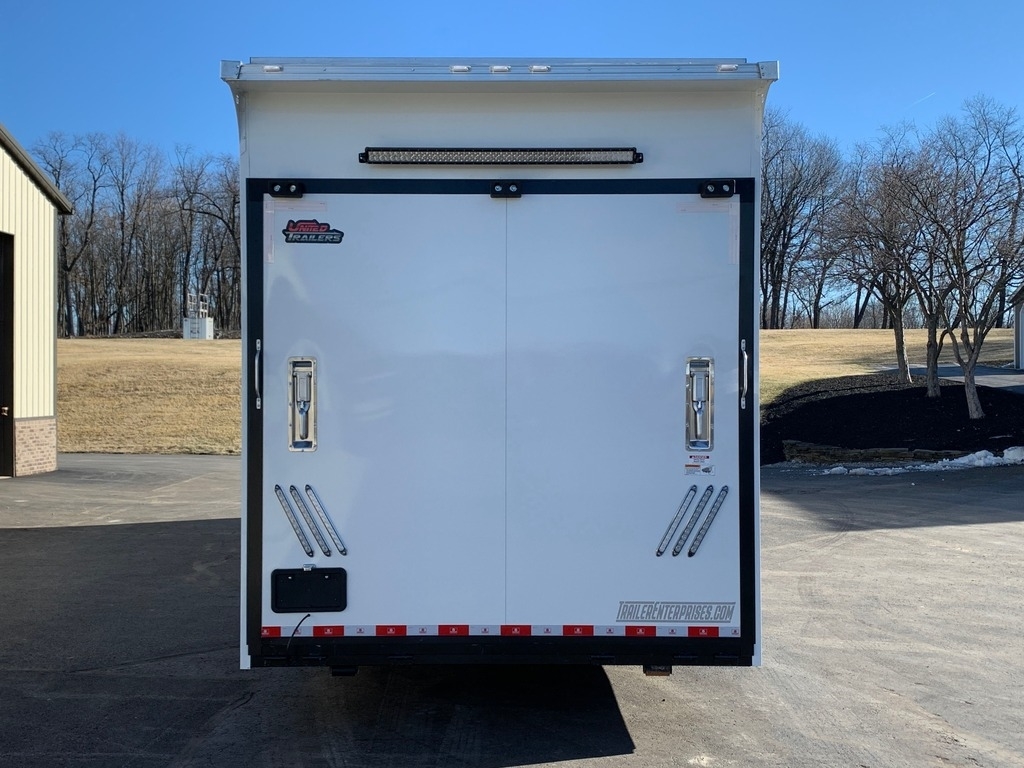

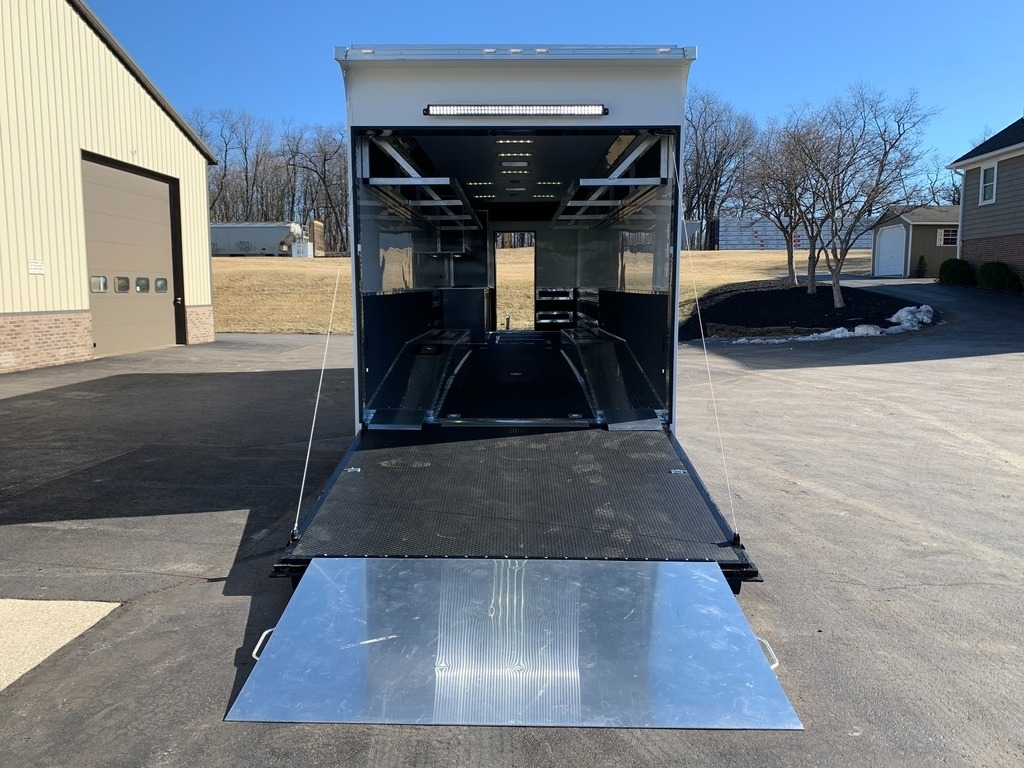

· RAMP REAR DOOR W/ SPRING ASSIST, 3,000 LB LOAD CAPACITY
· 95-3/4" WIDE X 89" HIGH RAMP DOOR OPENING

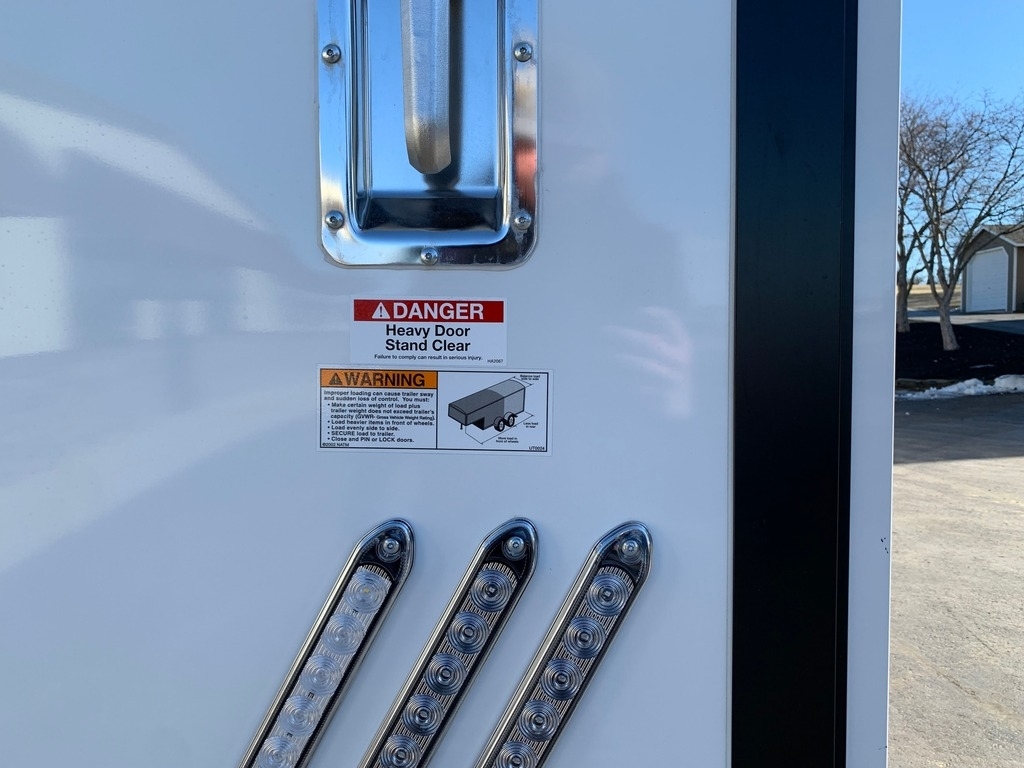

· (2) STAINLESS STEEL RECESSED CAMLOCKS IN RAMP DOOR
· ALUMINUM GRAB HANDLES ON RAMP DOOR

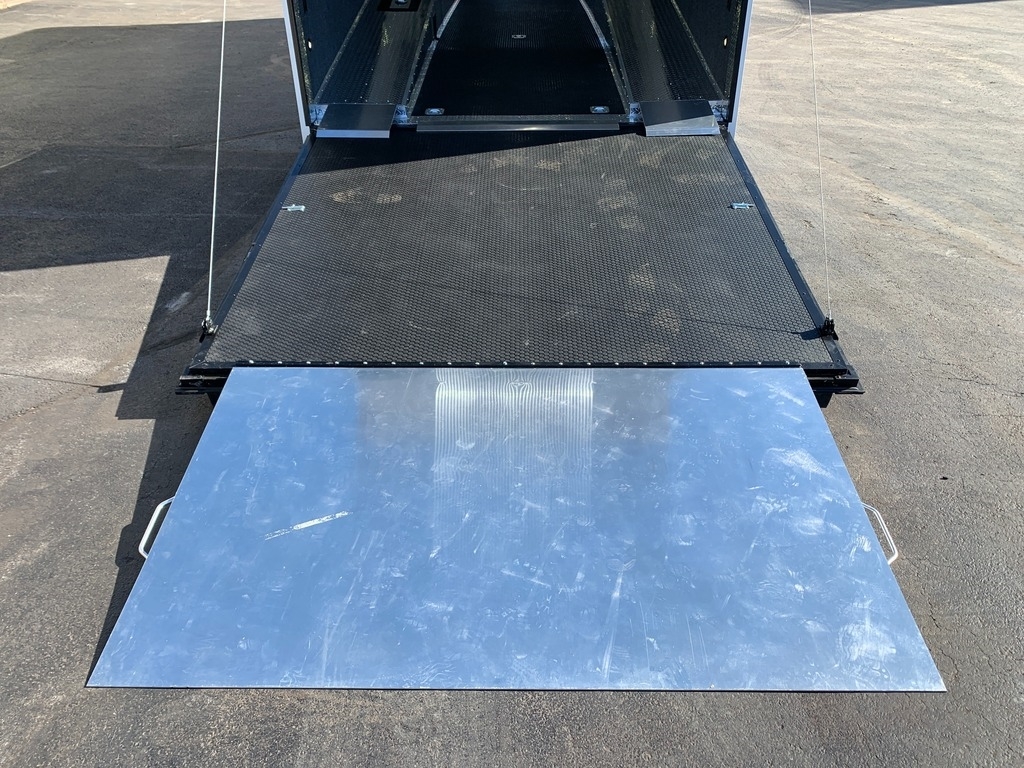

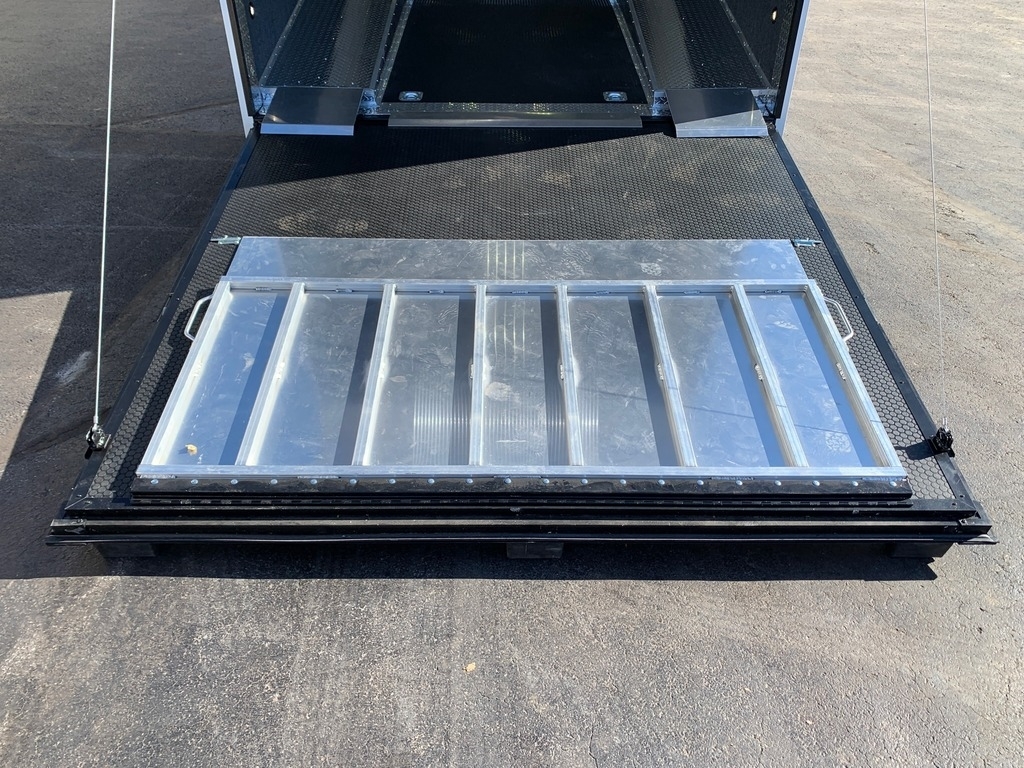

· 4' ALL-ALUMINUM END FLAP ON RAMP DOOR W/ 4" RUBBER BUMPER SPACERS
· CABINETS -

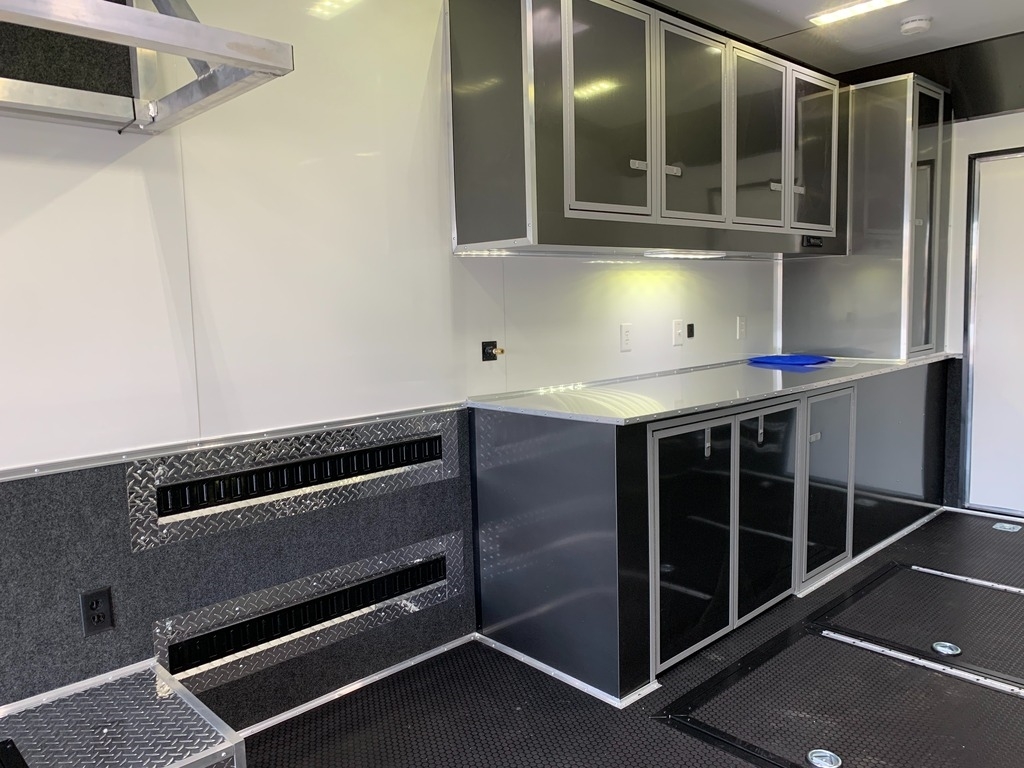

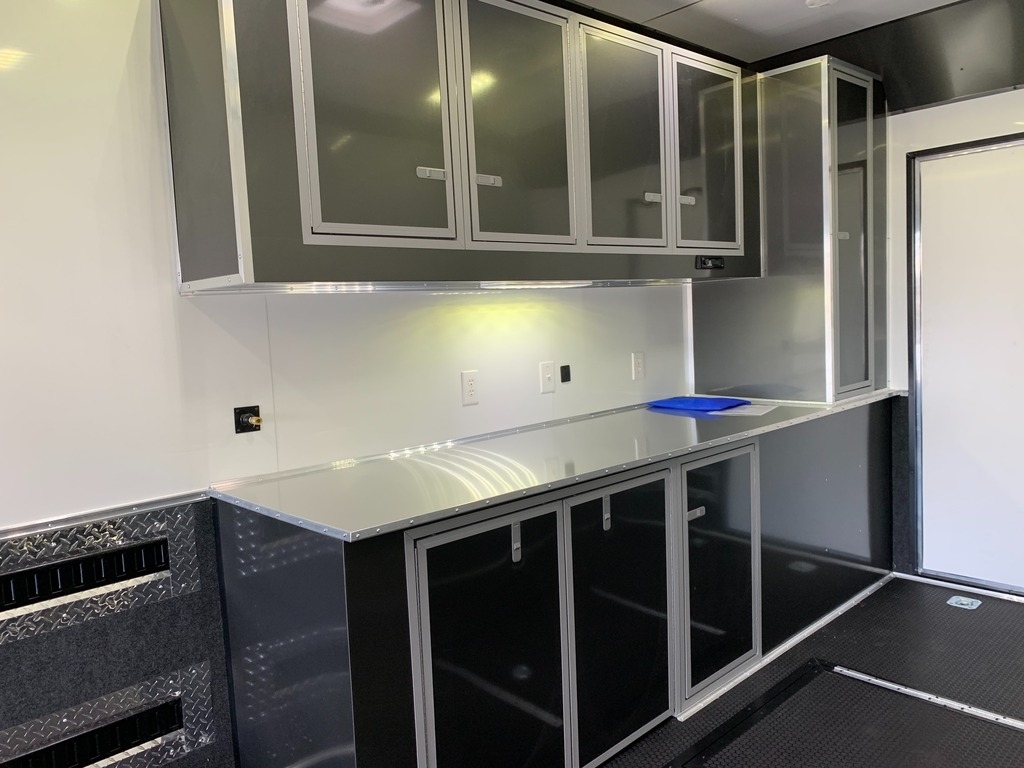

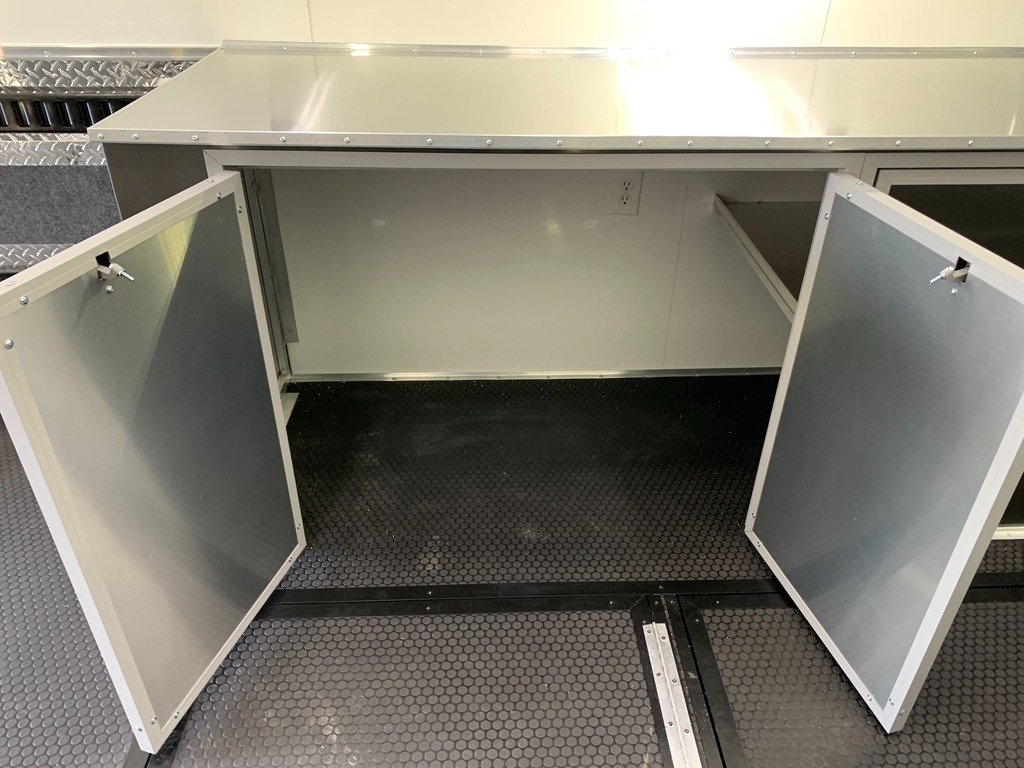

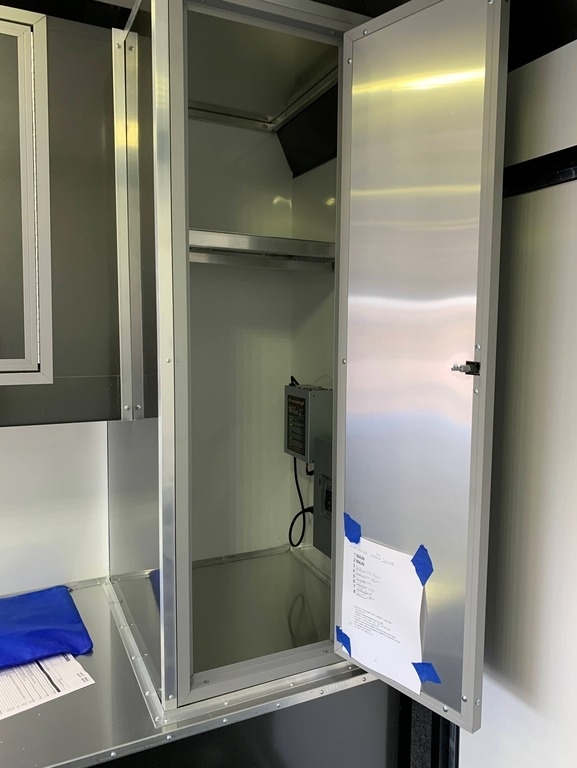

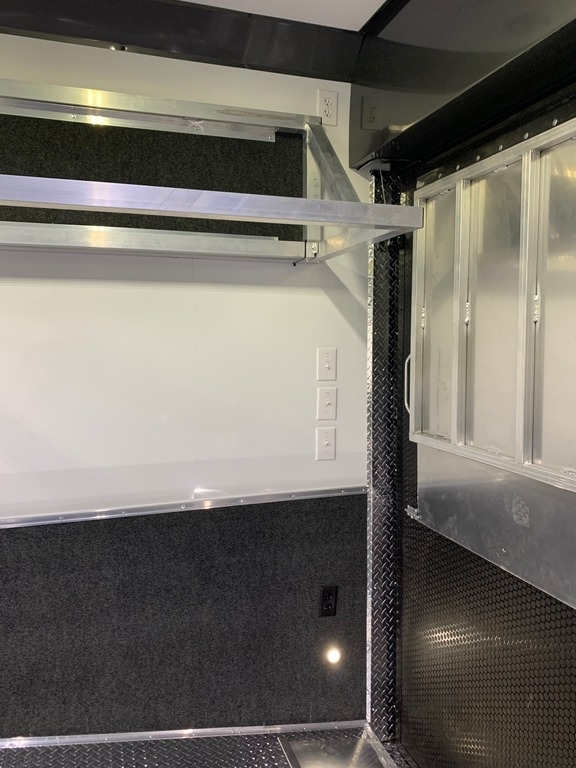

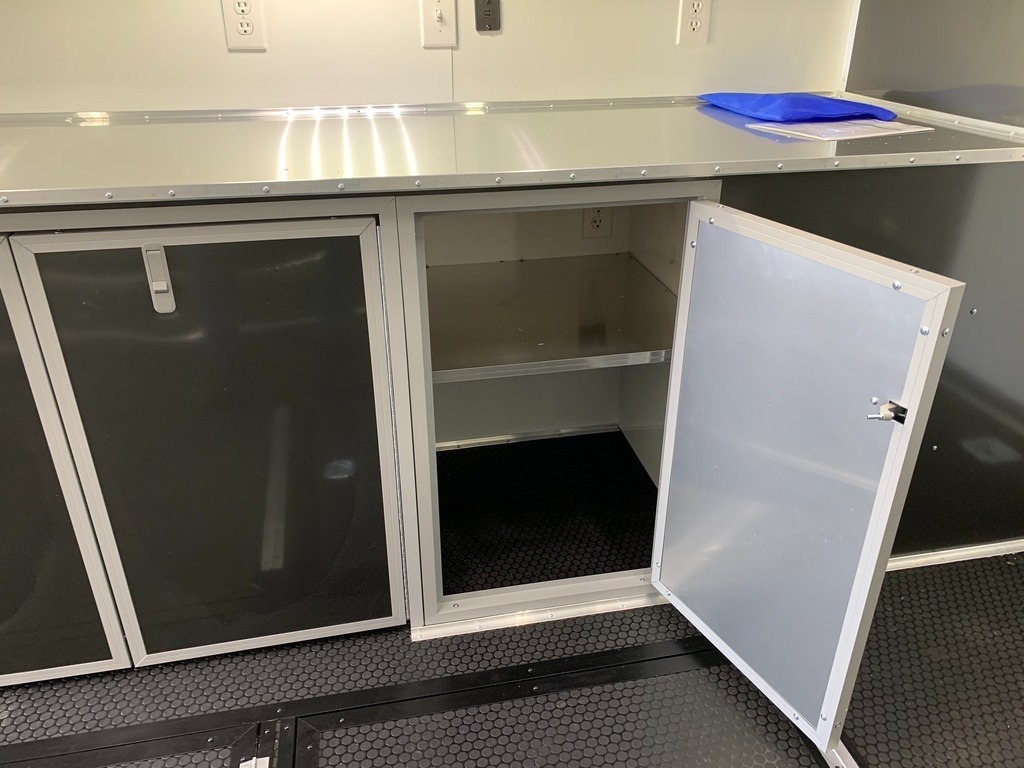

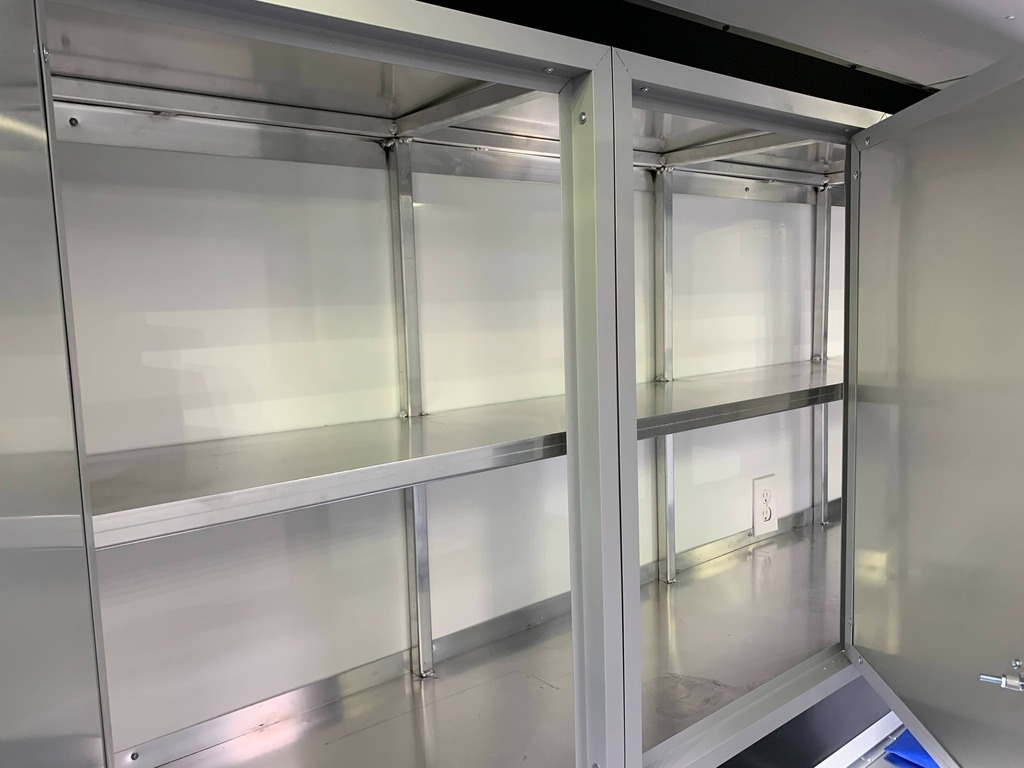

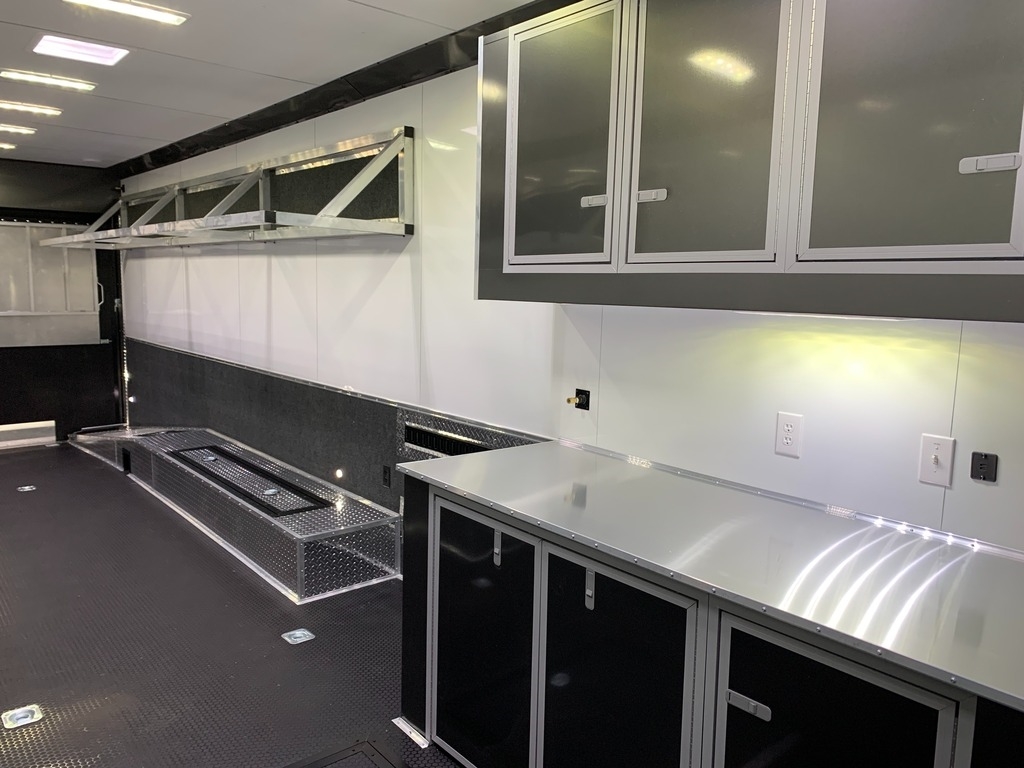

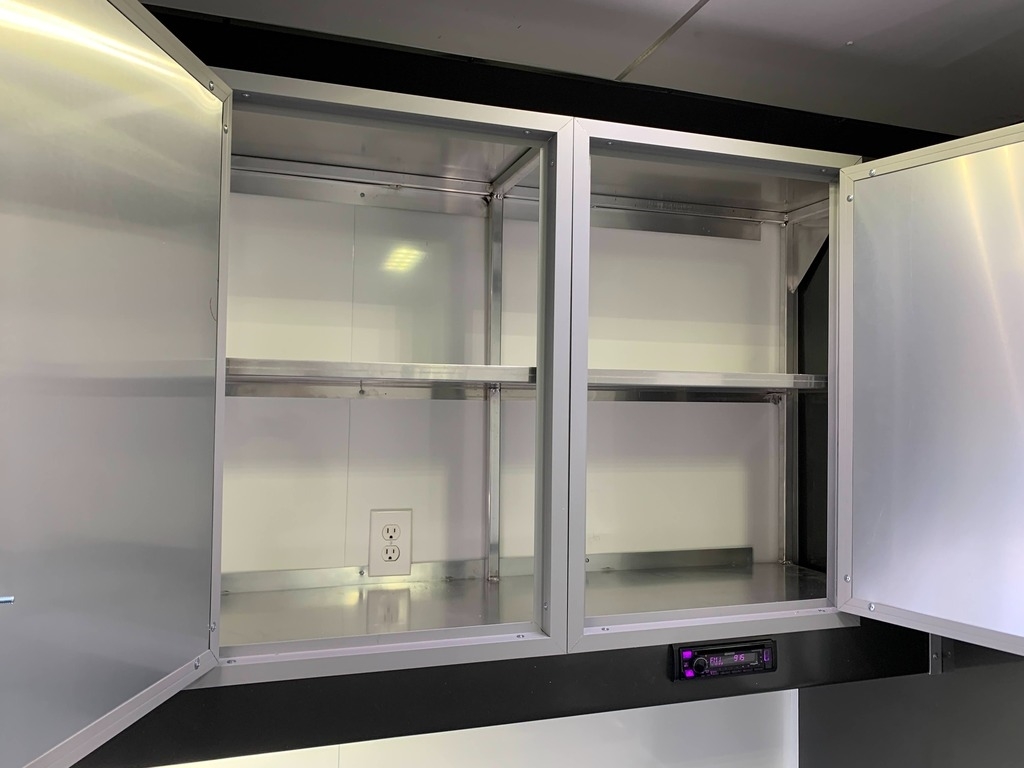

· 10' ALUMINUM CABINET PACKAGE - 36” HIGH X 28” DEEP BASE CABINET W/ SPARE MOTOR COMPARTMENT, 32” TALL X 16” DEEP OVERHEAD CABINET W/ MIDDLE ALUMINUM SHELF, & WARDROBE W/ HELMET SHELF & CLOTHES ROD

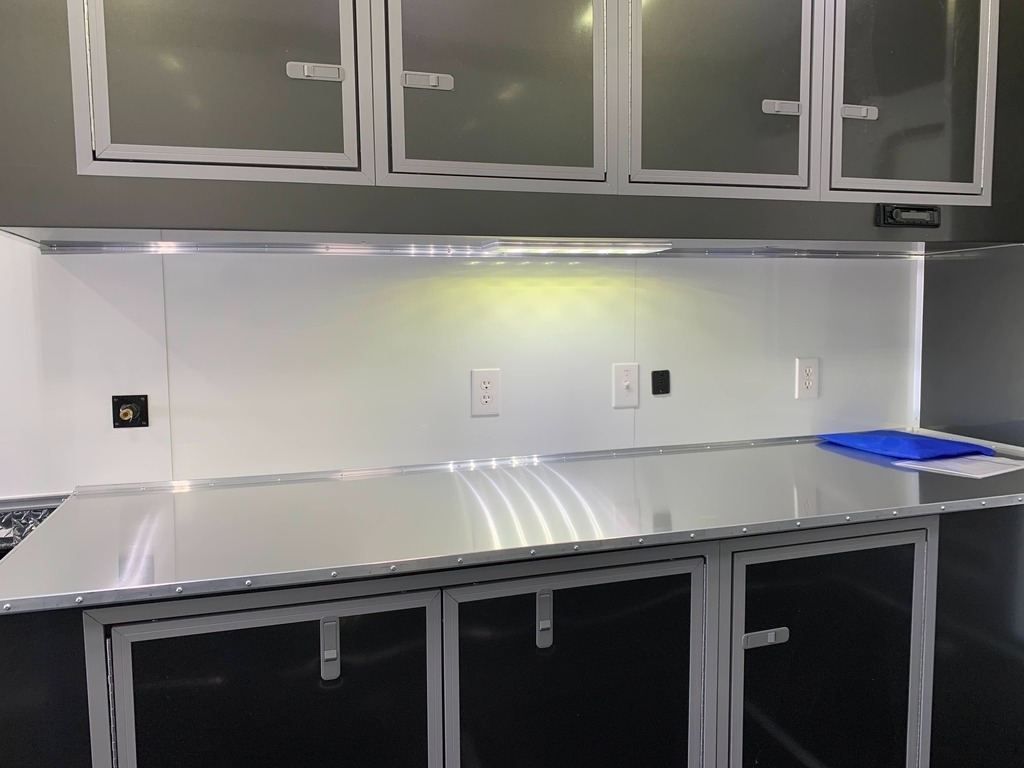

· - MILL FINISH ALUMINUM WORK BENCH TOP
· AIR -
· AIR LINE PLUMBING - INLET IN BASE CABINET - (1) OUTLET COUPLING AT WORK BENCH & (1) OUTLET COUPLING AT REAR FOR HOSE REEL
· AIR COMPRESSOR WIRING PREP - SWITCH AT WORK BENCH W/ 20 AMP RECEPTACLE IN BASE CABINET
· 110 VOLT ELECTRICAL -
· (10) INTERIOR DUPLEX RECEPTACLES
· EXTERIOR GFI RECEPTACLE

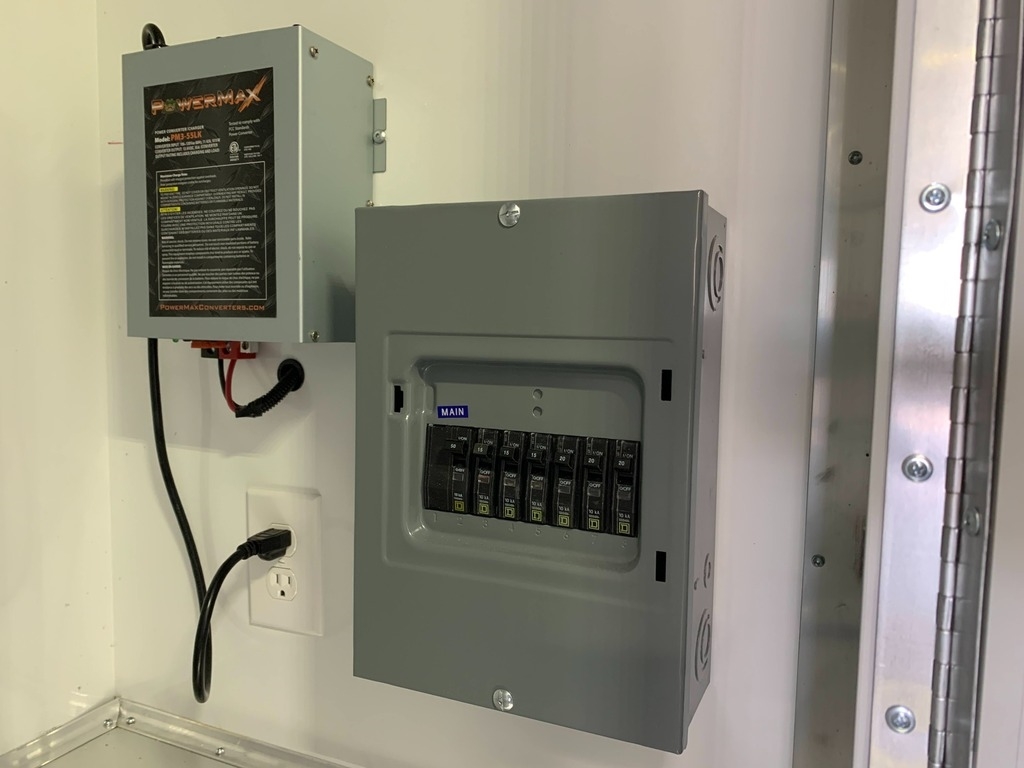

· 50 AMP ELECTRICAL PANEL
· 50 AMP EXTERIOR MOTOR BASE PLUG
· 50 AMP RV POWER CORD - 25' LONG W/ TWIST-LOCK PLUG
· WARRANTY -
· 5 YEAR LIMITED MANUFACTURER'S WARRANTY
· 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
· FREIGHT FROM BRISTOL, INDIANA TO HAGERSTOWN, MARYLAND INCLUDED
