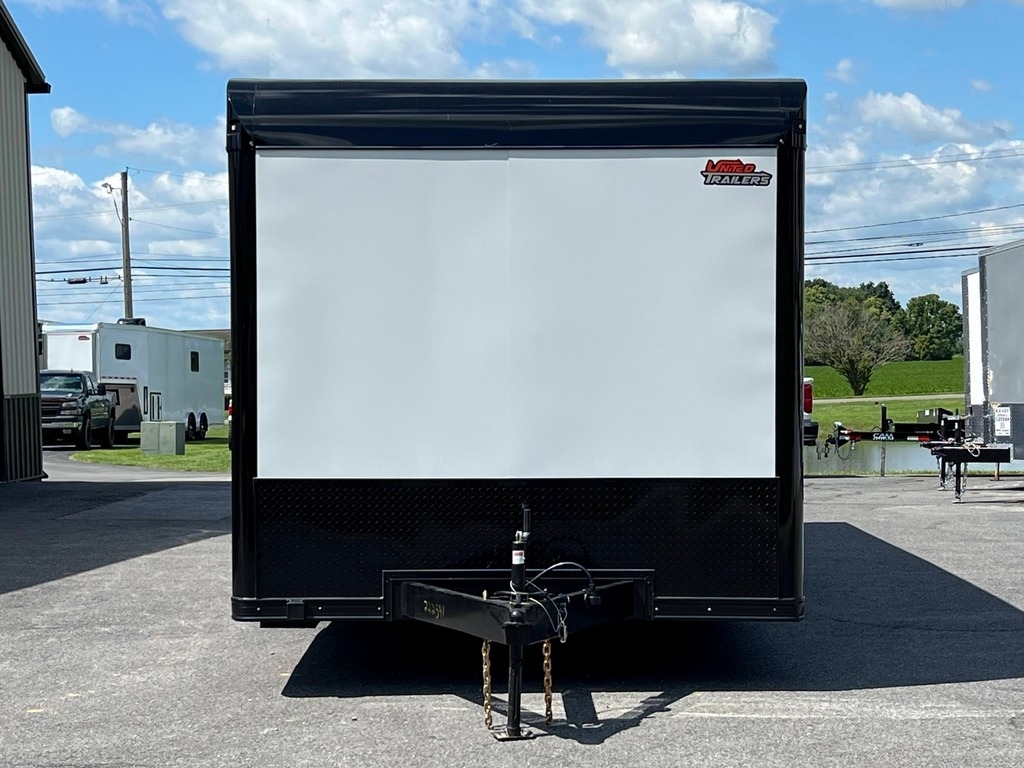

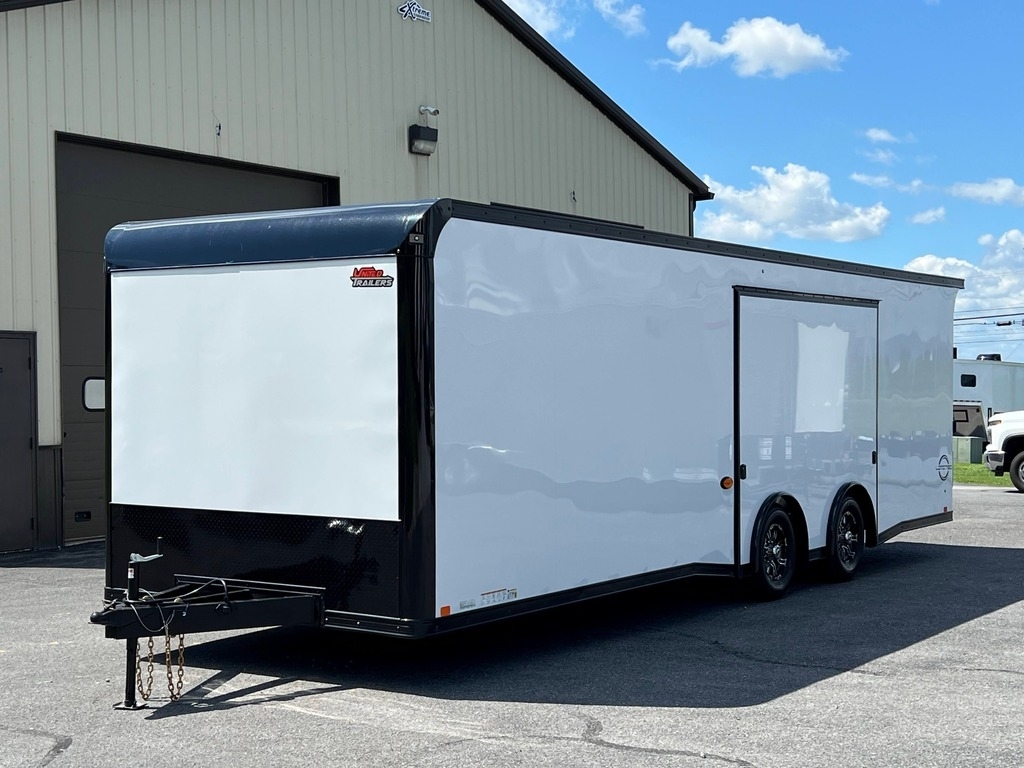

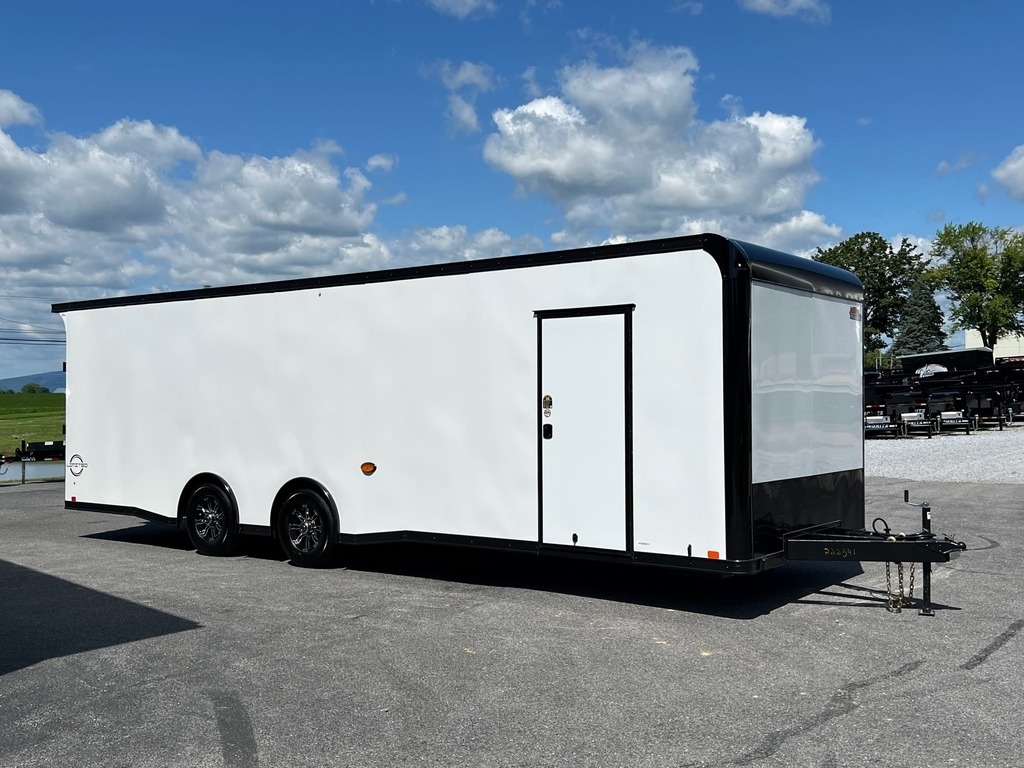

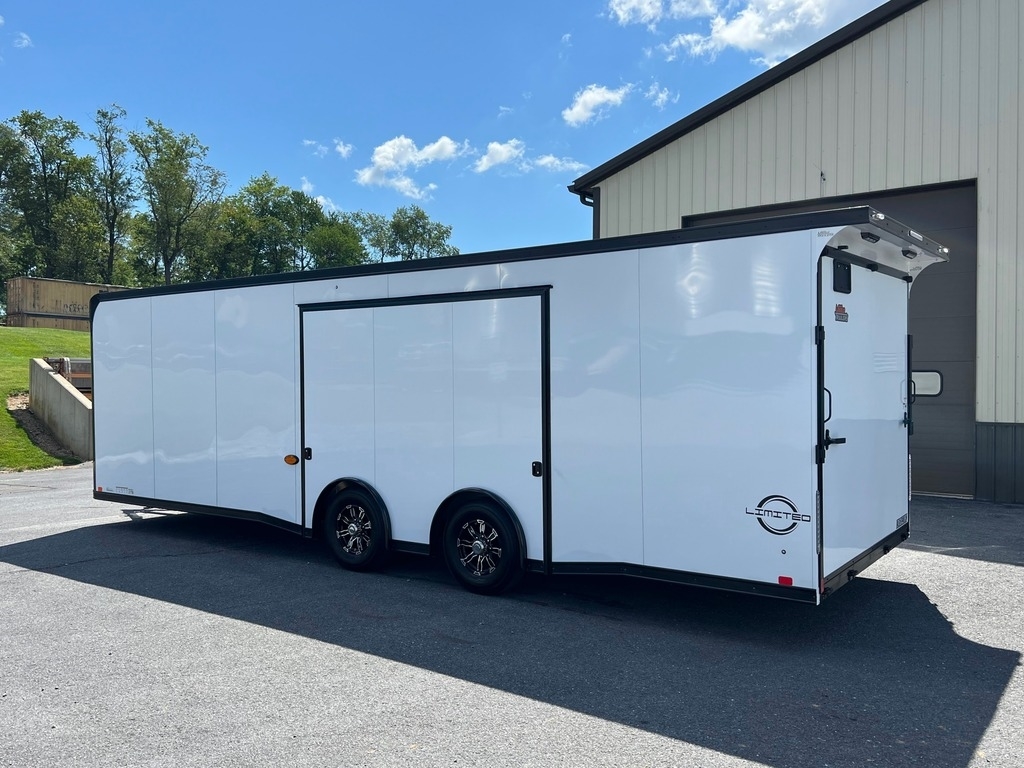

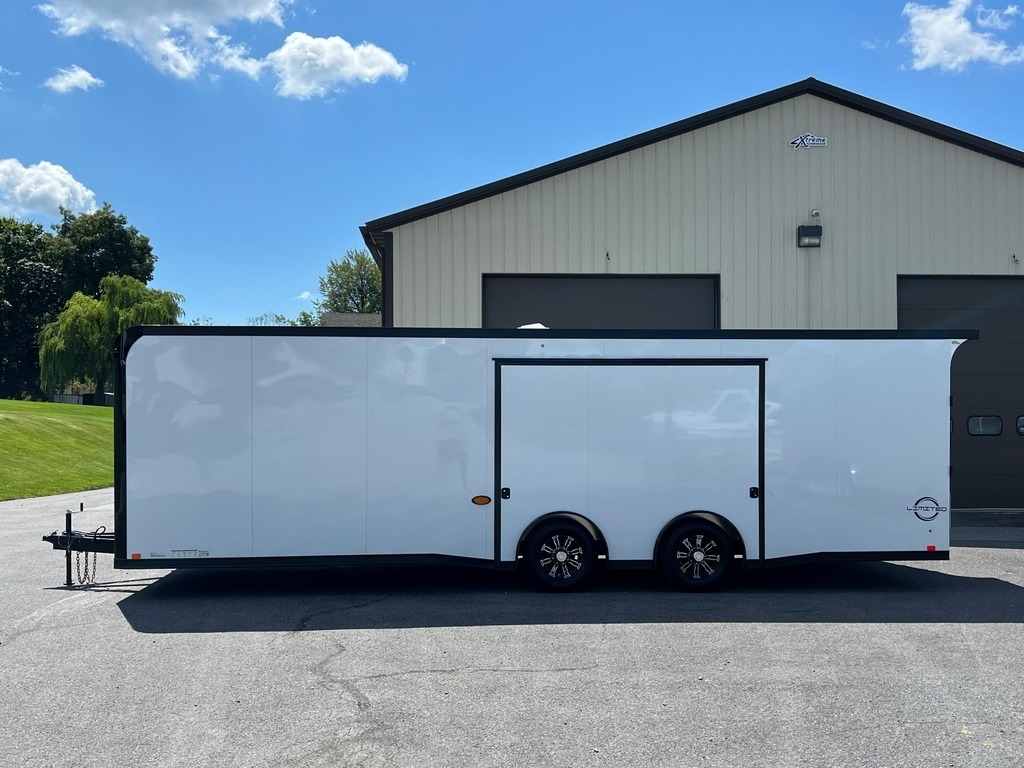

· MODEL: LIM-8.528TA70

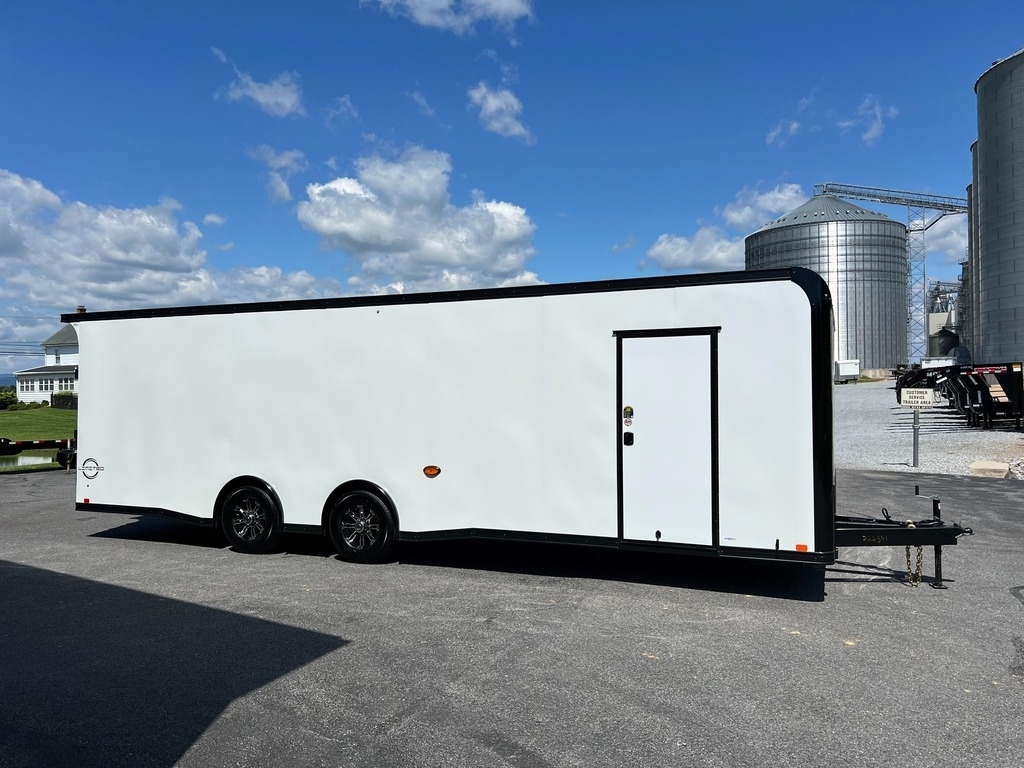

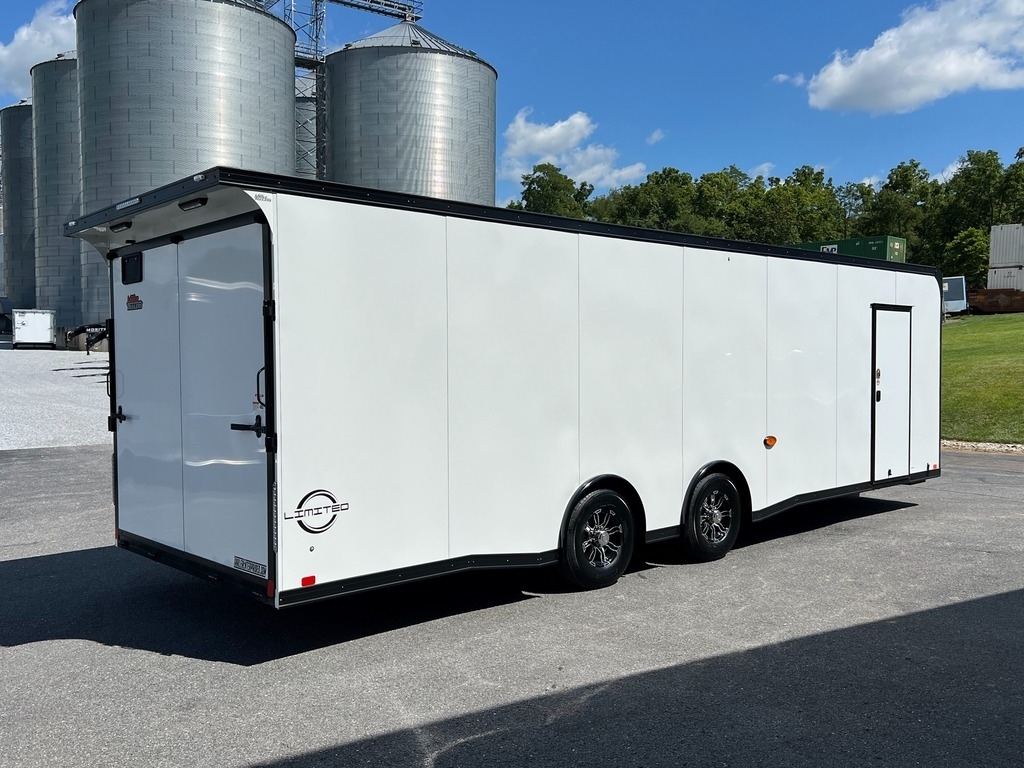

· 8.5' WIDE X 28' LONG (27' 8" USABLE FLOOR) X 7' INTERIOR HEIGHT
· (6' 11" DOOR HEIGHT CLEARANCE)
· GVWR: 14,000 LB
· EMPTY WEIGHT: 5,880 LB
· EXTERIOR COLOR: WHITE SCREWLESS W/ BLACKOUT
· AXLE -
· (2) DEXTER 7,000 LB INDEPENDENT TORSION SUSPENSION AXLES
· ELECTRIC BRAKES ON ALL WHEELS
· E-Z® LUBE HUBS
· TIRES -
· ST235/80R16G 14-PLY RADIAL TIRES
· 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)
· CENTER CAPS & CHROME LUG NUTS
· HITCH -
· 7-WAY RV MOLDED PLUG
· 2-5/16" COUPLER
· TONGUE JACK
· SAFETY CHAINS
· BREAKAWAY KIT W/ CHARGER
· FRAME -
· REAR WING (SPOILER)

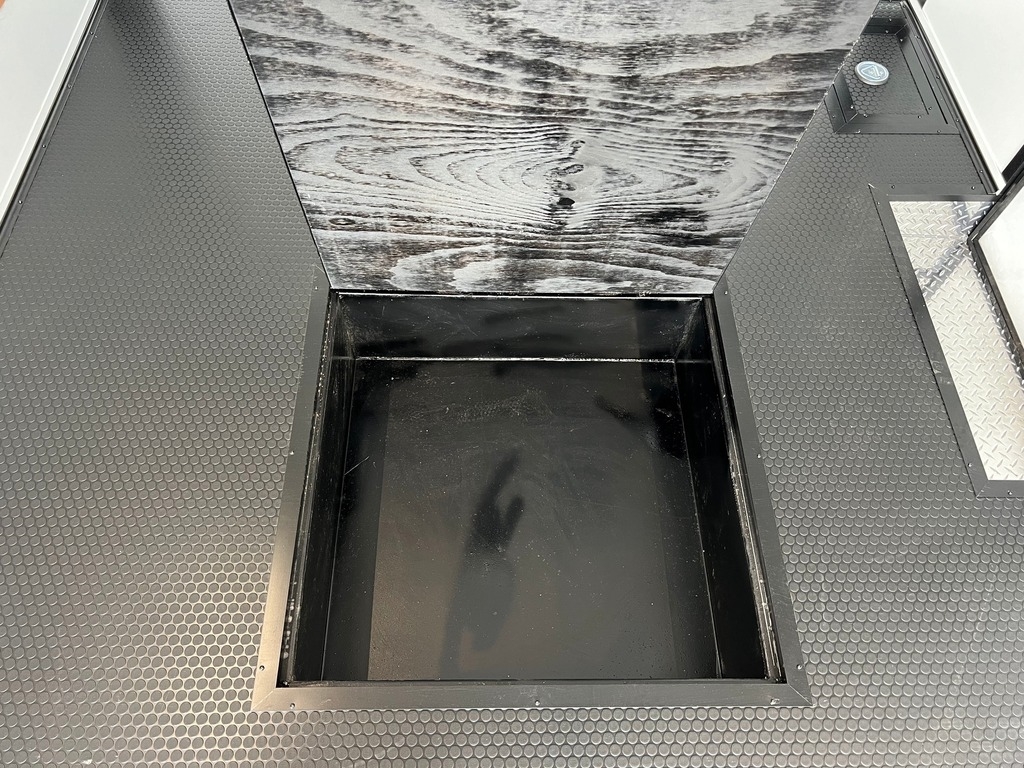

· STORAGE COMPARTMENT IN FLOOR
· WINCH MOUNT PLATE UNDER FLOOR - FRONT CENTER
· STEEL UNI-BODY CONSTRUCTION

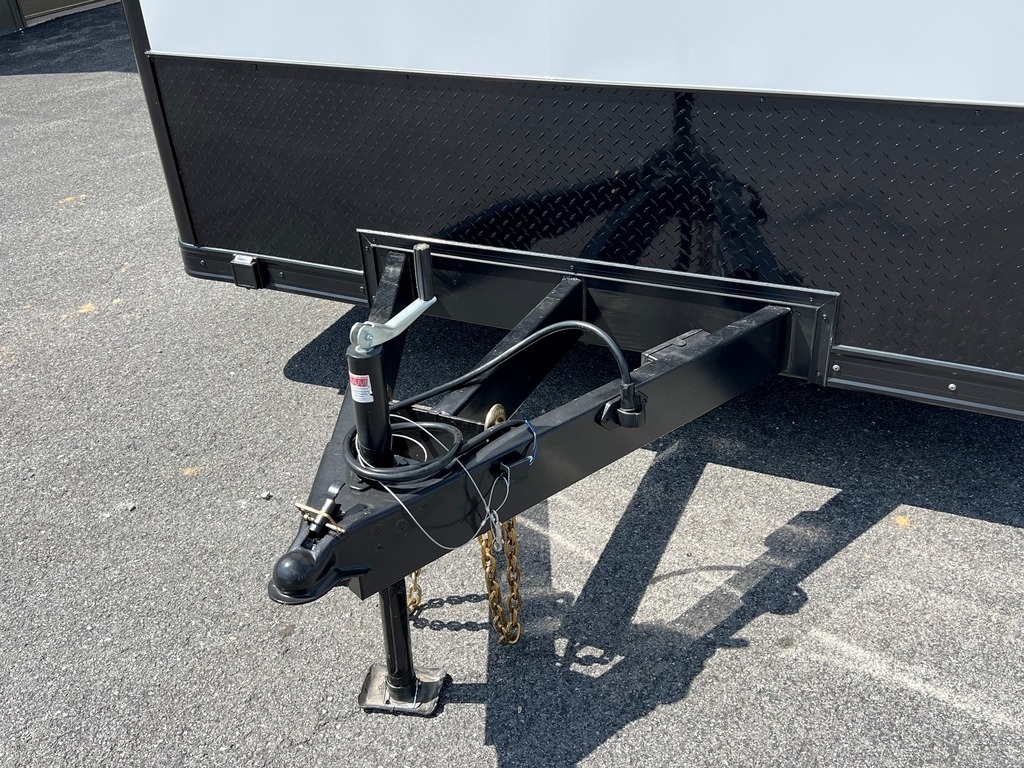

· TRIPLE-TUBE A-FRAME TONGUE - 48" CLEARANCE TO CENTER-BALL
· 8" I-BEAM MAIN FRAME RAILS
· 16" ON-CENTER FLOOR CROSS MEMBERS
· 16" ON-CENTER WALL POSTS
· 16" ON-CENTER ROOF BOWS
· UNDERCOATING ON LOWER FRAME
· VENT -

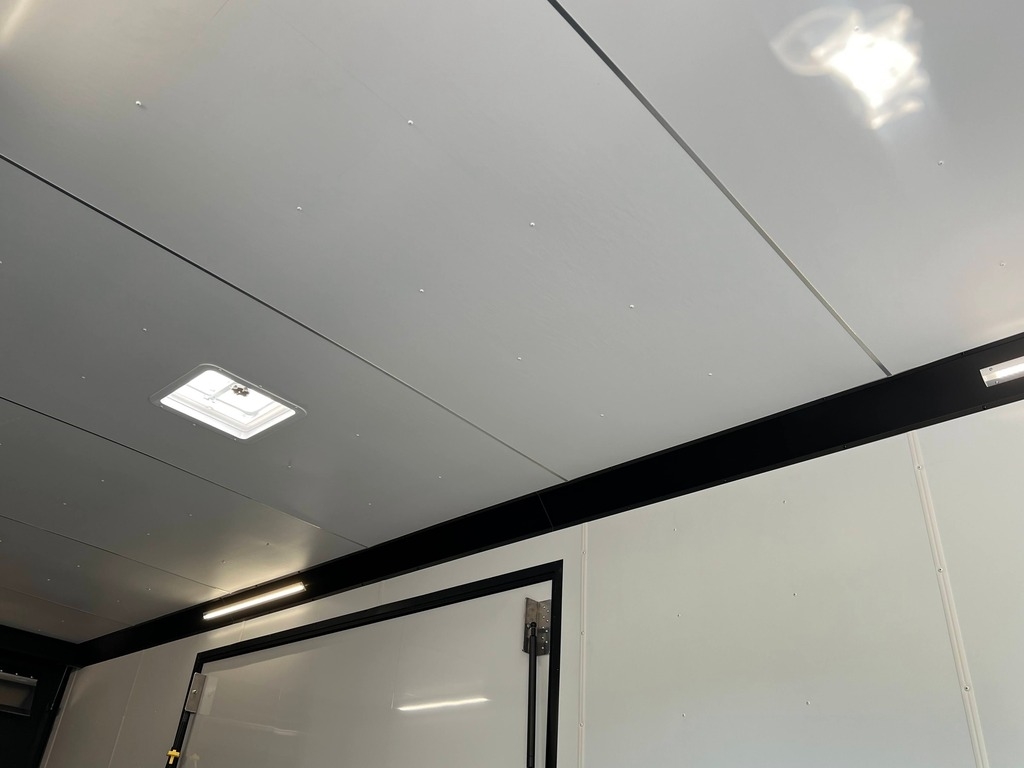

· ROOF VENT - BRACED & WIRED FOR FUTURE A/C

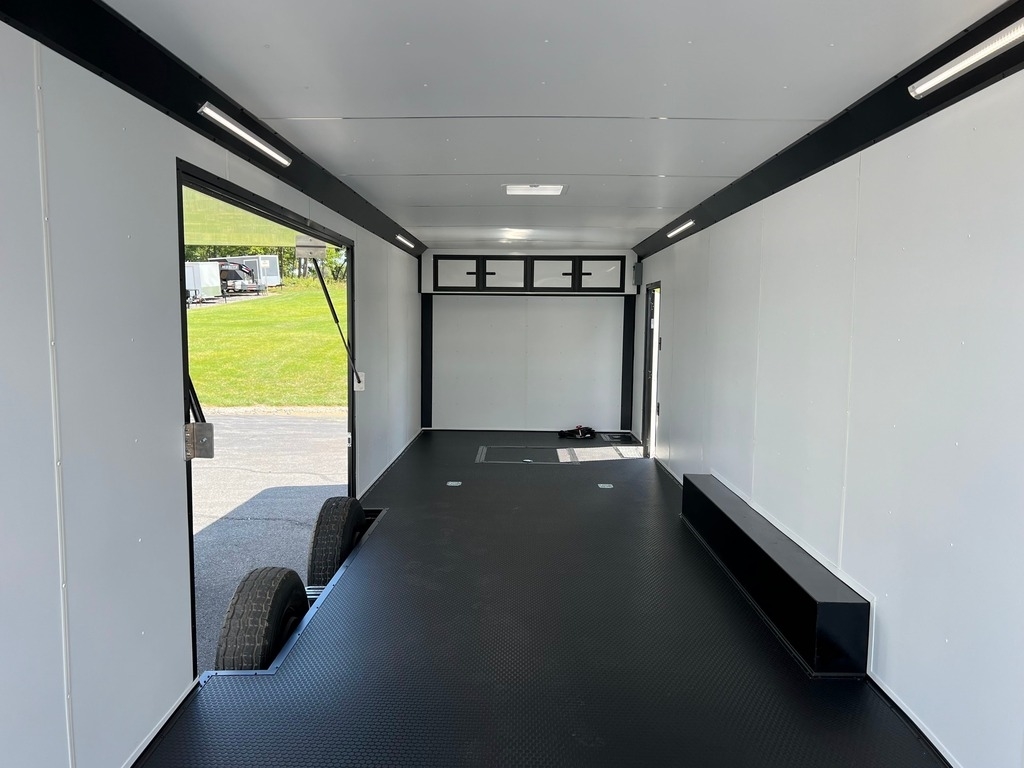

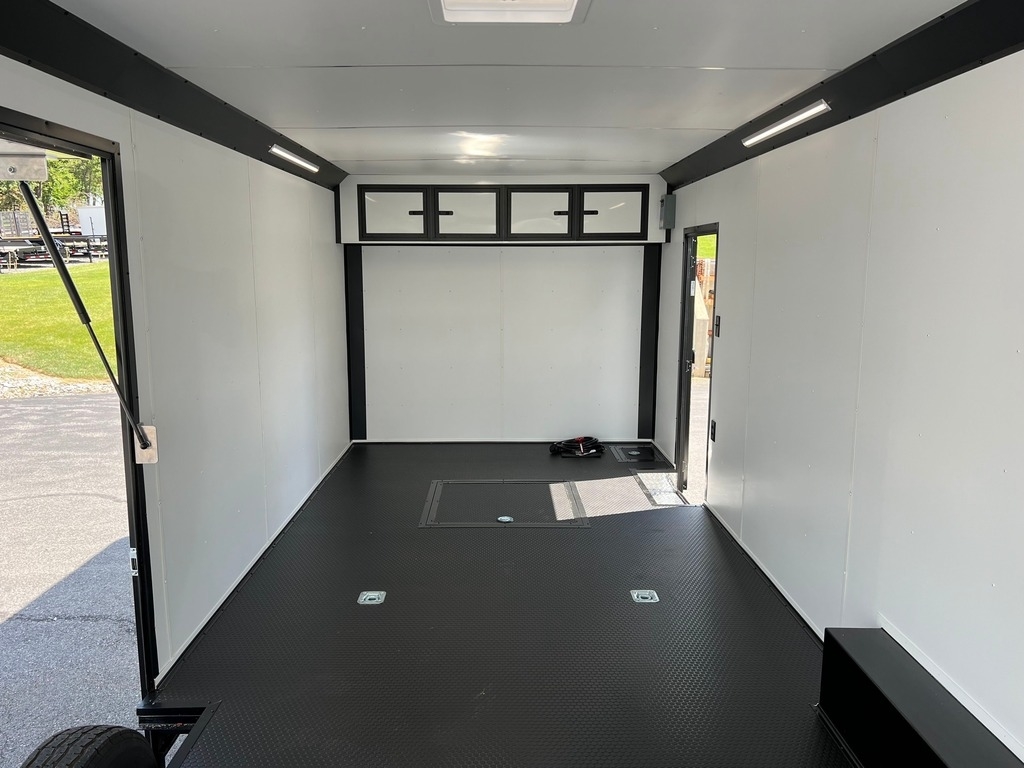

· INTERIOR -

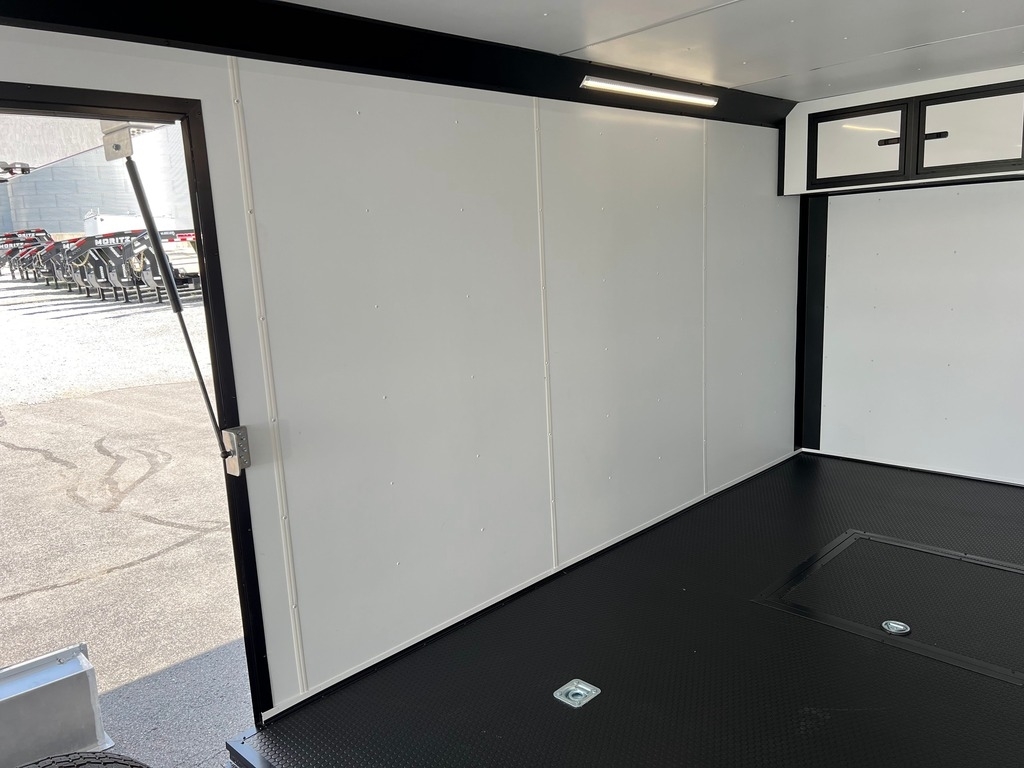

· WHITE VINYL CEILING W/ ANGLED COVE EDGES
· 3/8" WHITE VINYL BOARD INTERIOR WALLS
· RAISED RUBBER-COIN FLOORING
· 3/4" PLYWOOD SUBFLOOR
· (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
· FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS
· 12 VOLT ELECTRICAL -

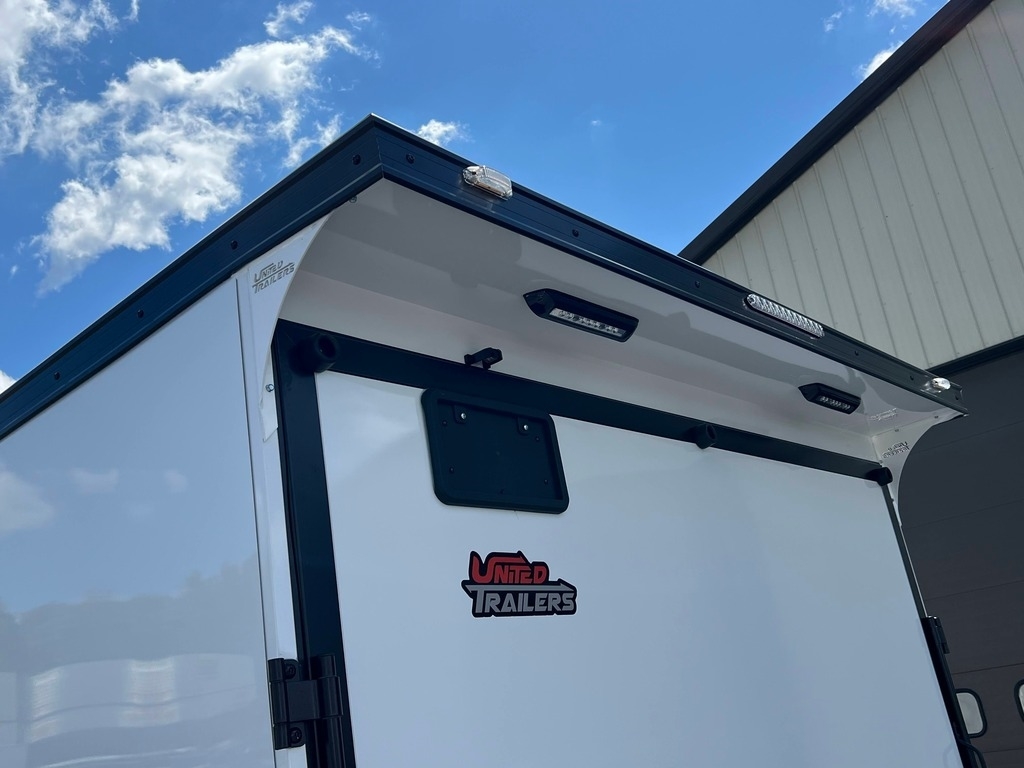

· (2) NOVA 14" L.E.D. ANGLED SCENE LIGHTS ON REAR WING W/ WALL SWITCH AT REAR

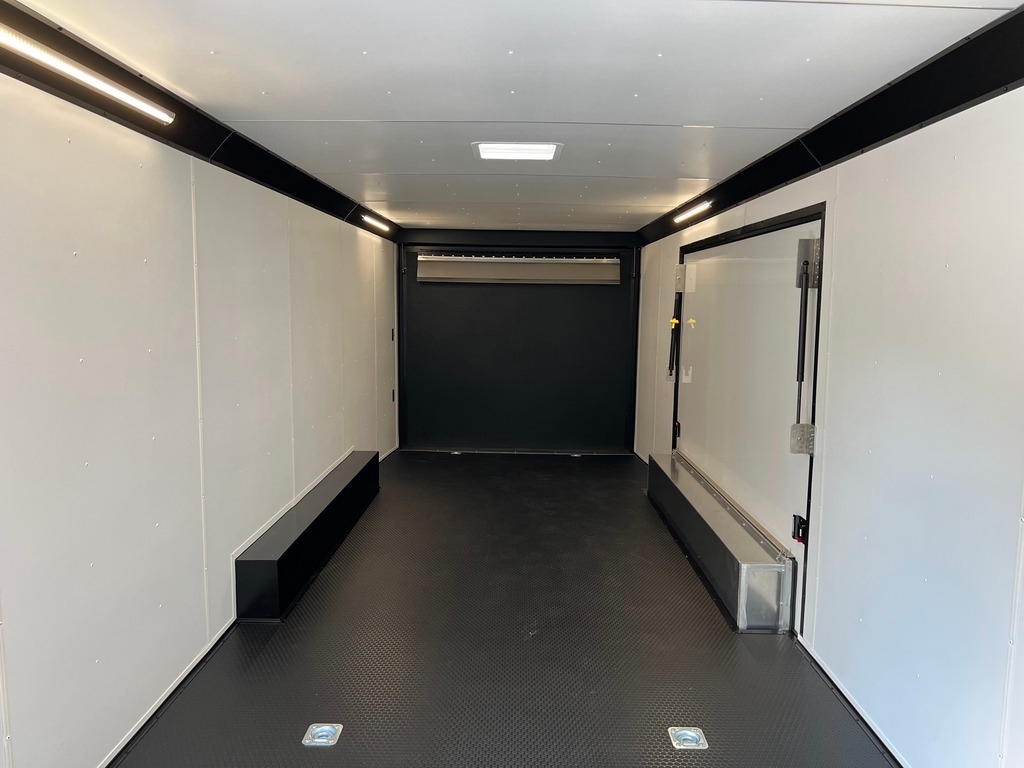

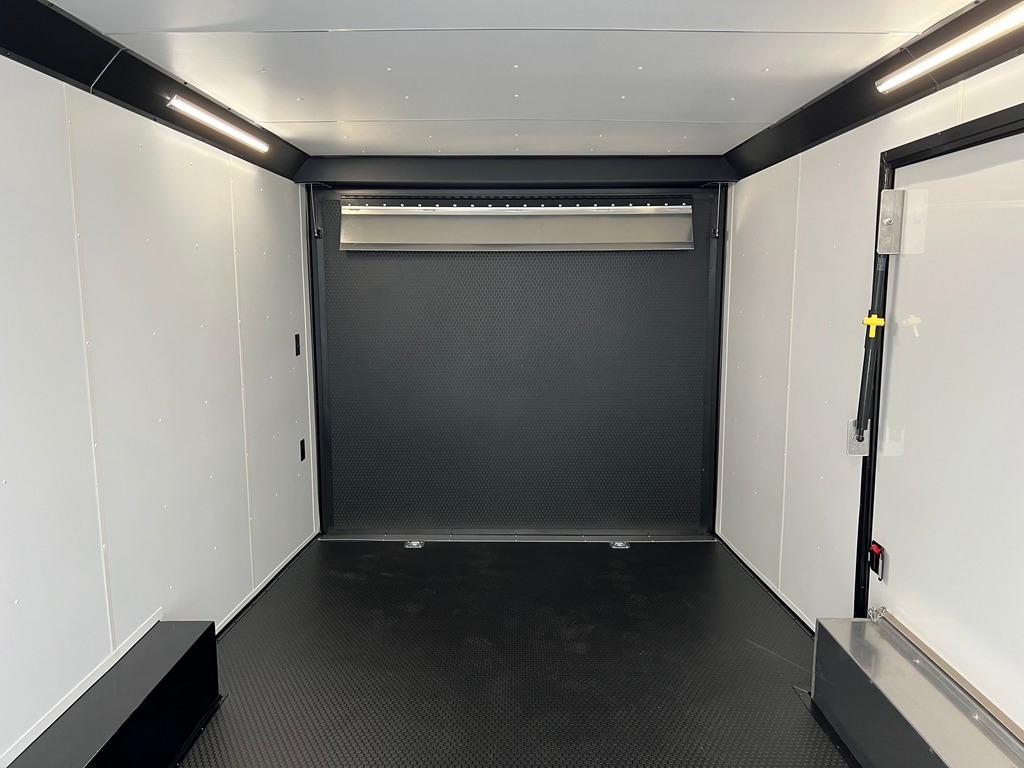

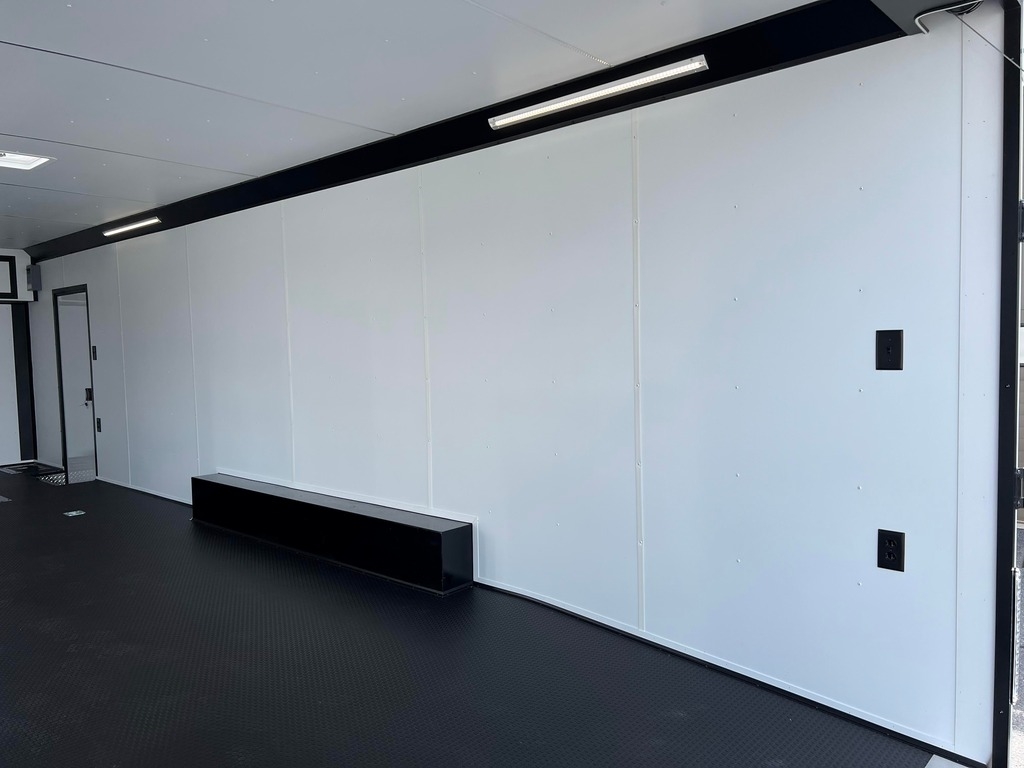

· (4) VOODOO 40" L.E.D. INTERIOR LIGHTS ON ANGLED COVES W/ WALL SWITCH AT SIDE DOOR
· 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER

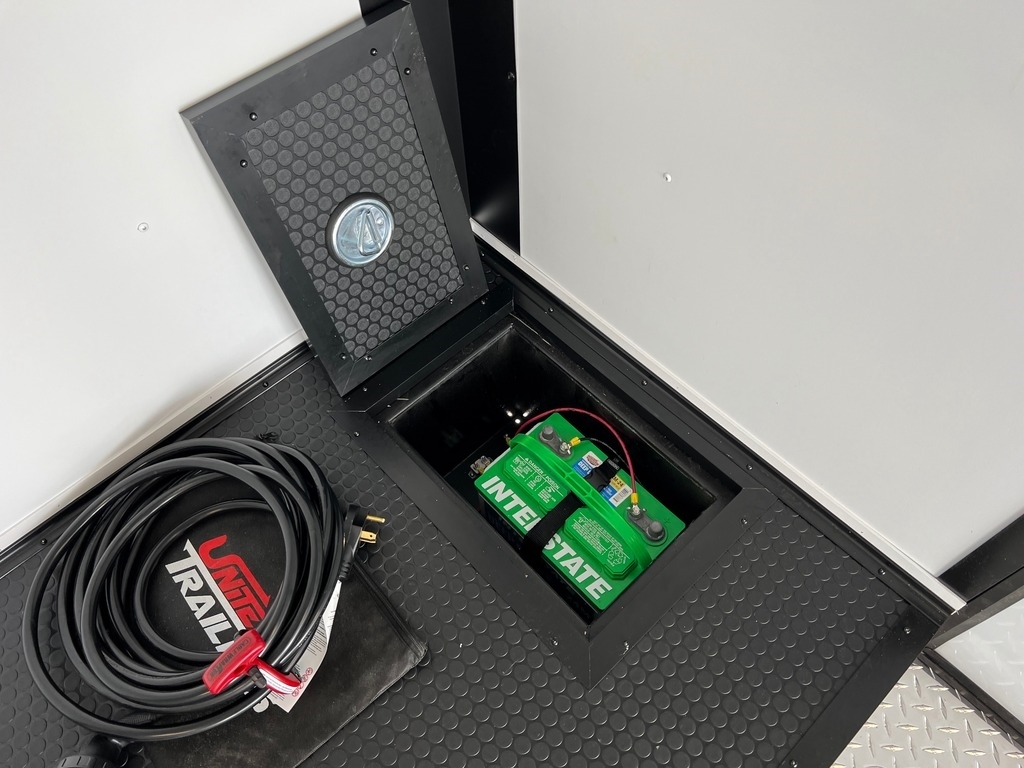

· DEEP CYCLE MARINE BATTERY IN RECESSED FLOOR BOX - WIRED TO CHARGE CIRCUIT
· MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
· L.E.D. CLEARANCE LIGHTS & TAIL LIGHTS
· EXTERIOR -
· SCREWLESS .030 SMOOTH ALUMINUM EXTERIOR

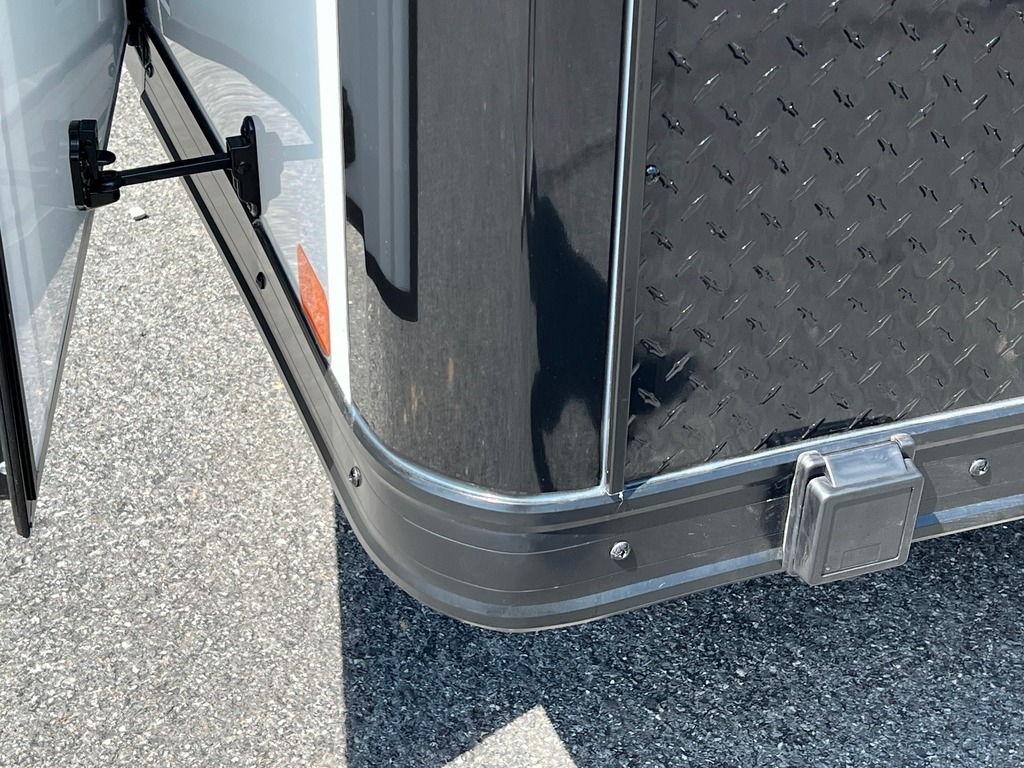

· 24" ALUMINUM TREAD PLATE STONE GUARD
· ONE-PIECE ALUMINUM SEAMLESS ROOF

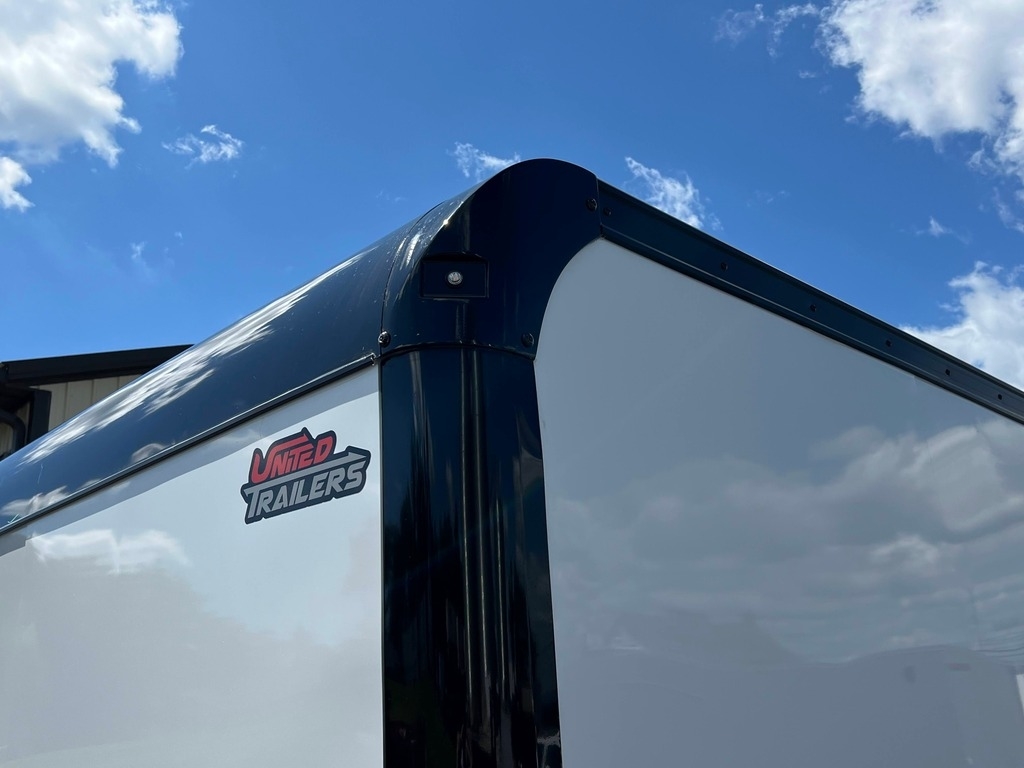

· CAST ALUMINUM UPPER FRONT CORNERS
· 4" ALUMINUM TOP RAIL & BOTTOM RAIL
· SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDERETTES
· WEATHER GUARD COATING ON FASTENERS
· DOOR -

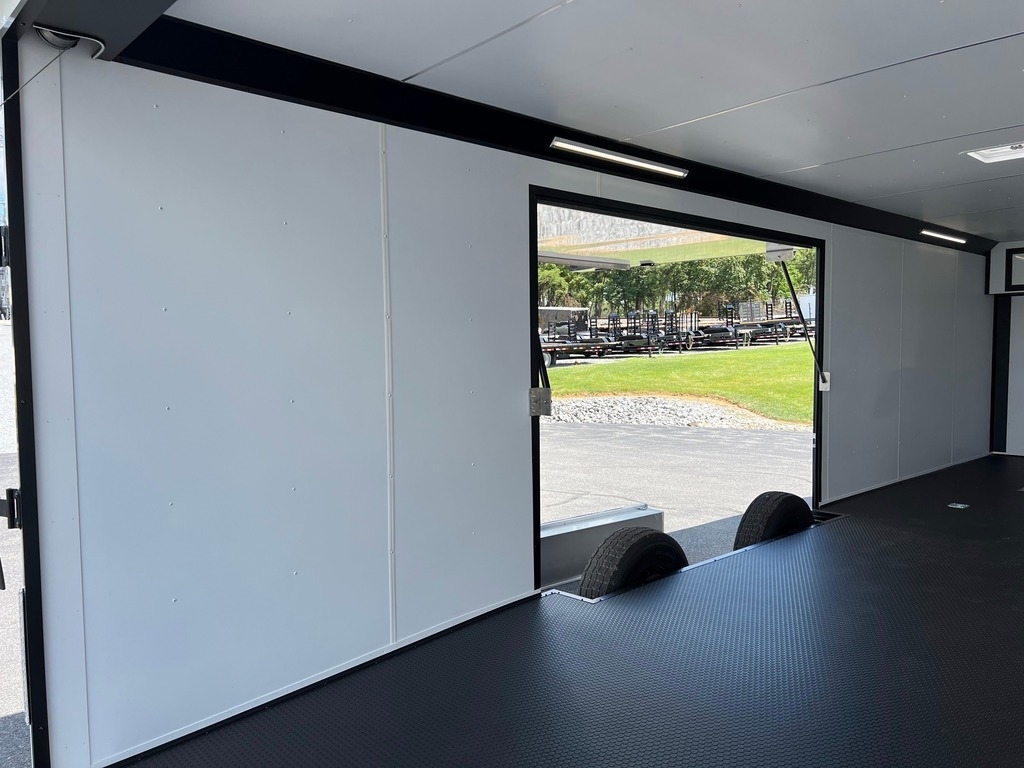

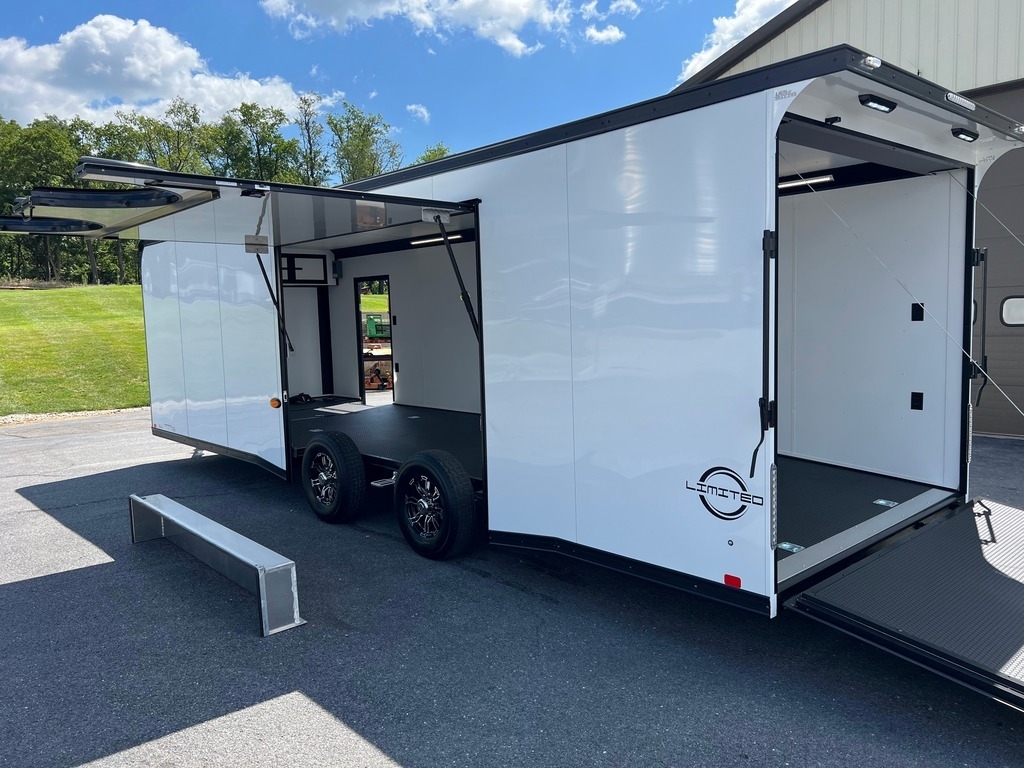

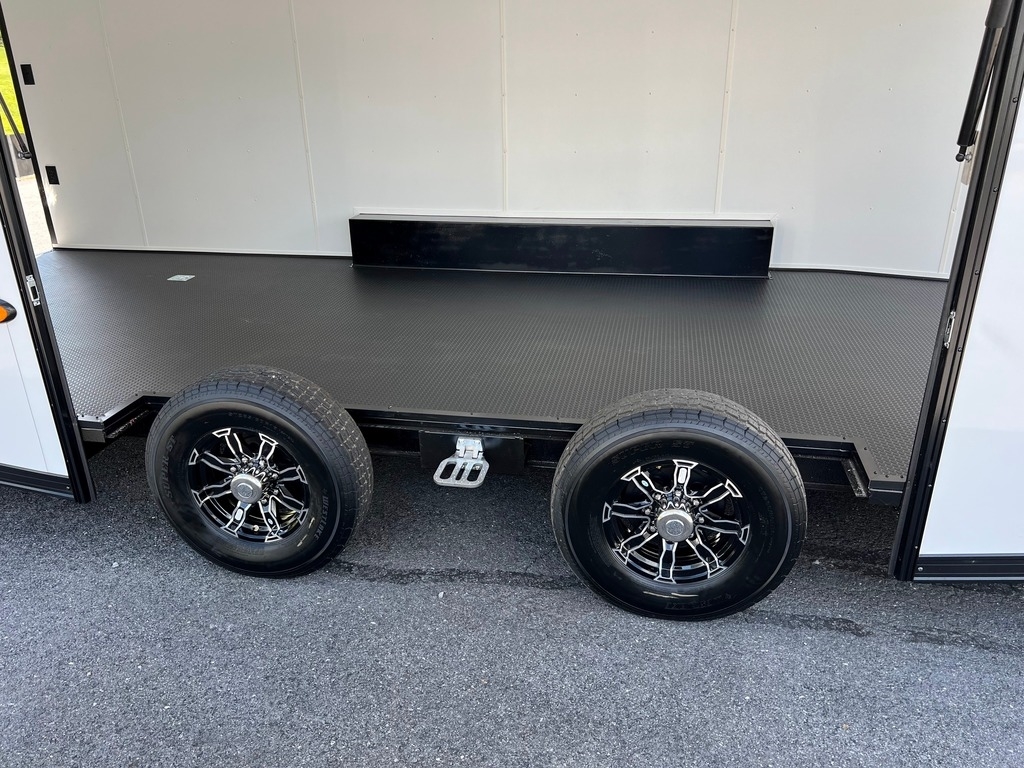

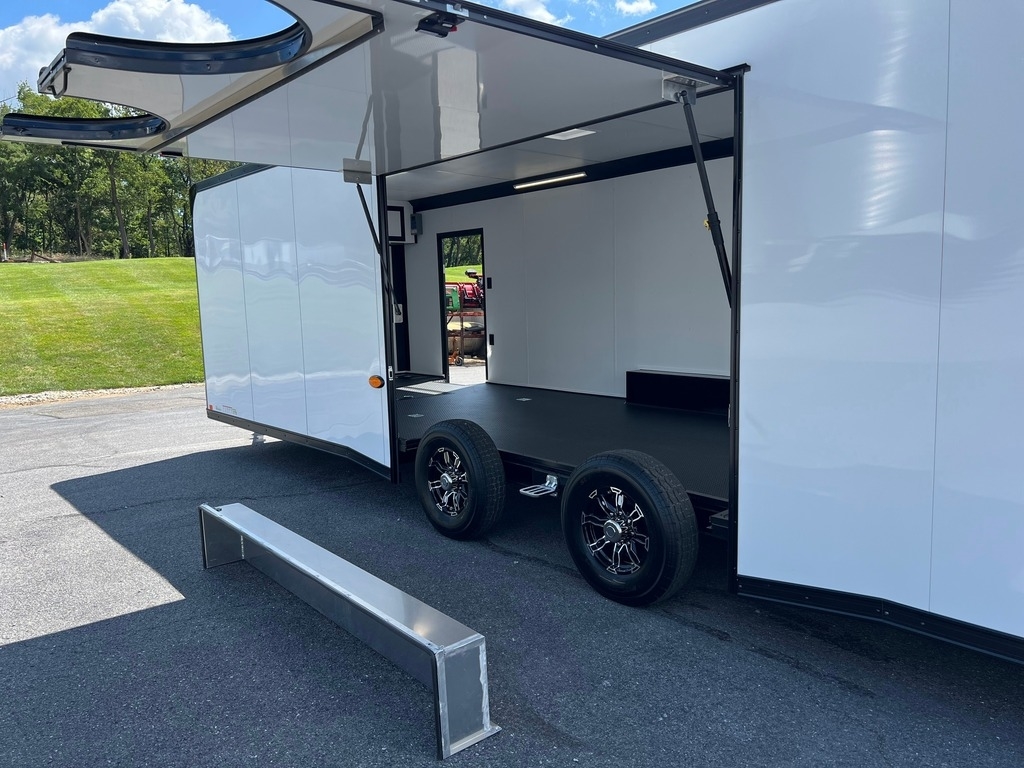

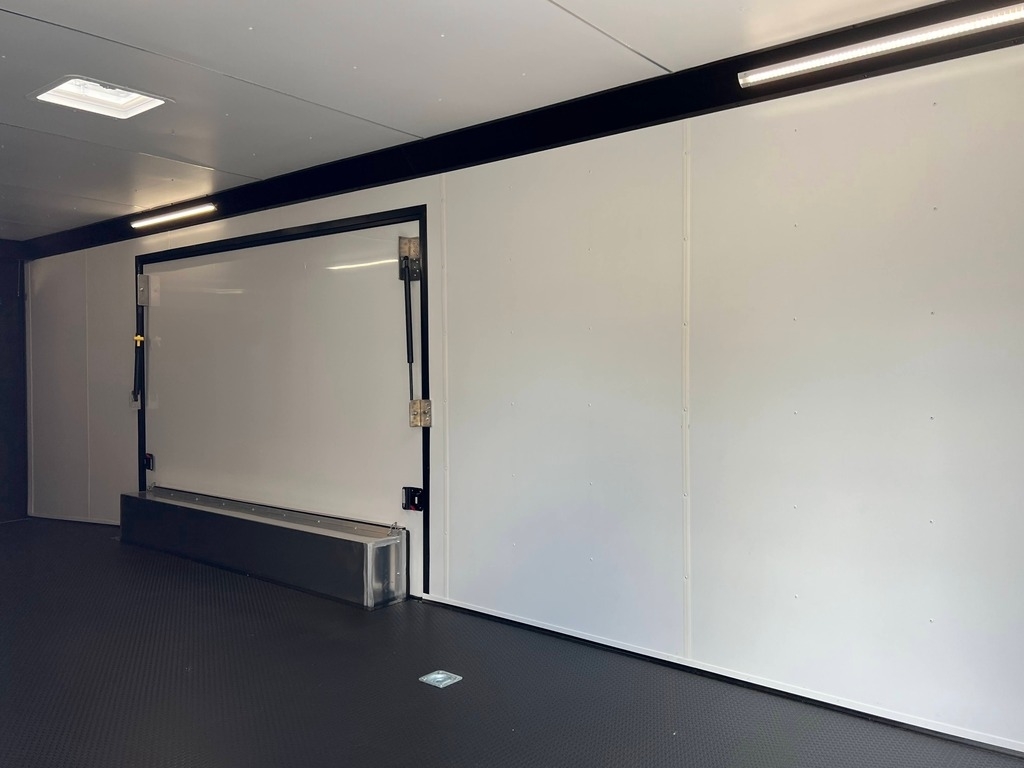

· PREMIUM JUMP/ESCAPE DOOR W/ REMOVABLE WHEEL WELL & INTEGRATED STEP - 106" WIDE X 73" HIGH, 6' 5" FROM REAR (8" TIRE HEIGHT ABOVE FLOOR)

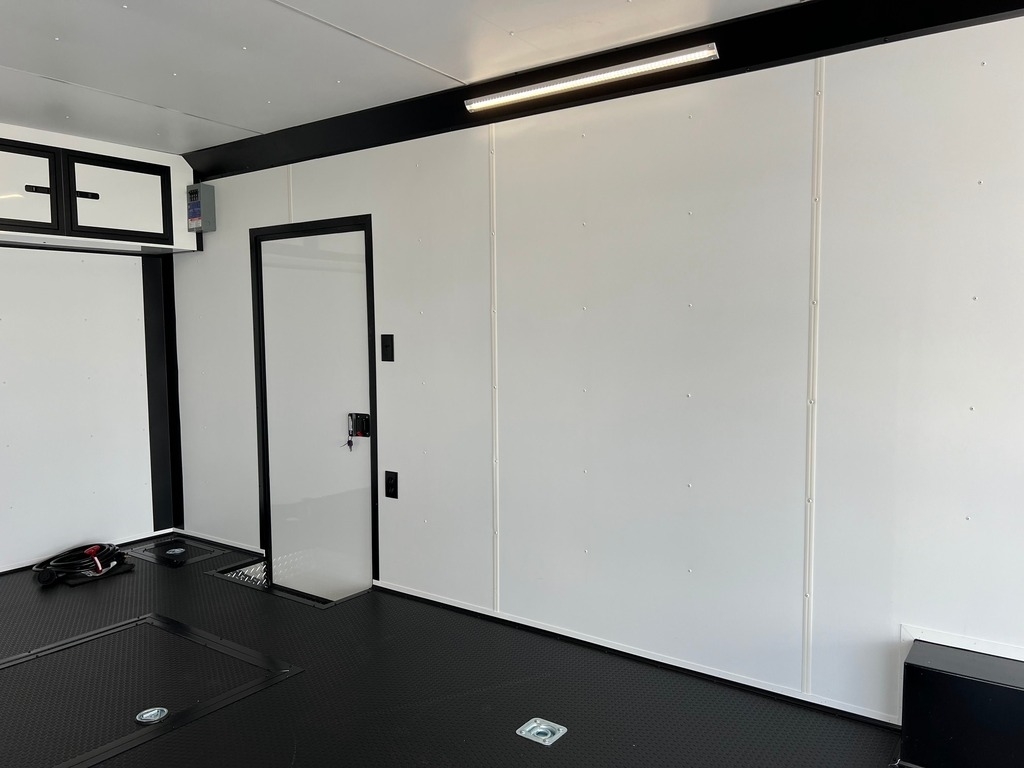

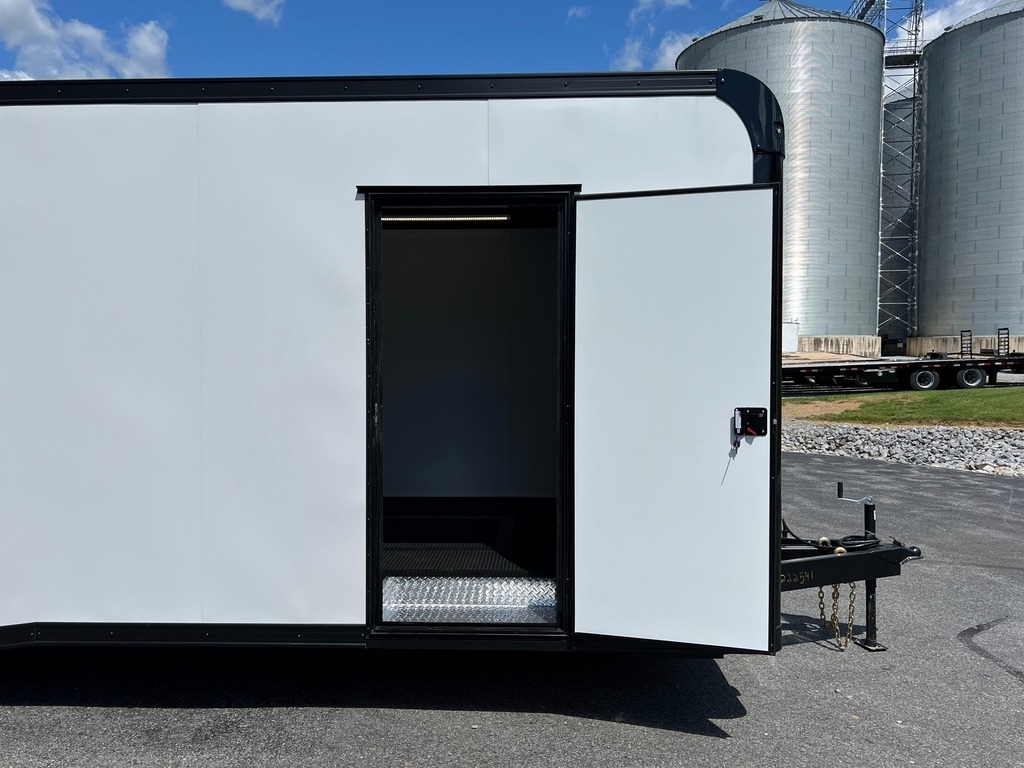

· 32" RV SIDE ENTRY DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
· BEAVERTAILED FLOOR FOR E-Z LOADING - 6' LONG / 5" DROP

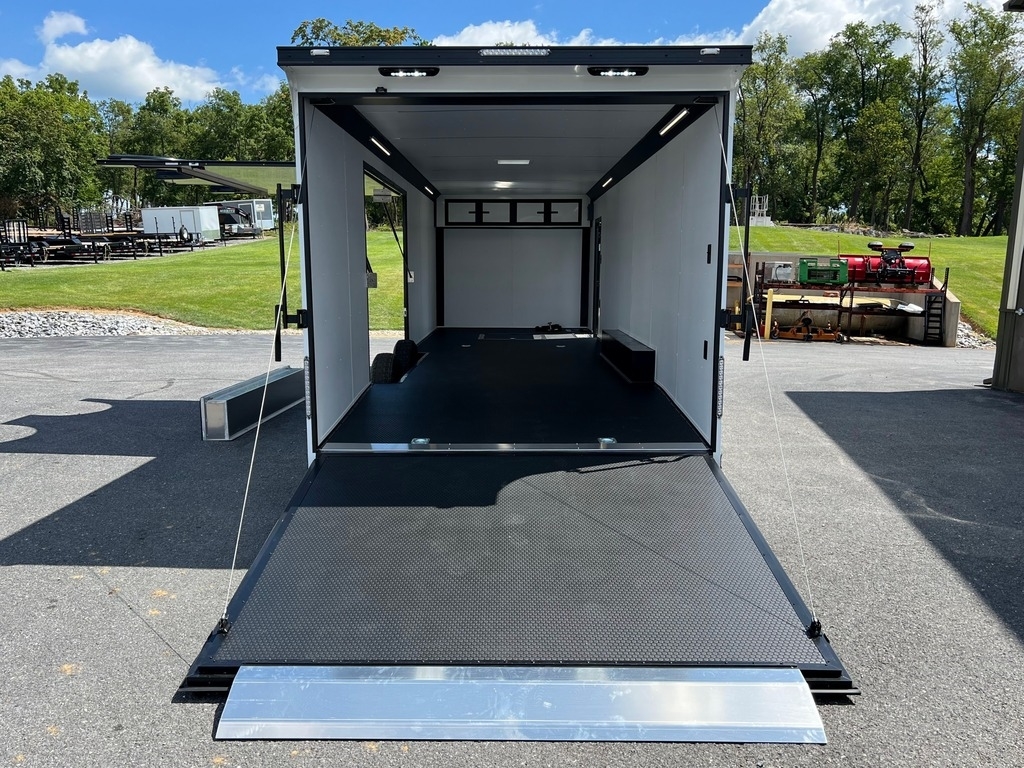

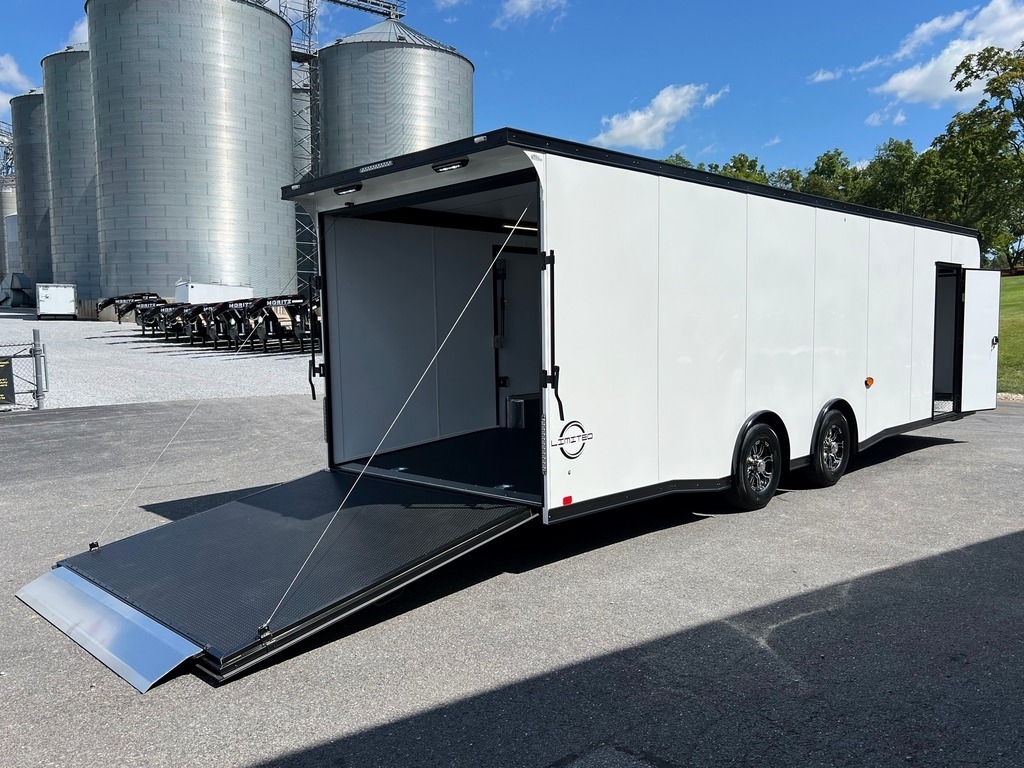

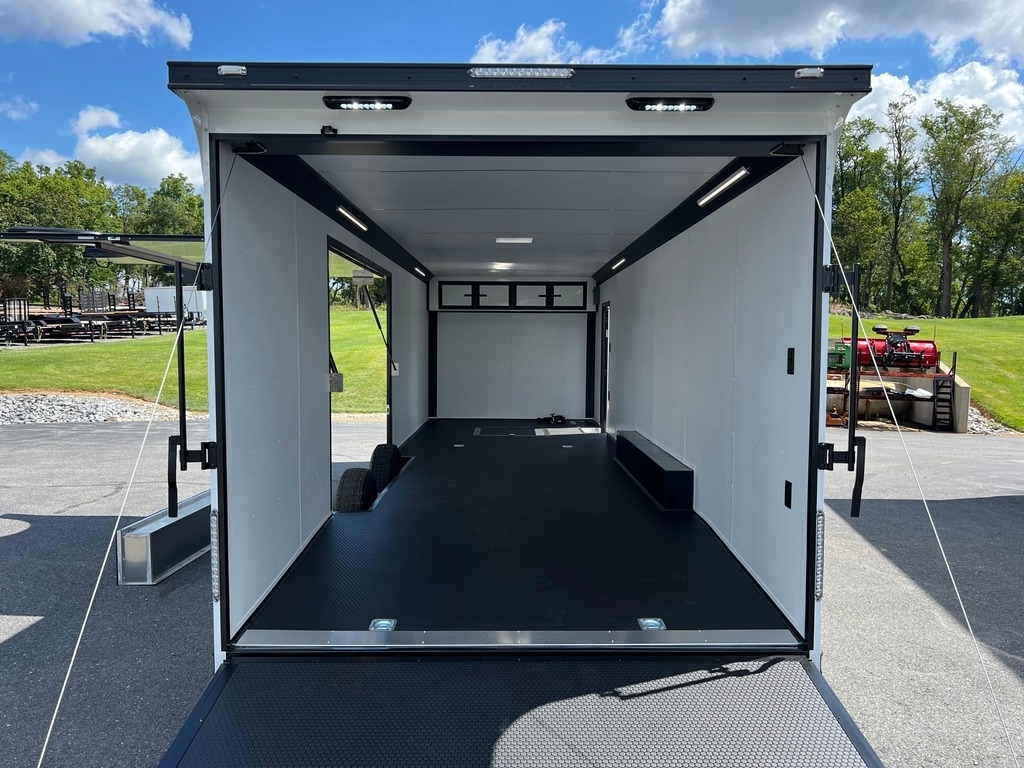

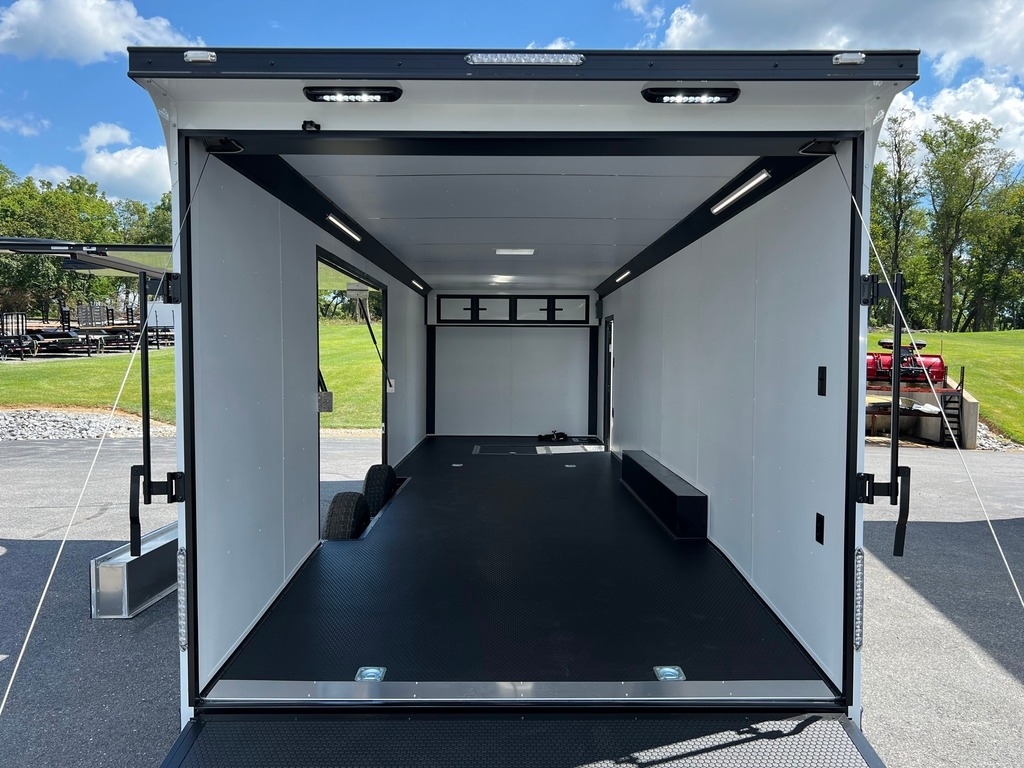

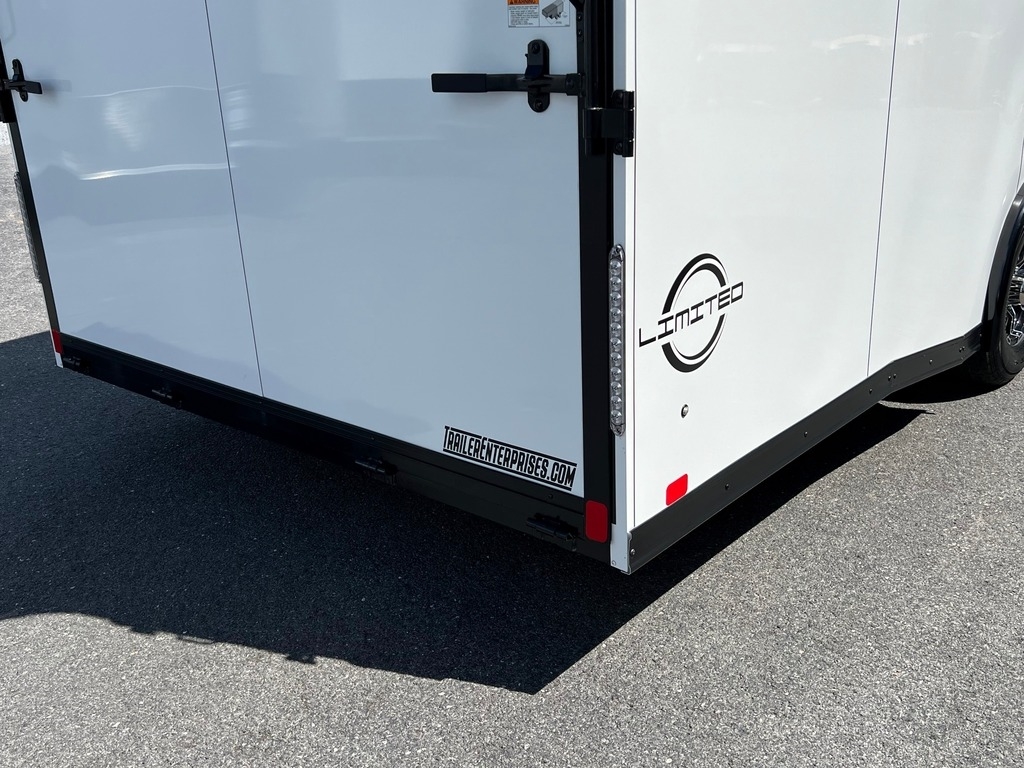

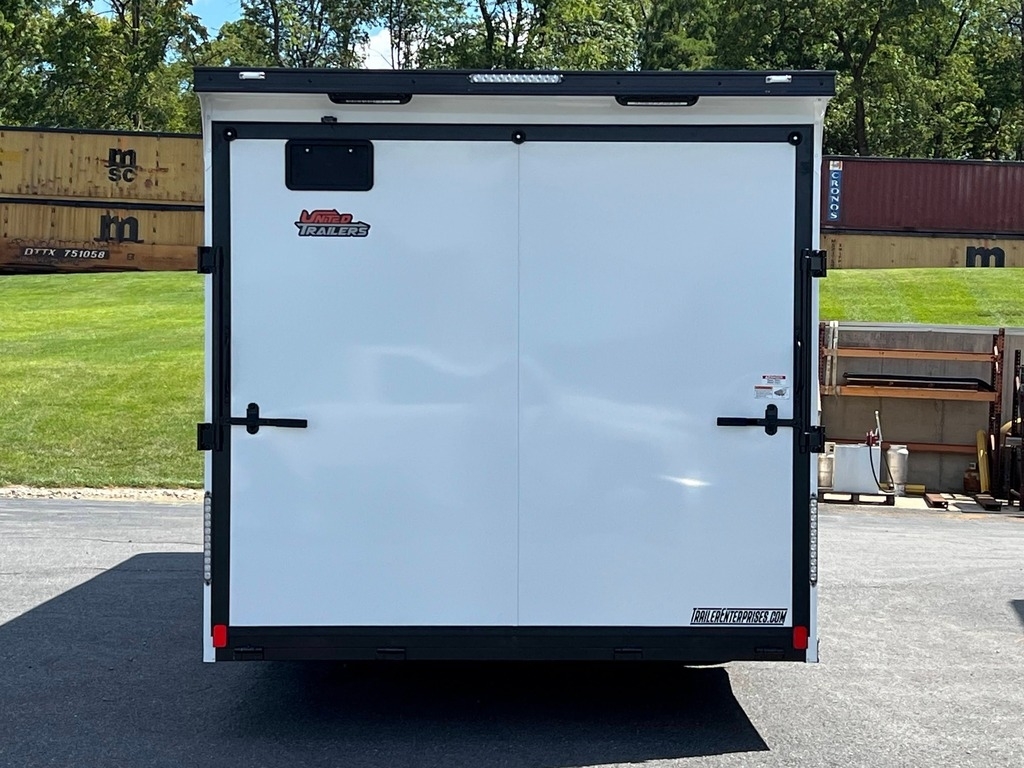

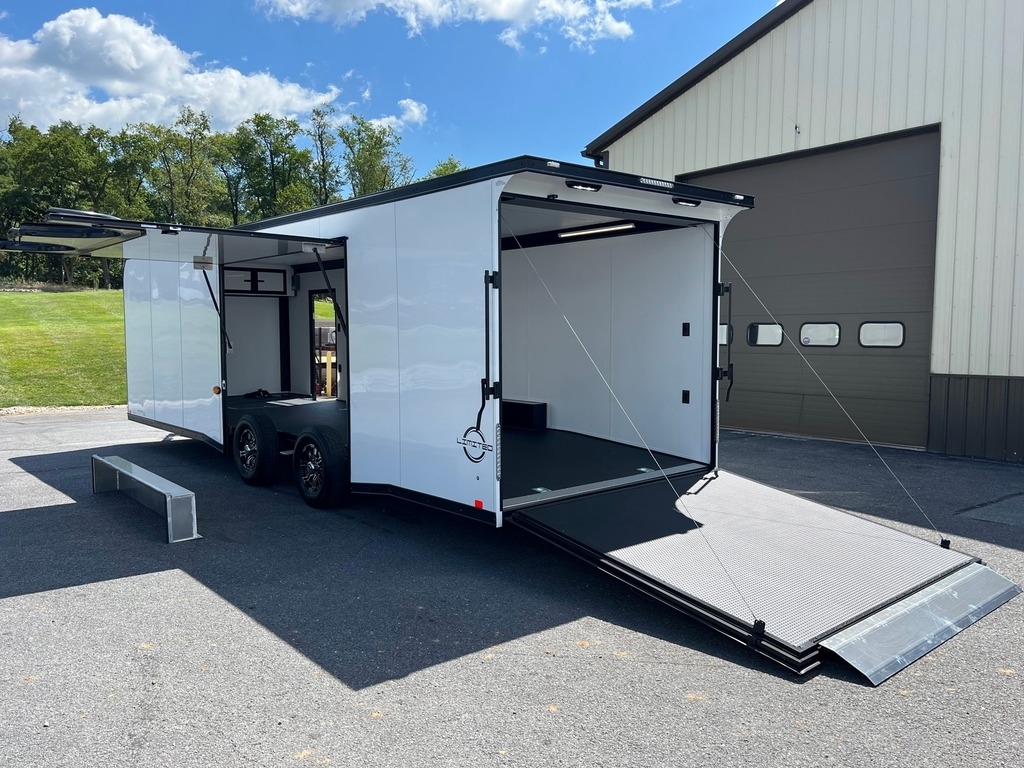

· RAMP REAR DOOR W/ SPRING ASSIST, 3,000 LB LOAD CAPACITY
· 95-3/4" WIDE X 83" HIGH RAMP DOOR OPENING
· ALUMINUM GRAB HANDLES ON RAMP DOOR
· 1' ALL-ALUMINUM END FLAP ON RAMP DOOR
· CABINET -

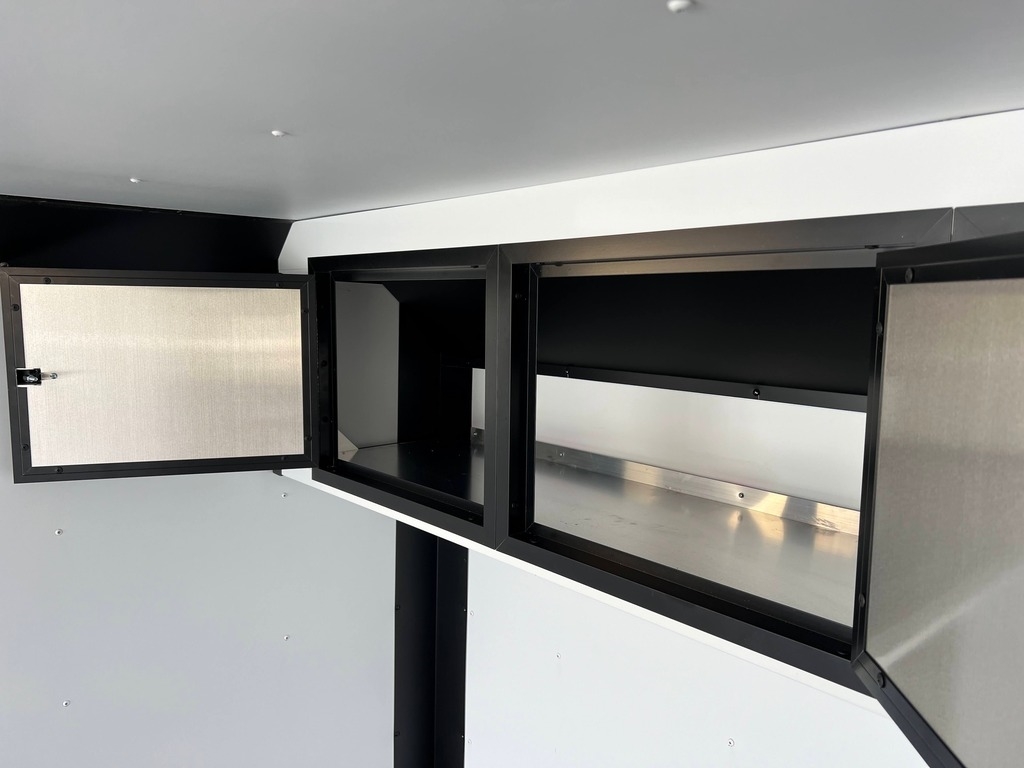

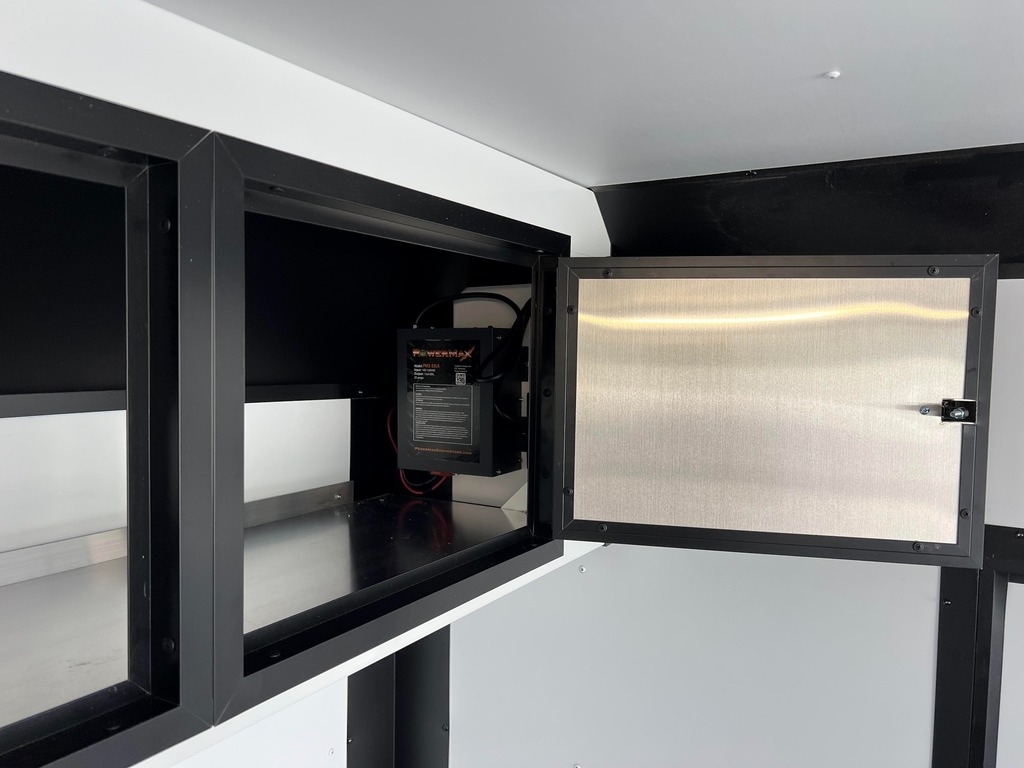

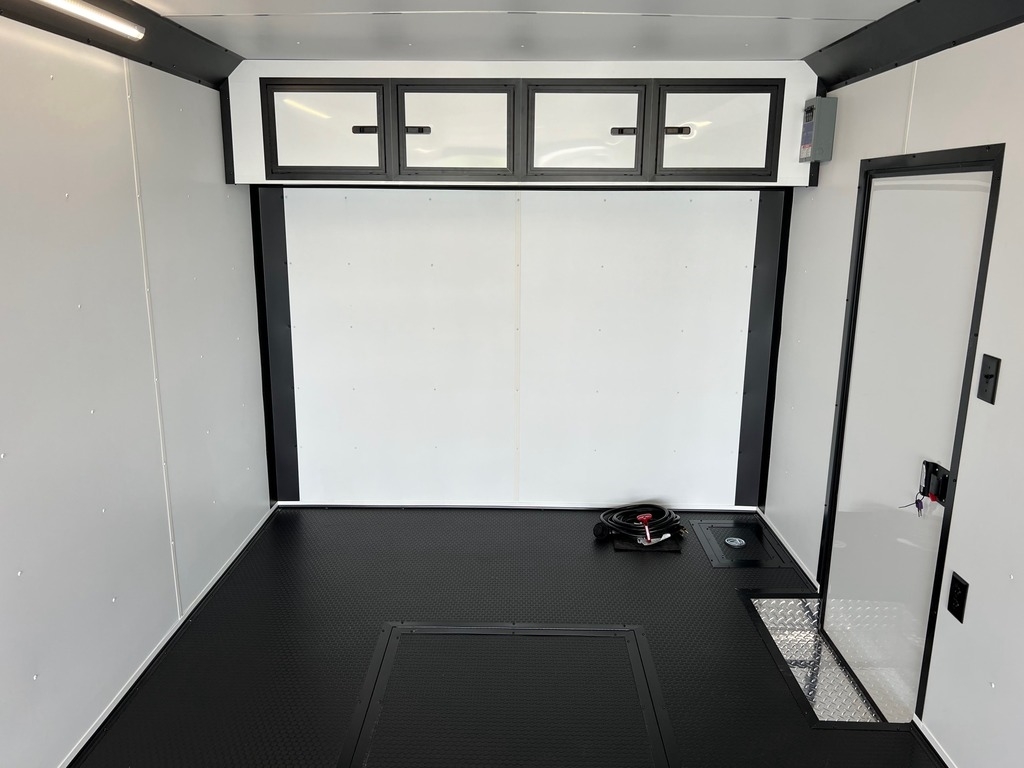

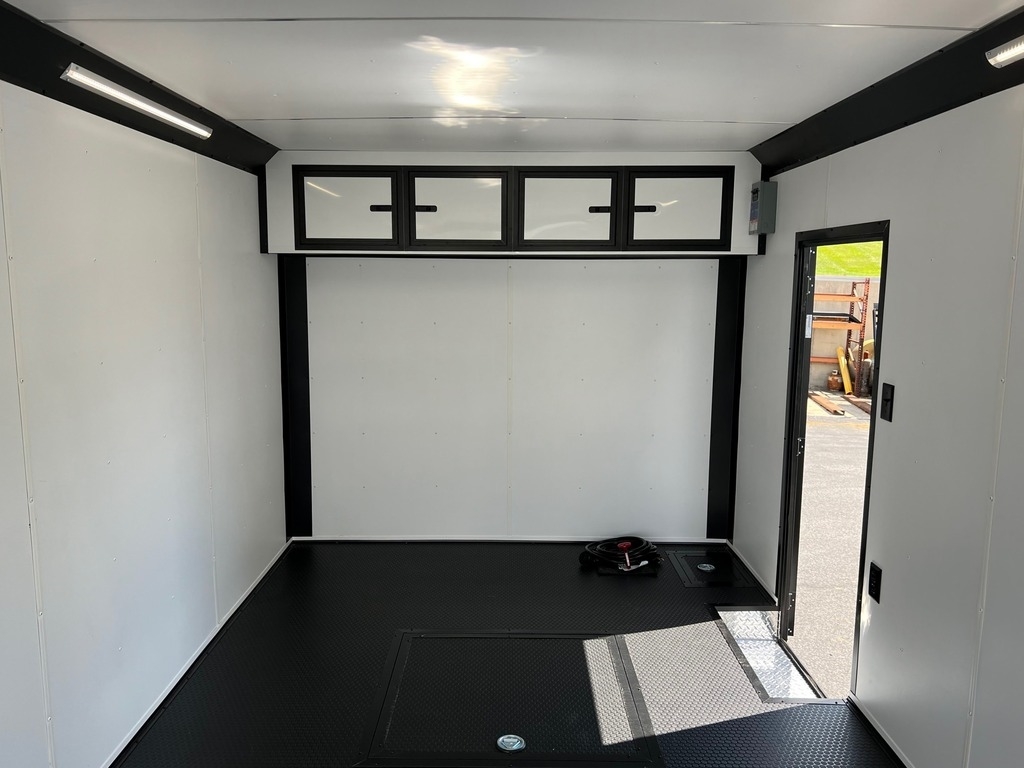

· ALUMINUM OVERHEAD CABINET ACROSS FRONT WALL - 16" TALL X 16" DEEP
· 110 VOLT ELECTRICAL -

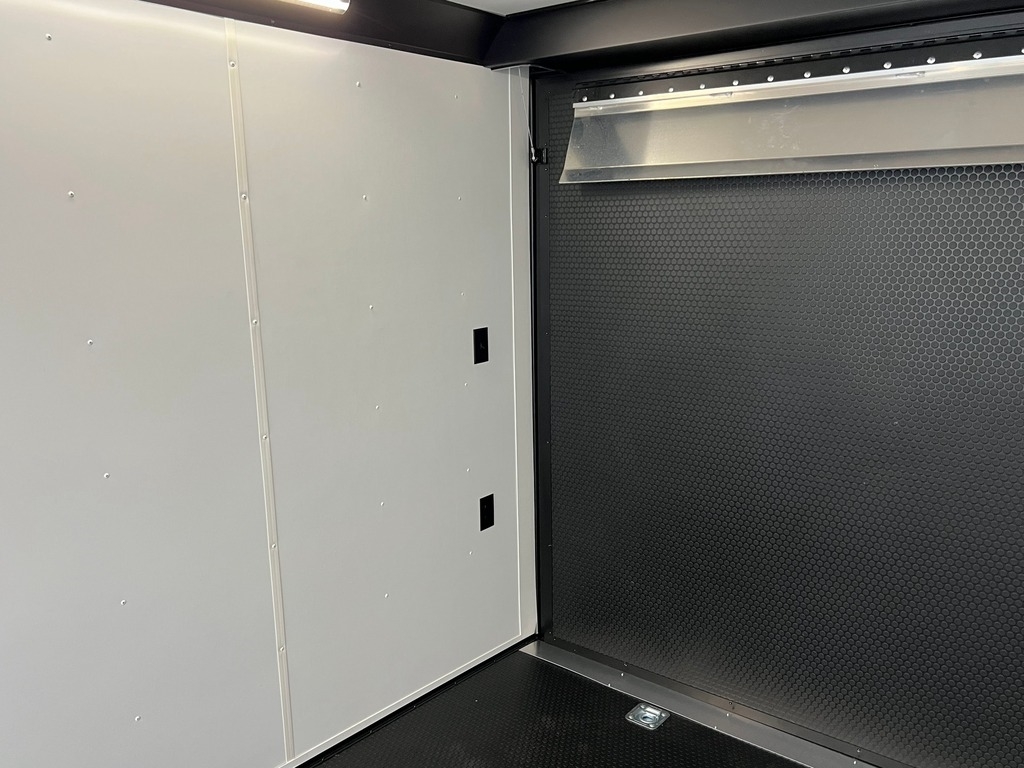

· (2) INTERIOR DUPLEX RECEPTACLES

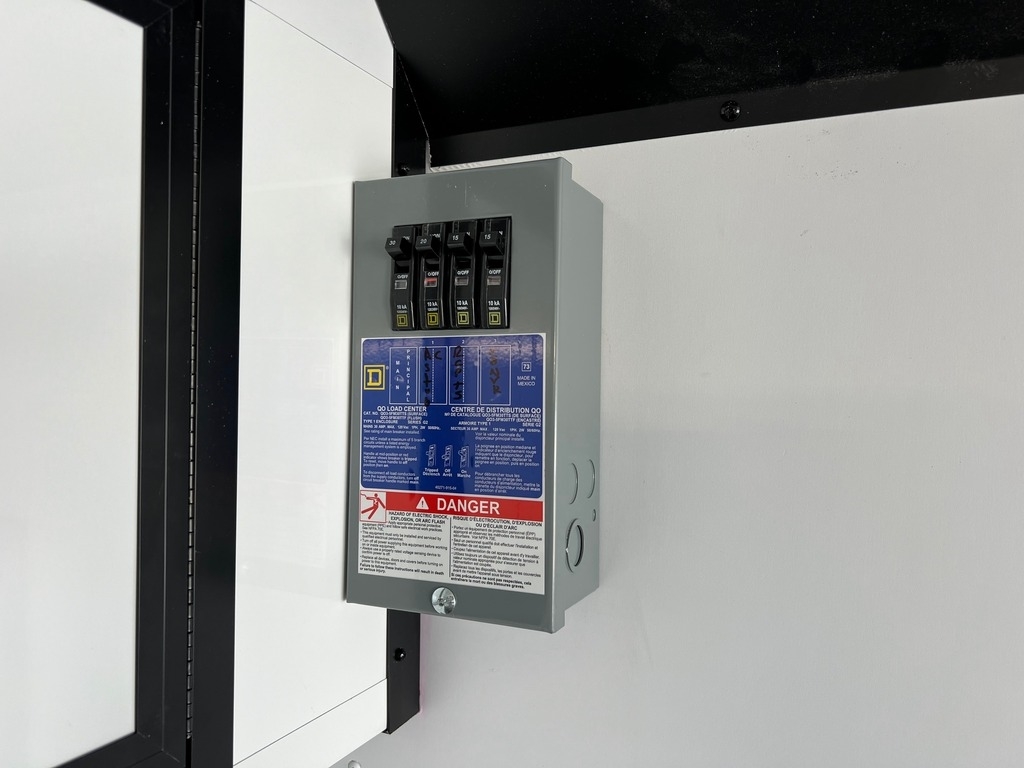

· 30 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
· 30 AMP RV POWER CORD - 25' LONG W/ TWIST-LOCK PLUG
· WARRANTY -
· 3 YEAR LIMITED MANUFACTURER'S WARRANTY
· 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
· FREIGHT FROM BRISTOL, INDIANA TO HAGERSTOWN, MARYLAND INCLUDED
