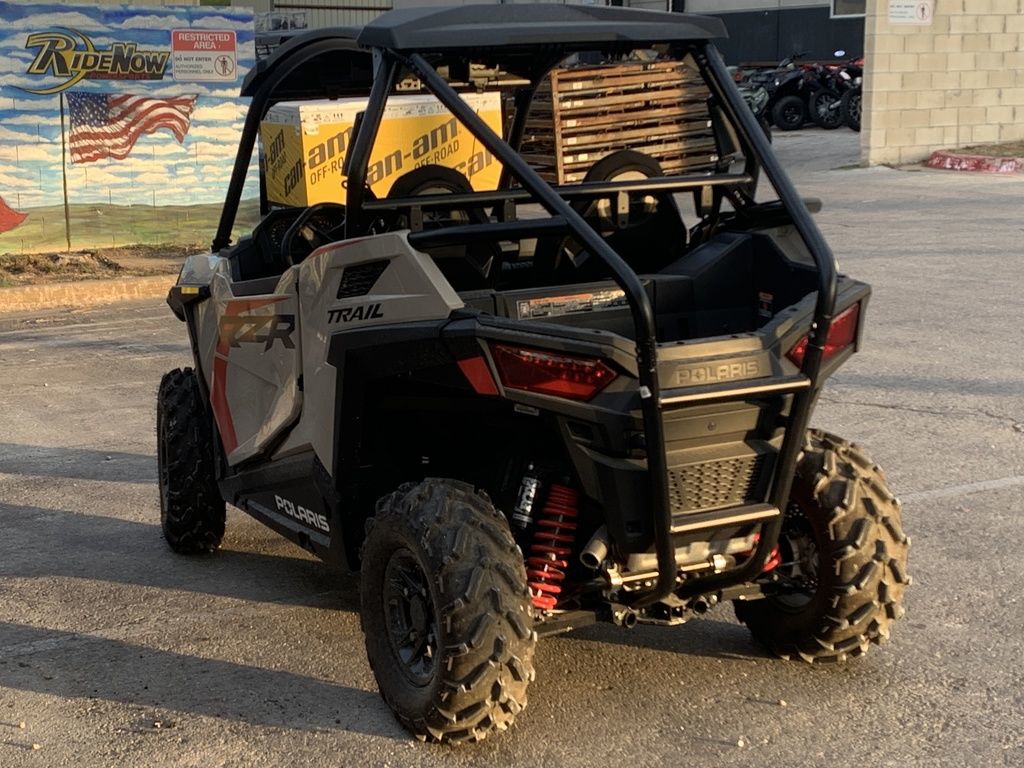

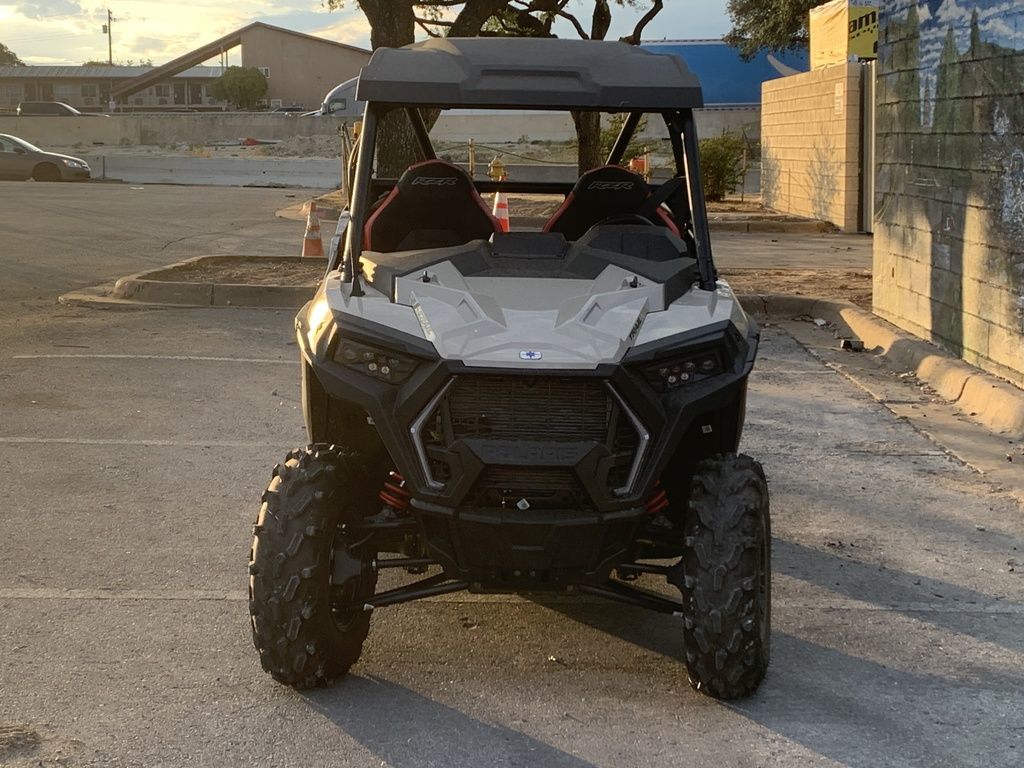

2026 Polaris® RZR Trail Ultimate

Tight Trail Capability

Features may include:

PERFORMANCE

The Right Power: With its class-leading power-to-weight advantage, you’re greeted with instant response and lightning-quick acceleration with every push of the pedal.

11’’ Ground Clearance: Tame challenging trails with our shortest wheelbase, 11" ground clearance, best turning radius, and fast-engaging AWD.

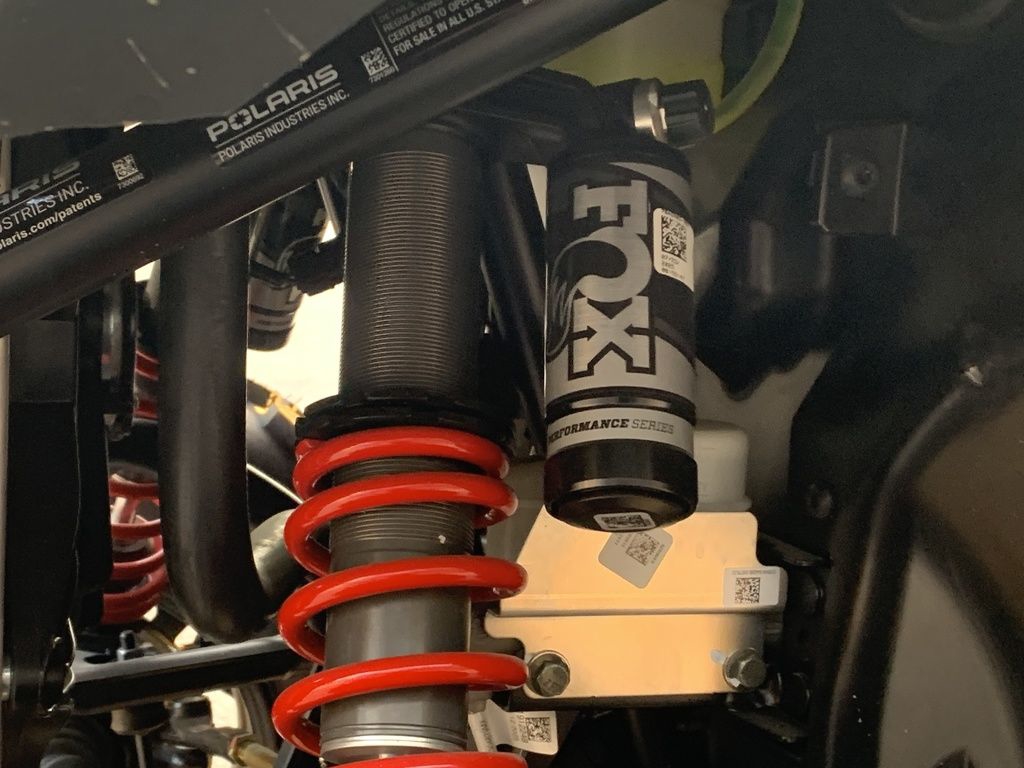

Plush Suspension: Enjoy a smooth ride with 10" of suspension travel controlled by available premium FOX 2.0 Podium X shocks that soak up every bump, rut and rock—while 26" tires allow you to roll over terrain with ease.

DESIGN

Built Nimble: The most comfortable, best handling, and quickest accelerating, 50" trail side-by-side with unrestricted trail capability.

Rider Comfort: Optimized ergonomics for comfort and better sightlines. An adjustable seat, and tilt steering wheel, delivers the perfect position for all types of riders.

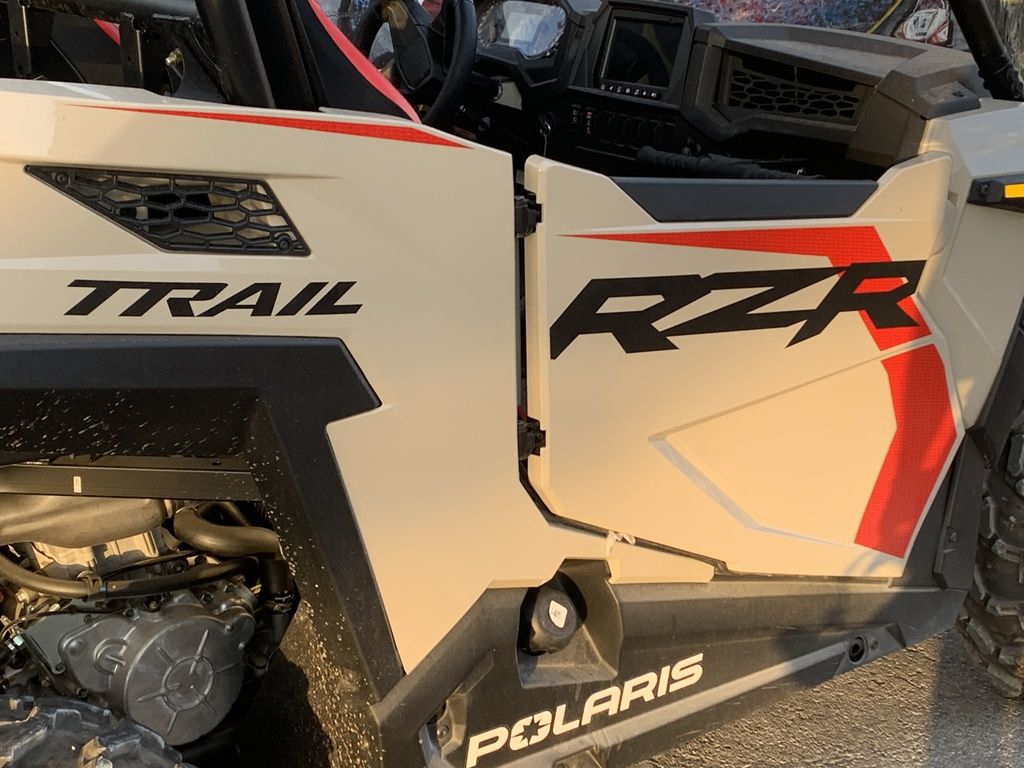

Protection From the Elements: Sturdy half doors, a wrap-around roll cage, and improved cab system keeps the elements out.

TECHNOLOGY

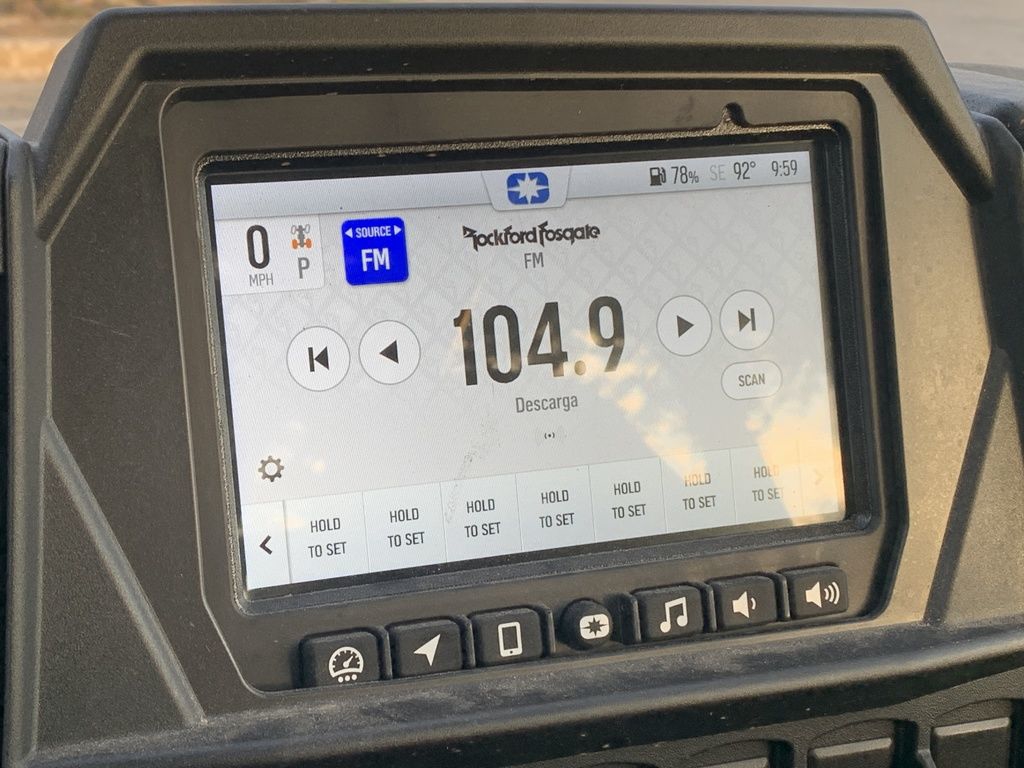

Explore More: Go exploring with RIDE COMMAND Technology: GPS mapping, V2V and ride planning, all on a 7" Glove-Touch Display.

Rockford Fosgate® Audio: Enjoy our industry-exclusive, first-ever, Rockford Fosgate® factory audio system* for easy playback on the trail.

Led Headlights: LED headlights provide more light so you can ride longer, and accent lights add distinctive style.

Turf Mode: Work around the yard without tearing up the lawn.

Basic Information

Year: 2026
Make: Polaris
Model: RZR Trail
Trim: Ultimate
Stock Number: PO166246
VIN: 3NSA5F870TH166246
Condition: New
Type: Sport Utility
Primary Color: SAND DUNE

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Stabilizer Bar
Front Suspension Brand Name: Fox Podium
Front Travel (in): 10
Front Travel (mm): 254
Number Rear Shock Absorbers: 2
Rear Adjustable Shock / Spring Pre-Load
Rear Stabilizer Bar
Rear Suspension Brand Name: Fox Podium
Rear Suspension Material: Steel
Rear Travel (in): 10
Rear Travel (mm): 254
Steering Control: Steering Wheel
Steering Type: Power
Suspension - Front: Independent Double A-Arm
Suspension - Rear: Independent Double A-Arm

Comfort

Clock

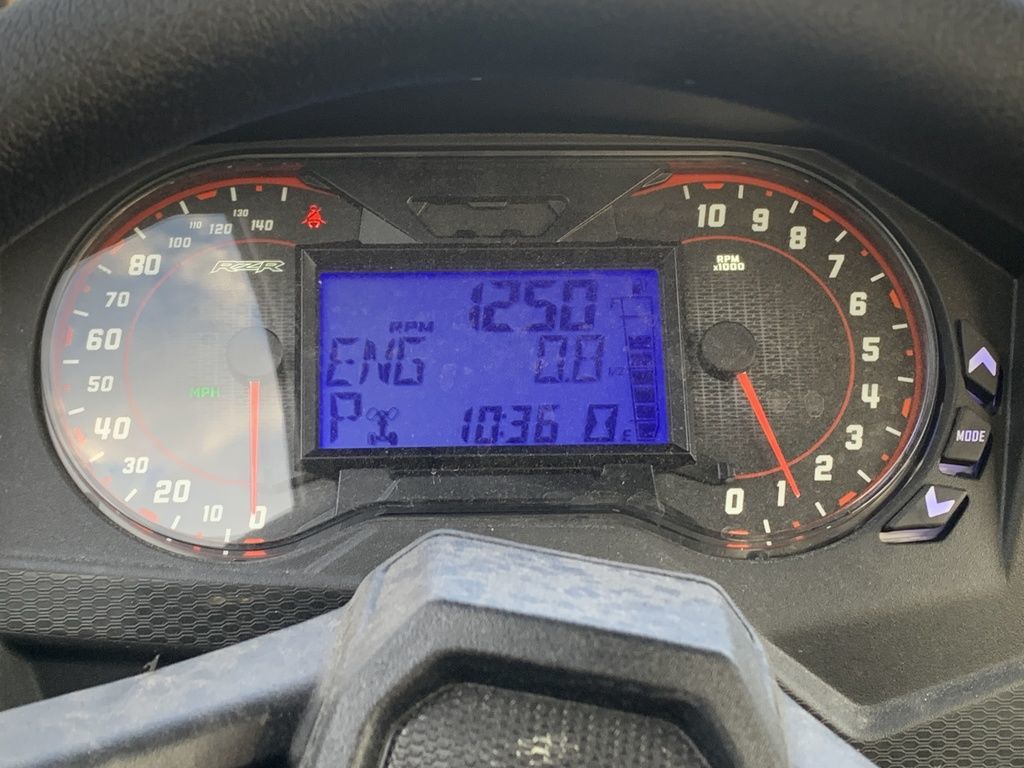

Digital Instrumentation
Hour Meter
Seat Material: Vinyl

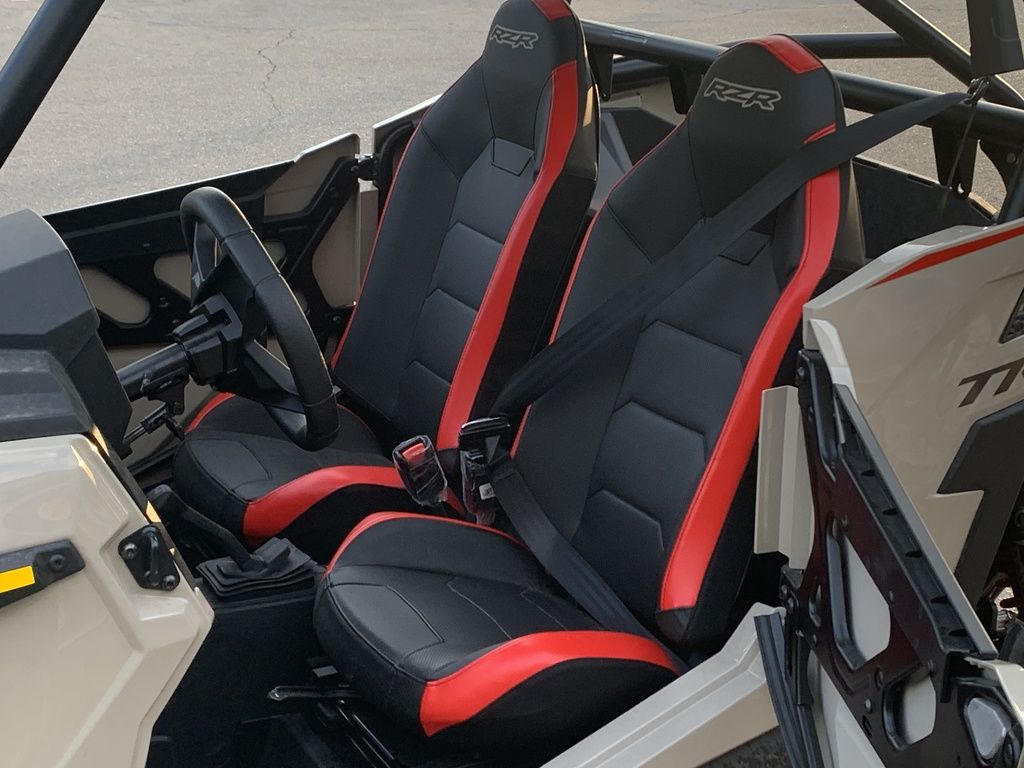

Seat Type: Bucket
GPS

Drivetrain

Transmission Type: Continuously Variable (CVT)
Engine Braking System
Driveline Brand: On-Demand
Driveline Type: Selectable 4X2 / AWD
Number Of Driveline Modes: 2
Hi / Low Range
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse
Transmission Brand: Polaris Variable Transmission (PVT)
Limited Slip Differential
Limited Slip Differential Location: Center
Primary Drive (Engine / Transmission): Belt

Engine

Bore (in): 3.66
Bore (mm): 93
Carburetion Type: Fuel Injected
Compression Ratio: 10.5:1
Cylinders: 2
Displacement (ci): 53.4
Engine Brand Name: ProStar
Engine Cooling: Liquid
Engine Size (cc): 875
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 9.5
Fuel Injector
Fuel Requirements: Regular
Horsepower (kW): 56
Starter Type: Electric
Stroke (in): 2.54
Stroke (mm): 64.4
Valve Configuration: DOHC
Valves: 8
Valves Per Cylinder: 4
Engine Immobilizer

Other Information

Cab Cage
Cab Canopy
Cab Canopy Material: Hard
Cab Doors
Cab Doors Material: Hard
Cab Rollbar
Cargo Bed Integral Tie-Down Hooks
Power Outlet

Safety

Brakes - Front: Hydraulic Disc
Brakes - Rear: Hydraulic Disc
Seat Belts
Headlight(s)

Specifications

Bash Plate (Front)
Bed Capacity (kgs.): 136.1
Bed Capacity (lbs.): 300
Bed Volume (ft3): 3.5
Bed Volume (m3): 0.1
Body Material: Plastic
Cargo Bed Bed Height (in): 7.9
Cargo Bed Bed Height (mm): 200
Cargo Bed Bed Length (in): 20.7
Cargo Bed Bed Length (mm): 525
Cargo Bed Bed Width (in): 37
Cargo Bed Bed Width (mm): 940
Dry Weight (lbs): 1314
Dry Weight (kg): 596

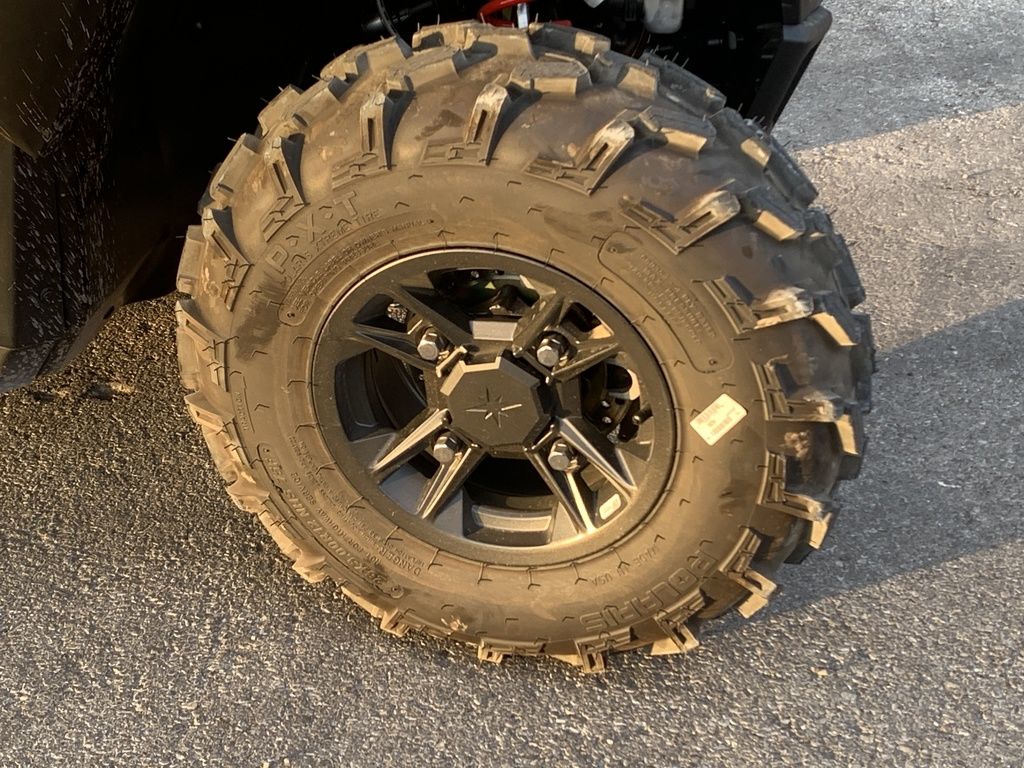

Front Tire Diameter (in): 26
Front Tire Width: 8
Ground Clearance (in): 11
Ground Clearance (mm): 279
Height (Inches): 67
Height (mm): 1725
Length (Inches): 110
Length (mm): 2820
Payload Capacity (kgs): 336
Rear Hitch
Rear Tire Diameter (in): 26
Rear Tire Width: 9
Towing Capacity (kgs): 680
Towing Capacity (lbs): 1500
Wet Weight (kg): 633
Wet Weight (lbs): 1395
Wheelbase (in): 79
Wheelbase (mm): 2007
Wheels Composition: Aluminum
Width (Inches): 50
Width (mm): 1270
