2025 Ducati Hypermotard 698 Mono Ducati Red Single-Cylinder 659 DUC003878 - XTREME MACHINES

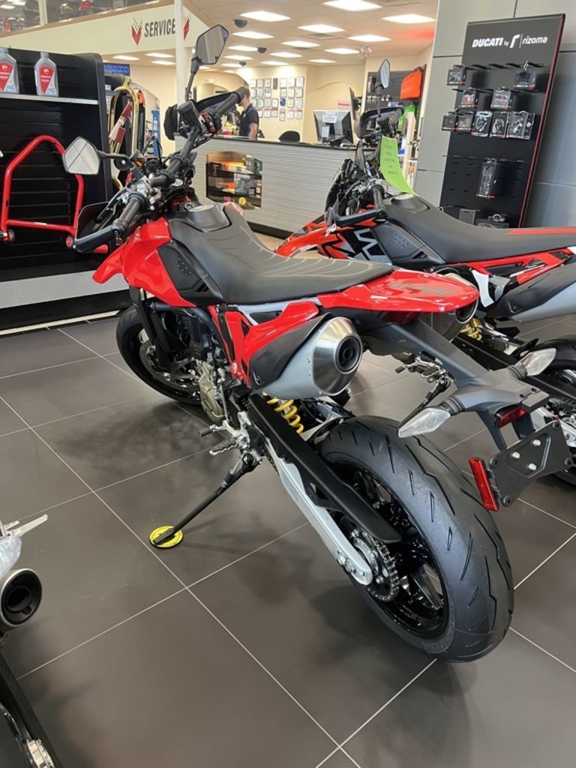

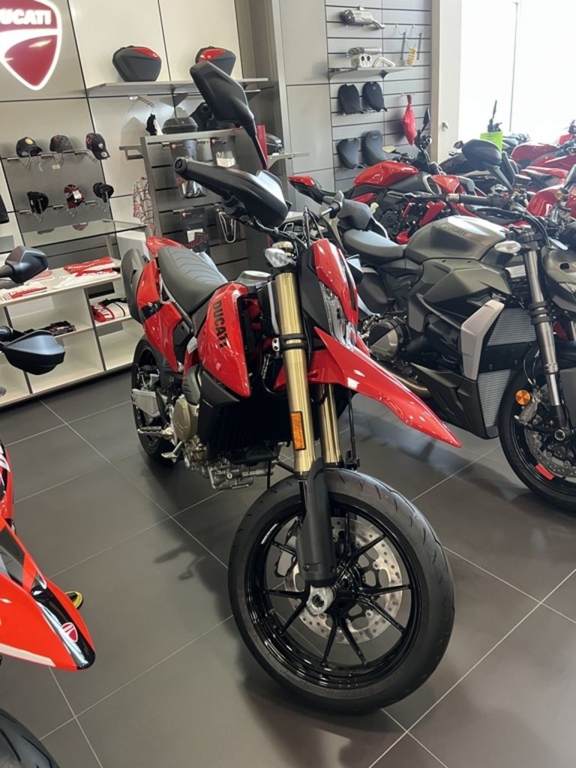

2025 Ducati Hypermotard 698 Mono Ducati Red

Live. Play. Ride.

Climb aboard and let fun take charge. The new Hypermotard 698 Mono is the first single-cylinder road-going Supermotard by Ducati, born with just one aim – to transmit excitement, dominating the scene. Simple, lightweight, and agile, it is a fun bike with racing DNA.

Features may include:

Frame and swingarm

The frame is a steel tube trellis with different thicknesses and cross-sections. At the rear is a cast aluminum double-sided swingarm weighing just 8.6 lbs., which maximizes stiffness and minimizes weight. Its 572 mm length allows the wheelbase to be limited to 1443 mm, to the benefit of handling.

Suspension

At the front is the lightweight and fully adjustable Marzocchi upside-down fork with 45 mm aluminum stanchions, weighing in at just 17.8 pounds. The Sachs rear shock absorber is off-road-inspired and coupled with a progressive link.

Wheels and tires

The bike is equipped with lightweight cast rims with five Y-spoke design, for a weight reduction of 1 lb. compared to a similar set of spoked rims and even greater riding precision. The bike mounts Pirelli Diablo Rosso IV tires. A 160/60 was chosen for the rear, the ideal size to highlight the dynamic qualities of the Hypermotard 698 Mono.

Brakes

Up front, the 330 mm brake disc is the same size as those used on the Panigale V4. It was developed by Brembo specifically for the 698 Mono and has an aluminum flange that reduces weight by 17% compared to a disc with steel bell. Brembo also supplies a M4.32 caliper driven by a radial master cylinder to complete the system.

Handlebar and Riding position

The Hypermotard 698 Mono has the typical Motard riding position. The rider seat is narrow with a flat shape which facilitates body and leg movements. The handlebar, in aluminum with variable section, is wide and adjustable in two positions.

Basic Information

Year: 2025
Make: Ducati
Model: Hypermotard 698
Stock Number: DUC0924R1
Condition: New
Type: Standard
Title: Clean
Color: Red

Brakes

ABS Brakes
Brake Brand Name: Brembo
Front Brake: Hydraulic Disc
Front Brake Diameter (in): 13
Front Brake Diameter (mm): 330
Linked Brake System Front to Rear
Rear Brake: Hydraulic Disc
Rear Brake Diameter (in): 9.7
Rear Brake Diameter (mm): 245

Chassis & Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Adjustable Rebound Damping
Front Suspension Brand Name: Marzocchi
Front Suspension Size (in): 1.8
Front Suspension Size (mm): 45
Front Suspension Type: Inverted Fork
Front Travel (in): 8.5
Front Travel (mm): 215
Number Rear Shock Absorbers: 1
Rear Adjustable Rebound Damping
Rear Adjustable Shock / Spring Pre-Load
Rear Suspension Brand Name: Sachs
Rear Suspension Material: Aluminum
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 9.4
Rear Travel (mm): 240

Comfort

Adjustable Handlebars
Adjustable Levers
Digital Instrumentation
Trip Odometer

Drivetrain

Number Of Speeds: 6
Primary Drive (Rear Wheel): Chain
Transmission: Manual
Primary Drive (Engine / Transmission): Gear
Transmission Final Drive Ratio: 2.8
Transmission Gear Ratio (1): 2.77
Transmission Gear Ratio (2): 2.06
Transmission Gear Ratio (3): 1.6
Transmission Gear Ratio (4): 1.32
Transmission Gear Ratio (5): 1.14
Transmission Gear Ratio (6): 1.04

Engine

Bore (in): 4.57
Bore (mm): 116
Carburetion Type: Fuel Injected
Compression Ratio: 13.1:1
Cooling System: Liquid
Cylinders: 1
Engine Brand Name: Superquadro
Engine Immobilizer
Engine Size (cc): 659
Engine Size (ci): 40.2
Engine Stroke: 4-Stroke
Engine Type: Single-Cylinder
Fuel Capacity (gal): 3
Fuel Injector
Fuel Injector Size (mm): 62
Fuel Requirements: Premium
Horsepower: 77
Horsepower (kW): 57
Horsepower RPM: 9750
Starter: Electric
Stroke (in): 2.46
Stroke (mm): 62.4
Torque (Ft Lbs): 46.5
Torque (Nm): 63
Torque RPM: 8000
Valve Configuration: DOHC
Valves: 4
Valves Per Cylinder: 4
Fuel Type: Gasoline

Other Information

Chain Guard
Exhaust Guard
Exterior Covers
Exterior Guards
Foot Pegs
Foot Peg Location: Driver and Passenger
Fork Guards
Hand Guards
Front Fender
Hand Grips
Rear Fender
Stand
Stand Type: Kick

Safety

Headlight Type: LED
Fuel Level Warning
Rearview Mirrors
Temperature Warning
Temperature Warning Type: Light

Specifications

Front Tire (Full Spec): Pirelli Diablo Rosso IV 120/70 ZR17
Front Tire (Inches): 17
Front Tire Aspect Ratio: 70
Front Tire Speed Rating: Z
Front Tire Width: 120
Front Wheel Width (in): 3.5
Fuel Capacity (liters): 12
Rear Tire (Full Spec): Pirelli Diablo Rosso IV 160/60 ZR17
Rear Tire (Inches): 17
Rear Tire Aspect Ratio: 60
Rear Tire Speed Rating: Z
Rear Tire Width: 160
Rear Wheel Width (in): 5
Seat Height (inches): 35
Tube / Tubeless: Tubeless
Wheelbase (in): 56.8
Wheelbase (mm): 1443
Wheels Composition: Aluminum
Speedometer
Tachometer
