2025 Yamaha Raptor 110 112 YAM011146 - XTREME MACHINES - MILLSTONE TOWNSHIP, New Jersey 08535

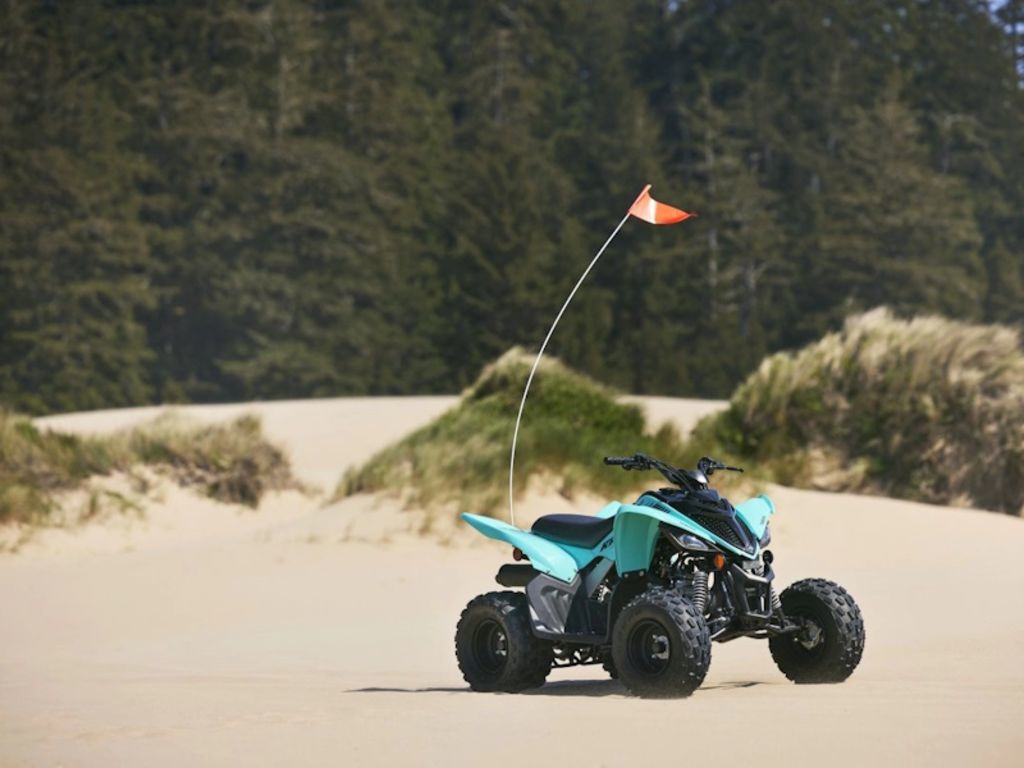

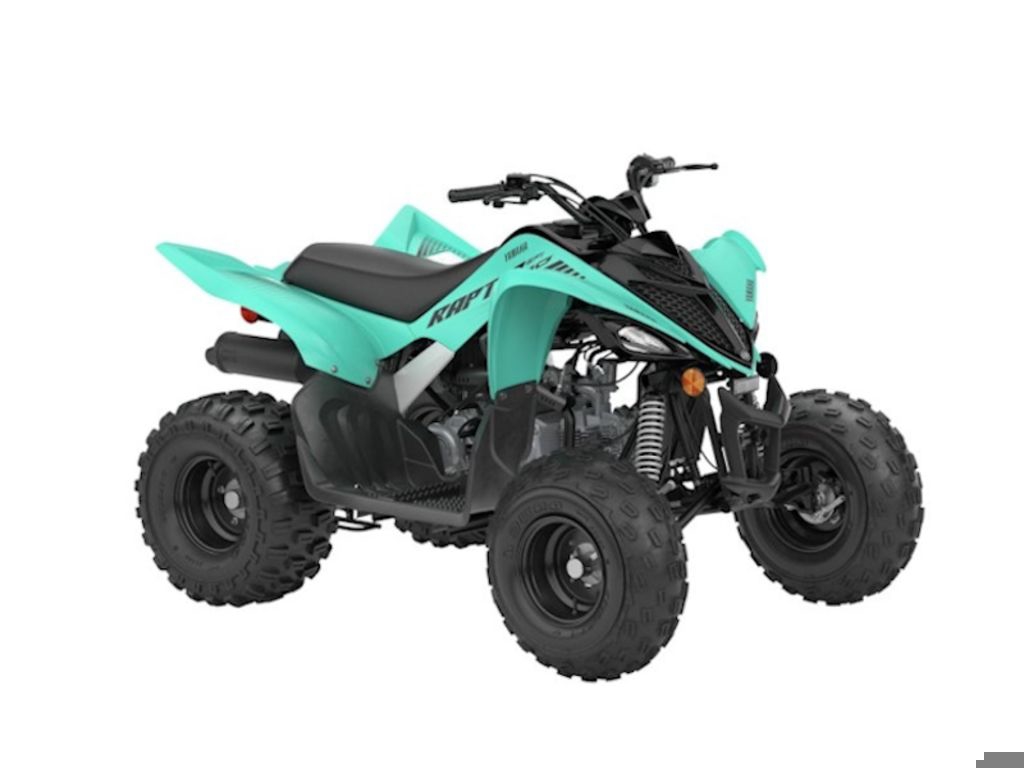

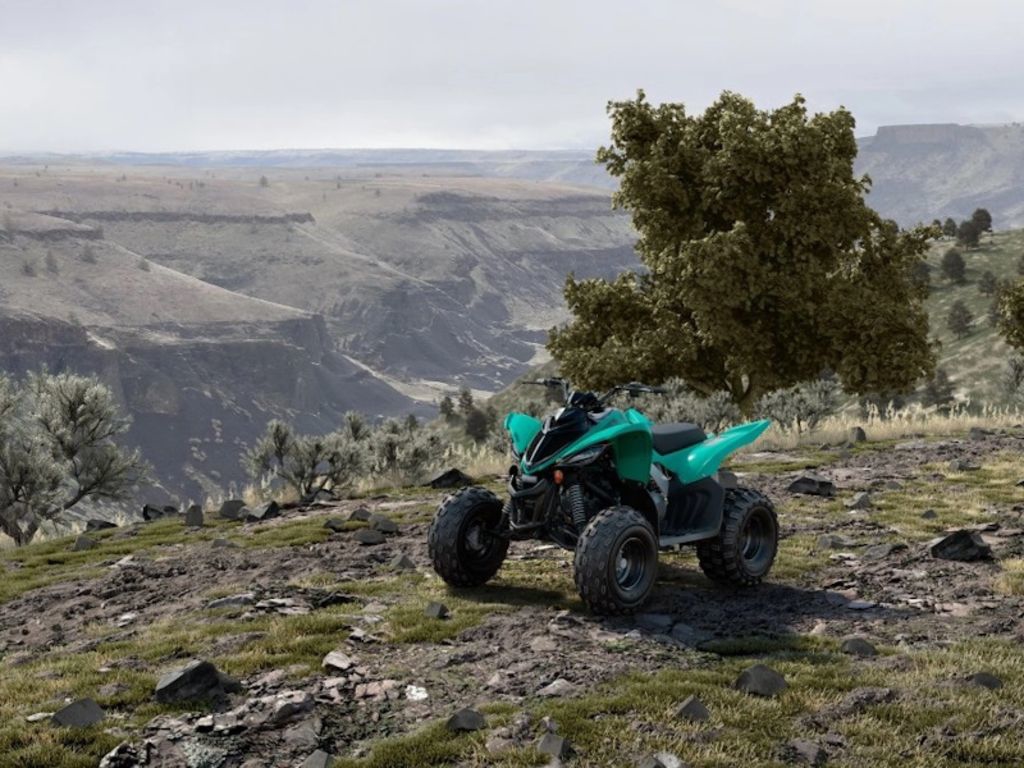

2025 Yamaha Raptor 110

CALLING NEW RIDERS

With a new 112cc engine, fuel injection, electric start and legendary Raptor styling, this youth ATV is pure fun for riders aged 10 and up.

Features may include:

ENGINE

Fuel-Injected 112cc Engine

A fuel-injected 112cc four-stroke SOHC engine is tuned to develop excellent low- to mid-range performance, just where it's needed for allowing young riders to build skill and confidence. The engine is air-cooled for simplicity, performance and long life, and uses ultra-reliable wet-sump lubrication to minimize maintenance and maximize fun.

Electric Starter

Push-button electric starting comes standard for quick, effortless starts whether setting out or on the trail.

Automatic Transmission

Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders aged 10-years old and up, it's a feature beginning riders particularly appreciate. Standard reverse gear further eases the Raptor 110's maneuvering.

CHASSIS/SUSPENSION

Sporty Chassis

Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality. The preload-adjustable front shocks offer 5-inches of wheel travel and add to the Raptor 110's sporty look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7-inches of wheel travel.

Comfortable Accommodations

The Raptor 110 is designed to be comfortable for a wide variety of riders aged 10-years old and up, with roomy ergonomics, a plush seat and wide floorboards.

Optimized Tires

Duro® low-profile tires AT18 x 7-8 front and AT18 x 9-8 rear give the Raptor 110 aggressive looks and sporty handling.

Basic Information

Year: 2025
Make: Yamaha
Model: Raptor
Trim: 110
Stock Number: YAM011146
VIN: YAM011146
Condition: New
Type: Youth
Primary Color: Teal

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Travel (in): 5
Front Travel (mm): 127
Number Rear Shock Absorbers: 1
Rear Adjustable Shock / Spring Pre-Load
Rear Travel (in): 5.7
Rear Travel (mm): 144.8
Steering Control: Handlebar
Steering Type: Manual
Suspension - Front: A-Arm
Suspension - Rear: Swing Arm

Comfort

Adjustable Throttle
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Continuously Variable (CVT)
Driveline Type: 4X2
Number Of Driveline Modes: 1
Rear Solid Axle
Primary Drive (Rear Wheel): Chain
Reverse

Engine

Bore (in): 2.06
Bore (mm): 52.4
Carburetion Type: Fuel Injected
Compression Ratio: 9.2:1
Cylinders: 1
Displacement (ci): 6.8
Engine Cooling: Air
Engine Size (cc): 112
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 1.8
Fuel Injector
Fuel Injector Size (mm): 22
Fuel Requirements: Regular
Starter Type: Electric / Kick
Stroke (in): 2.04
Stroke (mm): 51.8
Valve Configuration: SOHC
Valves: 2
Valves Per Cylinder: 2

Safety

Brakes - Front: Dual Sealed Drum
Brakes - Rear: Drum
Halogen Headlight(s)
Headlight(s)

Specifications

Bash Plate (Front)
Body Material: Plastic
Front Tire Diameter (in): 18
Front Tire Width: 7
Height (Inches): 39
Height (mm): 990.6
Length (Inches): 58
Length (mm): 1485.9
Rear Tire Diameter (in): 18
Rear Tire Width: 9
Tube / Tubeless: Tubeless
Wet Weight (kg): 130.4
Wet Weight (lbs): 287.5
Wheelbase (in): 40.6
Wheelbase (mm): 1031.2
Wheels Composition: Steel
Width (Inches): 40
Width (mm): 1021.1
