2021 Yamaha Raptor 90 90 RF3AB1132MT016927 - XTREME MACHINES

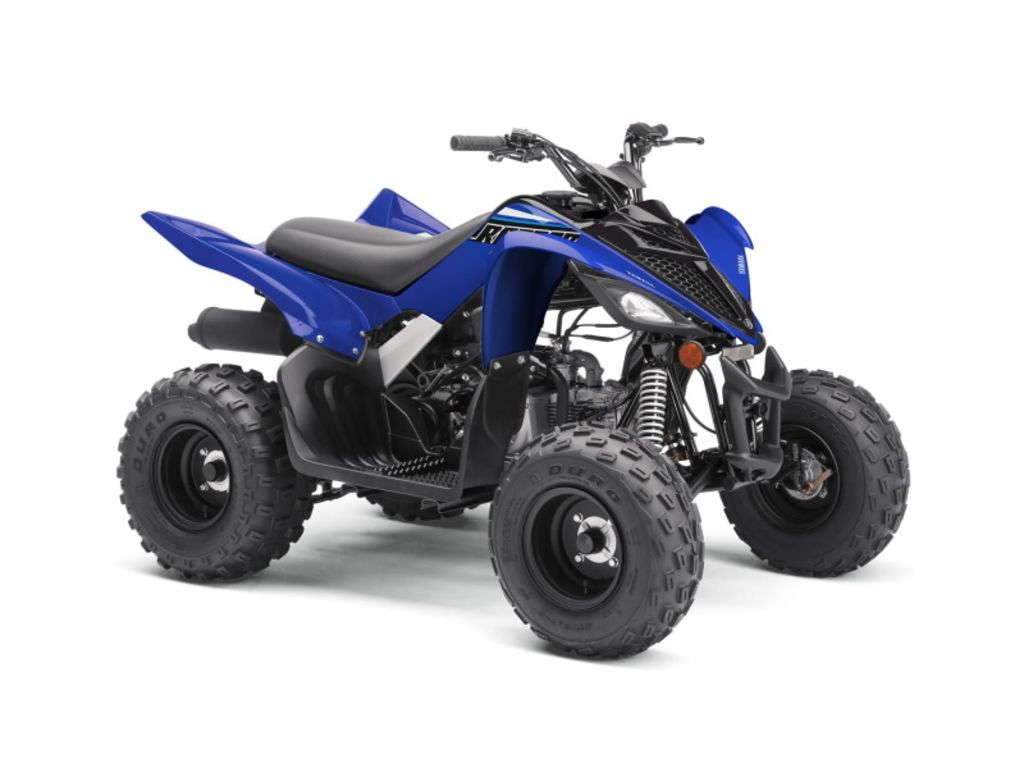

2021 Yamaha RAPTOR 90

CALLING NEW RIDERS

With electric start, reverse and legendary Raptor styling, this youth ATV is pure fun for riders 10-years-old and up.

Features may include:

ENGINE

Robust 90cc Engine

The 90cc four-stroke SOHC engine is tuned to develop excellent low- to-mid-range performance, just where it’s needed. The engine is air-cooled for simplicity, performance and long life, and it uses ultra-reliable wet-sump lubrication.

Electric Starter

Push-button electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for additional peace of mind.

Automatic Transmission

Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, it’s a feature entry-level riders particularly appreciate, and standard reverse eases the Raptor 90's maneuvering.

CHASSIS/SUSPENSION

Sporty Chassis

Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality with preload-adjustable shocks that offer 5.0 inches of wheel travel and add to the Raptor 90’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7 inches of wheel travel.

Comfortable Accommodations

The Raptor 90 is designed to be comfortable for a wide variety of riders. With its roomy ergonomics, plush seat and wide floorboards, riders 10 and up won’t outgrow the machine before they’re ready for more displacement when they’re older.

Optimized Tires

Duro® low-profile tires, AT18 x 7-8 front and AT18 x 9-8 rear, give the Raptor 90 aggressive looks and sporty handling.

ADDITIONAL

Modern, Reliable Electronics

The CDI system means reliable ignition performance, with a strong, efficient spark, and a sealed, maintenance-free battery gives worry-free service. Handlebar-mounted reverse and neutral indicators keep the rider informed, too.

Yamaha Raptor DNA

The Raptor 90 offers sporty looks and high fenders that are unmistakably-inspired by the mighty Raptor 700R.

Basic Information

Year: 2021
Make: Yamaha
Model: Raptor
Trim: 90
Stock Number: YAM016927
VIN: RF3AB1132MT016927
Condition: Used
Type: Youth
Mileage: 100
Primary Color: BLUE

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Travel (in): 5
Front Travel (mm): 127
Number Rear Shock Absorbers: 1
Rear Adjustable Shock / Spring Pre-Load
Rear Travel (in): 5.7
Rear Travel (mm): 144.8
Steering Control: Handlebar
Steering Type: Manual
Suspension - Front: A-Arm
Suspension - Rear: Swing Arm

Comfort

Adjustable Throttle
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece

Drivetrain

Transmission Type: Continuously Variable (CVT)
Driveline Type: 4X2
Number Of Driveline Modes: 1
Rear Solid Axle
Primary Drive (Rear Wheel): Chain
Reverse

Engine

Bore (in): 1.85
Bore (mm): 47
Carburetion Type: Carburetor
Carburetor
Compression Ratio: 9.2:1
Cylinders: 1
Displacement (ci): 5.5
Engine Cooling: Air
Engine Size (cc): 90
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 1.7
Fuel Requirements: Regular
Number Of Carburetors: 1
Starter Type: Electric / Kick
Stroke (in): 2.04
Stroke (mm): 51.8
Valve Configuration: SOHC
Valves: 2
Valves Per Cylinder: 2

Safety

Brakes - Front: Dual Sealed Drum
Brakes - Rear: Drum
Headlight(s)

Specifications

Bash Plate (Front)
Body Material: Plastic
Front Tire Diameter (in): 18
Front Tire Width: 7
Ground Clearance (in): 3.9
Ground Clearance (mm): 99.1
Height (Inches): 37
Height (mm): 955
Length (Inches): 58
Length (mm): 1485.9
Rear Tire Diameter (in): 18
Rear Tire Width: 9
Tube / Tubeless: Tubeless
Wet Weight (kg): 126.6
Wet Weight (lbs): 279
Wheelbase (in): 40.6
Wheelbase (mm): 1031.2
Wheels Composition: Steel
Width (Inches): 40
Width (mm): 1021.1
