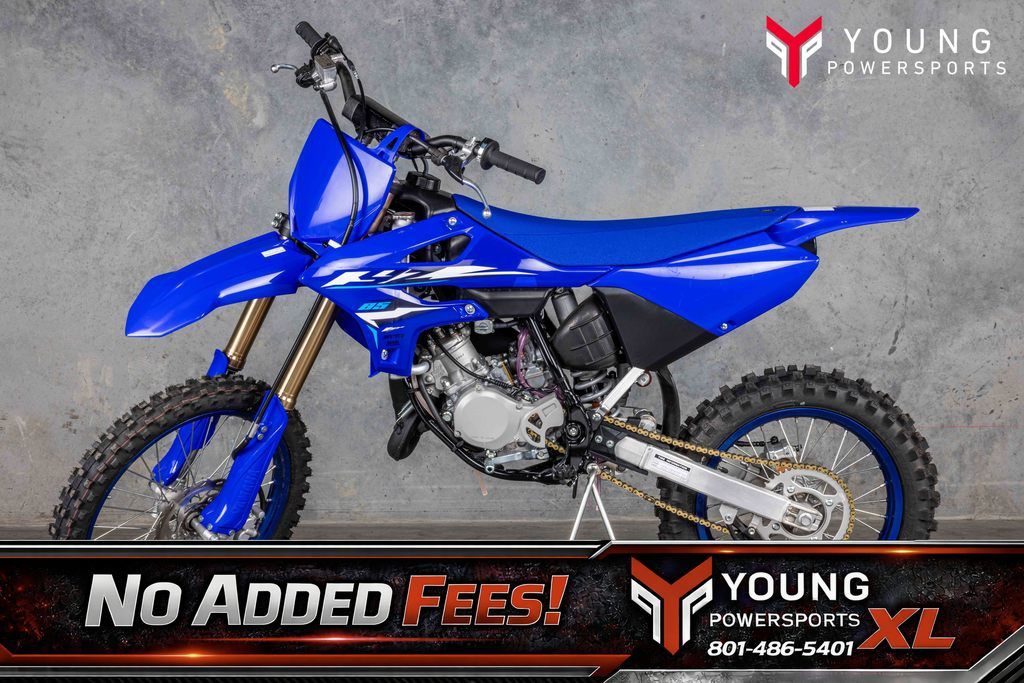

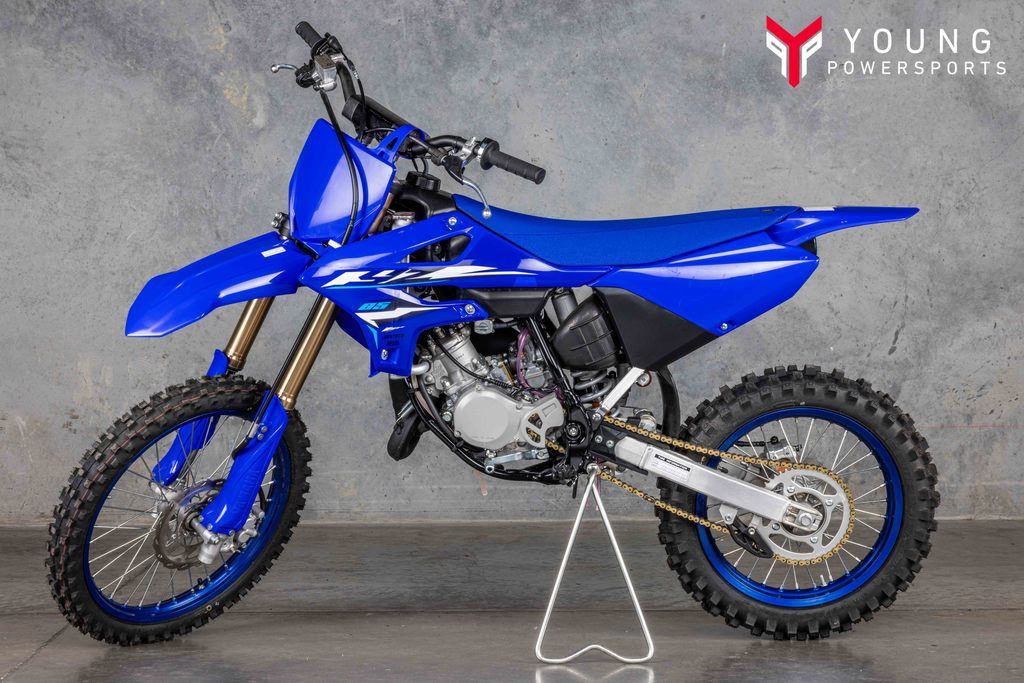

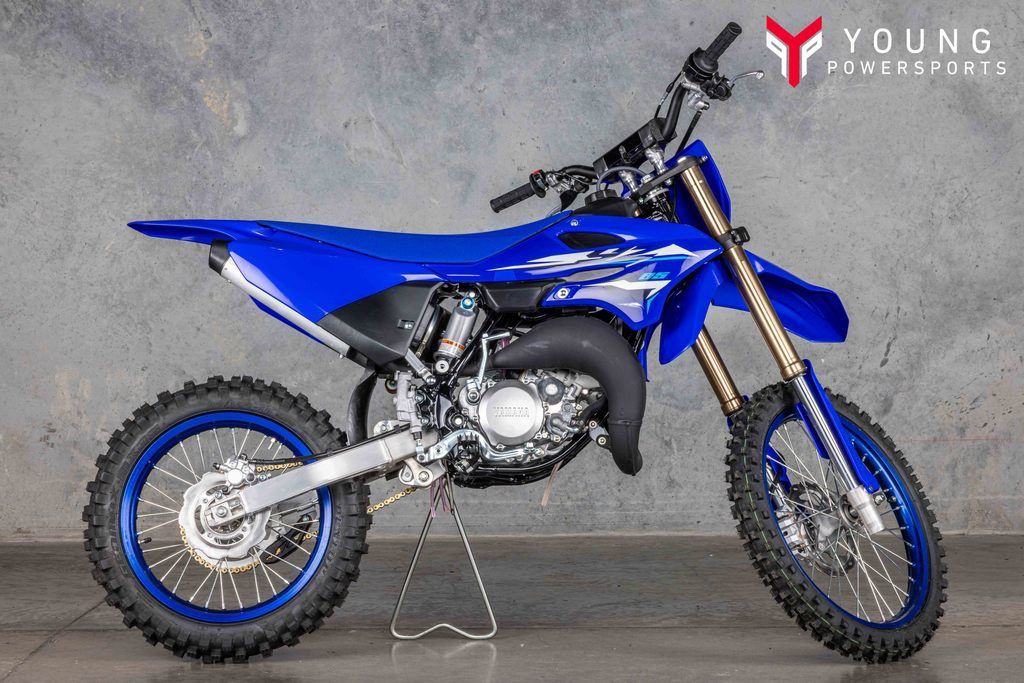

2026 Yamaha YZ85LW

GO BIG

Same YZ85 power, same YZ85 fun, equipped with a large wheel package allowing riders to bridge the gap to the next class.

Features may include:

ENGINE

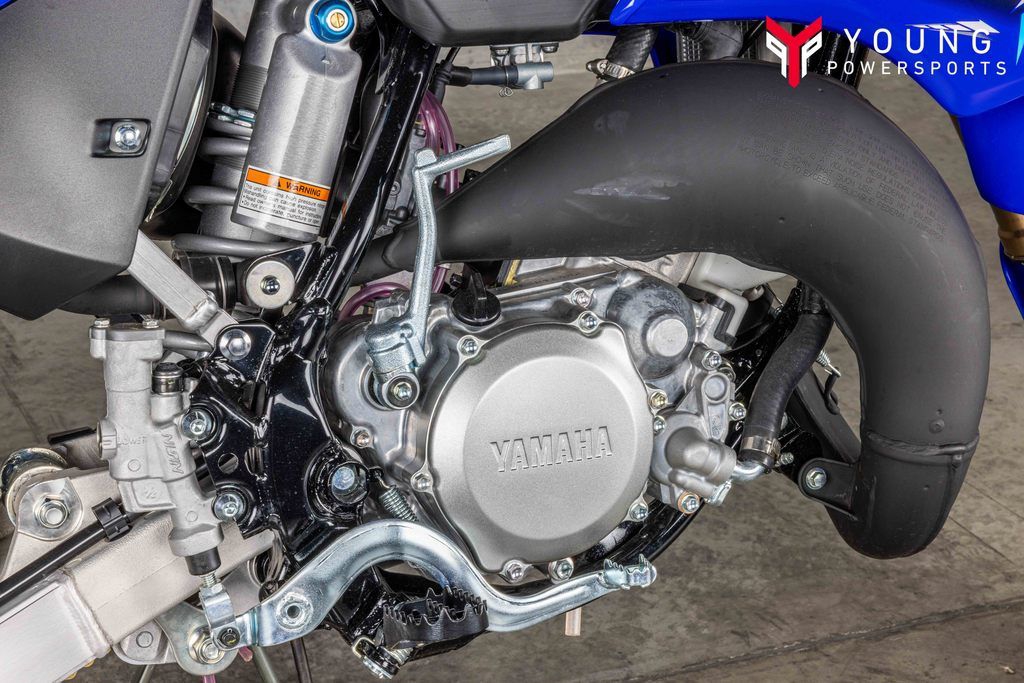

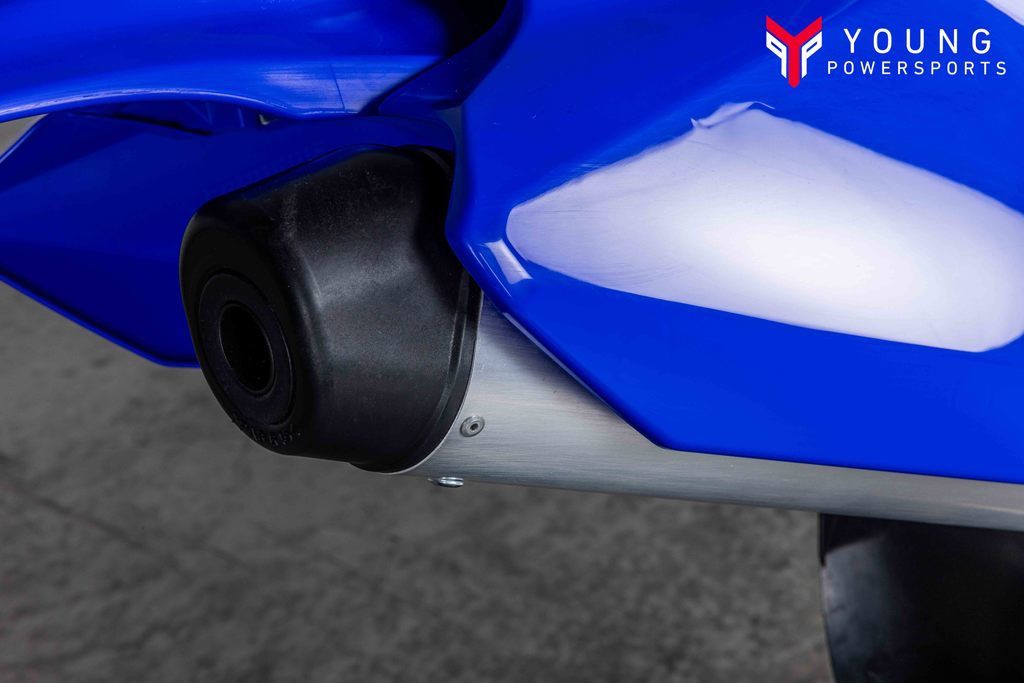

Carefully matched exhaust expansion chamber optimizes gas flow for enhanced low- and mid-range power delivery.

The crankcase design features a spacer-style reed valve intake for improved air/fuel flow.

High-flow airbox ensures excellent air filter performance and easy maintenance.

A 28mm Hitachi Astemo® Keihin flat-slide carburetor provides seamless throttle response.

Durable six-speed transmission features oversized gears to provide enhanced engagement and smoother shifts.

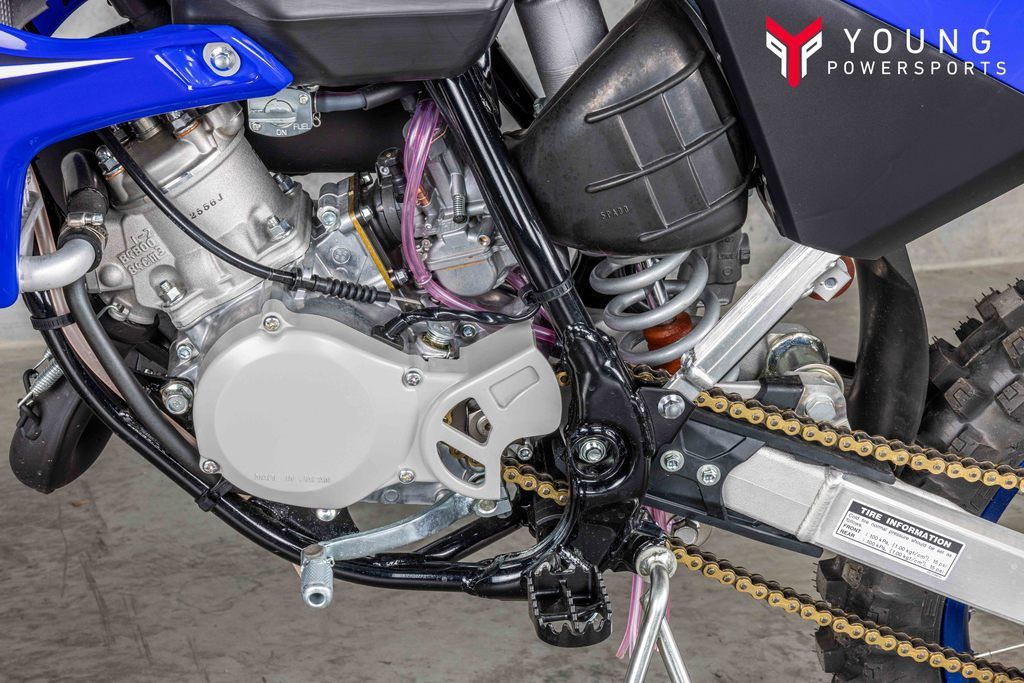

The 85cc two-stroke engine features Yamaha's Power Valve System (YPVS) for broad power across the rev range.

CHASSIS/SUSPENSION

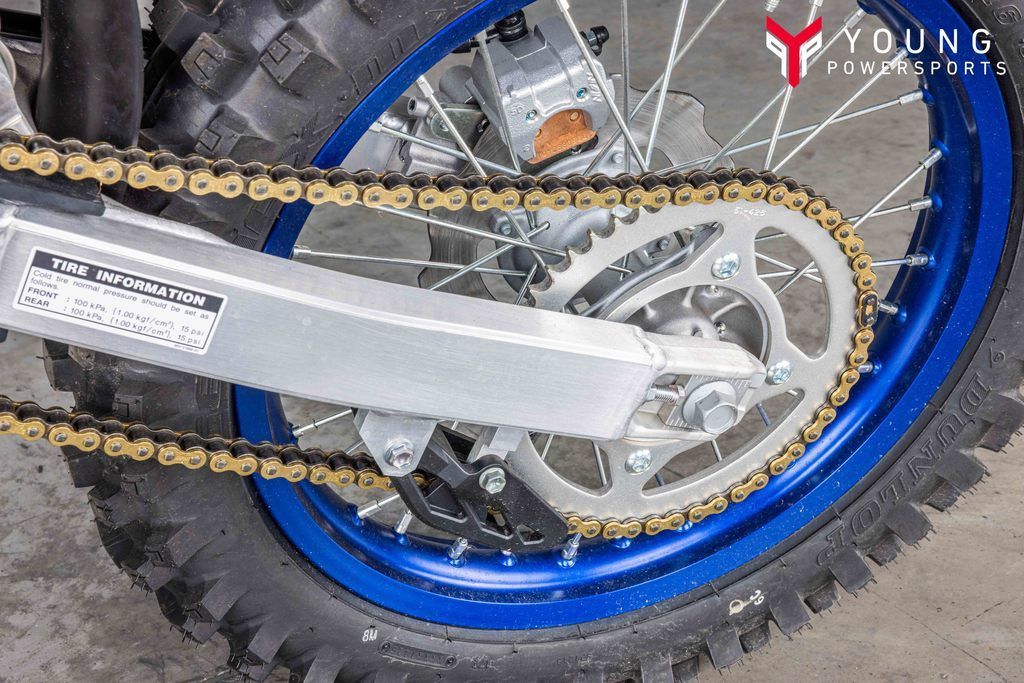

The aluminum swingarm offers refined balance between longitudinal and torsional rigidity.

Rear brake master cylinder also includes built-in sub-reservoir to provide more linear brake response and increased control.

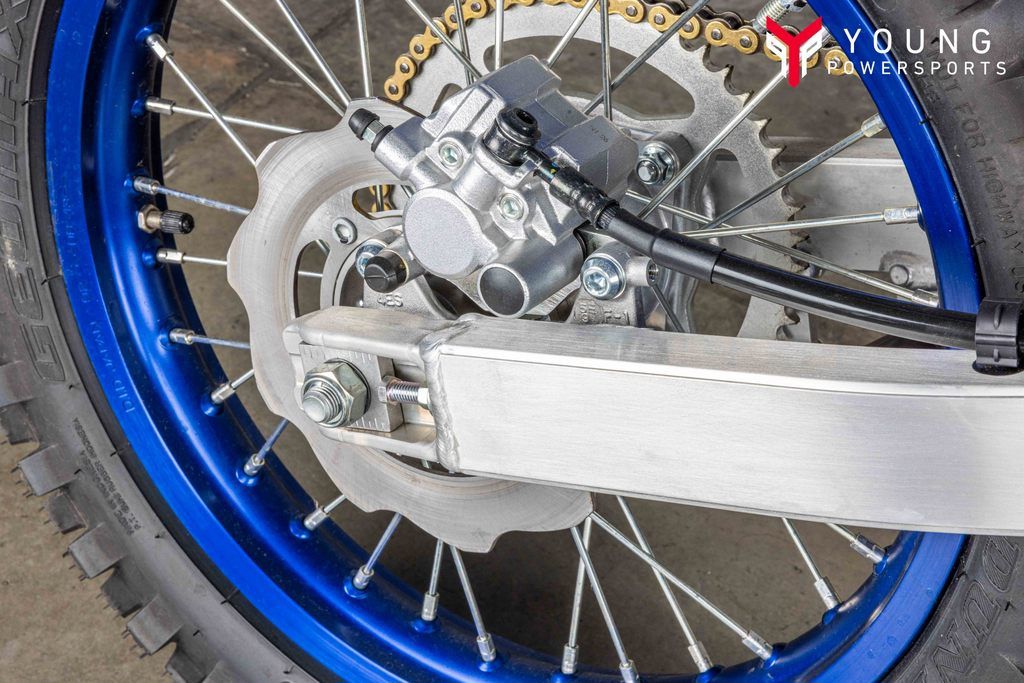

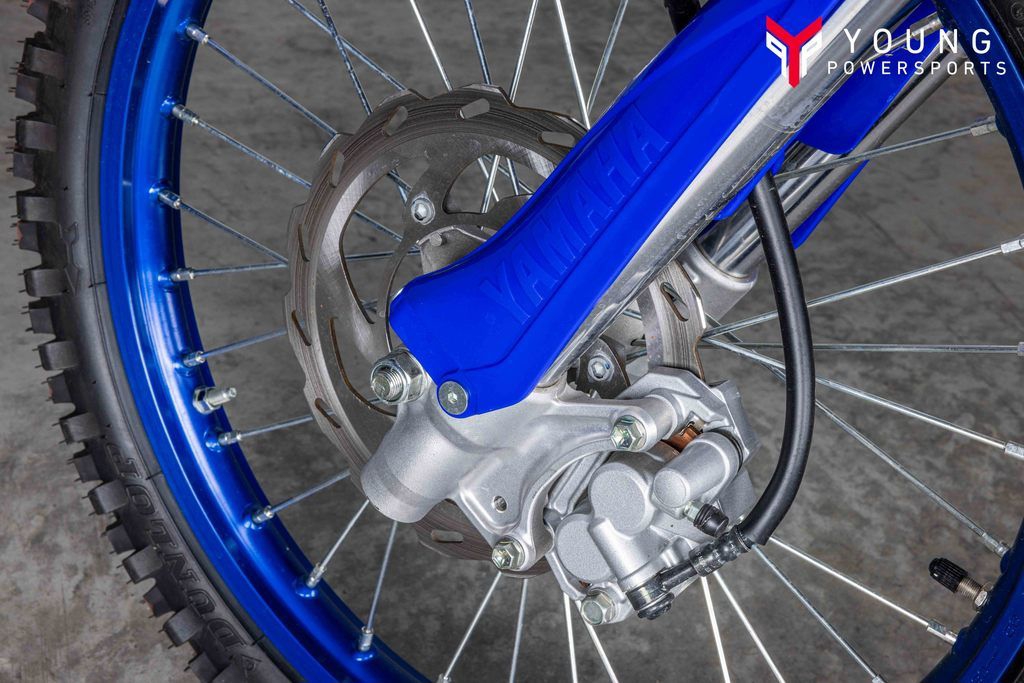

Big 220mm front and 190mm rear wave-style brake discs offer improved self-cleaning and cooler-running performance.

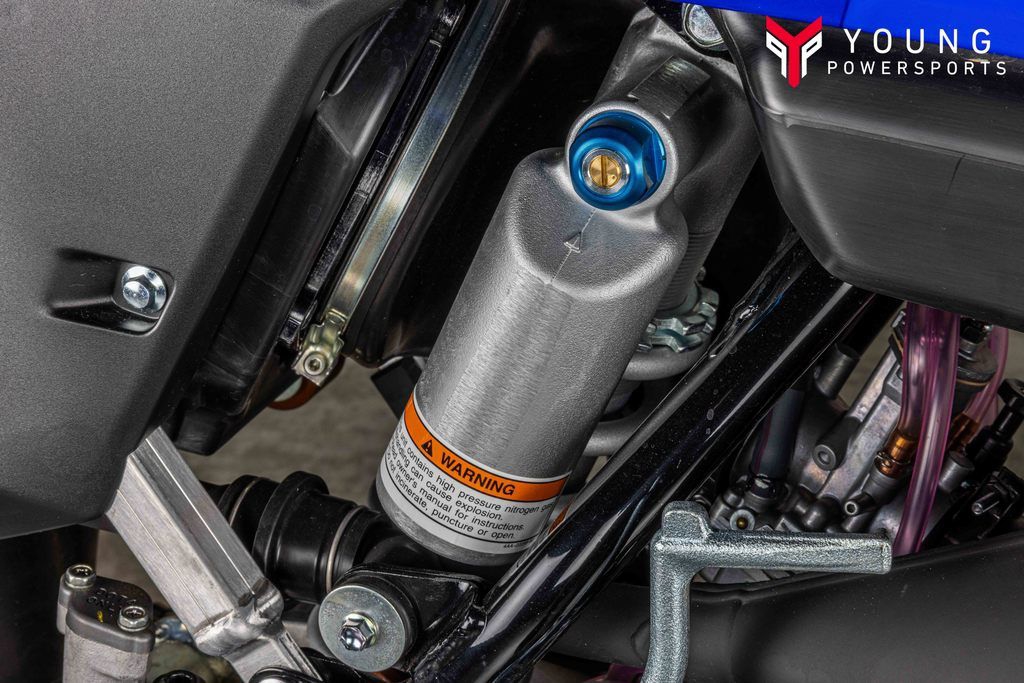

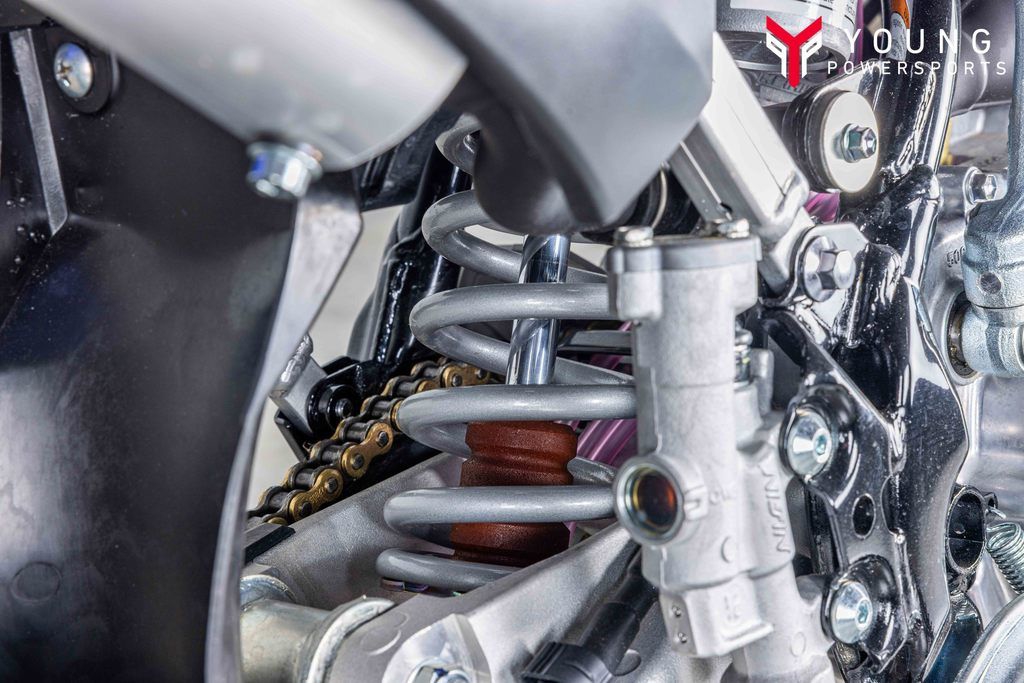

Fully adjustable KYB® link-type shock features race-tested valving and 11.1 inches of travel.

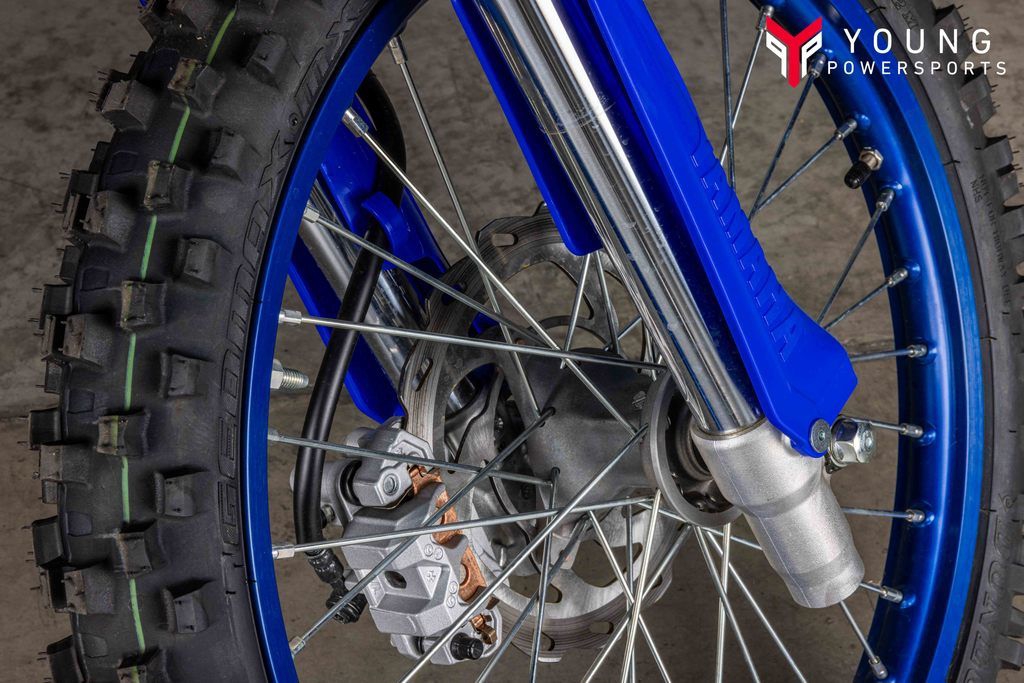

Fully adjustable 36mm KYB® inverted cartridge fork features low-friction outer tubes and internals along with 10.8 inches of travel.

A removable rear subframe is constructed from lightweight, high-strength aluminum for reduced weight.

Built for demanding junior racers, the YZ85LW's chassis is optimized for strength, rigidity and overall handling stability.

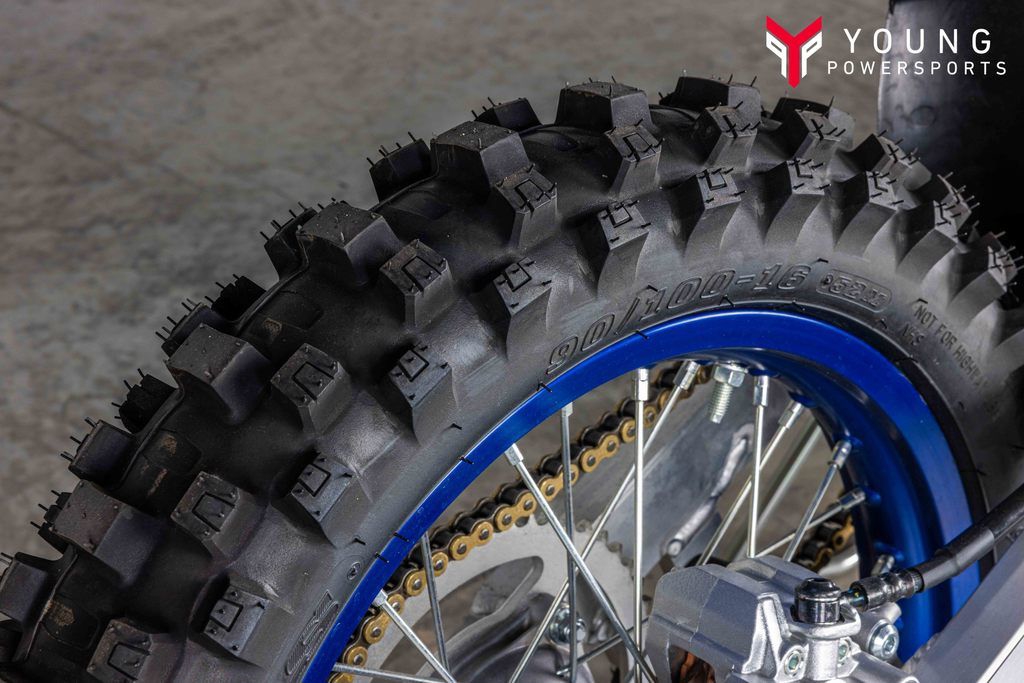

High performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires provide exceptional traction on a variety of terrain.

The YZ85 Large Wheel (LW) features a larger 19-inch front wheel and 16-inch rear wheel for a more "big-bike" feel.

ADDITIONAL FEATURES

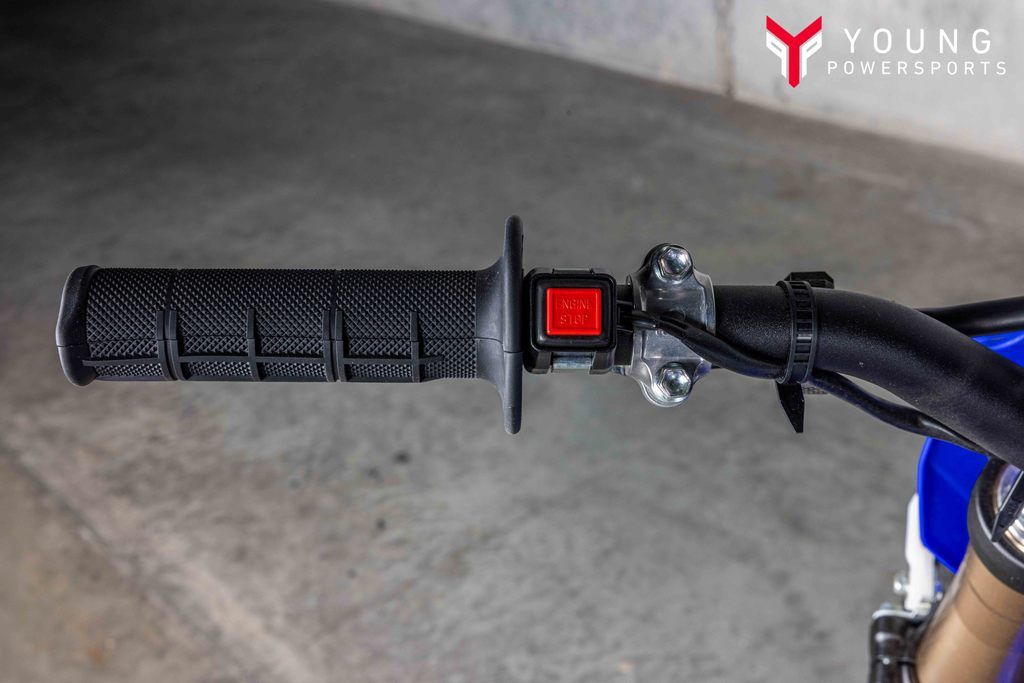

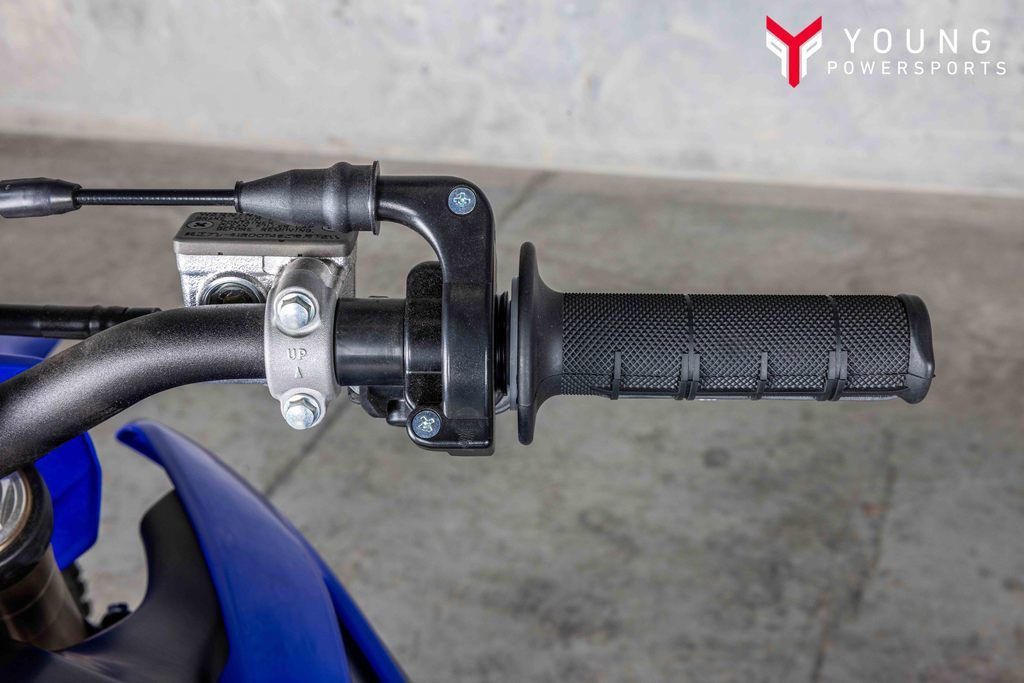

The four-position adjustable handlebar mounts allow the rider to tune the handlebar position to suit their size and preferences.

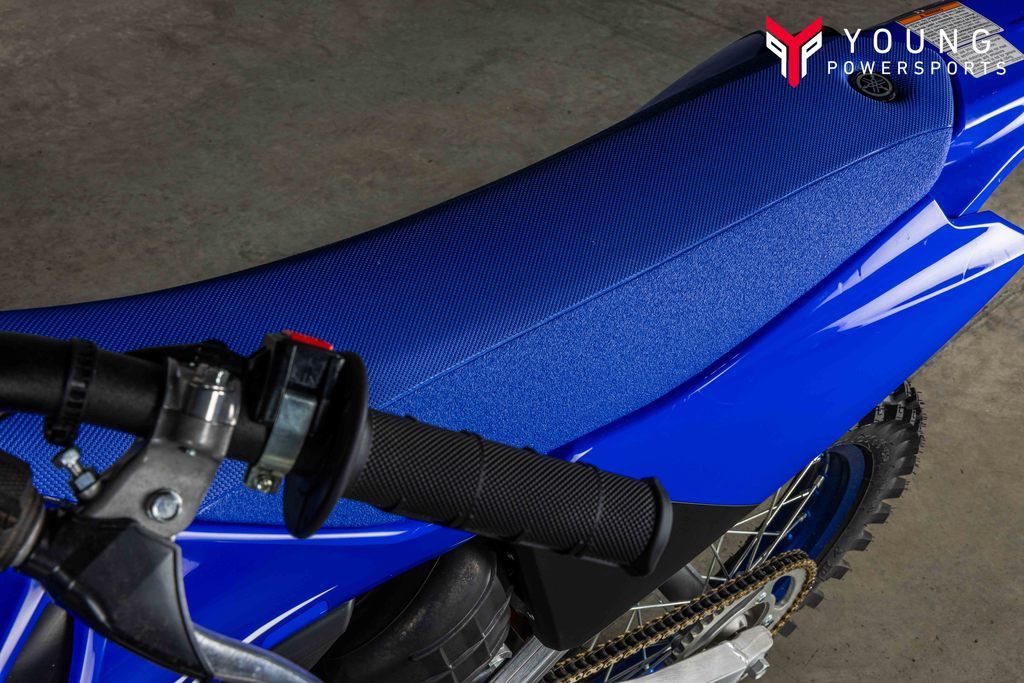

Flat seat and narrow design enable greater freedom of movement for increased control and confidence.

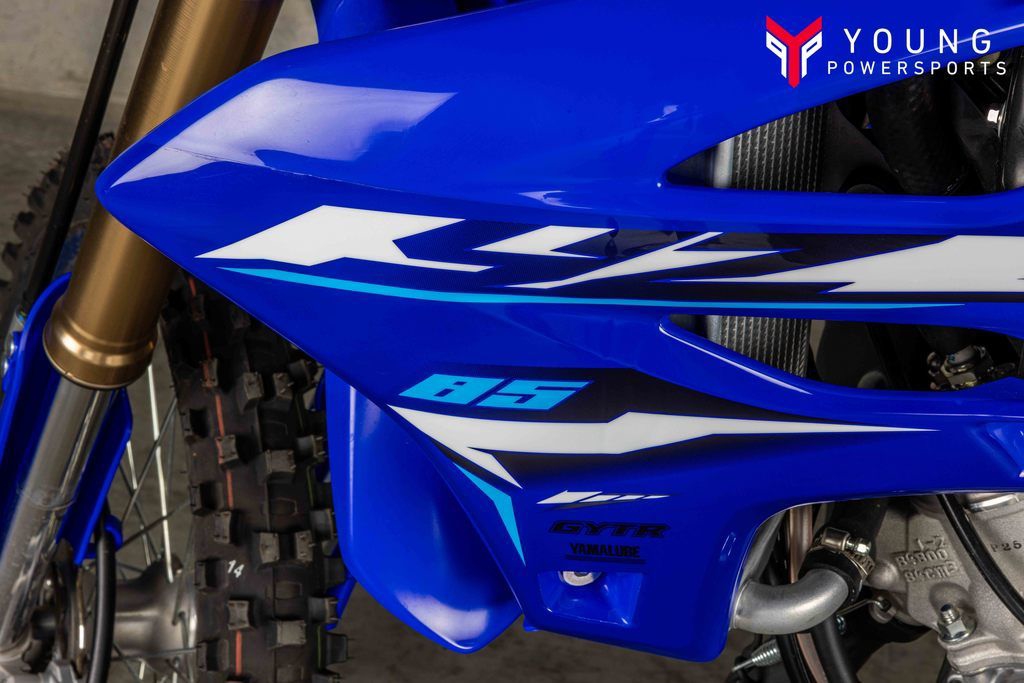

Premium Yamaha graphics are embedded to provide excellent durability and scratch resistance.

Basic Information

Year: 2026
Make: Yamaha
Model: YZ
Trim: 85LW
Stock Number: TA011052
VIN: JYACB16C5TA011052
Condition: New
Type: Off-Road
Mileage: 1
Title: Clean
Color: BLUE - (TEAM YAMAHA BLUE)

Brakes

Front Brake: Hydraulic Disc
Front Brake Diameter (in): 8.7
Front Brake Diameter (mm): 220
Rear Brake: Hydraulic Disc
Rear Brake Diameter (in): 7.5
Rear Brake Diameter (mm): 190

Chassis & Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Adjustable Rebound Damping
Front Suspension Brand Name: KYB
Front Suspension Size (in): 1.4
Front Suspension Size (mm): 36
Front Suspension Type: Inverted Fork
Front Travel (in): 10.8
Front Travel (mm): 274.3
Number Rear Shock Absorbers: 1
Rear Adjustable Rebound Damping
Rear Adjustable Shock / Spring Pre-Load
Rear Suspension Brand Name: KYB
Rear Suspension Material: Aluminum
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 11.3
Rear Travel (mm): 287

Comfort

Adjustable Handlebars
Adjustable Levers
Adjustable Throttle

Drivetrain

Number Of Speeds: 6
Primary Drive (Rear Wheel): Chain
Transmission: Manual
Transmission Gear Ratio (1): 2.46
Transmission Gear Ratio (2): 1.89
Transmission Gear Ratio (3): 1.53
Transmission Gear Ratio (4): 1.29
Transmission Gear Ratio (5): 1.13
Transmission Gear Ratio (6): 1

Engine

Bore (in): 1.87
Bore (mm): 47.5
Carburetor Size (mm): 28
Carburetion Brand: Keihin
Carburetion Type: Carburetor
Carburetor
Compression Ratio: 8.2
Compression Ratio (Secondary): 9.6:1
Cooling System: Liquid
Cylinders: 1
Engine Disp. to Weight (cc): 0.52
Engine Size (cc): 85
Engine Size (ci): 5.2
Engine Stroke: 2-Stroke
Engine Type: Single-Cylinder

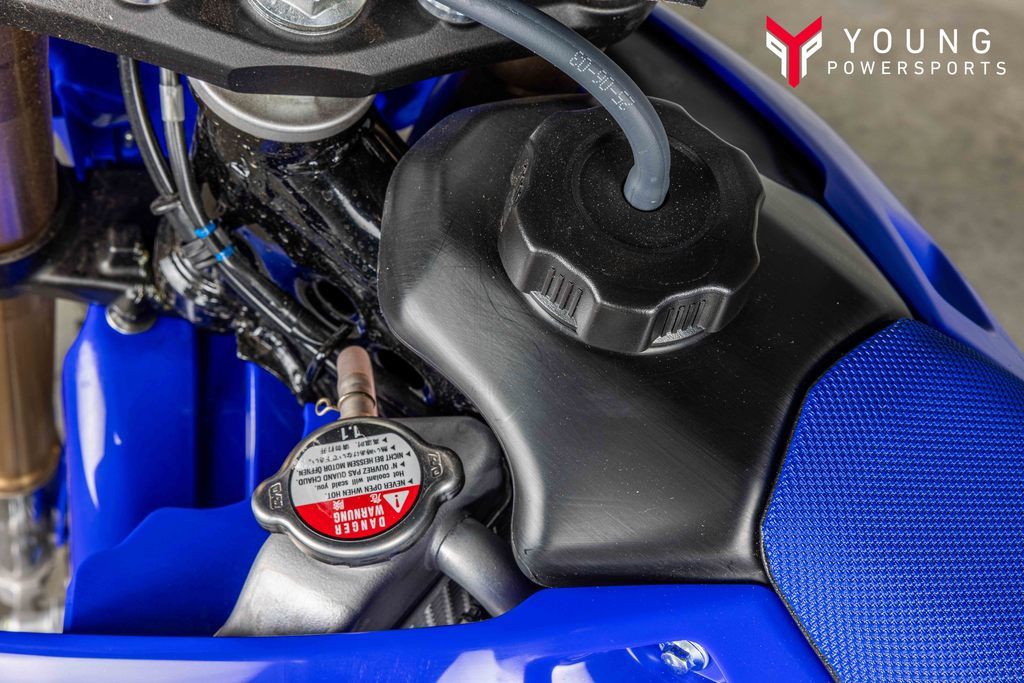

Fuel Capacity (gal): 1.3
Fuel Requirements: Regular
Number Of Carburetors: 1
Starter: Kick
Stroke (in): 1.89
Stroke (mm): 47.8
Valve Configuration: Reed Valve

Other Information

Chain Guard
Chassis Protectors
Chromed Wheels
Exterior Covers
Exterior Guards
Foot Pegs
Foot Peg Location: Driver
Fork Guards

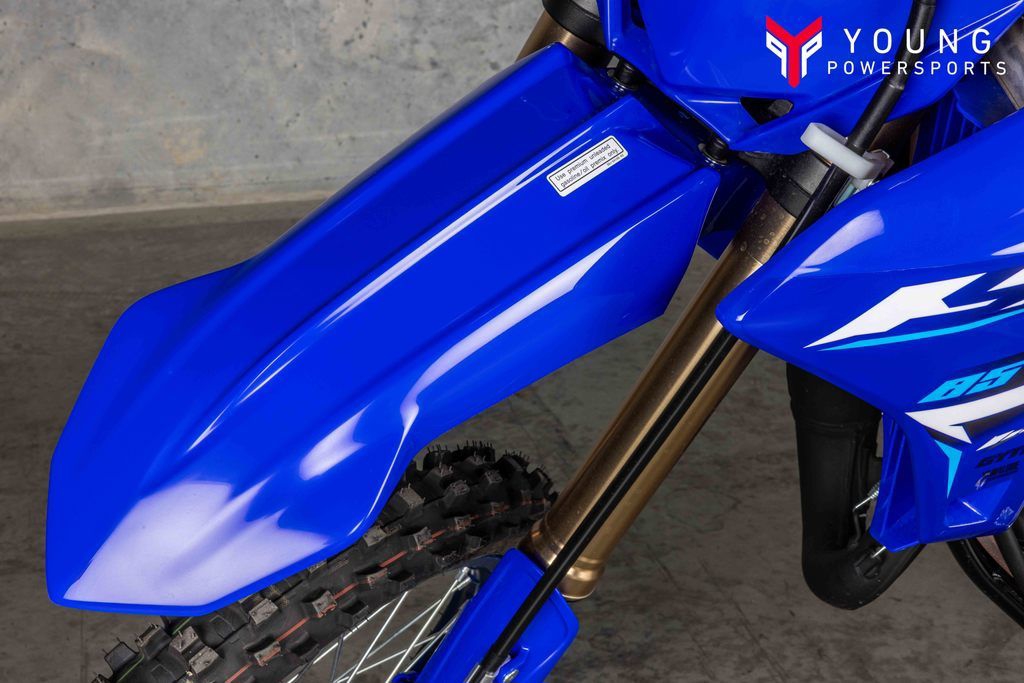

Front Fender
Hand Grips
Rear Fender

Specifications

Body Material: Plastic
Front Tire (Full Spec): Dunlop GeoMax MX3SF 70/100 R19
Front Tire (Inches): 19
Front Tire Aspect Ratio: 100
Front Tire Width: 70
Front Wheel Width (in): 1.4
Fuel Capacity (liters): 4
Ground Clearance (in): 14.2
Ground Clearance (mm): 360.7
Height (inches): 46
Height (mm): 1176
Length (inches): 74
Length (mm): 1894.8
Rear Tire (Full Spec): Dunlop GeoMax MX3S 90/100 R16
Rear Tire (Inches): 16
Rear Tire Aspect Ratio: 100
Rear Tire Width: 90
Rear Wheel Width (in): 1.6
Seat Height (inches): 34
Tube / Tubeless: Tubed
Wet Weight (kg): 74.8
Wet Weight (lbs): 165
Wheelbase (in): 50.6
Wheelbase (mm): 1285.2
Wheels Composition: Aluminum
Width (inches): 29
Width (mm): 759.5
