2027 KTM SX E 5 Electric

Price:
$5,799.00
  • Year: 2027
  • Make: KTM
  • Model: SX
  • Condition: New
1 of 22 Photos
View Large Images
Description

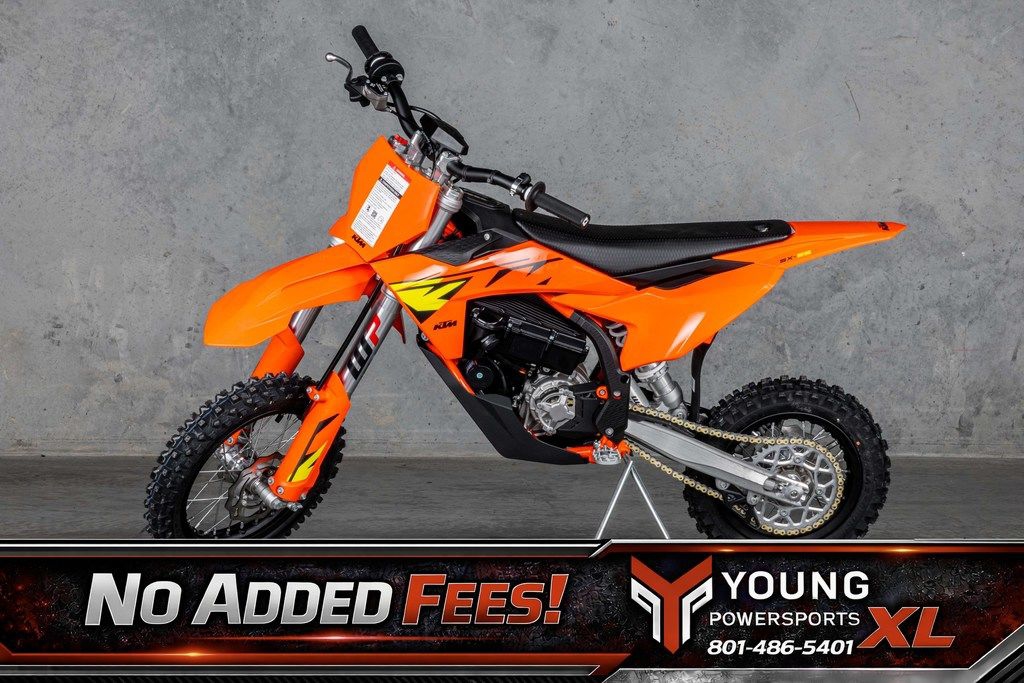

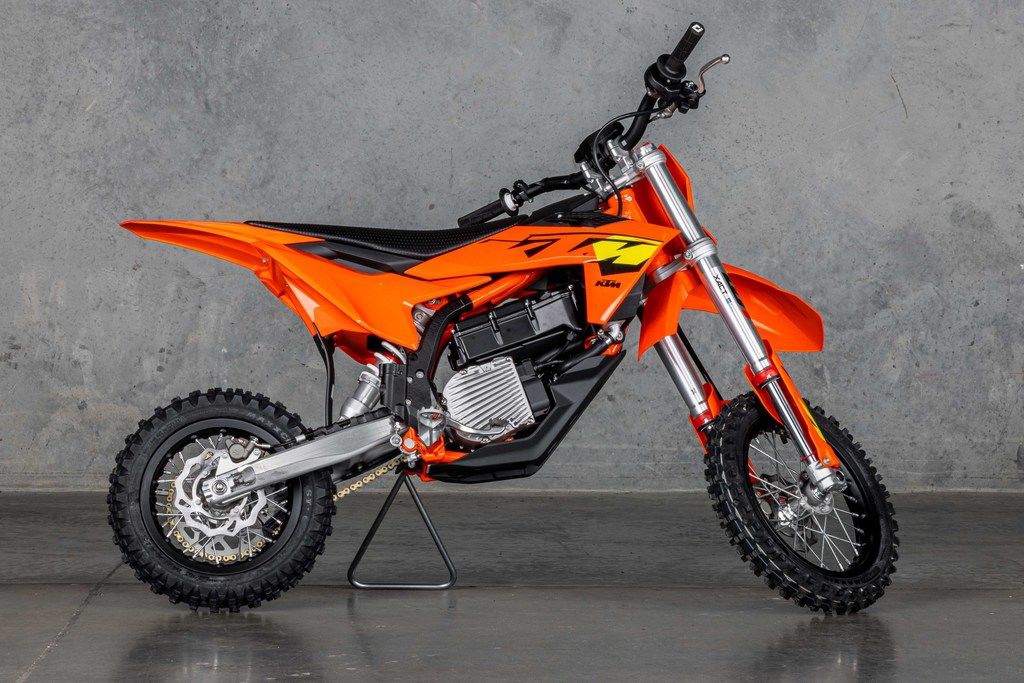

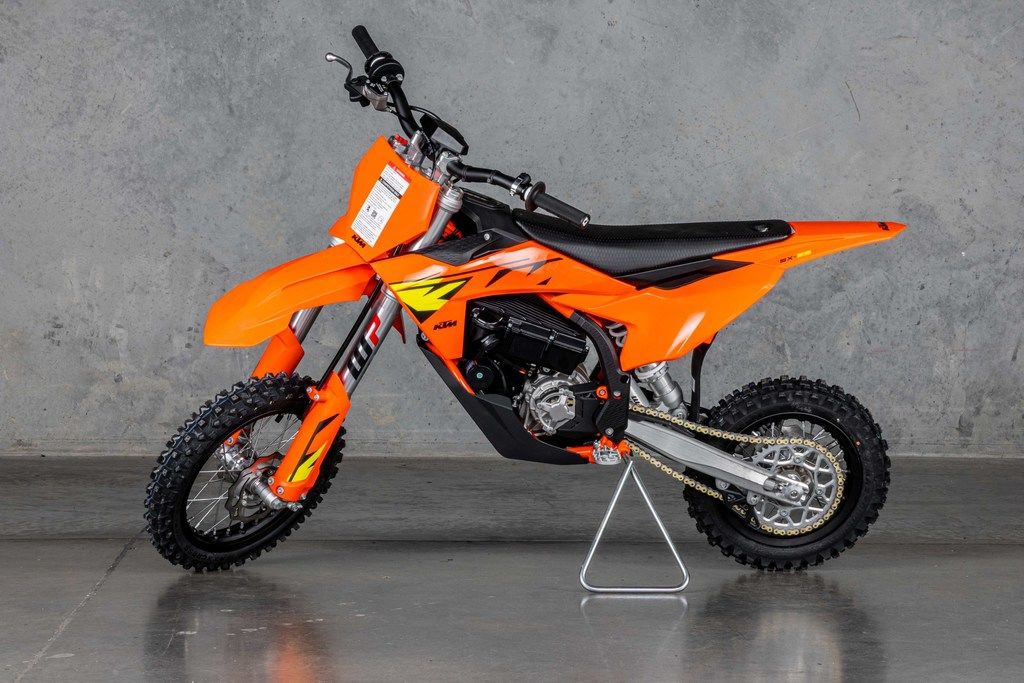

2027 KTM SX-E 5

LEADING THE CHARGE

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the gas-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

Features may include:

Drivetrain

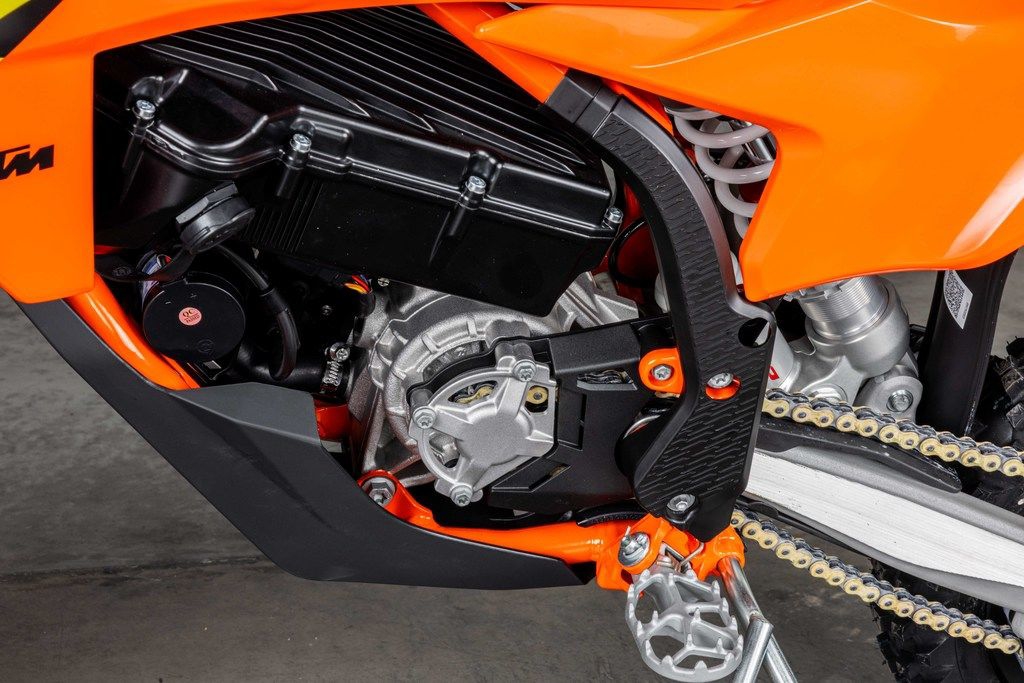

  • Motor

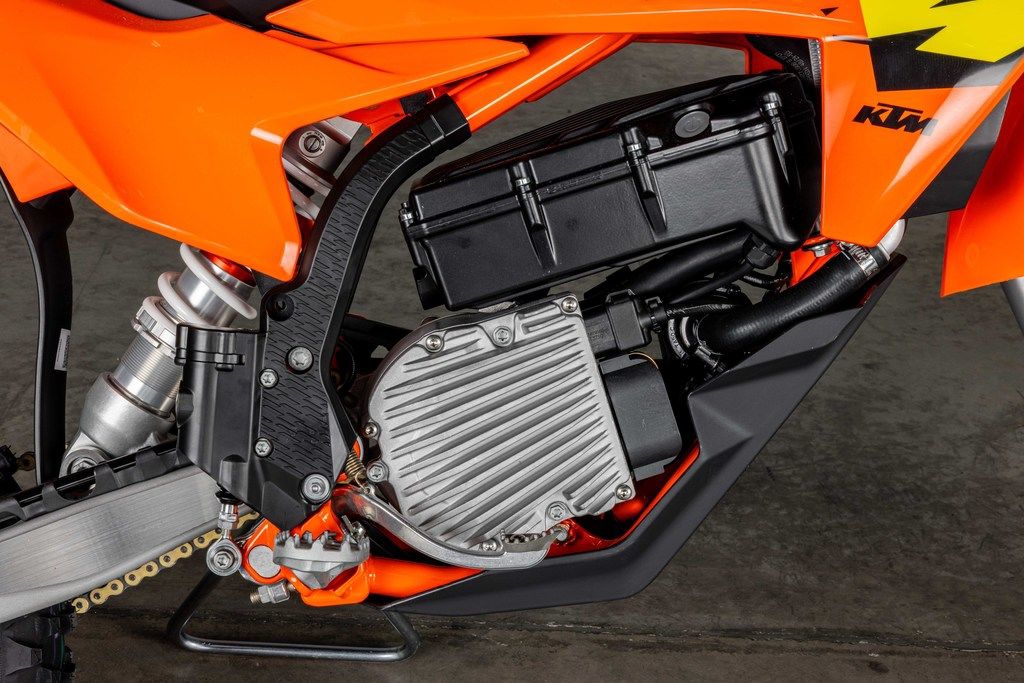

The KTM SX-E 5 has a super-advanced fully electric, water-cooled permanent magnet motor that provides 30% more riding time compared to the previous version and peak power at 5.0 kW. The motor continues to boast an extremely compact and slim design that perfectly matches the KTM SX-E 5's minimal chassis. It is also dust and water proof which makes it wear and maintenance-free, while the integrated control unit (ECU) guarantees a direct, but very controllable power delivery.

Chassis
  • Frame

The KTM SX-E 5 frame is forged from lightweight, high-strength Chromoly steel profiles and combines maximum longitudinal stiffness with optimum torsional rigidity. The modification provides more robustness, handling and a tougher rear shock mounting point. The subframe is made of lightweight, fiberglass reinforced plastic, which can be mounted in diffrent positions for different seat heights. This means that the KTM SX-E 5 can 'grow' with your young racer.

Ergonomics & comfort

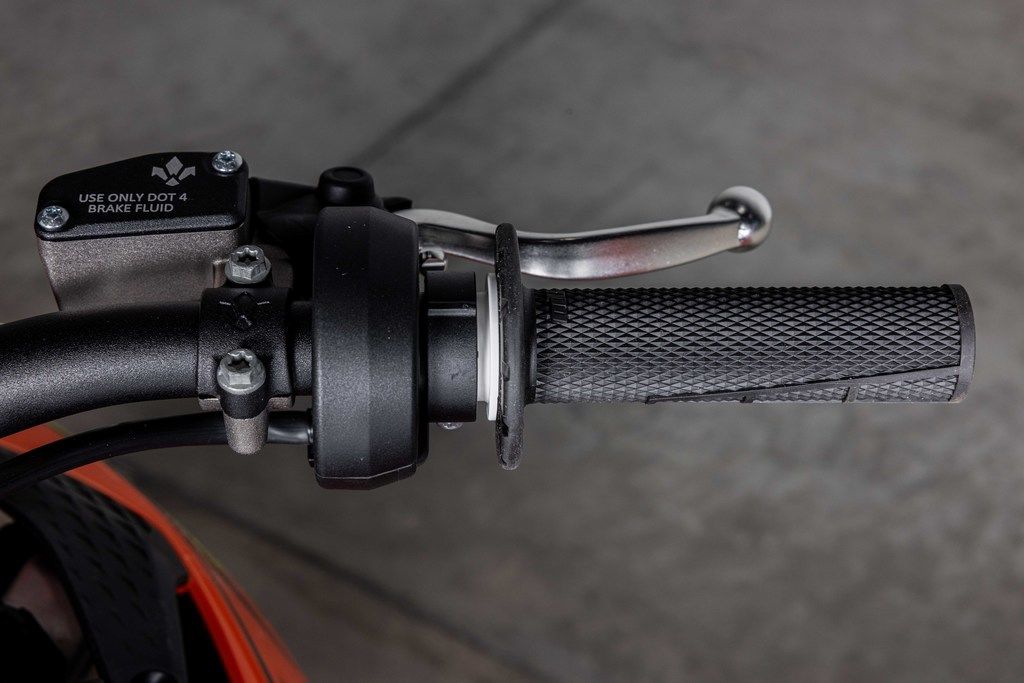

  • Handlebar

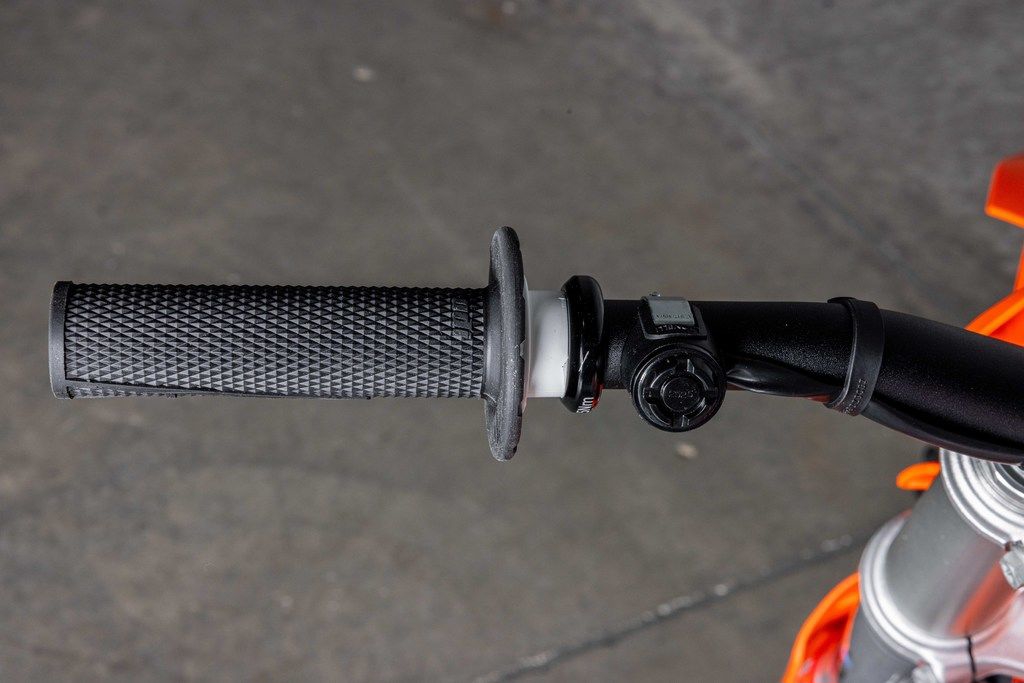

The KTM SX-E 5 uses high-quality tapered NEKEN handlebars. This allows for a lock-on ODI grip to be mounted on the left side while the right side features a throttle assembly with a vulcanized ODI grip, specifically developed for the electronic drive. An additional crash pad on the handlebar brace protects the rider from rough contact.

Software & Electronics

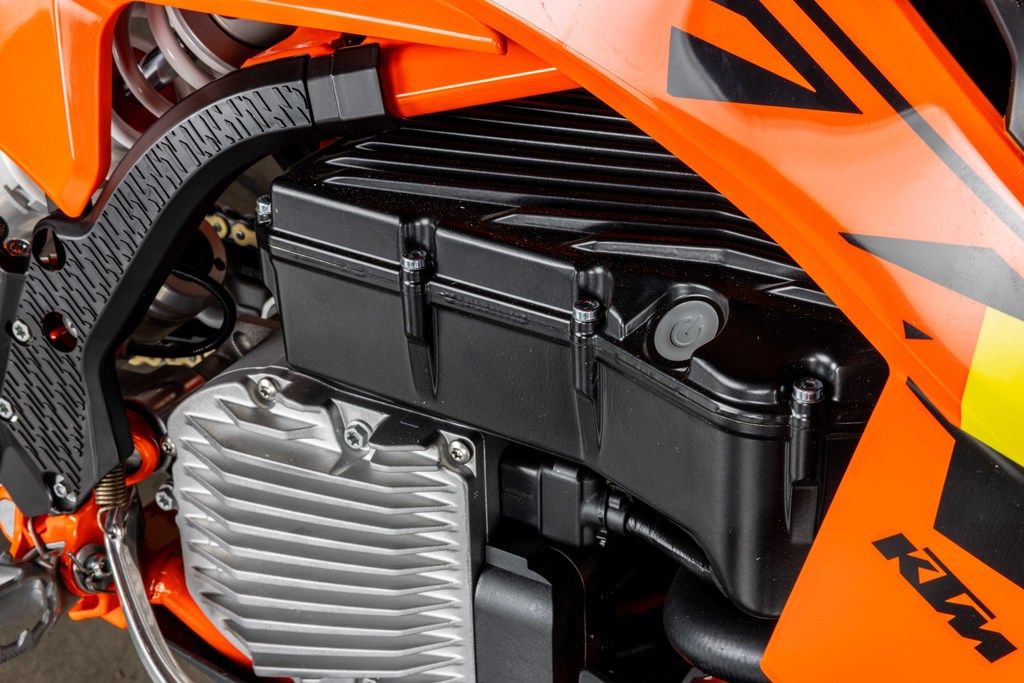

  • Battery

The KTM SX-E 5 is fitted with 84 modern lithium-ion cells in a robust die-cast aluminum casing that is mounted just above the electric motor. This means the stored energy is 907 Wh, which is enough for more than two hours of riding for a beginner and approximately 30 min full-throttle racing, depending on conditions and terrain. The integrated battery management system (BMS) ensures the safety and longevity of the battery pack. Charging time has been reduced, with 0-80% capacity achievable in 45 minutes while 0-100% is possible in just 70 minutes.

Warranty & Support
  • Premium Manufacturer's Warranty

This motorcycle comes with a Premium Manufacturer's Warranty. Riders enjoy up to 1 year of coverage and experience the thrill of offroad riding with added peace of mind. To keep the warranty valid, always follow the guidelines outlined in your motorcycle's Owner's Manual, including using the bike as intended and completing all scheduled services at an authorized KTM dealer. The standard manufacturer's warranty conditions, as specified in the delivery certificate, also remain applicable. More information and details on how to benefit from this offer can be found on the KTM warranty page. Valid from Model Year 2027 onwards for selected offroad motorcycles.

Options and Standard Features
Basic Information
  • Year: 2027
  • Make: KTM
  • Model: SX
  • Trim: E 5
  • Stock Number: VM034538
  • VIN: VBKM1A0E6VM034538
  • Condition: New
  • Type: Standard
  • Mileage: 1
  • Title: Clean
  • Color: ORANGE - (ORANGE)
Brakes
  • Brake Brand Name: Formula

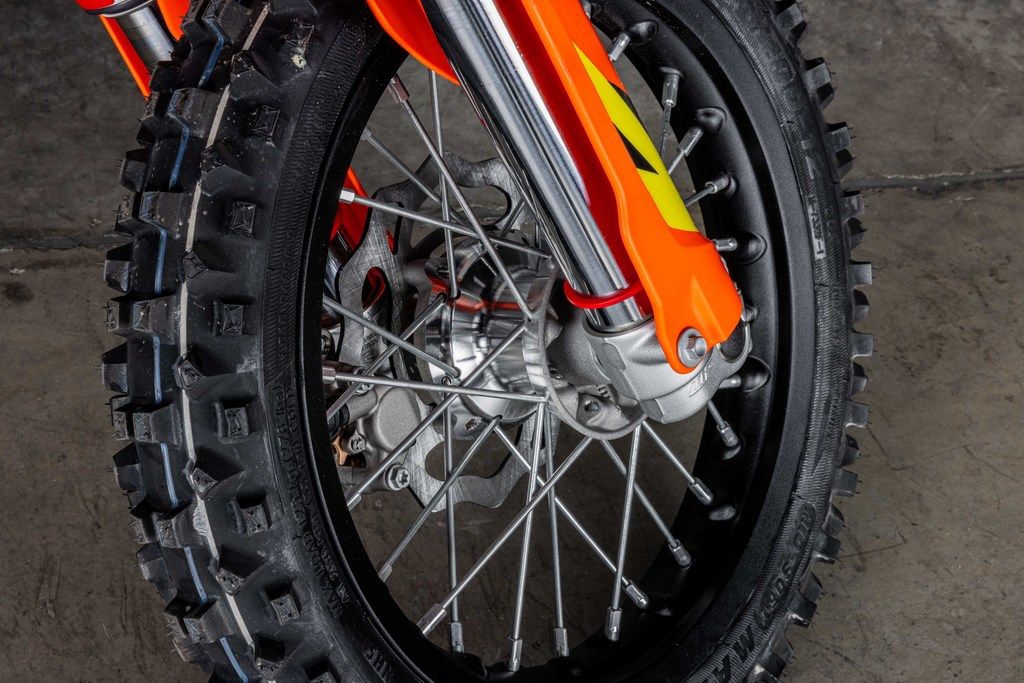

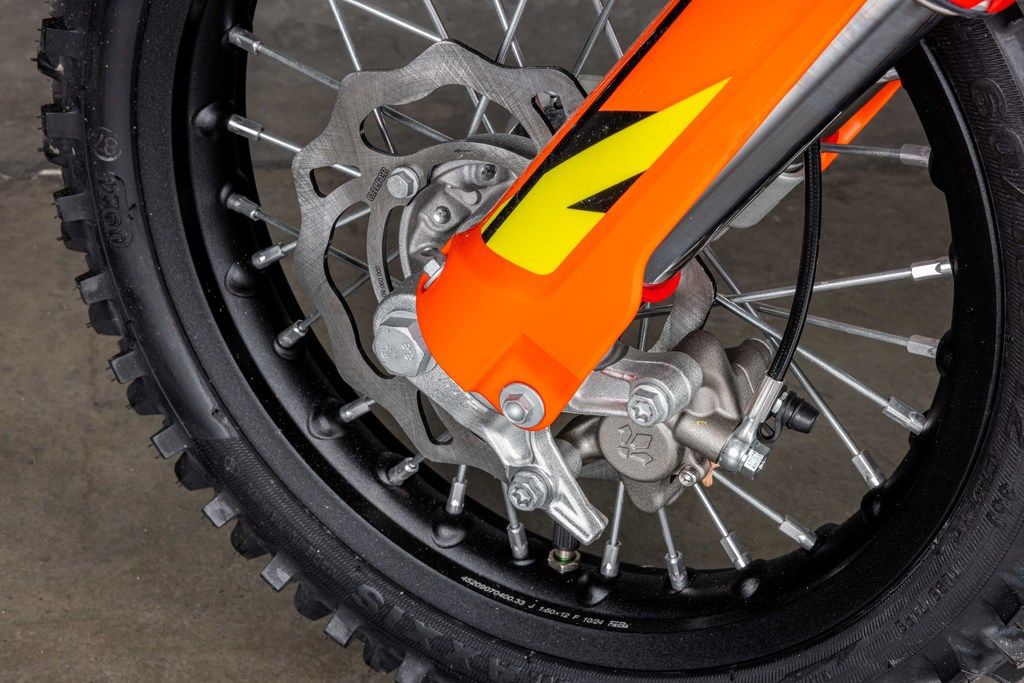

  • Front Brake: Hydraulic Disc
  • Front Brake Diameter (in): 6.3
  • Front Brake Diameter (mm): 160

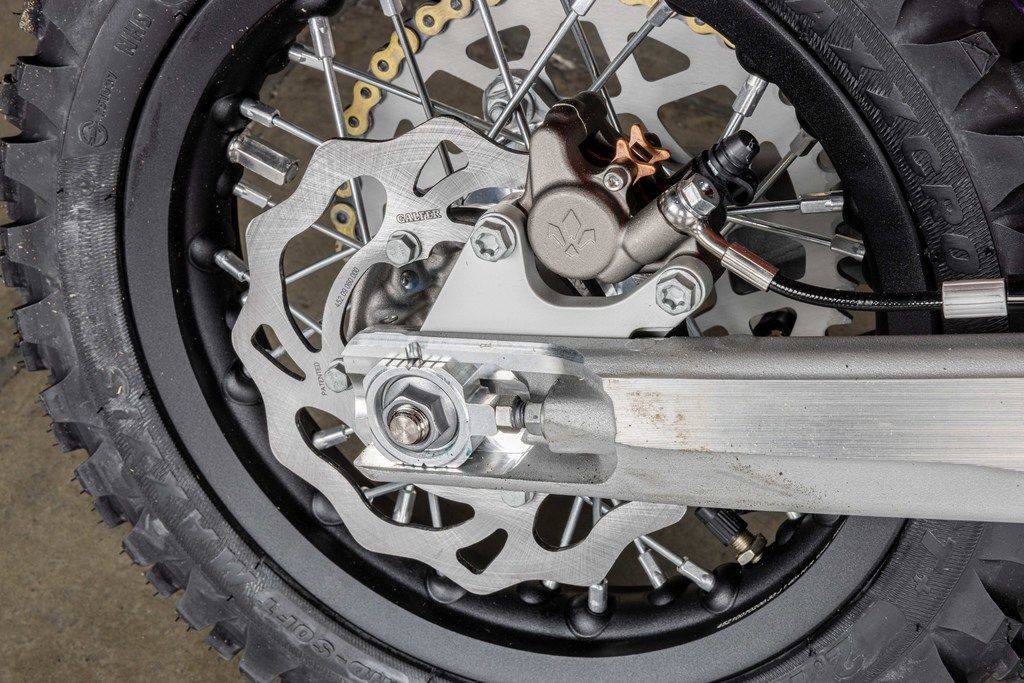

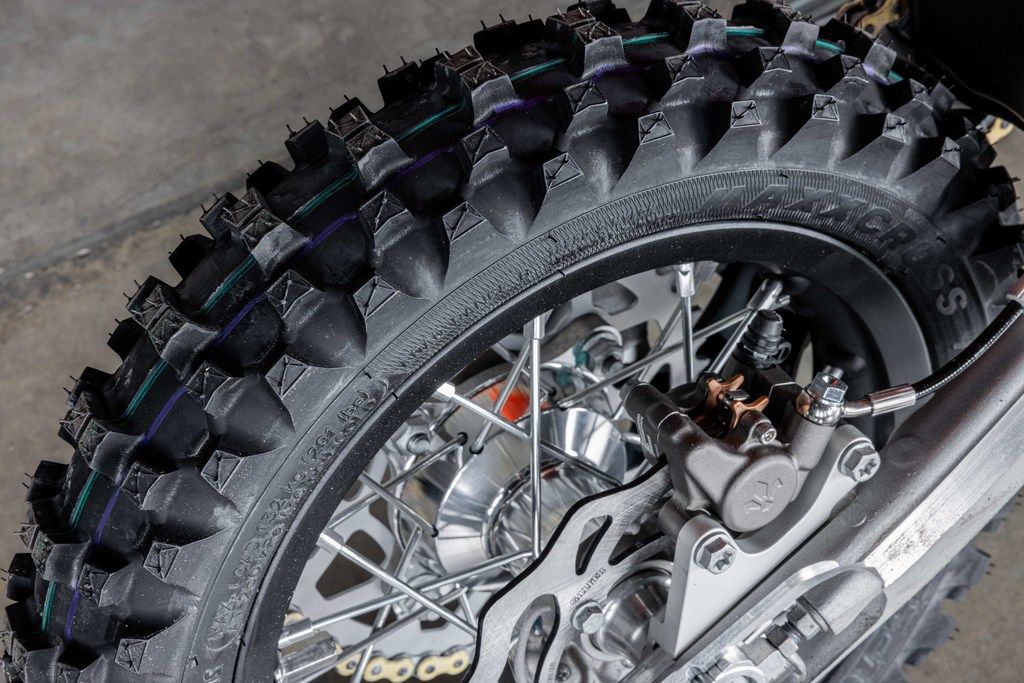

  • Rear Brake: Hydraulic Disc
  • Rear Brake Diameter (in): 6.3
  • Rear Brake Diameter (mm): 160
Chassis & Suspension
  • Frame: Chromium Molybdenum
  • Front Adjustable Fork Pre-Load
  • Front Adjustable Rebound Damping

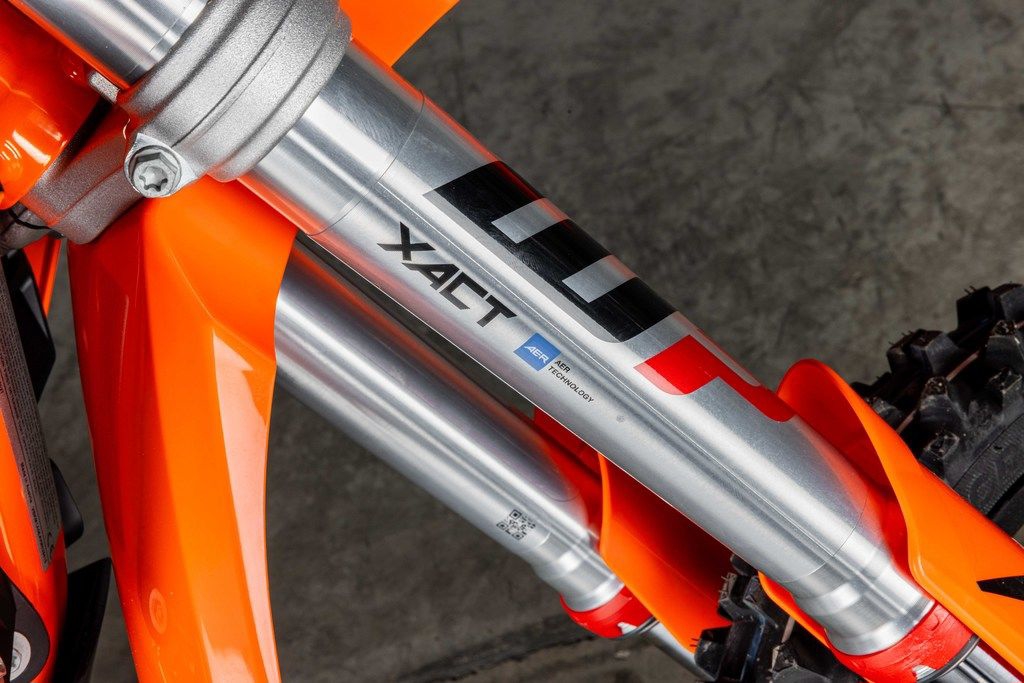

  • Front Suspension Brand Name: WP XACT
  • Front Suspension Size (in): 1.3
  • Front Suspension Size (mm): 35
  • Front Suspension Type: Inverted Fork
  • Front Travel (in): 8.1
  • Front Travel (mm): 205
  • Number Rear Shock Absorbers: 1
  • Rear Adjustable Rebound Damping

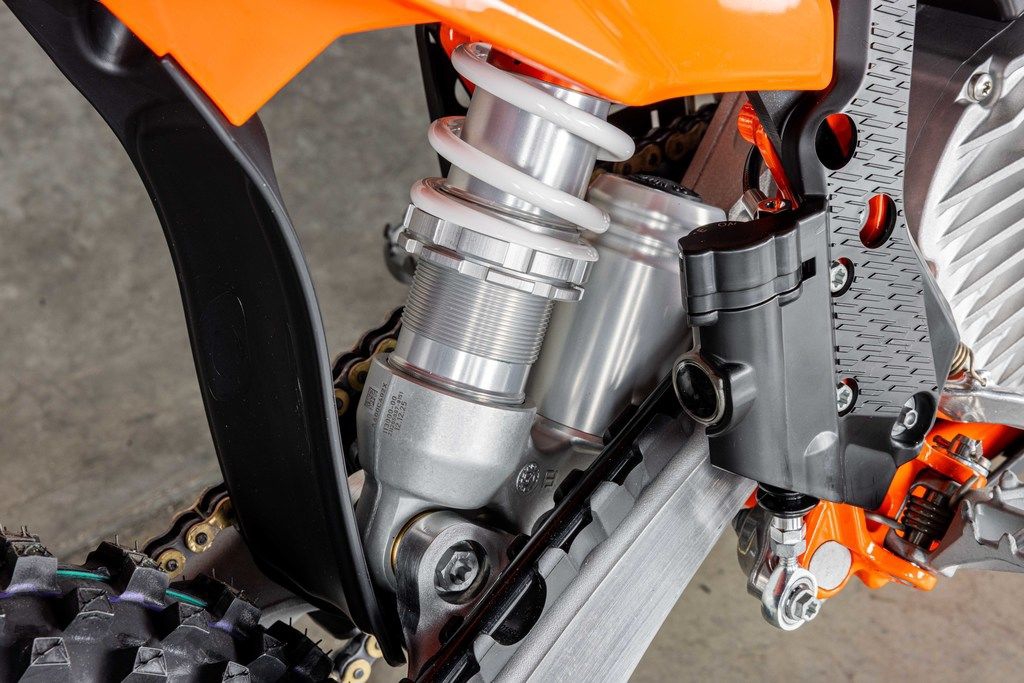

  • Rear Adjustable Shock / Spring Pre-Load
  • Rear Suspension Brand Name: WP XACT
  • Rear Suspension Material: Aluminum
  • Rear Suspension Type: Twin Sided Swing Arm
  • Rear Travel (in): 7.6
  • Rear Travel (mm): 193
Comfort
  • Adjustable Handlebars
Drivetrain
  • Number Of Speeds: 1

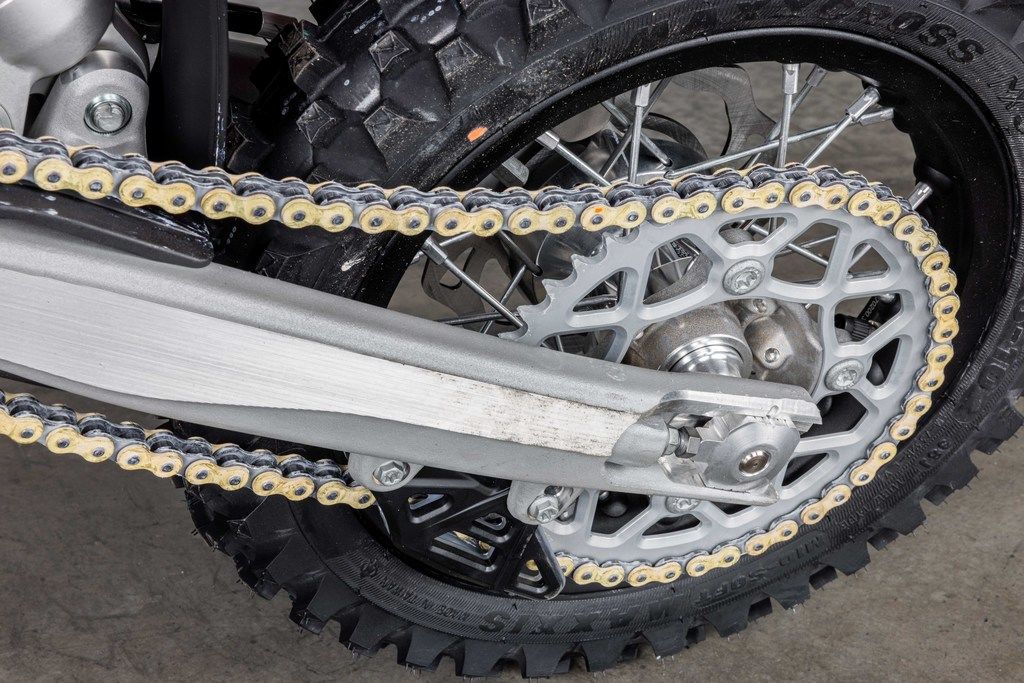

  • Primary Drive (Rear Wheel): Chain
  • Transmission: Direct Drive
Engine
  • Battery Charging System Battery Charging (kW): 0.9
  • Cooling System: Liquid
  • Electric Engine Maximum Running Time (Minutes): 120
  • Engine Size (cc): 0
  • Engine Type: Electric
  • Horsepower: 6
  • Horsepower (kW): 5
  • Horsepower RPM: 3900
  • Starter: Electric
  • Torque (Ft Lbs): 10.2
  • Torque (Nm): 13.8
Other Information
  • Battery
  • Battery Status Gauge
  • Decal Kit
  • Exterior Covers
  • Exterior Guards

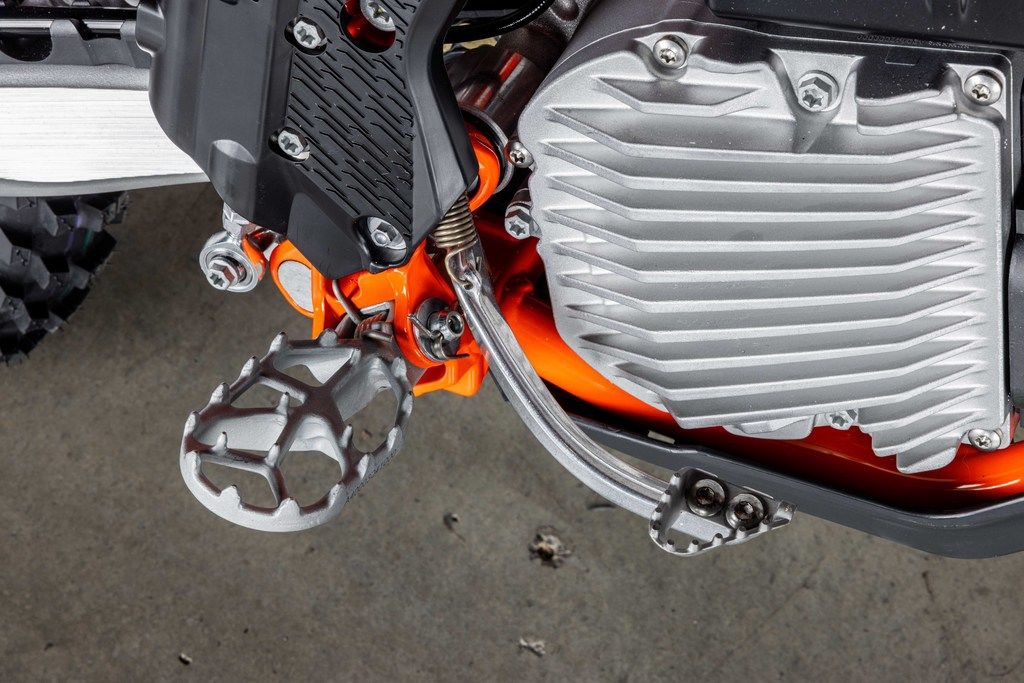

  • Foot Pegs
  • Foot Peg Location: Driver
  • Fork Guards

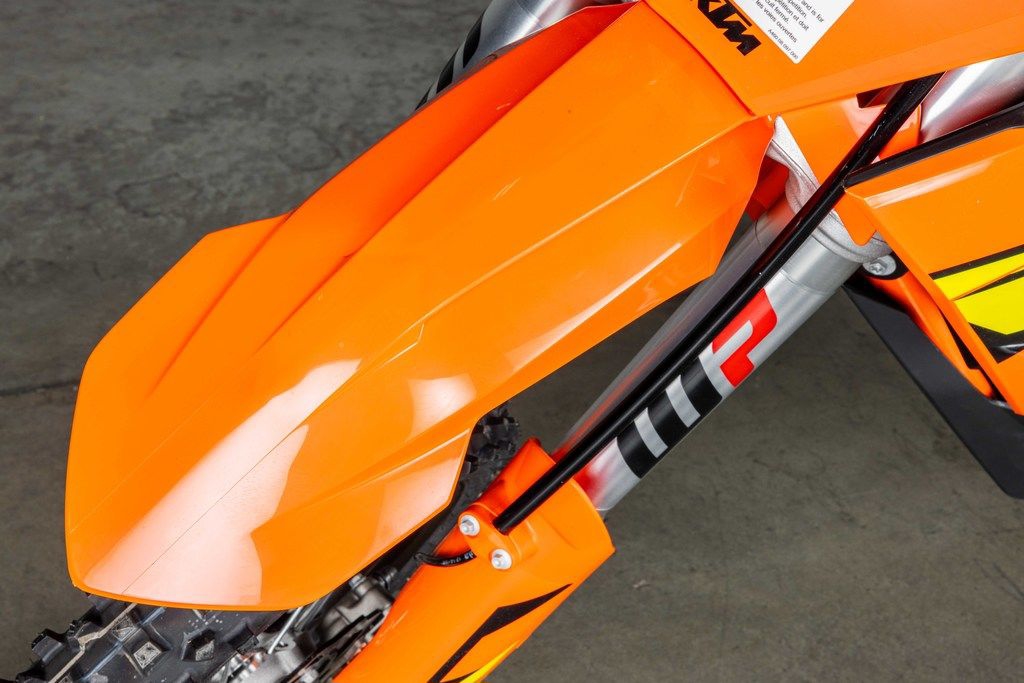

  • Front Fender
  • Hand Grips
  • Rear Fender
  • Stand
  • Stand Type: Kick
Safety
  • Parental Controls
  • Speed Governor
  • Skid Plate
Specifications
  • Battery Type: Lithium Ion
  • Battery Voltage (V): 48
  • Maximum Battery Capacity (Watts): 907
  • Number of Batteries: 1
  • Body Material: Plastic
  • Dry Weight (kg): 40.5
  • Dry Weight (lbs): 89
  • Front Tire (Full Spec): Maxxis MX-ST 60/100 R12
  • Front Tire (Inches): 12
  • Front Tire Aspect Ratio: 100
  • Front Tire Width: 60
  • Front Wheel Width (in): 1.5
  • Ground Clearance (in): 10.2
  • Ground Clearance (mm): 259
  • Rear Tire (Full Spec): Maxxis MX-ST 2.75 x 10
  • Rear Tire (Inches): 10
  • Rear Wheel Width (in): 1.6

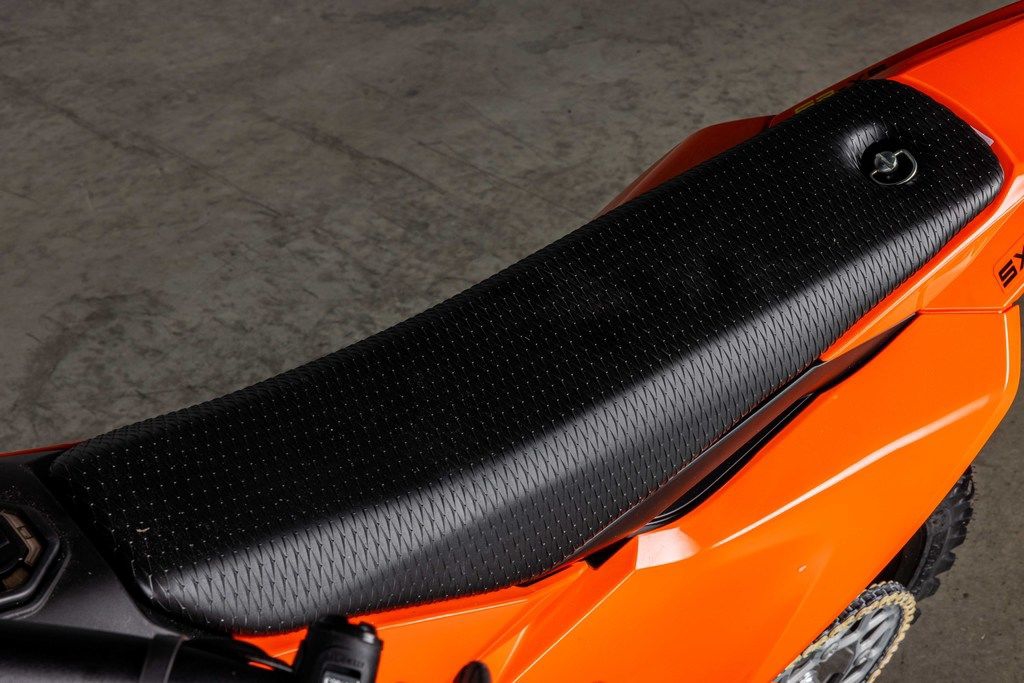

  • Seat Height (inches): 26
  • Tube / Tubeless: Tubed
  • Wheelbase (in): 40.5
  • Wheelbase (mm): 1028
  • Wheels Composition: Aluminum
